Leaking fuel from near injectors!

Discussion in 'Land Rover Freelander' started by FreelanderJohn, Aug 4, 2017.

< Previous Thread | Next Thread >
  1. FreelanderJohn

    FreelanderJohn Member

    Joined:
    Jan 23, 2017
    Posts:
    17
    Likes Received:
    0
    Location:
    Wimborne Dorset
    Hi all.

    I wonder if anyone has experienced the same?

    My Td4 freelander has a fuel leak from around where the injectors are. I've checked all the spill off pipes and it doesn't seem to noticeably be coming from them.

    It runs perfectly, no misses or anything so thought it must have been on he low pressure return side. You can't see a leak when it's running but if you take a trip somewhere then check when you get back there is a pool under the cover where the injectors are, which was then running down (when you turn right) and burning off on the exhaust causing diesel fumes inside the cabin through the vents. For now I have put some absorbent padding in where it pools so I can just change it out rather than have it running down. It's not a major leak and the mpg is still pretty good. It's just annoying and it shouldn't be doing it.

    I have checked all the injectors are tight in the assumption that the copper washer beneath the injector should prevent any leak through that way, but understand they have a rubber o ring on as well.

    Are these rubber seals prone to leakage if it's passing the copper washer beneath? Is there any way that the injector itself could be leaking? But I would have thought I would see that as it would be under high pressure?

    Any thoughts would be much appreciated before I start pulling injectors out etc.

    Cheers.

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,971
    Likes Received:
    6,962
    Location:
    Near Newquay
    The spill T piece O rings can cause spilled fuel to leak down the injector body. The T piece O rings can wear over time, so would be my first item to check.

  3. FreelanderJohn

    FreelanderJohn Member

    Joined:
    Jan 23, 2017
    Posts:
    17
    Likes Received:
    0
    Location:
    Wimborne Dorset
    Cool, I'll have a look at those first.

    It's weird because everything 'top side' of the injectors seems dry, it just pools around the bottom of them.

    Will check those out, thank you. Much appreciated.

  4. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,991
    Likes Received:
    456
    Location:
    Westmidlands
    I have come across this once before and it was one to the T piece connectors it had a crack in it, the owner kept complaining about diesel smell and small pool of diesel round the injector, when I checked the t piece had cracked just inside the top of the injector, being plastic they tend to go brittle over time I changed mine and the persons T pieces for the brass ones
    https://www.ebay.co.uk/itm/LAND-ROV...ECTOR-KIT-3-x-180-1-x-90-1m-Pipe/281404361492

    Last edited: Aug 14, 2019
  5. FreelanderJohn

    FreelanderJohn Member

    Joined:
    Jan 23, 2017
    Posts:
    17
    Likes Received:
    0
    Location:
    Wimborne Dorset
    That's great, thanks. They're cheaper than genuine Land Rover plastic ones too!

    Will give that a shot.

    Thanks again!

  6. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,554
    Likes Received:
    302
    Location:
    stoke-on-trent
    I had this once on my old freelander it was one of the injectors not seating properly I got a new washer and took the injector off and cleaned out all the old diesel some of which had gone hard and when I had finished getting all of it out put the hoover pipe down and sucked up any bits and put it all back and made sure everything was tight but check the torque as the little bolts easily snap

  7. FreelanderJohn

    FreelanderJohn Member

    Joined:
    Jan 23, 2017
    Posts:
    17
    Likes Received:
    0
    Location:
    Wimborne Dorset
    Ah, that's sounds logical, and would make sense of the top of the injector appearing to be dry.
    I've ordered a new kit for the spill off, might as well get a set of seals and washers for the injectors too. Should cover all bases then.

    Thank you. Much appreciated.

  8. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,554
    Likes Received:
    302
    Location:
    stoke-on-trent
    i got a very small flap wheel and cleaned it up that was but be careful if you scrape the bottom where the seal which is copper fits it might leak from there this is just a warning as I know somebody who got a big screw driver and really give it some and ended up he could not get it to seal in the end he got a second hand head.

  9. Colmhd1955

    Colmhd1955 Member

    Joined:
    Apr 2, 2019
    Posts:
    25
    Likes Received:
    3
    Location:
    Dublin.Ireland
    Interesting seems to point to a problem I'm having with a leak in the upper section at the injectors. Pooling, then overflowing if I don't see it in time followed by billowing smoke from under the bonnet at traffic lights!! Embarrassing! Thanks for the info.

  10. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,991
    Likes Received:
    456
    Location:
    Westmidlands
    Yes check the leak off connectors they go brittle and the seal wear, if found to be the fault change them for these below.

    https://www.ebay.co.uk/itm/LAND-ROV...ECTOR-KIT-3-x-180-1-x-90-1m-Pipe/281404361492

    Madmustang likes this.
  11. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,634
    Likes Received:
    560
    Location:
    Castleford
    This happens to a lot of us and as Artic2 has posted a link to the kit that solves that issue I can tell you it's easy to fit yourself in about 20 mins

  12. Boomstick

    Boomstick New Member

    Joined:
    Feb 9, 2020
    Posts:
    4
    Likes Received:
    0
    Location:
    Leeds
    Hi do you have a picture of this fitted?
    Got the same problem

  13. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,634
    Likes Received:
    560
    Location:
    Castleford

  14. Boomstick

    Boomstick New Member

    Joined:
    Feb 9, 2020
    Posts:
    4
    Likes Received:
    0
    Location:
    Leeds
    Thank you so much,

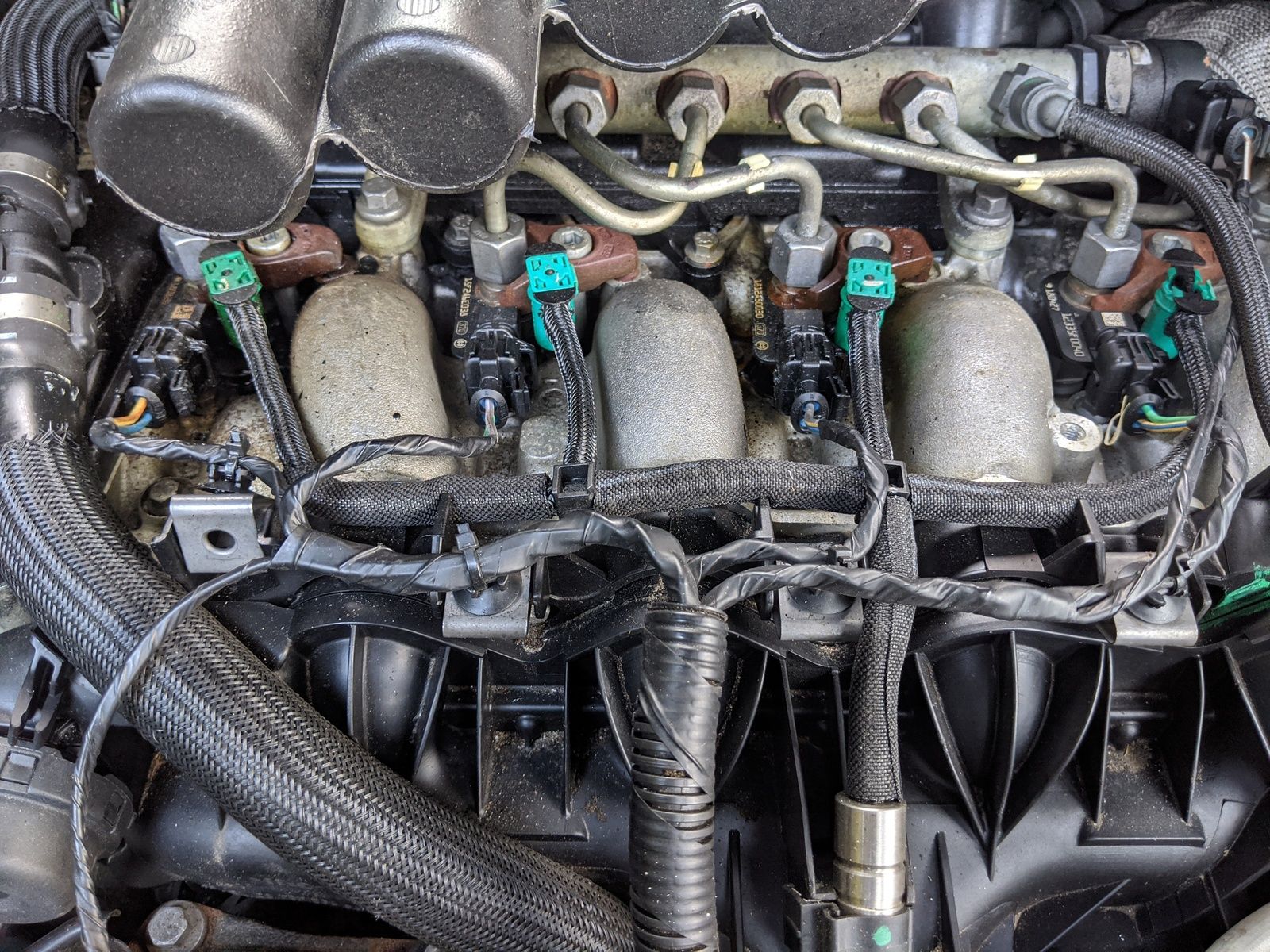

    Does this replace the green parts on my picture IMG_20200123_105609.jpg

  15. td4van

    td4van Well-Known Member

    Joined:
    Jun 17, 2012
    Posts:
    1,566
    Likes Received:
    197
    Location:
    Gloucestershire
    Yours looks like a Freelander 2 2.2 diesel and the spill return pipes are different to the BMW 2.0 Td4 references above.

    From memory the spill pipes are relatively cheap from Land Rover

  16. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,634
    Likes Received:
    560
    Location:
    Castleford
    No as thats not a freelander one TD4 engine dont know what you have there??
