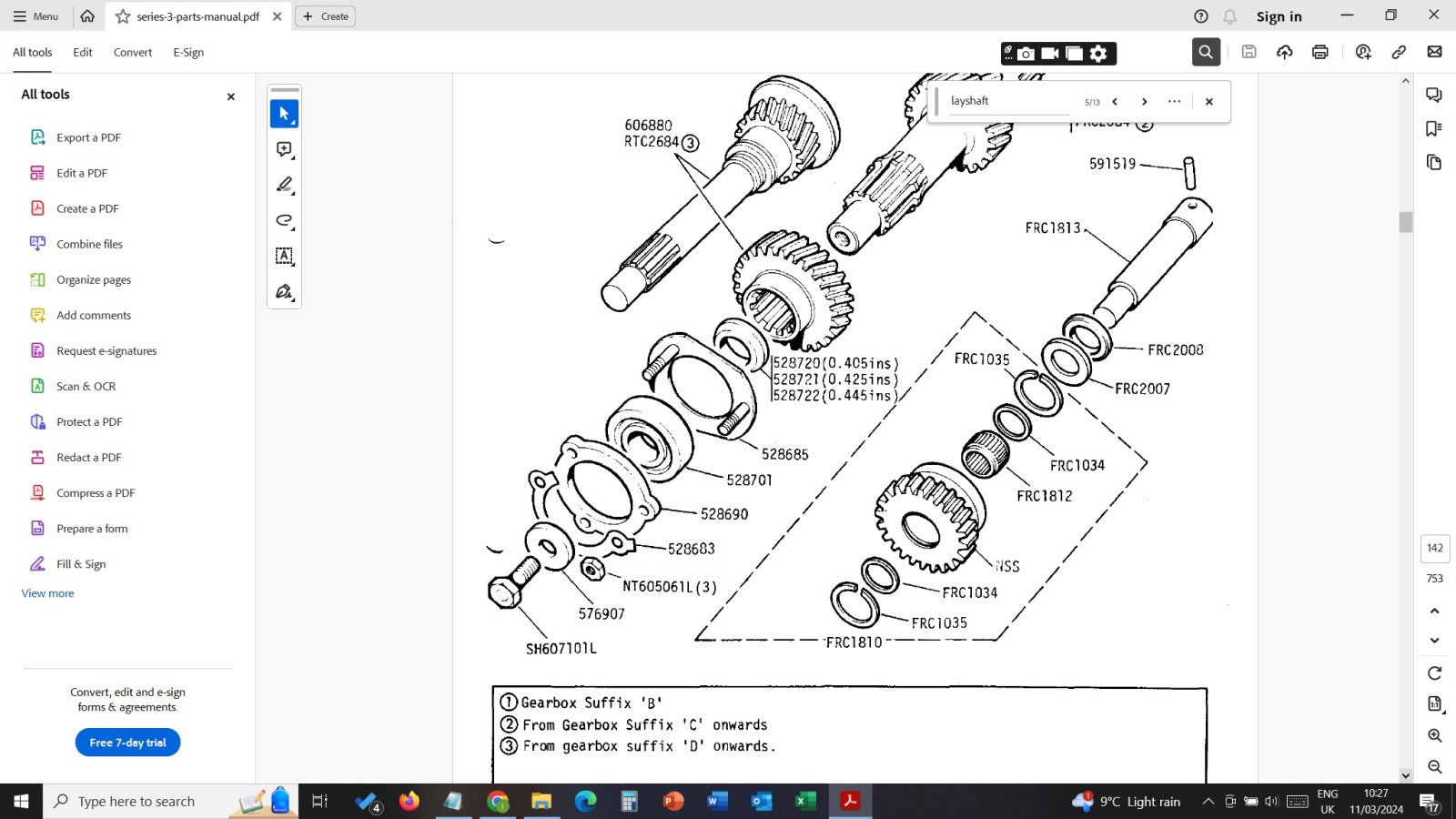

I am rebuilding the gearbox. I can see on the parts diagram that there is an oil seal at the front of the gearbox for the primary pinion (571059). So i was expecting to see an oil seal on the layshaft too. But there is nothing on the parts diagram. I can't see why oil won't pour out onto the clutch.
layshaft - why no oil seal
- Thread starter sprie
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
tottot
Well-Known Member
- Posts
- 8,077
- Location
- west wales coast
The front housing and its gasket keep the oil in box, input sticks out of housing so has a seal.
- Posts
- 33,910
- Location
- North Shropshire
I managed to snap mine (layshaft), years ago, not fun
tottot
Well-Known Member
- Posts
- 8,077
- Location
- west wales coast
I also did for one years ago, the 2/2a being multi part is not as strong as the series 3 one piece shaft.
