Land rover defender L230 box refurbishment

Discussion in 'Defender 90 / 110 / 130' started by Lej, May 17, 2021.

< Previous Thread | Next Thread >
  1. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon
    Hi guys,

    Just looking for a reliable place to either buy or get my LT230 transfer box refurbished.

    I currently have a 200tdi on a short bell-housing and I'm not sure if I'll have any problems matching up.
    I'm looking for a better ratio for road use, so any recommendations are welcome.

    Many thanks!

  2. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    6,005
    Likes Received:
    1,995
    Location:
    west wales coast
    Many fit a Disco transfer box. Higher ratio in high gear but still the same in low box.

  3. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon
    I think mines a Disco box, as I've got a disco 200 TDI and axles already, it will happily sit at 75 on the M5.

    How do I know which box is which?

    Thank you!

  4. P38-DFX

    P38-DFX P38 Enthusiast

    Joined:
    Feb 15, 2020
    Posts:
    335
    Likes Received:
    242
    Location:
    Notts
    Either Ashcroft or Winchester gears

  5. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon

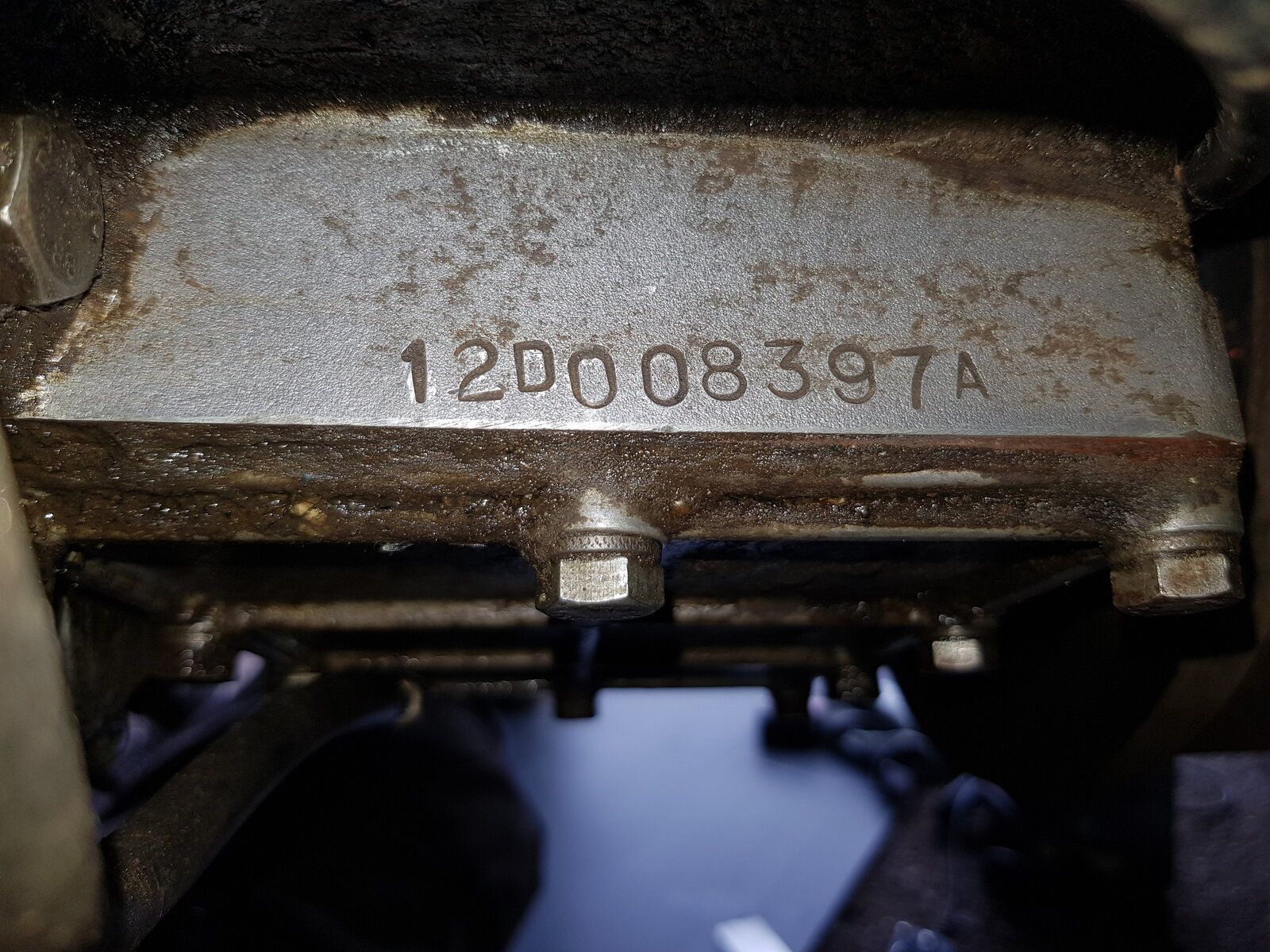

    This is the I.D on the box


    Attached Files:

  6. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,294
    Location:
    louth lincs
    thats a 1.667 the lowest ratio suits a 2.5 na, a 1.4 would feel better which is the std defender box for tdi

  7. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    6,005
    Likes Received:
    1,995
    Location:
    west wales coast
    thats a 1.667 the lowest ratio suits a 2.5 na,

    You must be revving the nuts off it at 75

    Hicap phill and Kev12 like this.
  8. MaxyMan

    MaxyMan Well-Known Member

    Joined:
    May 31, 2012
    Posts:
    2,534
    Likes Received:
    25
    Location:
    Hampshire
    I’ve got a 1.4 ratio box just taken off my td5 if your interested send me a message! Will be a lot better than that 1.6! It’s in excellent condition but I’m in Hampshire!

  9. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon
    So I'm after a 1.4 ratio std defender transfer box? Will the output shaft be ok for a short bell housing. And lastly what would the I.D be for one of them?

    Many thanks for your reply!

  10. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon
    Boost pin + rings, Garrett turbo, full face intercooler.

    The only thing revving it's nuts off is the transfer box, makes a horrendous noise lol

  11. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon
    Thank you for your consideration but unfortunately I'm all the way in Devon ☹️

  12. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,294
    Location:
    louth lincs
    yes all lt230s will fit,22d or 25d

  13. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon
    Right I think I'm getting it

    So I'm better off with a 22D = 1.410 (all 4Cyl 90/110 bar above)

    How do I know what I.D relates to what ratio?

  14. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,294
    Location:
    louth lincs
    Ratio
    Typical Applications
    12D
    R 1.667
    13D
    R 1.410

    14D
    R 1.003
    15D R

    1.192


    20D T 1.667
    Defender 4 Cyl Non Tdi
    22D
    T 1.410
    Defender 4 Cyl bar 2.5 Diesel Nat Asp.
    25D
    T 1.410
    Defender 110 V8 With LT85 Gearbox
    26D
    T 1.003
    RR Classic with 3 speed Chrysler Auto
    27D
    T 1.192
    RR Classic up to 1985
    28D
    T 1.222
    RR Classic 1986 0n & Disco 1
    29D T
    1.192
    Defender 90 V8 with LT85 Gearbox
    32D
    T 1.222 4 Cyl & V8 3.5 fitted With LT77S Box
    34D
    T 1.410 Discovery V8 & 2.0 Mpi
    36D
    Q 1.211 Discovery
    37D Q

    Discovery

    38D
    Q
    1.211
    Defender V8 4.0
    40D Q 1.211
    Japan / South Africa
    41D
    T 1.211 Disco 2 With Diff Lock Stud
    42D T 1.211

    43D
    1.410
    Defender TD5

  15. Lej

    Lej Active Member

    Joined:
    Sep 10, 2018
    Posts:
    126
    Likes Received:
    18
    Location:
    Devon
    Perfect, thank you so much for your help. I think I'll put an order in with Winchester gears for a refurbished 22D T 1.410
    Defender 4 Cyl bar 2.5Diesel Nat Asp.

  16. Harry121

    Harry121 Active Member

    Joined:
    Jan 7, 2021
    Posts:
    139
    Likes Received:
    49
    Location:
    Chippenham
    Hi

    Unsure where to post this and how to post it or find the right place so will start here until pointed in the right direction. I own a Land Rover 90 originally was a 200 then someone put a 300lump in then I purchased it. Been having loads of fun until the other day the engine mounts gave way. Not a big issue as we are going to take it out make new mounts because whoever did it before didn’t do them properly. We then noticed the bell housing bolts we are missing about 3 at the bottom but we can’t get any in as they don’t line up what or how do I fix this ? Is it a new gearbox etc to fit I’m a bit unsure. Thank you in advance
