L322 2006 electronic

holidaychicken said:

You could give us a clue as to what version of the L322 2006 you have I guess.

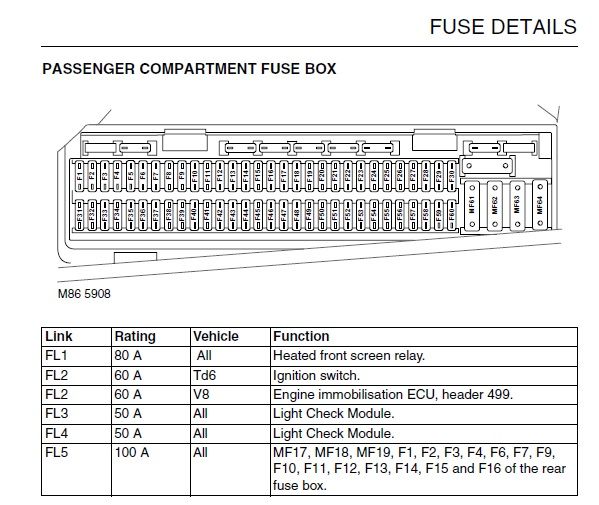

There are fusible links that I believe are behind the passenger compartment fuse box, there is a 100 Amp one that looks like it supplies the fuse box.
Have you downloaded a copy of Rave Manual Electronics Library ?

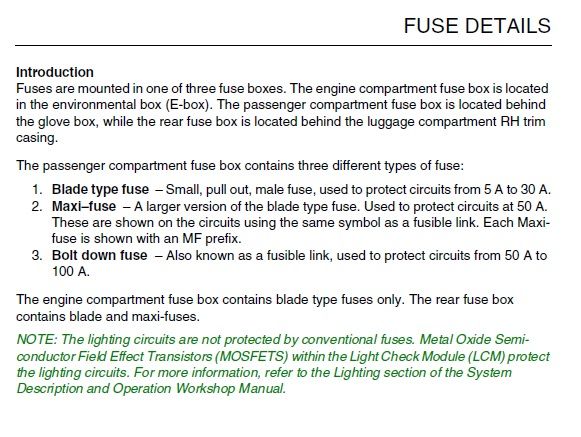

View attachment 149510

View attachment 149511

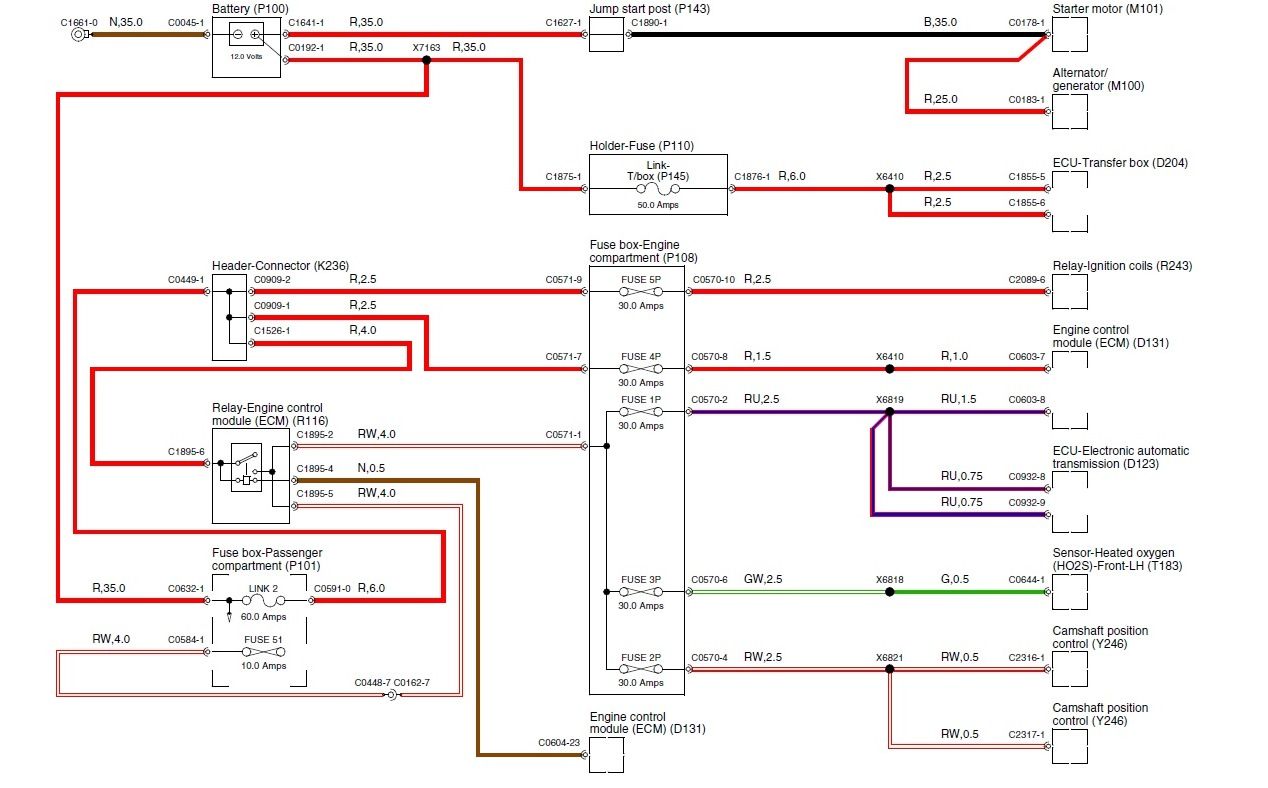

View attachment 149512

Click to expand...

holidaychicken said:

You could give us a clue as to what version of the L322 2006 you have I guess.
There are fusible links that I believe are behind the passenger compartment fuse box, there is a 100 Amp one that looks like it supplies the fuse box.
Have you downloaded a copy of Rave Manual Electronics Library ?

View attachment 149510

View attachment 149511

View attachment 149512

Click to expand...

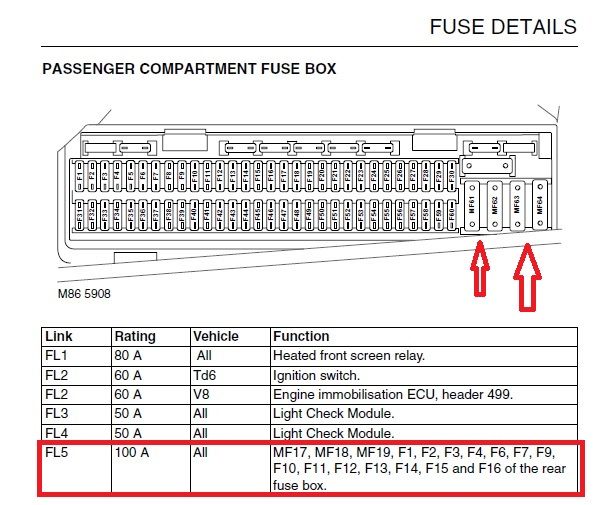

You're right. It has fuses on the back of the fuse box. They are all fine with me and yet I had a complete power los on all systems. It is a 2006 L322 4.2 liter supercharger. After reading these entries, I went on for the search but I didn’t found out why I had no power on the fuse box behind the glove compartment. But when I removed the cover in the footwell, all power supplies were ok again.
I removed the fuse box and checked all connections. nothing extraordinary. Now the thing is complained again and I had no problem the last few days diving. Do you have any idea whether the circuit board could have an influence? thank you and greetings from switzerland.
