Key Ignition Switch | 2008 Vogue SC

Discussion in 'Range Rover' started by LUV2XLR8, Jun 6, 2015.

< Previous Thread | Next Thread >
  1. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai
    Hi All,



    Subject: Key won't turn to switch on engine



    Diagnosis & Symptoms

    Steering Wheel Locked
    Cannot move key to the right, but can remove the key
    Tried wiggled Key
    Tried Key Circular Motion
    Tried steering wheel left and right while turning key
    Tried spare key
    Tried locking & locking door
    Tried turn signal left and right few times
    Tried adjusting the steering position
    Tried folding side mirrors
    Check Fuse 18 (could not find, attached)
    Jump start (Did not try)


    Solutions

    New Keys?
    New Ignition Switch
    New Battery?
    New Alternator?
    New Transponder?
    ECU Fault?
    Clamp on battery poles loose?
    Bad connections?
    New sensor ring (Around key hole, not reading Transponder)
    Remove Plunger?



    My Case


    Took key out, removed the (-) cable from battery, waited ten minutes, re-attached. Started car, key in ignition switch and key turned. Parked car underground. Managed to make the wife happy for about ten minutes….round 2? :D


    Question

    Is the Battery almost dead (Currently AC Delco) or is it the Ignition Switch? Possibly the Alternator..?

    Would be nice to throw out the Plunger? :boxing:



    (How do I upload videos? Extensions used? Allowed?)




    Appreciate the support. Thanks all.

  2. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    11,933
    Likes Received:
    3,182
    Location:
    wirral and triquivijate
    Is the video of how you made your wife happy for 10 minutes?;) Must be a record.:D:D

  3. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai
    anyone else like to share their support :confused2:

  4. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,459
    Likes Received:
    3,644
    Location:
    Near Poitiers SW France
    First step is check the battery voltage IMO.

  5. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    11,933
    Likes Received:
    3,182
    Location:
    wirral and triquivijate
    Sense of humour level needs increasing ;)

  6. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,459
    Likes Received:
    3,644
    Location:
    Near Poitiers SW France
    He bought a 2008 L322 supercharged so he must have a sense of humour:rolleyes::D:D:D

  7. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    11,933
    Likes Received:
    3,182
    Location:
    wirral and triquivijate
    Or a masochist :rolleyes::D:D:D

  8. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai

    :5biagree: :beer2:



    luv2xlr8 :lvlove-160:


    Tomcat59allan :banana:










    2nd attempt to remove (-) terminal on battery , wait 10 mins, reconnect and turn key switch, engine on success.
    Was worried as previously read this attempt is only possible once.

    Changing battery and hope all goes well.

  9. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai

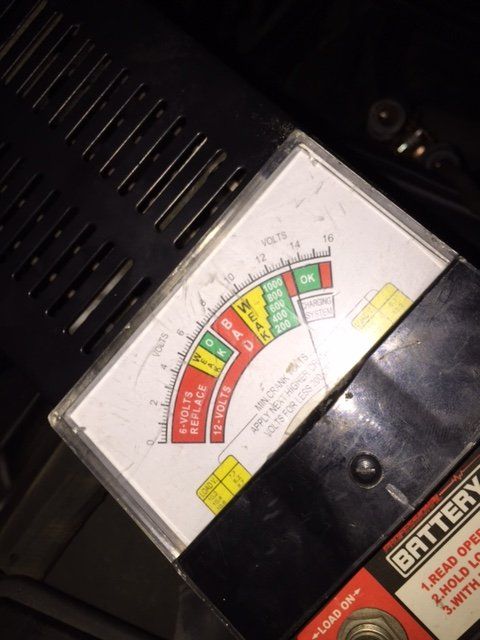

    Went to a battery shop down the road, took a reading on the existing battery, (attached pic) guy said battery low. Previous owner did mention its best to change the battery (over 2 years old), so went ahead and changed it as it doesn't cost much, just under £70 all incl.

    Started her up, worked fine…reached home, parked up, turned off, keys out….
    keys back in, tried switch her on ..and saw that one coming.. :faint2:

    After breaking a few sweats under 45 degrees of sun and running around finding a battery…back to where it all started..

    Now what? Help please :confused:


    Attached Files:

  10. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,974
    Likes Received:
    1,130
    Location:
    Kent
    If you search rangerovers.net for a thread 'key won't turn in ignition', there are a few solutions on there, it's a few threads past your identical thread to this one on there, including the steering lock common fault and towards the end a guy explaining how he repairs the fault you have. .
    It's also been covered a few times on here if you use the search function.

    Last edited: Jun 7, 2015
  11. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai
    Im checking that now. Thanks.

  12. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    11,933
    Likes Received:
    3,182
    Location:
    wirral and triquivijate
    Have you checked the alternator output?

  13. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai
    Thank you for the response holiday chicken.

    > Alternator is working fine and the new battery voltage is showing OK on the green marker as per the reader/Battery is new.

    > Transponder in keys are fine (no key change two originals) and key battery are good

    > Checked all connections, and there good too.


    I feel that the key does not want to communicate with the steering and ignition switch.

    When I do the terminal negative disconnect and then back to start the car she seems so much more happy and willingly turns and she's alive and kicking..

    It seems like its a programming, ECU or some kind of software fix required? I don't see why any parts should be changed? Hope its not the $1500 Steering Column/Steering Lock ECU…
    Might be alright with the ignition switch or just the sensor behind the ignition switch?


    That said, I am reading posts which are years old and worry that maybe its outdated?

    I remember reading that the steering issues stopped because range rover changed them at a certain point, or are they like this up to a certain year? 2009 , 2010, 2011 ?


    Seems like I might have to take her in to the dealer, $120 for a read and diagnosis… :eek:


    She's parked n the basement with a plyer and adjustable wrench..feels good opening the bonnet and getting those hands dirty for the battery trick, wish I could do more than that..
    (Will attempt brakes n pads soon as mines are not far away from dead)

    Must say people passing by thinking hmm, looks like we have a mechanic on the house…I like that..little do they know :D


    Anyone with final advice please, it's taking up to much of my time? :scratching_chin:

  14. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai

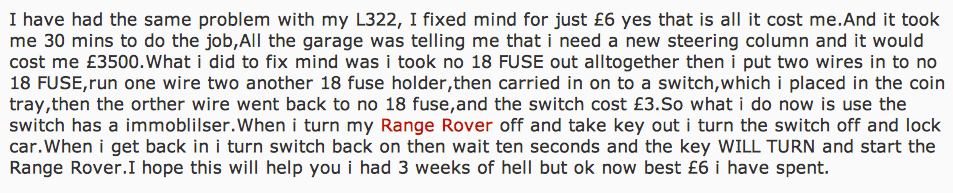

    I wouldn't mind trying screen shot attached. Seems relatively cost effective and a good way of solving the problem.

    But again, would it work for the 2008 Models, sorry, no idea.. :5bbanghead:

    If it does work, for how long?


    Attached Files:

  15. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,974
    Likes Received:
    1,130
    Location:
    Kent
    This is from the rangerovers.net thread i mentioned, its post 46.

    Unhook your battery for a couple minutes and hook it back up. If the key turns on ONCE the column is definitely bad. If it does nothing, no sound or clicking. its most likely the immobilizer box behind the ignition switch. Its white. I have repaired over a hundred columns and all of them made some sort of noise. Don't assume the worst. Also turn your key upside down and put black rounded head into the ignition slot cavity. Sometimes the transponder coil wire breaks free from the blade.

    and the thread is here

    Key will not turn in ignition

    This seems the most likely i can find and in the post is a steering column fix from one of the landrover magazines, i would have a good read and see if it relates to you

    Apologies for linking to the competition....:(

  16. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai

    Thanks HC, really appreciate the support! Yes i have read it and also counts for a solution but depends.

    Spoke to a few garages who gave different methods...I am heading over now to one today, he doesn't charge and arm and a leg... it seems to be the solenoid pin, can only know for sure when he plugs her up and diagnosis the exact issue.

    Lets leave it at that for now and will come back with the solution.


    Thanks again.

  17. daniel782

    daniel782 Member

    Joined:
    Jun 7, 2008
    Posts:
    27
    Likes Received:
    0
    Location:
    Surrey
    Seems I have the same problem as you, only I tried swapping my key fob around with a new spare key that I brought. And then later on that day I couldn't start my car. And don't have a spare key.

    My key won't turn either after disconnecting the battery or pulling fuse 18 and I can't here any clicking noises. I'm hoping its that fact that I messed around with my key.

    But you said you had a spare key and that didn't work either??

    I've tried calling autolocksmiths but typically it seems they can't replace those keys, it looks like main dealer only.

  18. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai

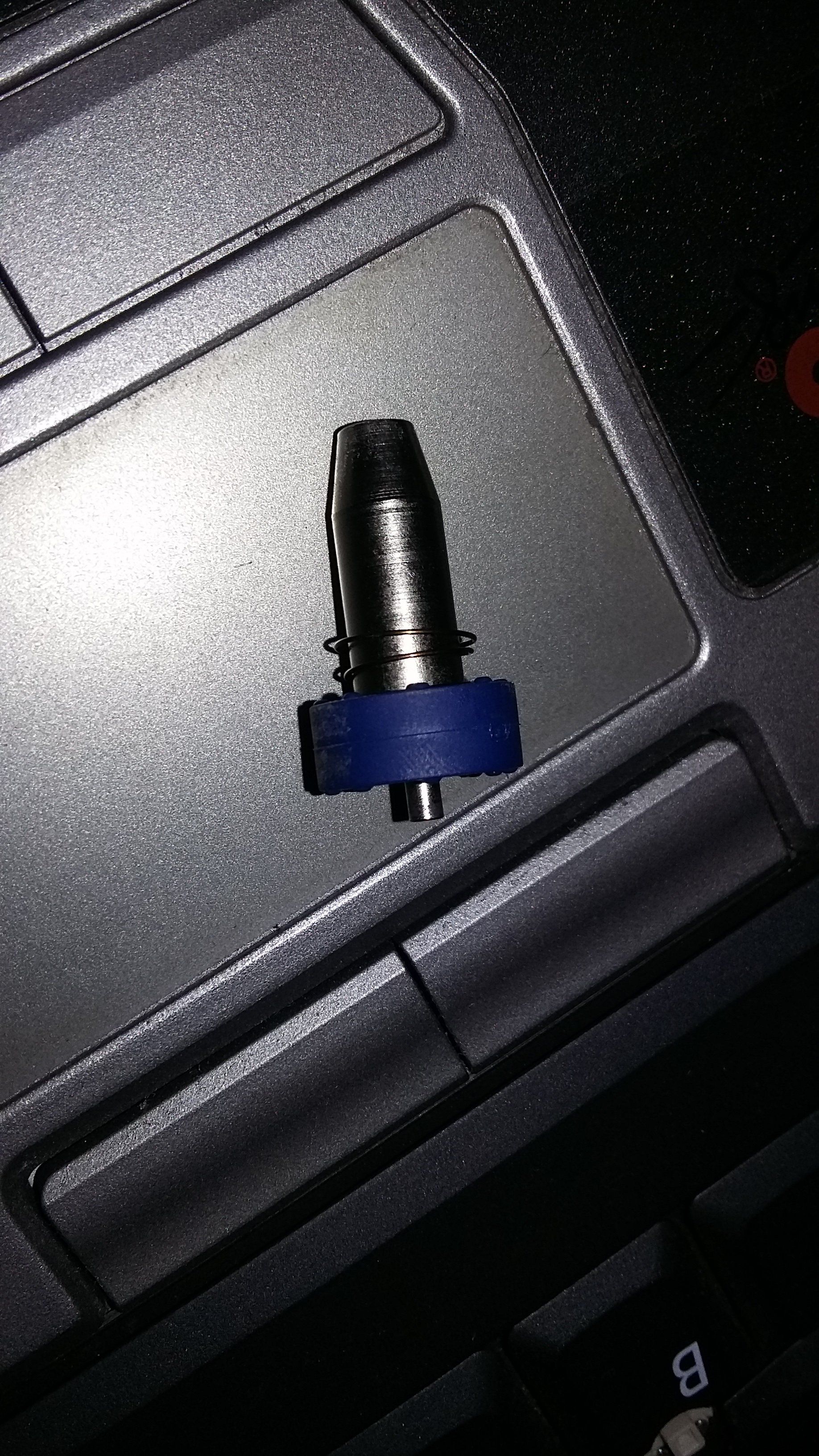

    Attached pic.

    This is the Solenoid pin a.k.a plunger..

    It was either removed or adjusted. Garage said it was adjusted and he could comment any further but assured all is fine now...

    Problem gone and fixed. Can move the key and start engine..

    Almost for two weeks now no problems. Hope it stays that way..

    Only one thing, sign reading "Key in Ignition Lock" after switching vehicle off, sometimes...

    Funny, all works just fine…


    $300 for the job.


    Attached Files:

    Last edited: Jun 25, 2015
  19. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    11,933
    Likes Received:
    3,182
    Location:
    wirral and triquivijate
    I used to get that message on my P38, bit of graphite dust down the key hole sorted mine.:)

  20. LUV2XLR8

    LUV2XLR8 Member

    Joined:
    Jul 29, 2013
    Posts:
    43
    Likes Received:
    0
    Location:
    Dubai

    hows that done exactly?

    Thanks Tom
