Series 3 Injector stud part number

WoodyO · Jan 1, 2021

Good evening all,

Can anyone help with the part number for the injector studs?

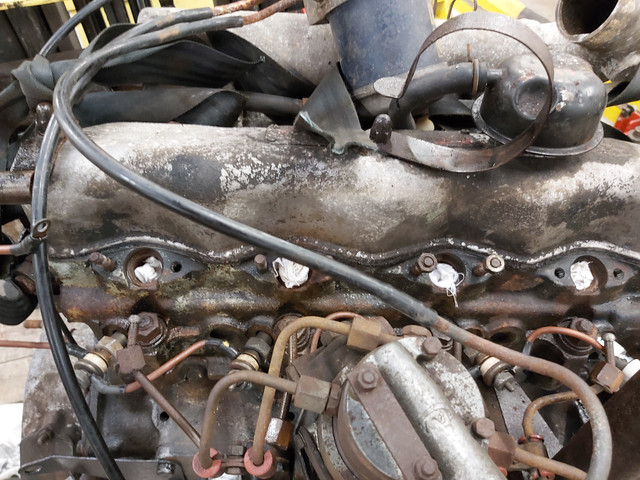

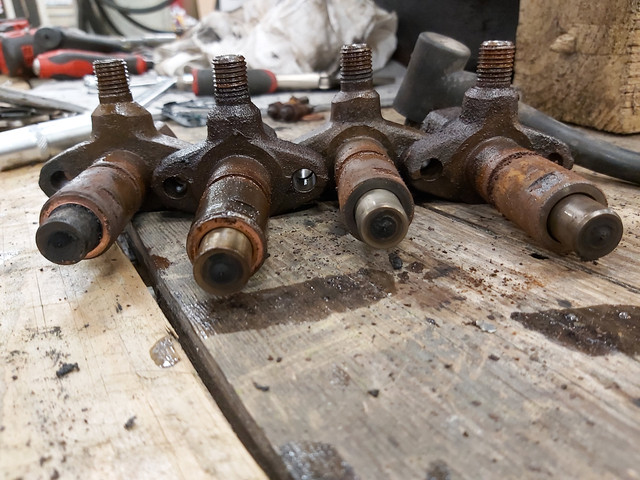

I've recently pulled the injectors from my 1973 2.25 diesel 3 bearing, they all came out okay but some of the studs came out of the head with the nuts. The offending studs are very corroded so I'd rather replace than try to fit the old ones back in.

I've scoured the parts diagrams but can't find them.

Thanks

Blackburn · Jan 1, 2021

Studs are on cylinder head page highlighted in yellow left centre

WoodyO · Jan 1, 2021

Thanks, I did see those and had a look online but saw them listed as exhaust manifold studs somewhere. However now you've pointed it out, they're clearly on the wrong side for exhaust manifold studs.

Thanks!

Bobsticle · Jan 1, 2021

Same size as manifold on my 5 bearing. Not sure of the thread though. But they deffo go in either as I kept them all in the same jam jar.

Blackburn · Jan 1, 2021

Blanchards list them as stud various aplications, beware the second number listed will be for the later metric variant f you have a later engine
Stud Various Applications Genuine 596097 G
£0.48

WoodyO · Jan 1, 2021

Thanks both, I was putting in a Paddocks order today so put a few on the list. Just clicked confirm so I'm sure I'll remember something else shortly.
