Ifor Williams Hard Top - Hi Cap for Series 1?

DPG213

Member

Posts

20

Location

Lincolnshire

• Aug 18, 2022

• #1

Hi,

I've been told that a 110 Hi Capacity IW canopy for a Defender will fit onto a 109" Series 1 without modification? Does anyone know if this is true?
Truck bed measures 1455mm x 1850mm inside capping to inside capping and 1545mm x 1940mm for outside to outside - if anyone has one they could measure that'd be appreciated.

Thanks,
Dalton



H

Hicap phill

Well-Known Member

Posts

16,326

Location

Wiltshire

• Aug 18, 2022

• #2

A hi cap is wider…but I think the length is correct.
Wait till Friday/Saturday & I will measure my rear tub width

I have shortened the length which is easy.



H

Hicap phill

Well-Known Member

Posts

16,326

Location

Wiltshire

• Aug 18, 2022

• #3

Have you got the truck cab for your S1?
(If that motor is the same as profile picture it’s a 107)



DPG213

Member

Posts

20

Location

Lincolnshire

• Aug 18, 2022

• #4

Sold the 107” Station Wagon last year, I’ve got a 109” LWB pick up now and hasn’t come with any form of canopy/canvas (need to update avatar). Ideally could do with a hardtop to keep tools/ dogs enclosed but also need it to be easily removeable for carting bigger items/ stacks of logs etc so I thought an Ifor Williams would be ideal.



DPG213

Member

Posts

20

Location

Lincolnshire

• Aug 18, 2022

• #5

Just spied your initial message - that’d be great if you could. How much of a pain are they to make narrower?



V

V8bob

Well-Known Member

Posts

199

Location

Midlands

• Aug 18, 2022

• #6

This any use…..
https://www.barlowtrailers.co.uk/image/catalog/PDF/canopy_fitting_guide.pdf



H

Hicap phill

Well-Known Member

Posts

16,326

Location

Wiltshire

• Aug 18, 2022

• #7

DPG213 said:

Just spied your initial message - that’d be great if you could. How much of a pain are they to make narrower?

Click to expand...

You would have to cut the arch ribs on the top. Then do 1 slice through the the roof & overlap the roof sheet. Pop rivit together
You would need to strengthen the ribs after.

it may be easier to add some wood/flat metal onto the back body to change dimensions



H

Hicap phill

Well-Known Member

Posts

16,326

Location

Wiltshire

• Aug 19, 2022

• #8

@DPG213
Rear tub width
67 “
171 cm
Ifor roof width
69 3/4”
174cm

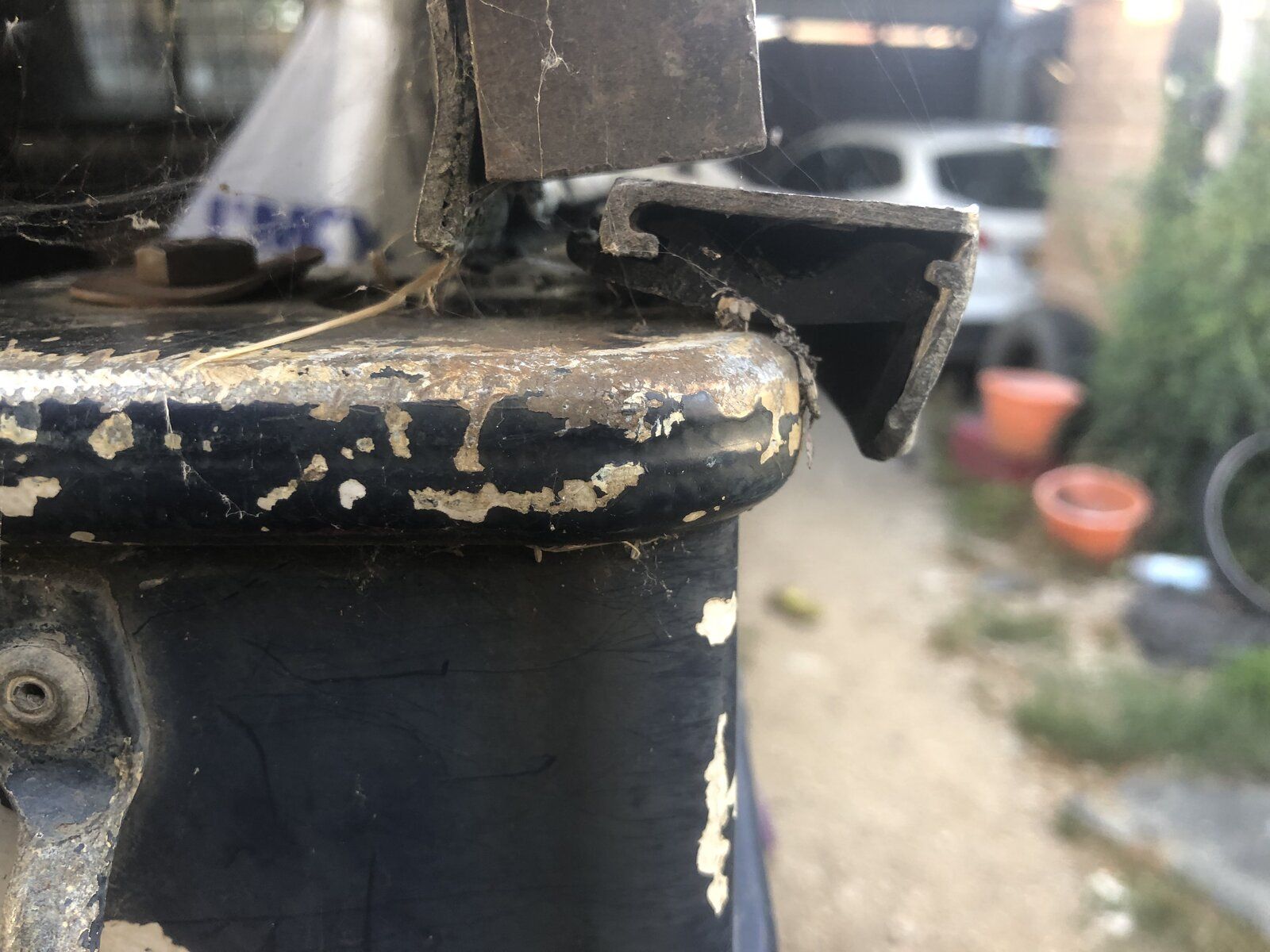

as you can see the roof does not sit on much. Mine is held on with 4 8mm bolts.
