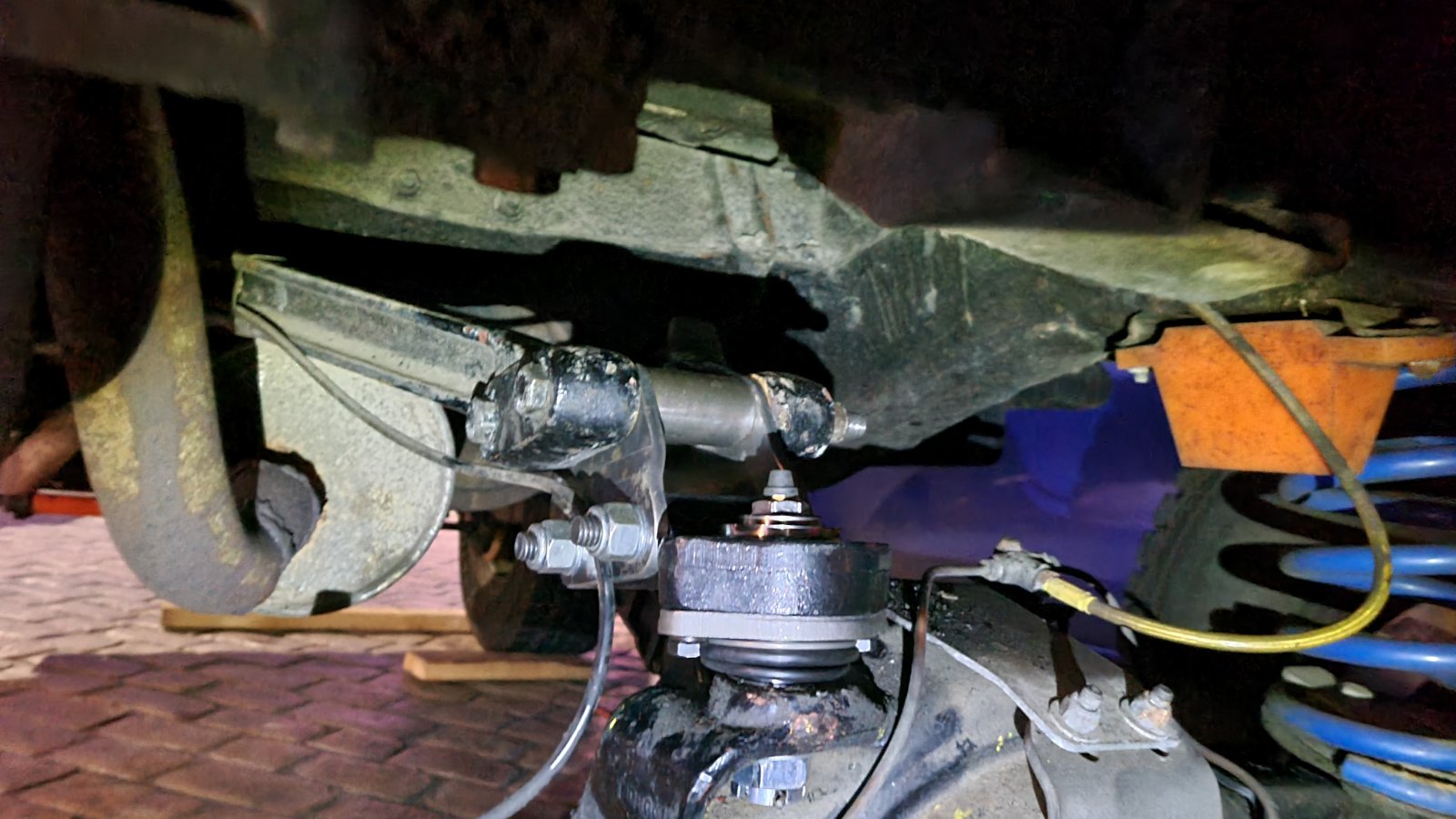

Well, this angle looks extreme to me. Do you think I will ever get this to run vibration free.
I got this as a non runner and I am slowly working through the issues. It now runs and is safe.....

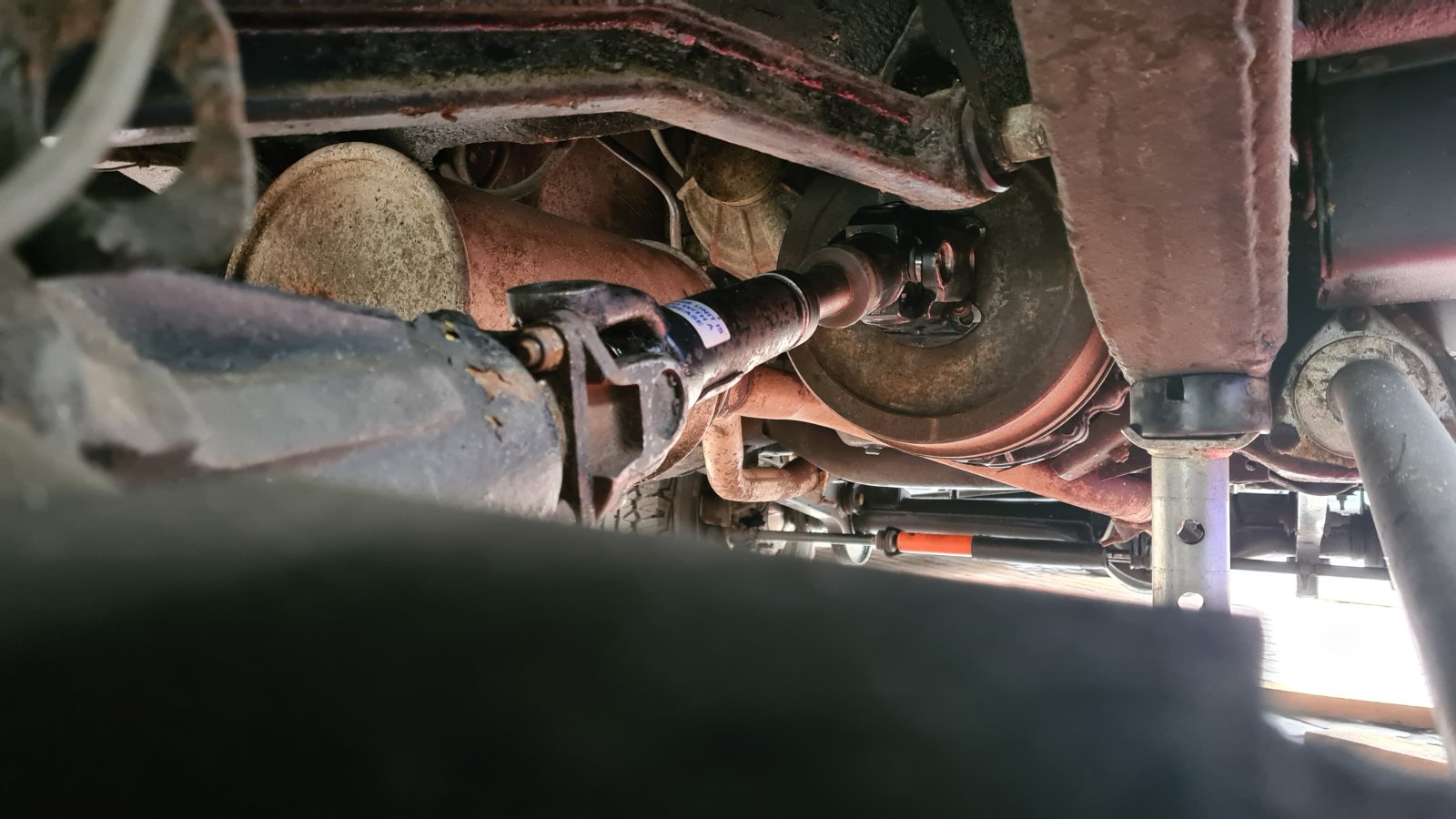

.I put a 45 degree out of phase on the front prop and it has reduced the vibration.
To the point I removed the rear prop and went for a nice vibration free drive. So the front prop is sorted, the cranked arms at the front have retained the diff flange angle for the RRC.

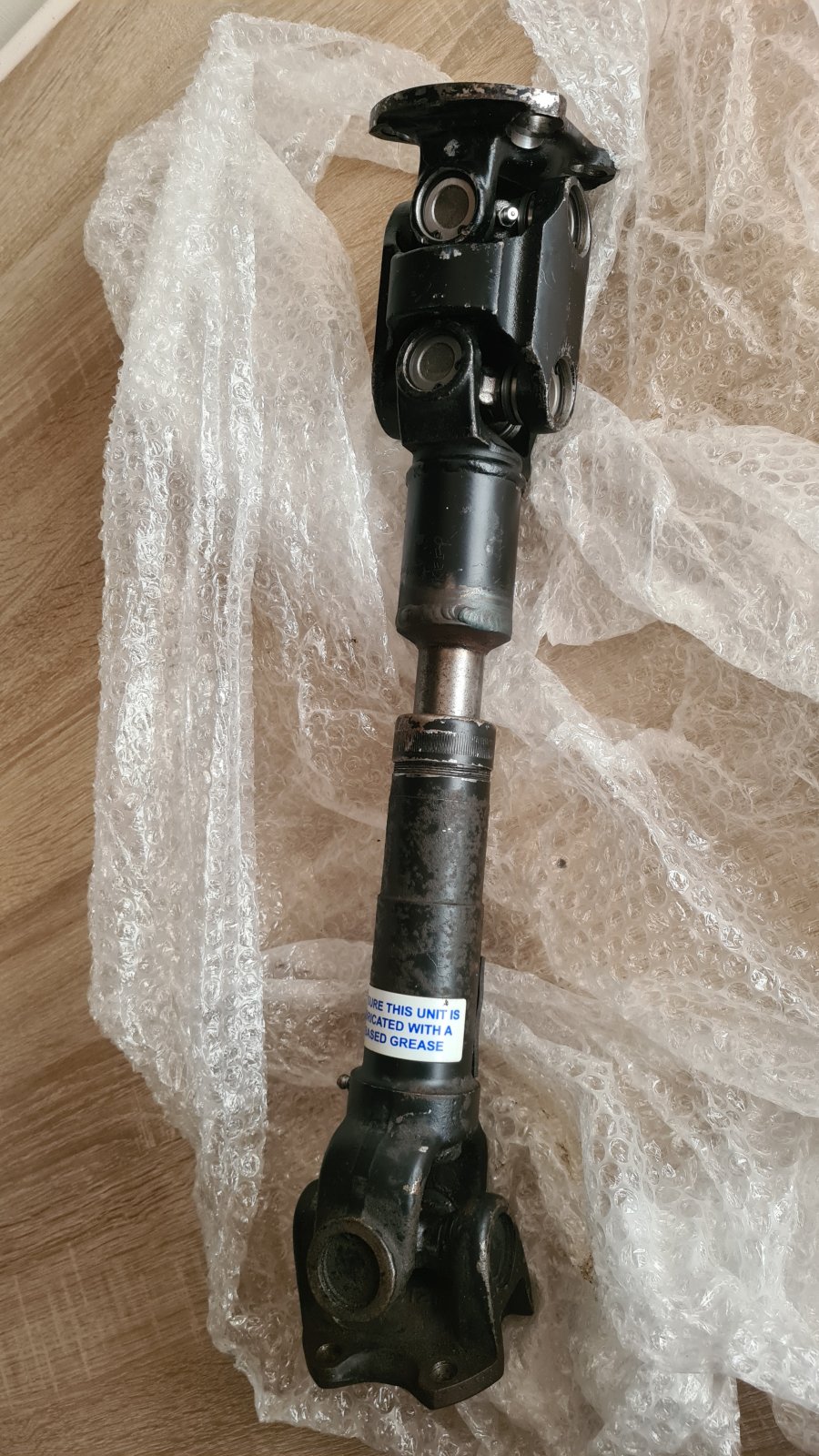

I reckon the solution is to remove the 2". Then start aligning everything again. Will need standard front and back arms again though, unless there is another solution I don't know? Double cardon joint, custom rear prop.
