home made rock sliders
- Thread starter davewaugh
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
80mm x 40mm x 5mm box section approx 1500mm each side. you'll also need some 42mm OD tubing and a piece of thick plate (I'm using 10mm) for the brackets etc. do a search on here and you'll find a step by step guide somewhere.
matt harvey
New Member
- Posts
- 317
- Location
- liverpool
im just thinkin up somethin, was thinkin of usin scaffoldin tube but not sure how it will all work as yet
CaptainChaos
New Member
- Posts
- 1,098
- Location
- KERNOW

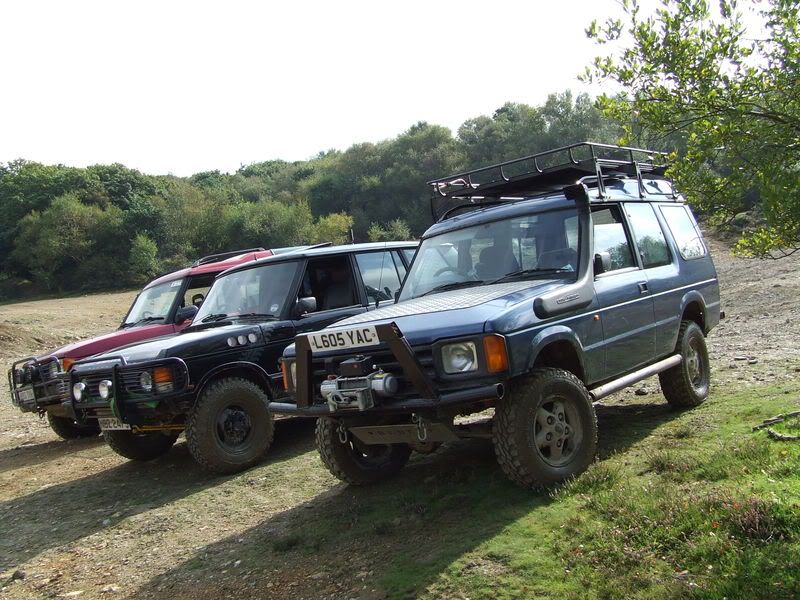

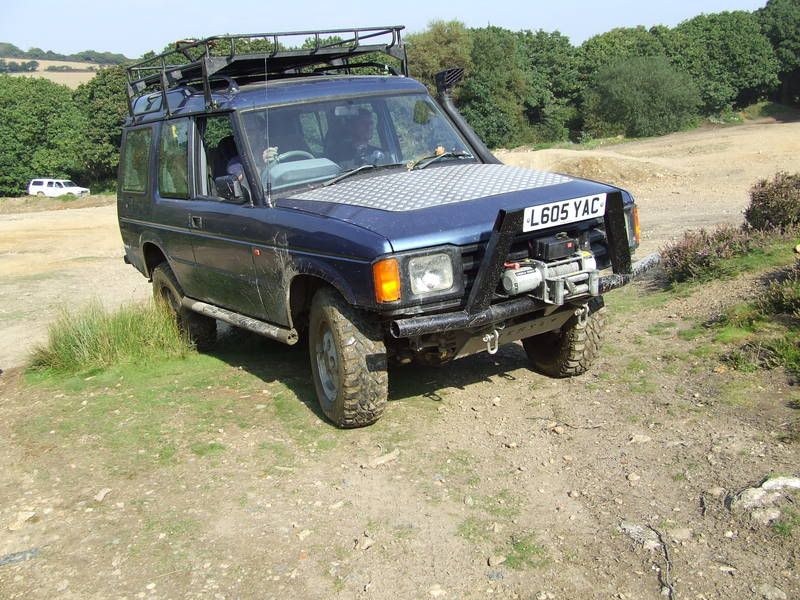

Saw a Disco the other weekend with scaffold rock sliders ......... everything he had protection wise was homemade apart from his steering guard (a man after my own heart there)
Heres a couple of pics of it which may help ???
Nice bit of work that! Just goes to show there ain't many problems you can't sort out with a bit of scaffold pipe, a little knowledge & carefully applied brute force!Saw a Disco the other weekend with scaffold rock sliders ......... everything he had protection wise was homemade apart from his steering guard (a man after my own heart there)
Heres a couple of pics of it which may help ???
matt harvey
New Member
- Posts
- 317
- Location
- liverpool
cheers cap'n very helpful indeed
nuggets
Banned
- Posts
- 903
seems a big large diameter for scaff pipe thoughSaw a Disco the other weekend with scaffold rock sliders ......... everything he had protection wise was homemade apart from his steering guard (a man after my own heart there)
Heres a couple of pics of it which may help ???
CaptainChaos
New Member
- Posts
- 1,098
- Location
- KERNOW
nuggets
Banned
- Posts
- 903
Swot he said it was made from
the ones on l 605 yac are not scaffold pipe as its only 2 inch diameter ,and they are a lot thicker than that
rustyrhinos
Well-Known Member
- Posts
- 2,625
- Location
- Stamford, Lincs
Not a bad effort on the disco, but personally I would put caps on the end!
But if you put caps on the end water would sit in there and it would rust from the inside out.
buckshot
Well-Known Member
- Posts
- 9,841
- Location
- right yer!
most scaffold tub is'nt up to the job anyway its rolled and seam welded not proper tube if you try to bend it the wrong direction it will split
