P38A Help ??????

Discussion in 'Range Rover' started by pete12345, Apr 2, 2020.

< Previous Thread | Next Thread >
  1. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,751
    Likes Received:
    4,589
    Location:
    heathrow
    The pictured bit is the anti rollbar.

  2. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy
    Ok cheers at least i won't need one of them will just respray it

  3. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy

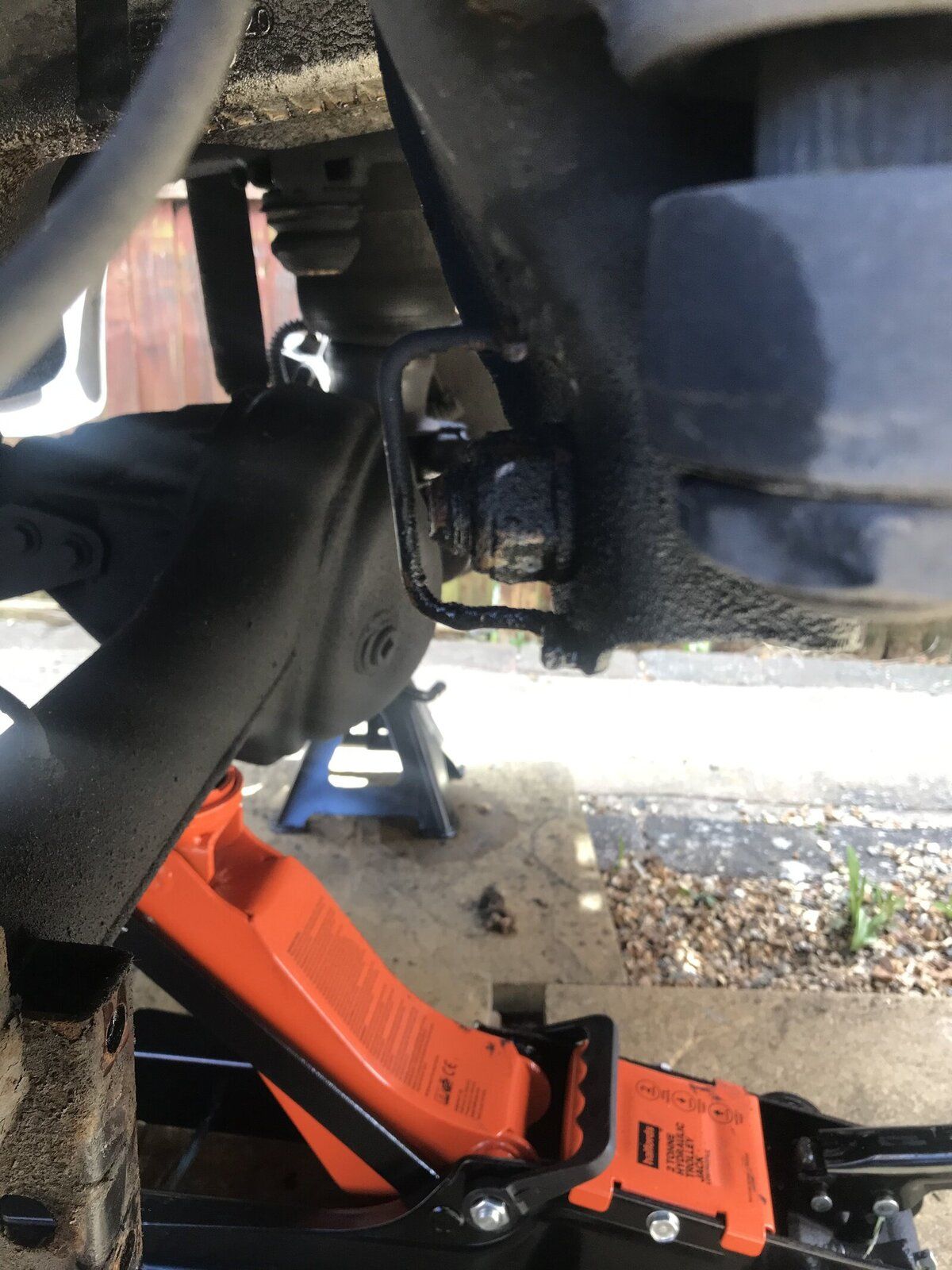

    How the hell do you get a spanner on this nut all help appreciated


    Attached Files:

  4. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,354
    Likes Received:
    2,597
    Location:
    sud ouest France
    Open ended spanner and turn the bolt via the head with a suitable 12 pan socket. ;)

  5. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy
    Cheers my bloody spanner didn't go in that gap I may have to cut the bracket off I wasn't sure if it was welded that side still got to get myself a socket for the other side anyway none of mine fit

  6. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy

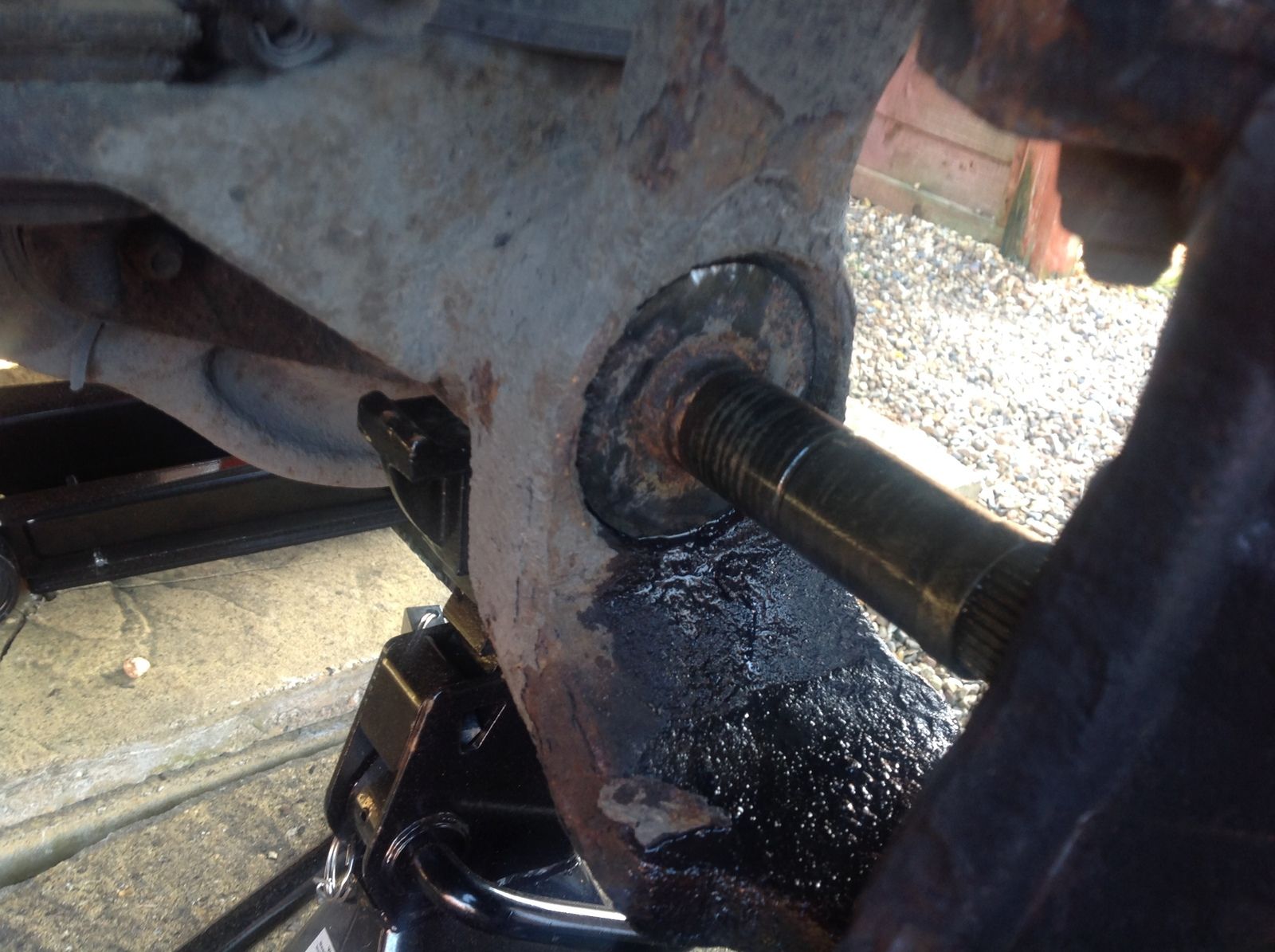

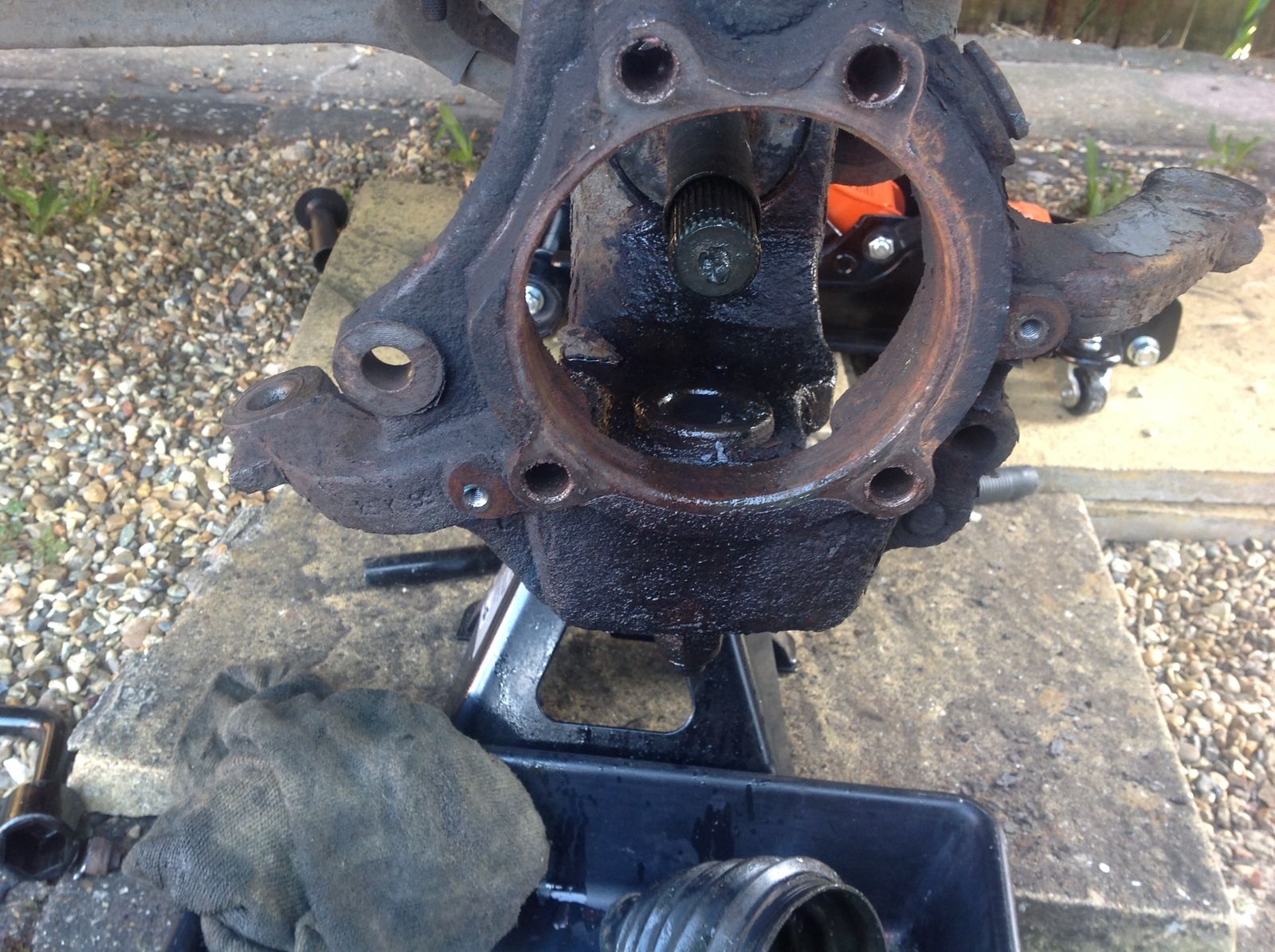

    Managed to separate the hub and get the viscous coupling out should I replace the oil seal and the big washer on the end of the axle before replacing it all


    Attached Files:

    RangeRoller dt likes this.
  7. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    1,934
    Likes Received:
    1,135
    Viscous coupling? Do you mean constant velocity joint?
    http://new.lrcat.com/#!/1234/87921/88041
    Click on the subheadings & then the blue number on the part.
    Usually prudent to replace seals if you've got things apart.

  8. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,879
    Location:
    Near Poitiers SW France
    It looks as though you need to replace the oil seal on he axle especially as you have it all apart.

    Grrrrrr likes this.
  9. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,354
    Likes Received:
    2,597
    Location:
    sud ouest France
    Ive landed an upper and lower ball joint job today with new seals as a matter of course for a client's P38.
    Big clamp time!! He's already putting release oil around the hub and abs sensors waiting for the parts. :D
    So I'll be doing the same as yourself plus the ball joints. :cool:

    Last edited: Apr 7, 2020
  10. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy
    Im doing ball joints aswell and thanks for the advice on oil seal and big washer I think you will have the job done long before me as I'm complete novice and stuck at home so may aswell find something to do but will probably wait till I return to work before laying out funds on new parts I don't think my partner would ever understand that she struggles to understand when I'm at work

  11. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy
    And thanks ratae that link looks helpful for the novice I am

  12. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,354
    Likes Received:
    2,597
    Location:
    sud ouest France
    When you look at the bottom ball joint nut that holds it in, there is also a collar that adjusts the height of the hub assembly, DO NOT adjust the collar. It will have been adjusted to suit the seal as well. If you adjust it by mistake you'll be forever chewing one face of the seal, upper or lower. So no no no! You going to need a big bush removal tool or something heavy and similar. The ball joints take a little persuasion to move. Pressure, heat and a few taps from a mallet hell to move them if they are really stuck in place. The top ball joint does go up and down in its cup. The bottom ball joint doesn't at all.
    There are only three times the ball joints can be replaced before the holes are too stretched. Check for markings in the axle case near the ball joint holes. I've seen them welded into the holes :eek:

  13. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy
    My mistake mark I'm not attempting the ball joints I've no press I ment front bearings

    Mark Piercy likes this.
  14. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,354
    Likes Received:
    2,597
    Location:
    sud ouest France
    Are you getting the bearing assembly and carrier or just the bearing. The bearing and carrier assembly is easier... Ish to do but the bearing needs a good press to shift 'em.
    Don't be sorry, be prepared ;)

  15. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy
    I was thinking of getting the carrier & bearing already assembled a decent one or do you think you should go with original on shuchan important part

  16. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy

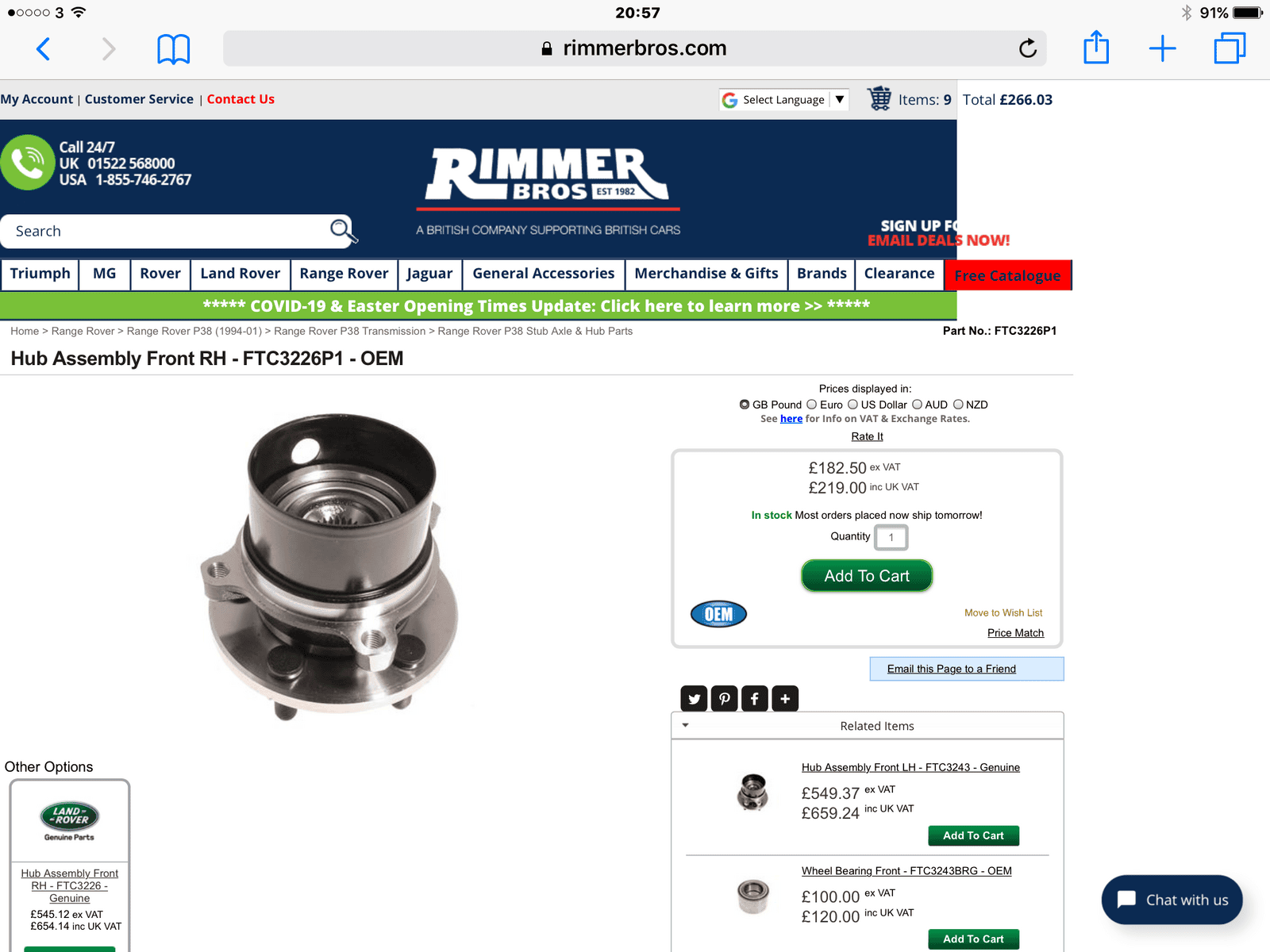

    Something like this


    Attached Files:

  17. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,354
    Likes Received:
    2,597
    Location:
    sud ouest France
  18. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    14,043
    Likes Received:
    3,840
    Location:
    Buckinghamshire, UK. ('95 DT)
    I've got a feeling a firm in Birmingham does them with a Timken bearing for a very reasonable price. @MrGorsky might know.

  19. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,244
    Likes Received:
    199
    Location:
    Isle Sheppy
    Cheers grrrr yer 200 a pop with the timken bearing

  20. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,354
    Likes Received:
    2,597
    Location:
    sud ouest France
    Thats why the last one lasted all this time:D
