Help with wipeswitch wire's

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Redlandy66

New Member
Posts
7

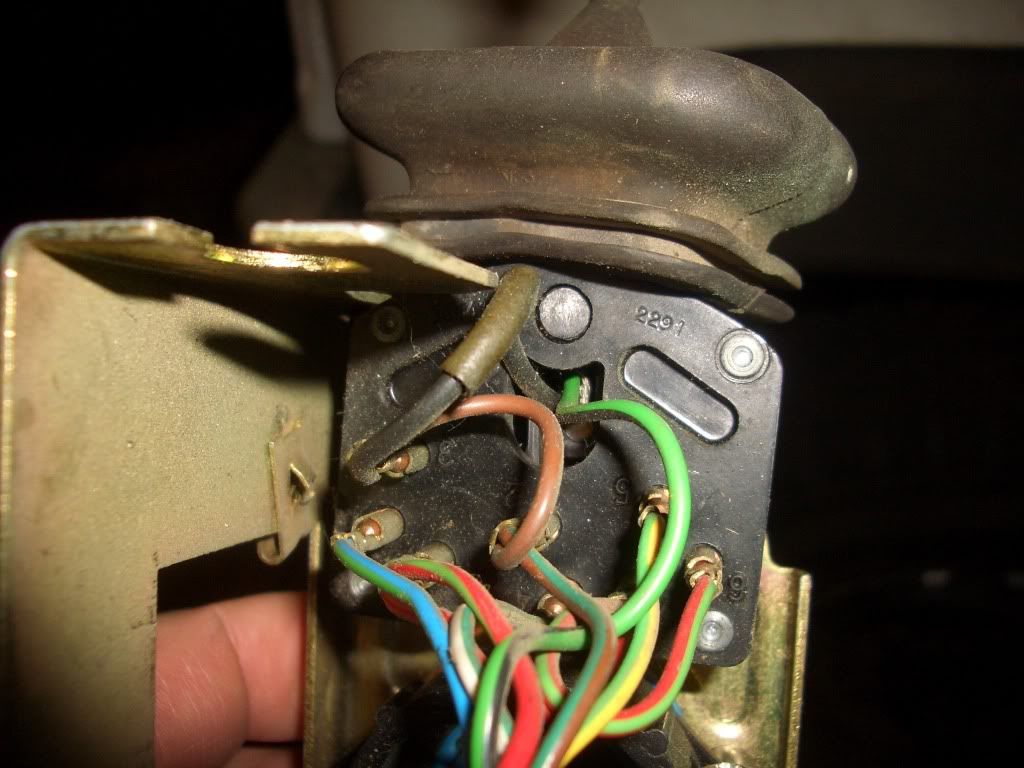

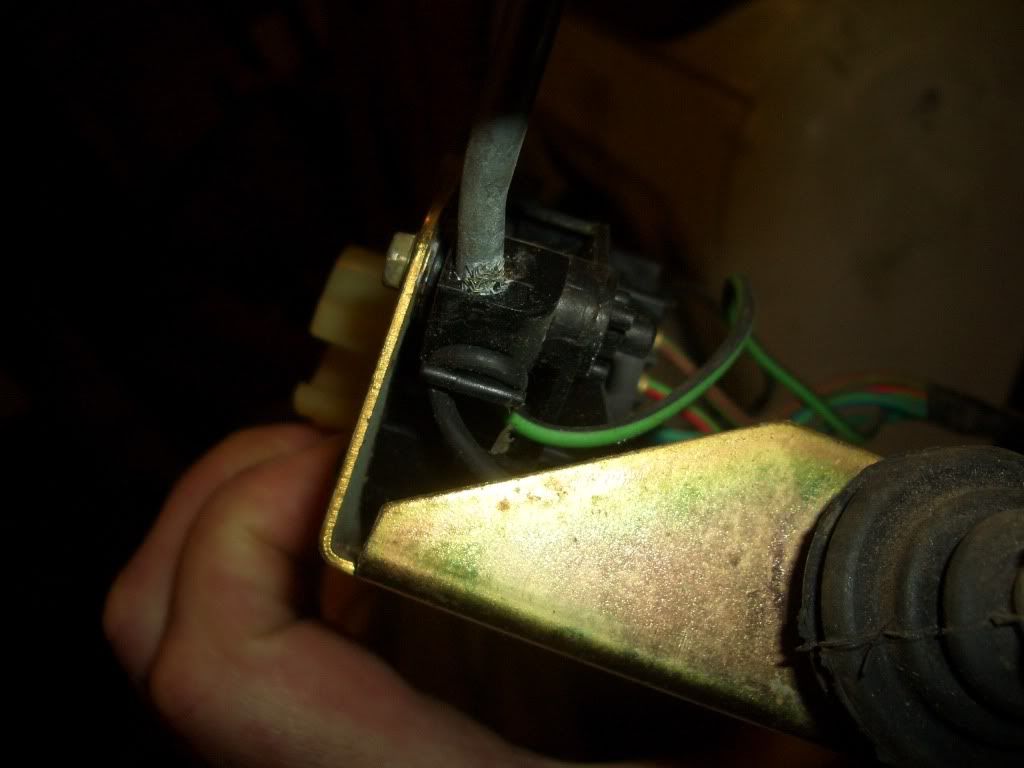

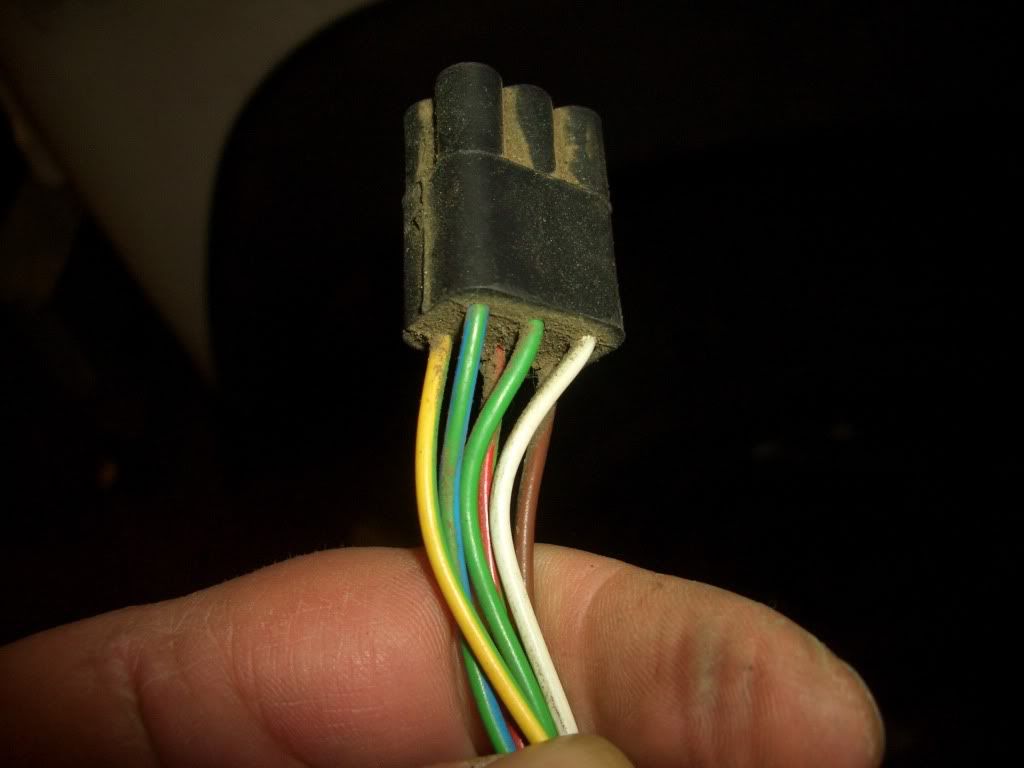

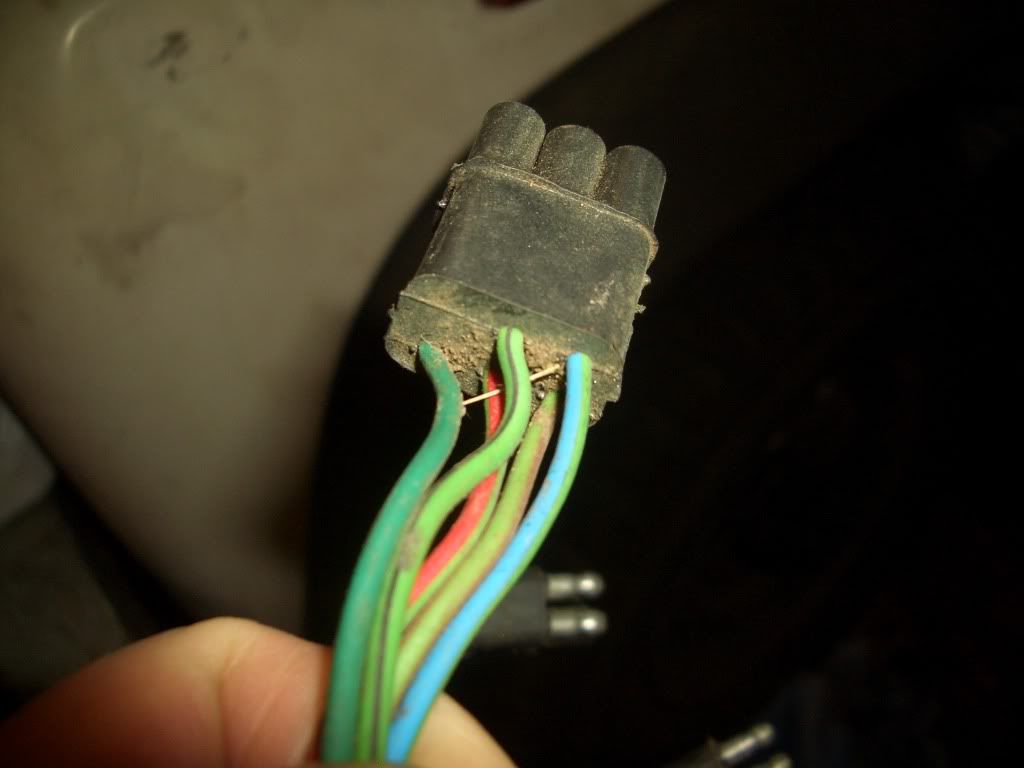

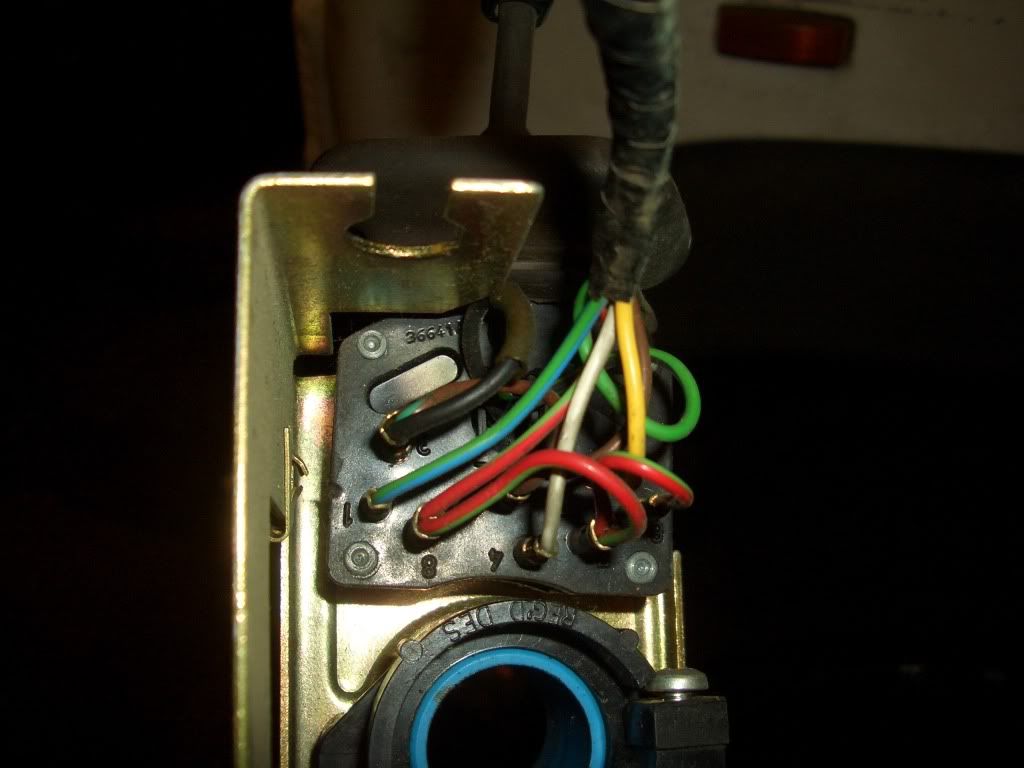

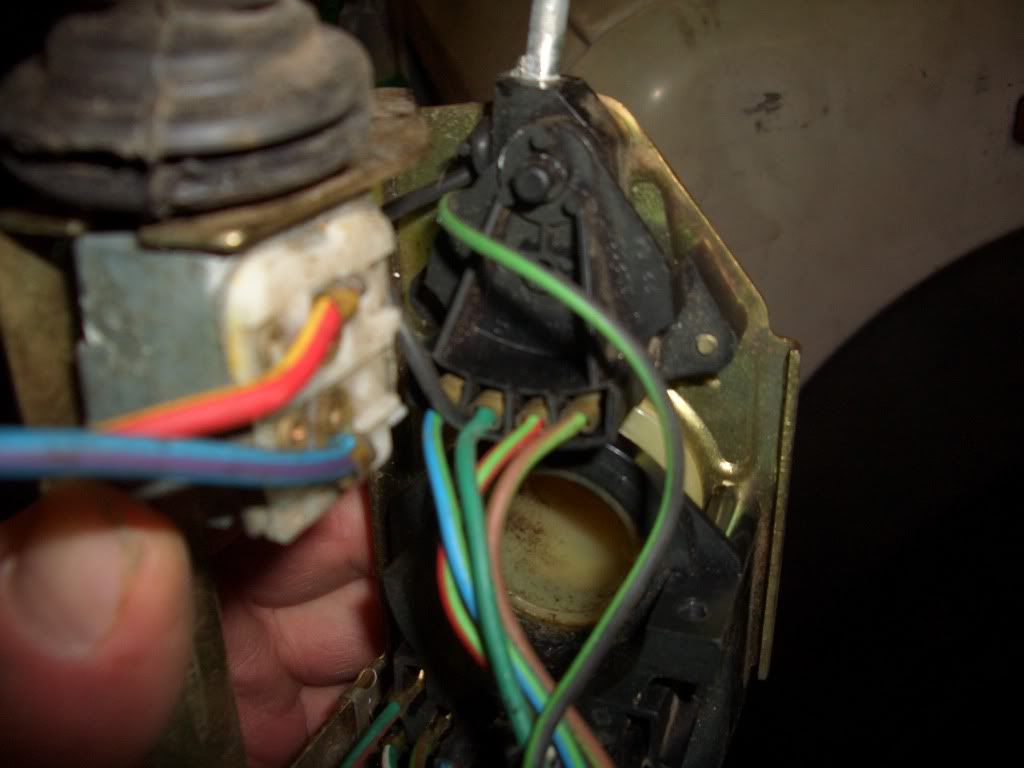

Hi i need some help, can some one please till me what wires go were on the wiper switch, i won one on Egay and when it arived the wires were off:doh:, as my 110 never had one as it come in bits and most of the cab was robbed out, it has the 5 wire loom but switch has 6 wires in the plug and switch is numbered 1 to 8, the reg/green and brown/green have jumpers, i have worked out the washer wires, i have the landrove manuals but they just show the stearing colum number 35, starting to get in to a dead end here!!:confused:
its a 1989/F 110 utility 3 door, it has the post 86 loom and the J14/J19 diesel interface/sub loom on to that, its now 200tdi on to a HP22-ZF4 auto box and the list of parts that go's on for a long way, i just need to sort this and retrim the seats and its mot time!!
Thanks in advance for any help.
Roy

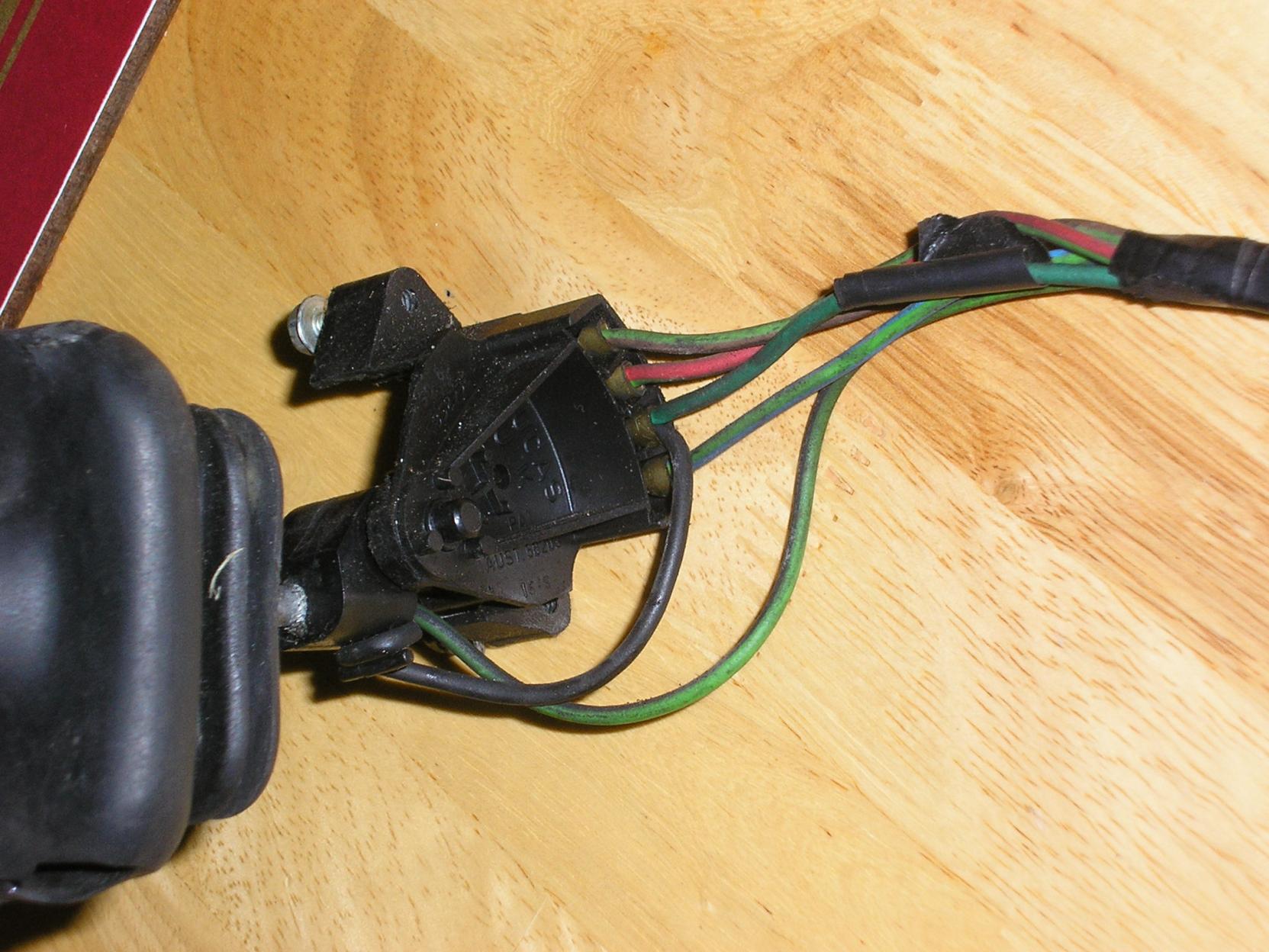

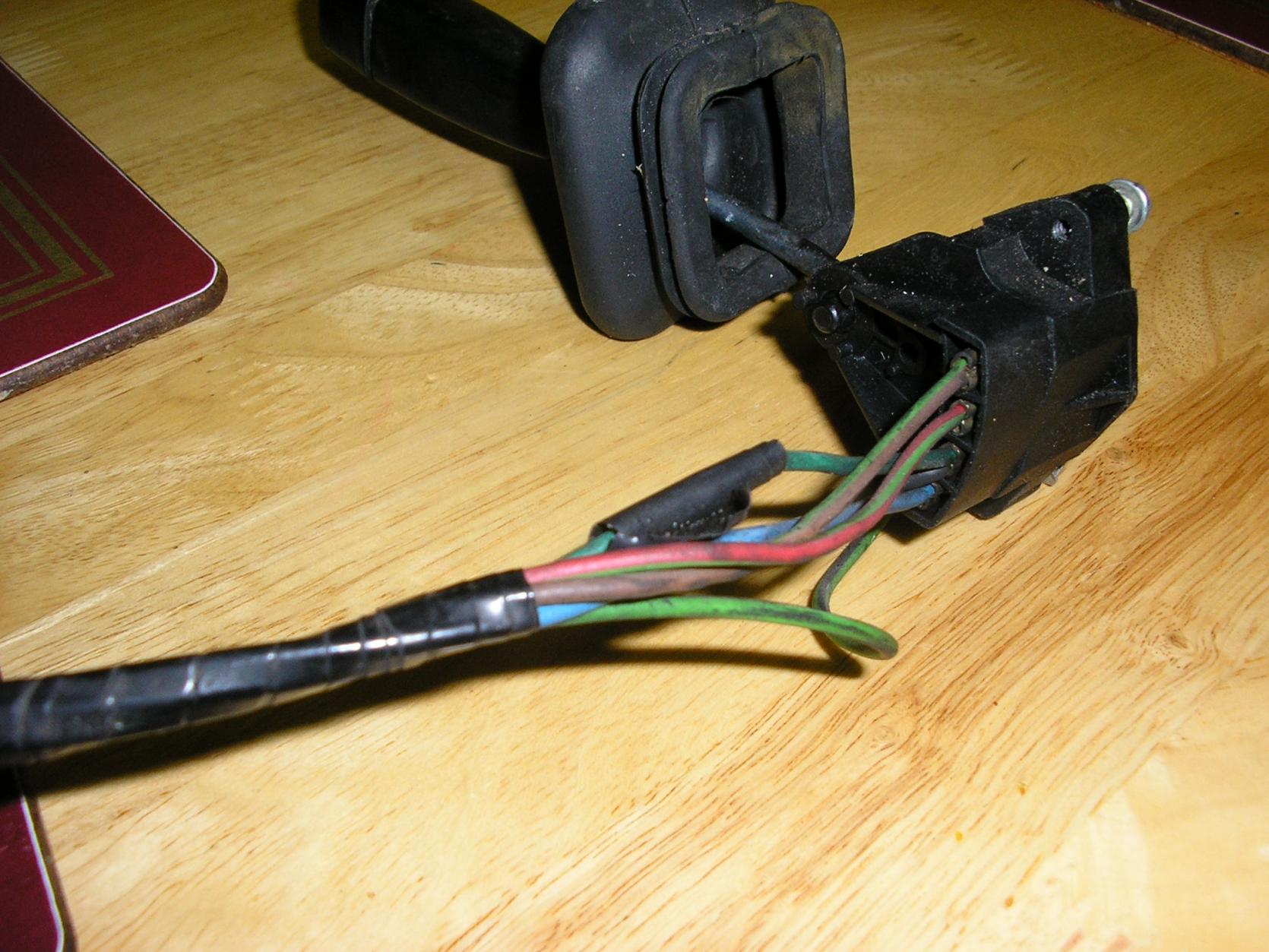

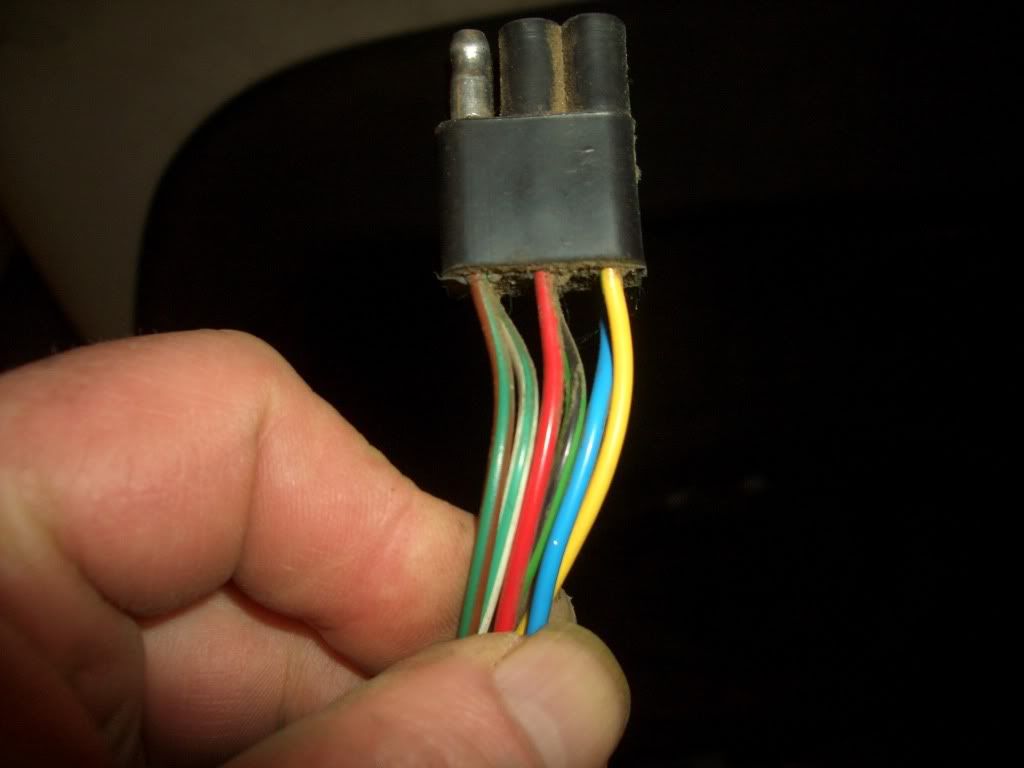

Here are 3 pics of the switch I replaced recently - hope they help.


Attachments

  • wash_wipe 1.jpg
    wash_wipe 1.jpg
    235.8 KB · Views: 163
  • Wash_wipe 4.jpg
    Wash_wipe 4.jpg
    236.7 KB · Views: 156
  • wash_wipe 5.jpg
    wash_wipe 5.jpg
    210.8 KB · Views: 198
