Headlights and sidelights not working

Discussion in 'Defender 90 / 110 / 130' started by owas, Oct 26, 2020.

< Previous Thread | Next Thread >
  1. owas

    owas Well-Known Member

    Joined:
    Jul 30, 2014
    Posts:
    1,048
    Likes Received:
    857
    Bit of an odd one, this morning they didn't work, high beam symbol in the dash slightly ilumanated which made the headlights and side lights stop working, flicked it on and off and it went back to normal.

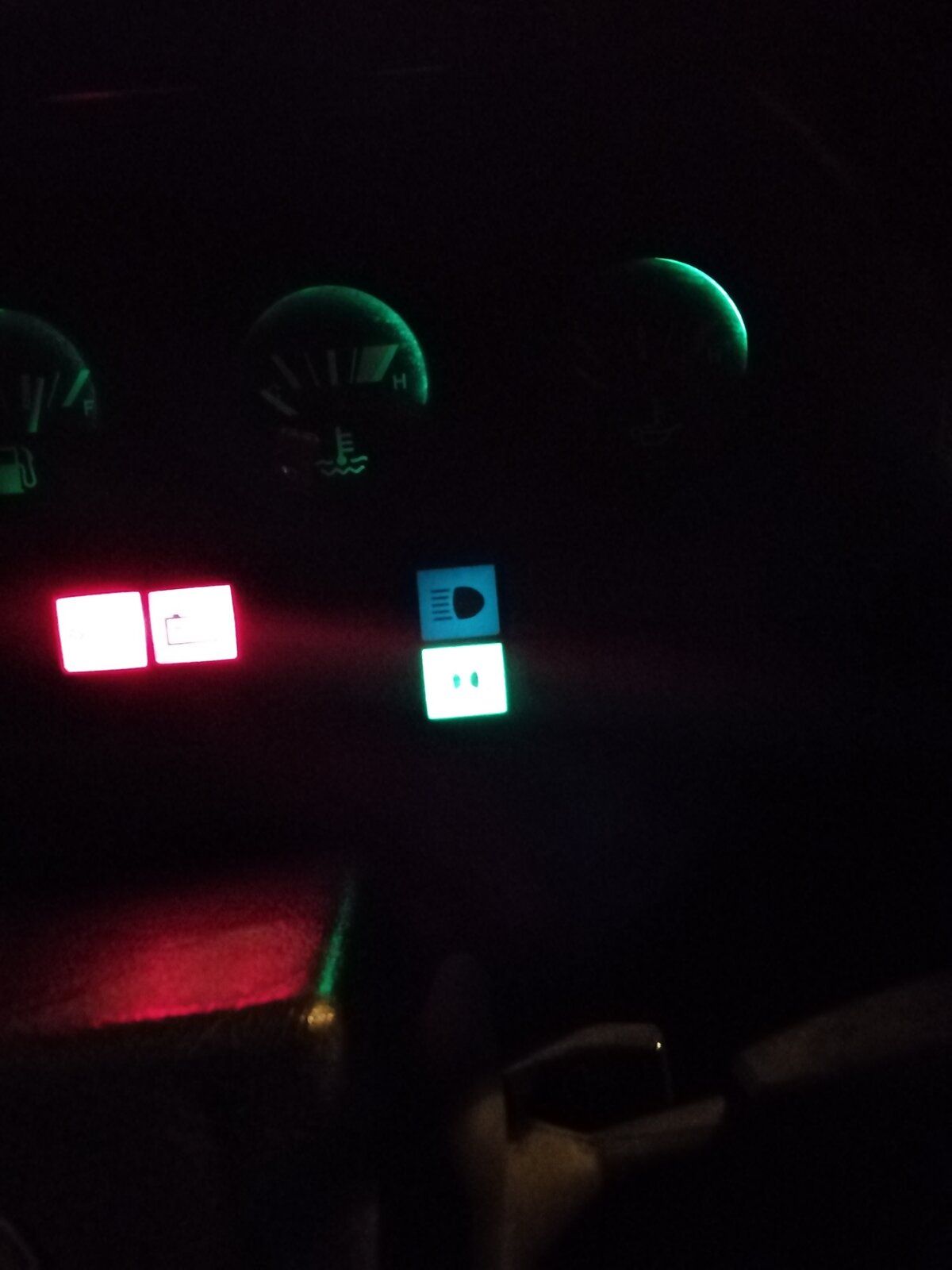

    Now the high beam symbol is permanently slightly ilumanated and I can't get the headlights or sidelights to work. Indicators and rear lights still work.
    The hazard switch I had to flick on and off a few times to get to work too. (this might be a side issue, switch has seen better days)

    Fuses all good.

    This is on a 1986 ex mil 110,so has the military light switch..

    Any ideas?


    Attached Files:

  2. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    9,999
    Likes Received:
    19,268
    Location:
    Wiltshire
    Normally bad earth.
    Are you on glass fuses? (Just checking)

  3. Dippypud

    Dippypud Never Knowingly Understood Full Member

    Joined:
    May 2, 2011
    Posts:
    56,910
    Likes Received:
    33,842
    Location:
    The Wooly Witch
    Check the earths ....

    And pull the switch out and clean the contacts up ...

  4. owas

    owas Well-Known Member

    Joined:
    Jul 30, 2014
    Posts:
    1,048
    Likes Received:
    857
    Turned out to be the front left wiring to the side light, didn't blow the fuse initially but then started to blow everytime I flicked them on, connection was loose. (the side I crashed so probably me not putting them back tightly)

    I'm not sure how this would effect the headlights though, they seem to be working just fine now though.

    Dippypud and Hicap phill like this.
