Headlight wiring upgrade

Discussion in 'Common Faults and Questions' started by The Mad Hat Man, Feb 19, 2009.

< Previous Thread | Next Thread >
  1. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    83,113
    Likes Received:
    8,757
    Location:
    Embasinga stocæ
    Found this on another forum - hope it helps. It might well resolve the molten headlight plug problem and, because the headlight power is straight from the battery, will ensure maximum power goes to the lights.




    [​IMG]

    the wiring diagram above is for a generic headlight wiring loom up grade and will work for both positive and negative switched headlight systems.

    If the new loom is made to the diagrams set up and connections made to the vehicles existing headlight sockets, then there will be no need to cut into or alter the vehicles wiring in any way.

    Once the new loom is installed, the vehicles headlight globes will now be positive switch no matter what polarity the vehicles headlight switch work by.

    The reason for using 4 single pole relays instead of 2 double poled headlight relay is to increase safety. If standard double poled headlight relays are used and a fuse blows or a relay fails, you can loose either both low beam or both high beam at the same time.
    By using 4 single pole relays, if a fuse blows, you will only loose 1 high beam AND 1 low beam, or if a relay fails you will only loose either 1 high beam OR 1 low beam.
    This is a much safer way to operate the headlights.

    The 4mm2 Automative wire is way above what is needed but by using the heavier cable, and by running an earth wire from the headlight bulb all the way to the battery, the standard headlights should be brighter and slightly whiter.

    With this set up, the relays are protected by the vehicle&#8217;s existing headlight fuse but the current that is required to operate the headlights via the vehicle&#8217;s headlight switch is now about 1/50th of what was needed before the new loom was installed and this should considerably extend the operating life of the vehicles headlight switch.

    Parts required..
    4mm wire
    2mm wire
    Solder
    Fuse box (or Fused Relay sockets such as VWP RS3F)
    [​IMG]
    15A fuses
    4 relays
    4 relay bases. (or a 4way relay socket such as VWP RB4U)
    [​IMG]

    Last edited: Nov 18, 2015
  2. woods767

    woods767 Well-Known Member

    Joined:
    Sep 22, 2005
    Posts:
    1,262
    Likes Received:
    1
    Location:
    Stuck in the ditch that runs along the side of the
    So the origional circuit is used to activate the relays? Arnt there relays on the origional circuits? Would it not be better, to strip out the origional relays and use the switch circuits to activate the new relays?

  3. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    83,113
    Likes Received:
    8,757
    Location:
    Embasinga stocæ
    The way i read it - the original wiring is so convoluted that you are likely to get a voltage drop at the headlights, resulting in dim lights. A known 200TDi problem. So this circuit uses the shortest, most direct route for the headlight power and only uses the old circuit to operate the relays - a much less voltage critical circuit. It also has the advantage that spot light feed can be also taken from the headlight side of the relays, if they are rated sufficiently.

  4. Animal88

    Animal88 Active Member

    Joined:
    Sep 22, 2013
    Posts:
    911
    Likes Received:
    2
    Location:
    St Ives
    I will have to look into this as my flash doesn't work but my high beam does and when my lights are on it seems to drag alot of power from the alternator so would this help my power drain with the lights?

  5. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    83,113
    Likes Received:
    8,757
    Location:
    Embasinga stocæ
    It would. It would reduce the likelyhood of you burning out the contacts in the light stalk, which is a common failure.

  6. Animal88

    Animal88 Active Member

    Joined:
    Sep 22, 2013
    Posts:
    911
    Likes Received:
    2
    Location:
    St Ives
    ah so to sort my flash problem I need a new stalk then get stuck into wiring in these relays.
    excellent cheers for the help

  7. Dippypud

    Dippypud Never Knowingly Understood Full Member

    Joined:
    May 2, 2011
    Posts:
    60,931
    Likes Received:
    44,575
    Location:
    The Wooly Witch
  8. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    83,113
    Likes Received:
    8,757
    Location:
    Embasinga stocæ

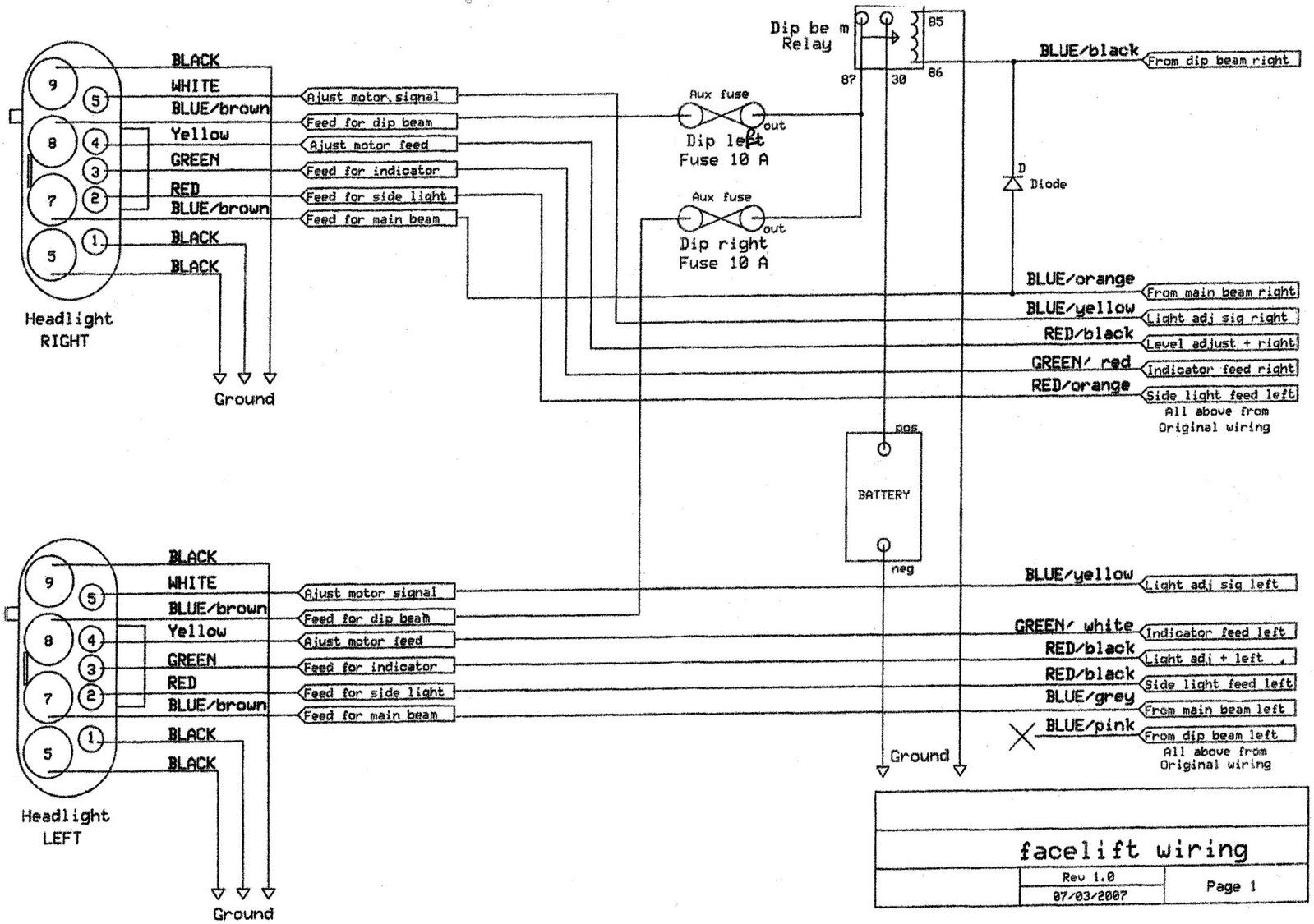

    For those wanting the Facelift headlight wiring, here it is...

    Freelander facelift wiring1.jpg

    Dippypud likes this.
  9. robbie the greatl

    robbie the greatl Member

    Joined:
    Mar 19, 2022
    Posts:
    29
    Likes Received:
    5
    Location:
    uk,
    what causes the stalk contacts to burn out is it upgrading bulbs if so standard holagen bulbs should not cause a problem..?.?

  10. Dippypud

    Dippypud Never Knowingly Understood Full Member

    Joined:
    May 2, 2011
    Posts:
    60,931
    Likes Received:
    44,575
    Location:
    The Wooly Witch
    Old wiring, dirty / corroded connections, lack of relays in the circuit and the demands put on the system ...

    @The Mad Hat Man

  11. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    83,113
    Likes Received:
    8,757
    Location:
    Embasinga stocæ
    Wot she said. Fit relays ( and a diode)

    Dippypud likes this.
  12. Dippypud

    Dippypud Never Knowingly Understood Full Member

    Joined:
    May 2, 2011
    Posts:
    60,931
    Likes Received:
    44,575
    Location:
    The Wooly Witch
    Ah yeah, I forgotted that bit ...
