Headgasket

Christhevanman5

Member

Posts

86

Location

Kent

• Feb 26, 2022

• #1

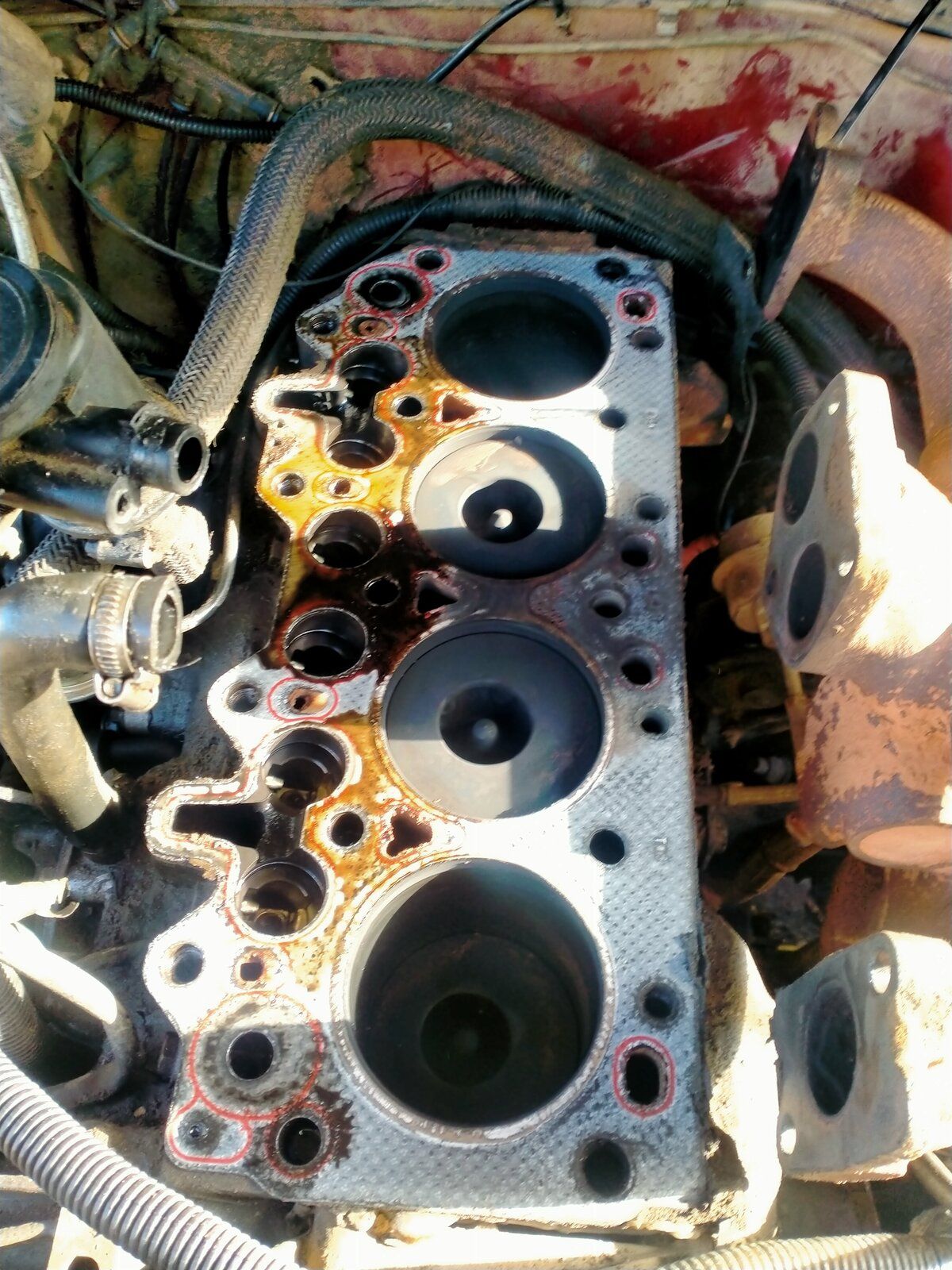

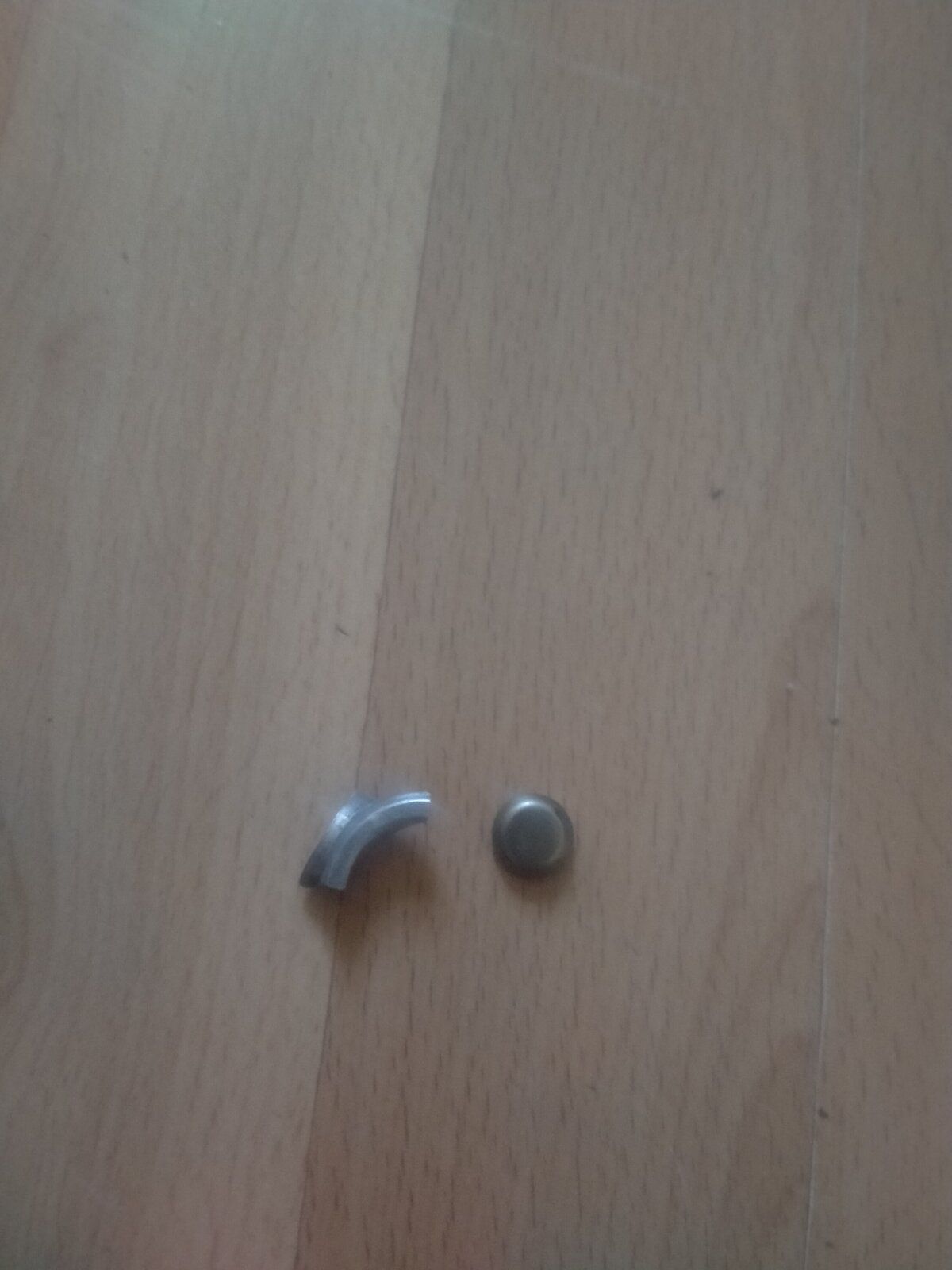

Hi. Thought my second hand engine had done the headgasket after not even 100 miles after fitting it. There Was oil coming out from under one of the front head bolts and up beside the first glow plug. Also running very rough and smoking. Have stripped it down today . I have taken the head of and sat it straight down on a bit of carpet. I have then turnt it over and have found a piece of metal and a valve cap. However I'm not missing a valve cap . Any ideas about this bit of metal? It's not obvious where it's come from. Thanks



Flossie

Well-Known Member

Posts

11,050

Location

Shropshire

• Feb 26, 2022

• #2

Cambelt broke and a poor repair I'd wager. Does the bit match any part of the rocker gear because they can break when the belt goes.



Christhevanman5

Member

Posts

86

Location

Kent

• Feb 26, 2022

• #3

I have looked over the rocker and can't see anything missing or broke. Everything looks normal other than these bits appearing from somewhere.



Flossie

Well-Known Member

Posts

11,050

Location

Shropshire

• Feb 26, 2022

• #4

They wouldn't be missing as the lost/broken pieces have been replaced. Just the cleaning up is poor, that's what I'm guessing.



Christhevanman5

Member

Posts

86

Location

Kent

• Feb 26, 2022

• #5

Yeah hopefully. When I was undoing the rocker shaft nuts they where loose . I just undone them with my fingers.



R

Ratae

Well-Known Member

Posts

3,272

• Feb 26, 2022

• #6

Piece of the top broken off a rocker pedestal which has been replaced?



Christhevanman5

Member

Posts

86

Location

Kent

• Feb 26, 2022

• #7

I was about to Google what it's called. Yes it does look like that I think. Someone has definitely been in here doing something judging by how loose the nuts where



Flossie

Well-Known Member

Posts

11,050

Location

Shropshire

• Feb 26, 2022

• #8

Almost certainly the cam belt has snapped in the past. This allows the piston's to hit the valves and, if you're lucky, just bend the pushrods, unlucky and the rockers get broken too. Sometimes the followers get damaged too, you can see them down in the push rod tubes. Check them and also that the pushrods are straight.



Christhevanman5

Member

Posts

86

Location

Kent

• Feb 26, 2022

• #9

Will do. thanks it ran nice before the gasket went so hopefully the rest is all ok
