Has Anyone Used EASCALIBRATE Software?

Just wondring if anyone has used this software yet or any of the software from rswsolutions as I tried it today with no luck.

I was getting funny readings from the ride heights, the access height had the highest numbers and the highest setting had the lowest numbers and there were no 2 numbers the same in any setting.

rangiep38 said:

Just wondring if anyone has used this software yet or any of the software from rswsolutions as I tried it today with no luck.

I was getting funny readings from the ride heights, the access height had the highest numbers and the highest setting had the lowest numbers and there were no 2 numbers the same in any setting.

Click to expand...

When you tried it what setup were you using?? What version of windows, what cable did you use, are you sure its been made properly?? Specifically are you using a USB->Serial converter??

The no 2 numbers the same on a sensor on a particular height is normal. You will see slight variations on each sensor value at any given height due to the way the sensors are made, this is why the system has to be calibrated so the ECU can learn where abouts on the sensor the correct height is - does all that make sense?? I'll pull out my diagnostic machine and post some screenshots in a few mins...

Anyway, yes, back to the original problem, let me know the config you are using.

-Wills

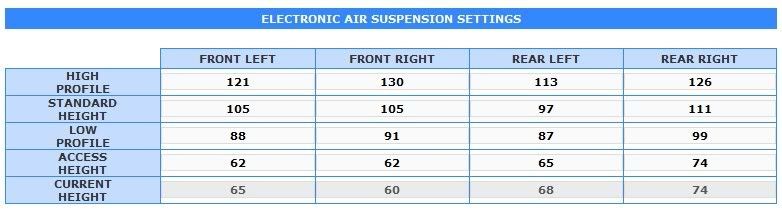

EDIT - Ok, here is the screenshot from my diagnostic machine, I have a Faultmate MSV system so this is why it looks slightly different from the software you are using. It quite clearly shows though how all the sensor values can be different for one height...

I`m using windows vista, I got the cable from this guy
eBay My World - airsuspensiondoctor so am not sure how it well its made and yes I am using USB->Serial converter.

I understand what you are saying with the numbers for the heights but mine are nothing like yours being that they are all in the 200s, its something like this

high 229 233 242 248

standard 230 234 243 249

low 231 235 244 250

access 232 236 245 251

these numbers are not exact as I`m not in the car but I have a good memory, as you can see its not exactly correct.

When I plugged in the cable to the obd socket I get eas fault on the dash although I get ff and 1 in the sent buffer and ff in the receive buffer as I should.
