Classic Has anyone changed a RRC upper tailgate barrel?

Discussion in 'Range Rover' started by inthshed, Dec 7, 2019.

< Previous Thread | Next Thread >
  1. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    Hi, The restoration of my 1980 RRC 2 door is nearly complete.
    I need to replace the barrel on my upper tailgate (unless anyone knows a way of sourcing a key for it!), but I can't see an obvious way of removing the old one from the handle. Any ideas? Cheers.

  2. Western Slope Rover

    Western Slope Rover Well-Known Member

    Joined:
    Feb 7, 2017
    Posts:
    1,204
    Likes Received:
    1,819
    Location:
    Subterrainian
    Your ignition key doesn't work?

  3. locket

    locket Active Member

    Joined:
    Aug 6, 2007
    Posts:
    211
    Likes Received:
    28
    Remove the handle from the tailgate via the two bolts. Then you will see two Phillips screws that hold a cover plate to the handle, remove the screws and the lock barrel will come out. Keep the parts in the order that they come out. There is a slot in the handle so you can only fit it one way.

    Western Slope Rover and inthshed like this.
  4. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    1,938
    Likes Received:
    1,138
    Likely a RRC of that age will have a separate smaller single sided key - mines an '86 & that's what it has.

    Western Slope Rover and inthshed like this.
  5. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    Nope, far too big.

  6. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    Yes, that's what I'm assuming as well. I also have a '72 RRC (albeit with a shell from the 80's) which has exactly that.

    Last edited: Dec 8, 2019
  7. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    Ideal, thanks. I only re-fitted the handle a few weeks ago.....must have missed the cover plate, duh!

  8. Western Slope Rover

    Western Slope Rover Well-Known Member

    Joined:
    Feb 7, 2017
    Posts:
    1,204
    Likes Received:
    1,819
    Location:
    Subterrainian
    I have 3 RRC's from the 90's, so I didn't know about the smaller key. I do know that the ignition key from the 90 will open the 93's tailgate and a tailgate on a mate's car, as well. Do you have a tailgate key for the 72? It might work.

  9. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    Tried that!

    Western Slope Rover likes this.
  10. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,384
    Likes Received:
    2,626
    Location:
    sud ouest France
    All this talk of keys to open doors.. Pfff.
    I have remote fob don't you know!! :rolleyes::p:p:p

  11. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth

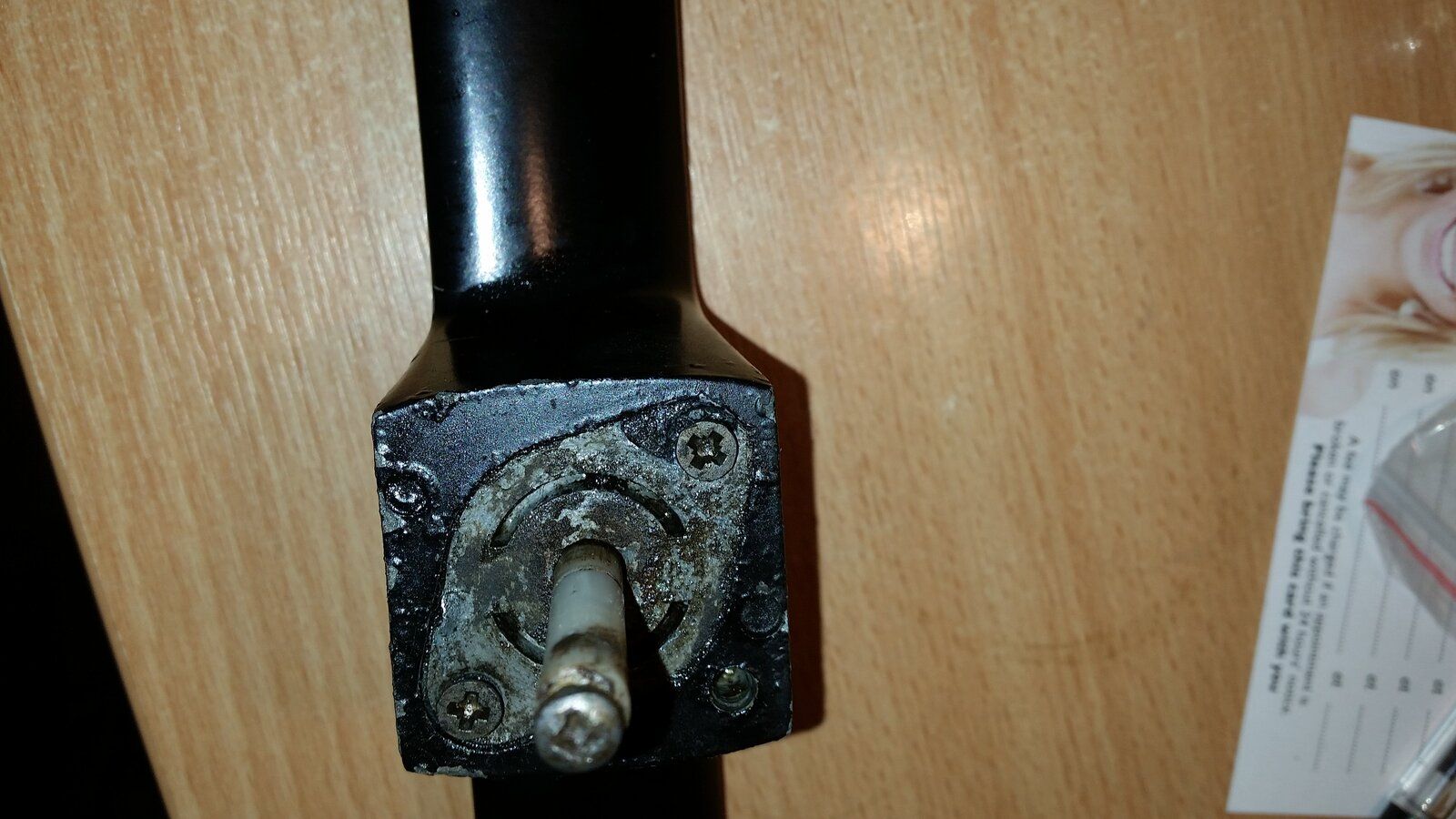

    So, I removed the handle this morning, located the small cover plate and undid the two retaining screws. I then left it soaking in WD40. On the assumption that the cover plate was made of something reasonably substantial (like....oh, I dunno....steel maybe?) I have just tried to gently lever it up....only to watch a piece of it peel away. You can see the gap to the left of the top screw, and a bit that has bent upwards (just above the bottom screw). It might be made of very thin lead (but why?) or possibly cheesecake? Just before I ruin it completely, can anyone throw some light on what happens next?! Many thanks.


    Attached Files:

  12. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,384
    Likes Received:
    2,626
    Location:
    sud ouest France
    Is there a circlip on the shaft base at the plate?
    Maybe tapping on it using a punch or something to break any crud seal acting on it?

  13. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    Hi. The shaft you can see is the plunger that is activated by the Chrome push button. This moves freely in and out and doesn't inhibit this 'gasket' in any way.

  14. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,384
    Likes Received:
    2,626
    Location:
    sud ouest France
    It'll be die-cast metal. Soft and cheesy it is.

  15. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,384
    Likes Received:
    2,626
    Location:
    sud ouest France
    I would scrape the paint away from around the plate and see if it eases the grip on it..

  16. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
  17. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    I've found a replacement plunger a 'bit' cheaper, but it's still £70 !!
    Yup, more WD40 and even more patience I reckon.

  18. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,879
    Location:
    Near Poitiers SW France
    PlusGas.

    frog hopper likes this.
  19. inthshed

    inthshed Member

    Joined:
    Sep 6, 2018
    Posts:
    38
    Likes Received:
    12
    Location:
    Plymouth
    TBH I have had to Google that....is it really any better than WD40 ?

  20. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,879
    Location:
    Near Poitiers SW France
    WD40 is, as the name implies, a Water Dispersant, not a release agent, PlusGas is certainly better for seized bolts etc.

    frog hopper likes this.
