Hang on- where's the engine oil filler neck?

Discussion in 'Series Land Rovers' started by joefuller, Nov 25, 2013.

< Previous Thread | Next Thread >
  1. joefuller

    joefuller Member

    Joined:
    Nov 4, 2013
    Posts:
    17
    Likes Received:
    0

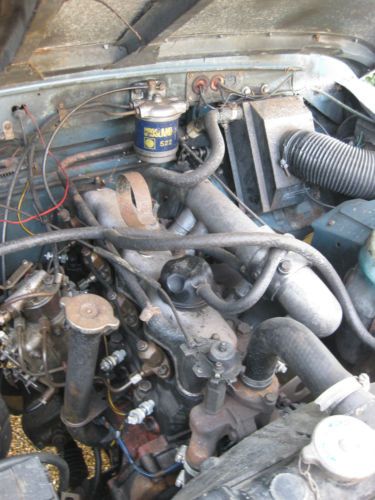

    Ok, so looking at pictures of some other 2.25D engines (like the one attached) I notice they have an oil filler neck at the left of the engine as you look at it from the front of the bonnet. Mine doesn't have this so I have been topping up the oil from the engine breather cap on top of the rocker cover. There seems to be nowhere else to put the oil into. Are there different evrsions of this engine with different oil fillers?


    Attached Files:

  2. divie

    divie Well-Known Member

    Joined:
    Jul 21, 2011
    Posts:
    1,076
    Likes Received:
    45
    Some are filled through the rocker box. I think there is a proper mod to do this, believe I may have seen it on Paddocks web page. If you are filling through rocker box does this involve removing the small 7/16" a/f screw in the side? If not you may have the later modified one. Is the engine a 5 main bearing job? You can identify the 5 bearing engines they have diagonal ribs cast in the side of crankcases.

  3. joe27979

    joe27979 Well-Known Member

    Joined:
    Jun 1, 2009
    Posts:
    1,354
    Likes Received:
    12
    Location:
    west Norfolk
    [​IMG]
    some ad em, some dint :)

  4. oxides

    oxides Well-Known Member

    Joined:
    Jan 23, 2009
    Posts:
    5,078
    Likes Received:
    79
    Location:
    Worcs
    My rocker cover has a big oil filler screw cap at the front and no filler at the side.

  5. ronsealdeath

    ronsealdeath Sagging Member

    Joined:
    Aug 30, 2012
    Posts:
    1,574
    Likes Received:
    188
    Location:
    Swansea, Wales
    5mb has filler on rocker and 3mb uses a filler neck thing, ones I have seen are anyway

    John S and wireman like this.
  6. Land Raver

    Land Raver Well-Known Member

    Joined:
    Nov 24, 2011
    Posts:
    2,008
    Likes Received:
    454
    Location:
    In the dog house
    I've got 2 5mb Diesel engines 1980 / 81 and they both have the filler tube. Some by late petrol versions had a separate orange filler top on the rocker

  7. dominicbeesley

    dominicbeesley Well-Known Member

    Joined:
    Sep 28, 2011
    Posts:
    1,700
    Likes Received:
    10
    Location:
    Hebden Bridge, West Yorkshire
    There seems to be a real mixture. Both my petrol 2.25s have the orange plastic oil cap on the rocker box (which is a real pain to get the thread started). I think its all to do with which flavour of crank case emissions control is fitted.

  8. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta

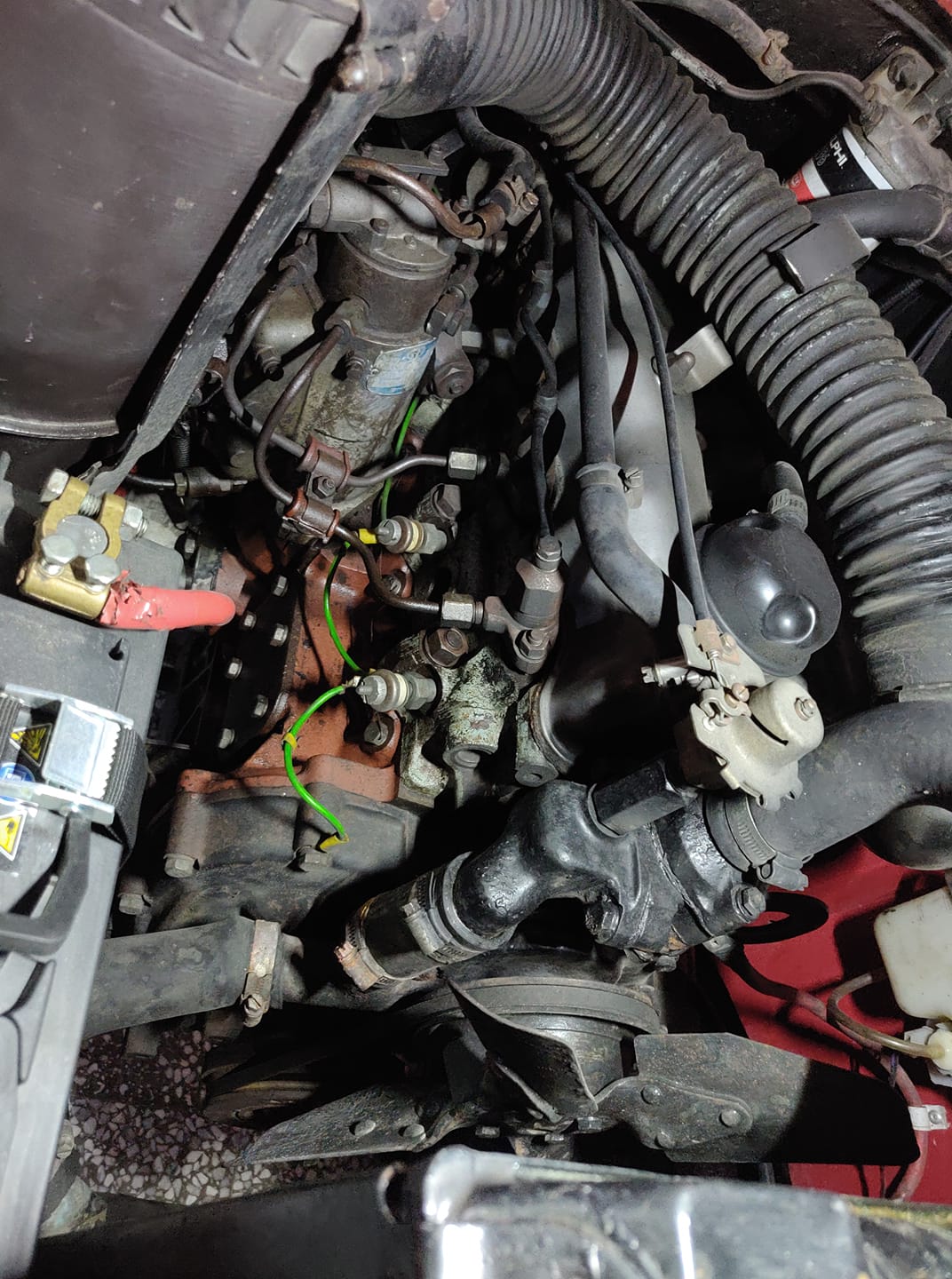

    So I don't have a filler tube on the left hand side of the engine and neither an additional filler cap on the rocker. Could it be that I have to fil oil through the breather? thanks


    Attached Files:

  9. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    8,760
    Likes Received:
    5,440
    Location:
    Near the land of 'Me Duck'
    Yes pal, later diesels filled through the breather

  10. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    8,760
    Likes Received:
    5,440
    Location:
    Near the land of 'Me Duck'
    Oh and that engine is way too clean :D

    Hicap phill likes this.
  11. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    Hahah thank you very much!

  12. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,701
    Likes Received:
    1,136
    Location:
    west wales coast
    Most series 3 will have the side filler. 2 / 2a have the filler/breather on the rocker cover with no extra pipes coming from it in most cases. Later engines have the screw filler cap. There is can be quite a mix of ways after all these years.

  13. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    16,928
    Likes Received:
    18,643
    Location:
    Manchester
  14. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    8,760
    Likes Received:
    5,440
    Location:
    Near the land of 'Me Duck'
    It's that black stuff that drips on yer drive :p

    Hicap phill and tottot like this.
  15. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    16,928
    Likes Received:
    18,643
    Location:
    Manchester
    Used to.
    I must scrape some up and put it back sometime :oops:

    :D

    kermit_rr and Marmaduke like this.
  16. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    8,082
    Likes Received:
    5,361
    Location:
    North Shropshire
    If it was supposed to be in there, it wouldn't leak out o_O

    Bobsticle and Marmaduke like this.
