Hand brake adjustment

Quillia said:

good morning
B I have replaced hand brake cable on 110 2.5 na with an LT230 trans
I cannot for the life of me get the new cable to operate properly the slack does not take up/ cannot get it to tension ! I know I am missing something so simple. Any ideas explained in depth gratefully appreciated

Click to expand...

Quillia said:

good morning
B I have replaced hand brake cable on 110 2.5 na with an LT230 trans
I cannot for the life of me get the new cable to operate properly the slack does not take up/ cannot get it to tension ! I know I am missing something so simple. Any ideas explained in depth gratefully appreciated

Click to expand...

Kwakerman said:

Need to make sure that the adjuster on the hand brake drum itself is set first before adjusting the cable adjusters

Click to expand...

windy81 said:

after fitting new handbrake to my 90 i had to readjust several times before it "settled".
I have the correct cable but for some reason that was fully adjusted and only barely manages to work as intended i.e 3 clicks.
The bracket on the seat box on mine has been fiddled with before so not sure what is original

Click to expand...

neilly said:

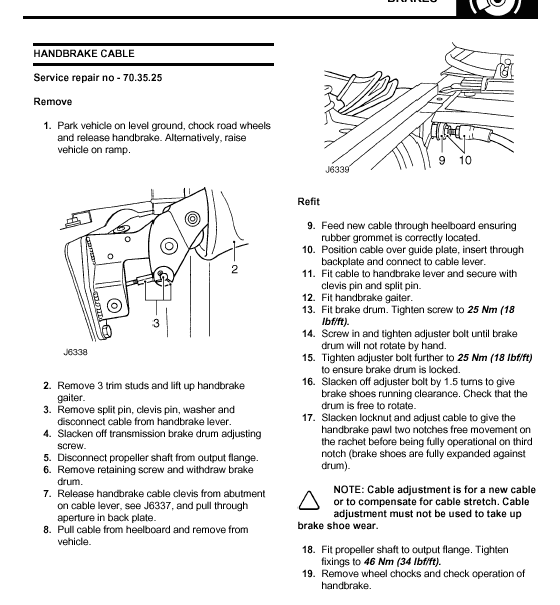

this is form the 300tdi manual, but might help.

Click to expand...

neilly said:

this is form the 300tdi manual, but might help.

Click to expand...

Quillia said:

Morning Windy,
Did you use any tricks that could help with this as cable is correct and once measured against old one it was 2 inches shorter that much it had stretched by but still just worked! I must be missing something
Stay well

Click to expand...
