Genuine LR Facelift Podded Driving Lights Instructions

Discussion in 'Land Rover Freelander' started by kernowsvenski, Jan 2, 2022.

< Previous Thread | Next Thread >
  1. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,129
    Likes Received:
    528
    Location:
    Truro
    Does anybody have the fitting instructions for the facelift podded driving lights that they might be able to scan/photograph and share?

    I've been given some nice aftermarket spot lights, and I already have the genuine switch from the accessory set (liberated from a scrap car). I'd like to utilise the switch and get it sorted so that it illuminates like the other switches, and controls the aftermarket lights. I've fitted spot lights before on a number of other cars so I'm quite comfortable sorting out the relay, fusing and all the wiring, but I'm keen to keep the dashboard stock and having the genuine switch working. Although I have RAVE to help in terms of vehicle wiring diagrams, the version I have does not have the facelift accessory fitting details. As such, the proper instructions might save me a bit of time identifying connections in the fuse box and loom etc.

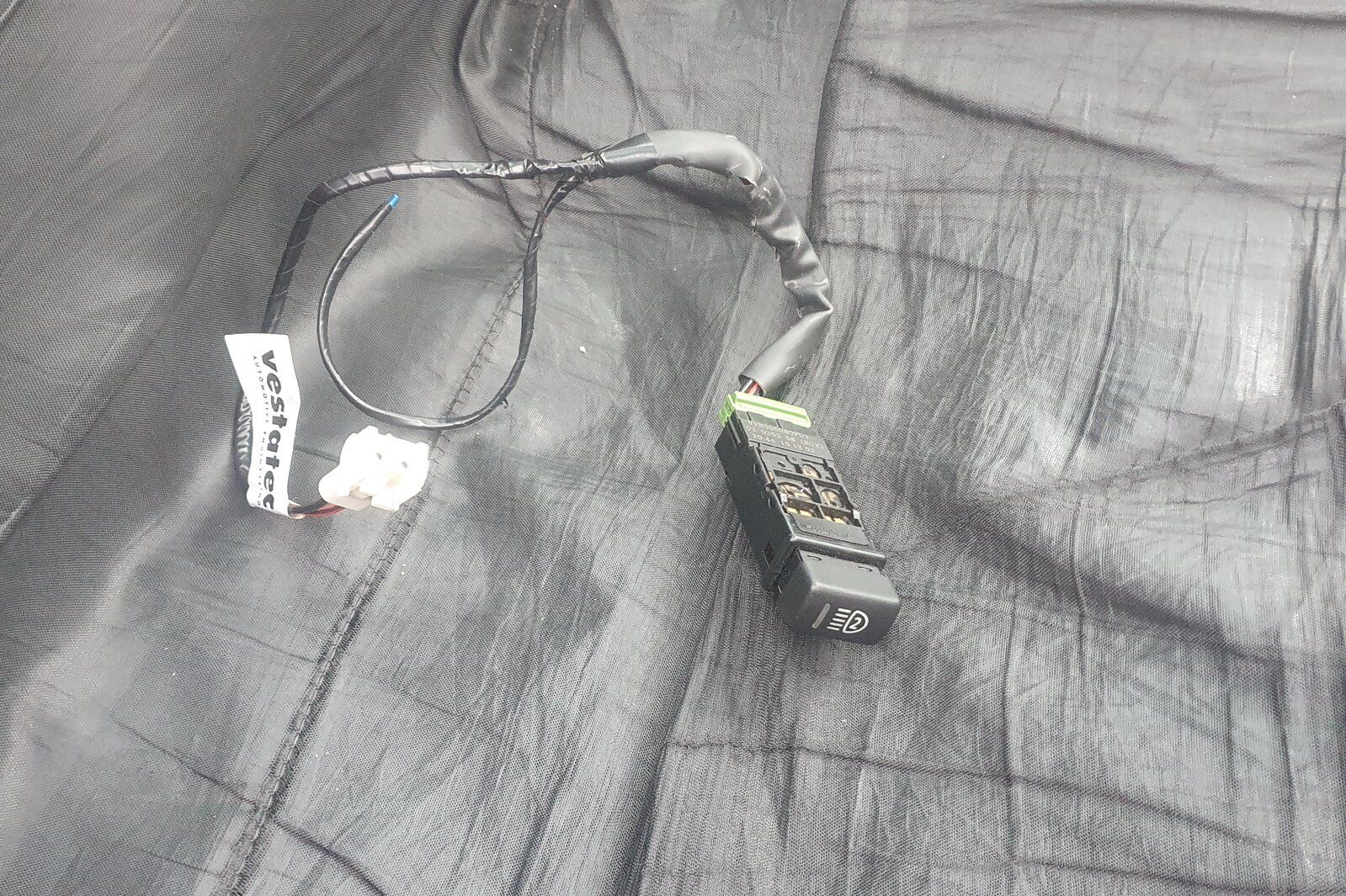

    This is the switch I have. 20211231_132140 (2).jpg

    Last edited: Jan 2, 2022
  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,158
    Likes Received:
    7,531
    Location:
    Near Newquay
    I've got a complete kit here, in my stash.
    I'll see if I can dig it out for you. ;)

    kernowsvenski likes this.
  3. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,129
    Likes Received:
    528
    Location:
    Truro
    That'd be great. Thanks Nodge

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,158
    Likes Received:
    7,531
    Location:
    Near Newquay
    No problem.

    I'm not exactly sure where it is, but I was planning on selling it (maybe) so I'll need to dig it out.

    I'll see if I can copy the instructions for you. ;)

    DevonGuy likes this.
  5. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,129
    Likes Received:
    528
    Location:
    Truro
    Thanks Nodge, although, depending on what you're after for the kit, I might be interested in the job lot.

  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,158
    Likes Received:
    7,531
    Location:
    Near Newquay
    I'll definitely copy the instructions for you. I'm unsure if I'll be selling the kit yet, as I am still looking to get another facelift FL1, so might still need the kit.
    However if the wife doesn't want the lights on the FL1 (it'll be hers) then I'll put them up for sale.
    ;)

    kernowsvenski likes this.
  7. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    21,023
    Likes Received:
    15,488
    Location:
    Christchurch, New Zealand
    There's a section in the Rave manual that has all the accessory fitting instructions. Dunno if they cover the facelift.

  8. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,129
    Likes Received:
    528
    Location:
    Truro
    Hi Gerald, I had a look, but the version of RAVE that I have only has the spot lights for the pre face-lift. Not sure how different the wiring might be between models though. I may study the wiring diagrams to see.

    GrumpyGel likes this.
  9. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,129
    Likes Received:
    528
    Location:
    Truro
    @Nodge68 don't worry too much about the instructions. I've studied the wiring diagrams and have worked out how I'm going to connect everything up. I've identified the cables and connections I need to utilise. I've just got to find the most convenient way through the bulhead for a single cable.

  10. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,158
    Likes Received:
    7,531
    Location:
    Near Newquay
    I dug the kit out today, but that's ok, as I've not copied the instructions yet. ;)

    There's a spare nipple on the main harness grommet IIRC. However getting to the main harness grommet is a PITA. :(
