Gauge earth
- Thread starter landy-lee
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Flossie
Well-Known Member
- Posts
- 11,052
- Location
- Shropshire

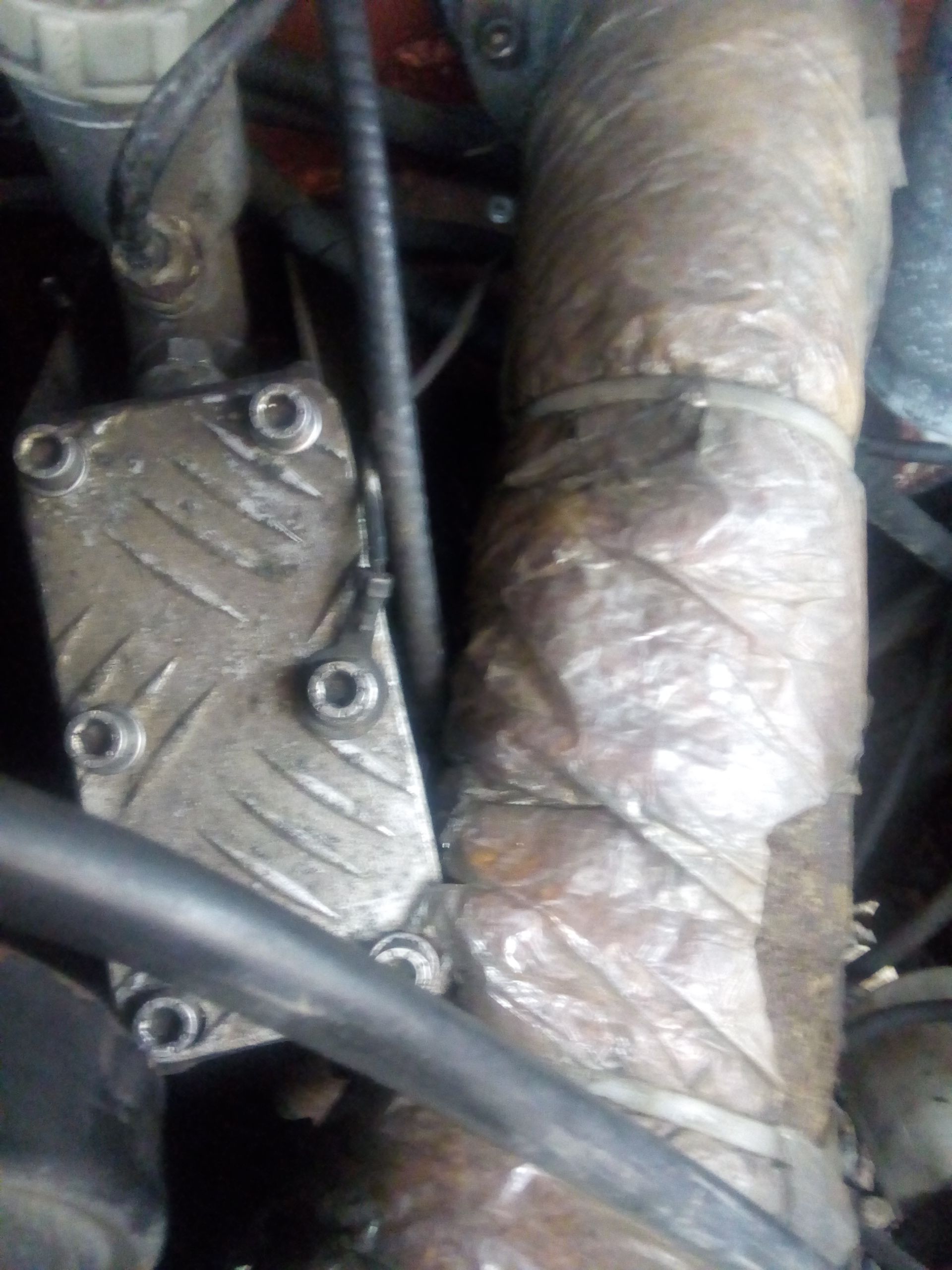

There's one under the bonnet fixed to the clutch or brake master cylinder cover plate.i forget which.
When I had gauge and iirc indicator problems years ago it was the earth wire there that I had forgot to reconnect after doing a job.
When I had gauge and iirc indicator problems years ago it was the earth wire there that I had forgot to reconnect after doing a job.
Flossie
Well-Known Member
- Posts
- 11,052
- Location
- Shropshire
Its clutch.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Crimp another ring terminal on it and pop it on the one next to it and then run a fesh earth wire down to a known good earth to ensure you're getting max earthing
- Posts
- 11,023
- Location
- North of the Wall

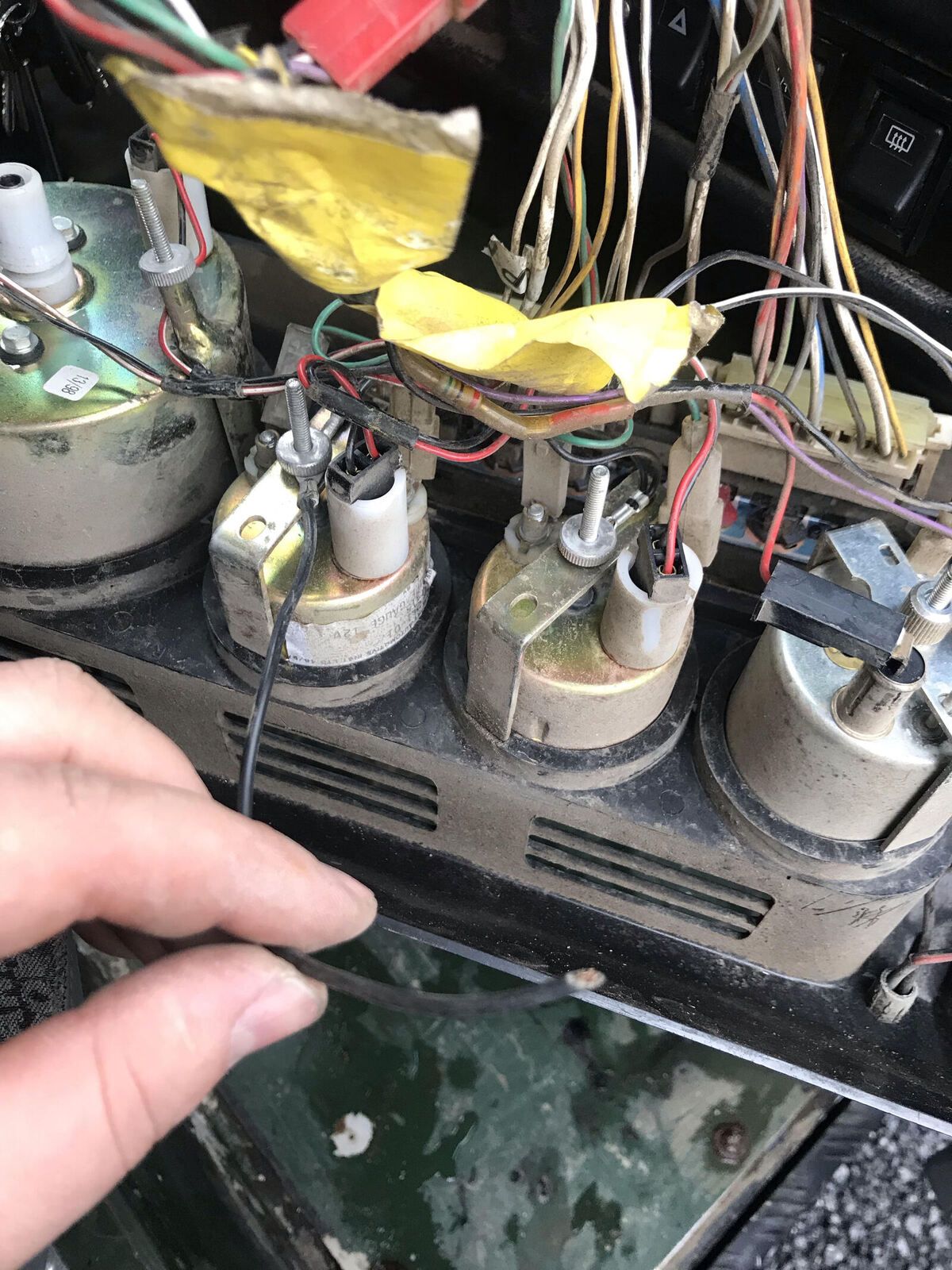

Pictures often don't show things clearly, but that looks like it's been cut.
- Posts
- 11,023
- Location
- North of the Wall
Another thought, looking at the colour of the back of you're gauge binnacle, it looks like your Landy has been submerged
tottot
Well-Known Member
- Posts
- 8,077
- Location
- west wales coast
Looks like someone's disused add on to me,original connection can be seen behind like the one on the other gauge on the right.
