Fusebox help

rasheed · Jan 27, 2011

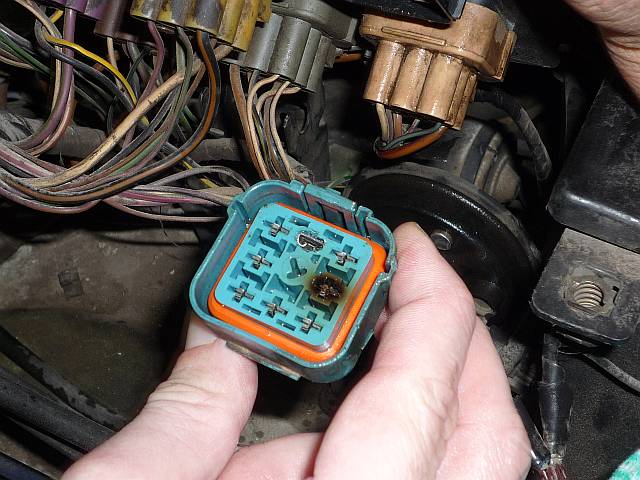

Hi guys does anyone know if its possible to get the set of harness connectors for the fusebox? I have a new fusebox but what I'd like is new connectors too as you can see from the pic.

A little confused here as according to my version of Rave that burnt pin isn't connected to anything. Could someone advise if I'm reading it wrong?

Cheers much!

dougdotcom · Jan 27, 2011

it may pay you to do a continuity test and find out if another wire live or earth has melted further down the line then caused a short in the socket, it may even be the wire next to the burnt one that caused it. was it to a relay.

sandyt · Jan 28, 2011

Also might be easier to dismantle the plug my guess is that the fault was inside the pcb which is folded over when I changed mine I had scorch marks on all plugs I took the board to bits and repaired 30 dry joints and kept as a spare but I would dismantle the plug and do any remedial or find out from the stealer how much a new plug would be

rasheed · Jan 28, 2011

Cheers fellas. Yes have been avoiding getting in to that sandwiched PCB but guess will have to. Will also do the continuity test. Or rather my friend will as he gets this stuff much better than me!
