Fuel Pump
- Thread starter JohnnyCrash
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
JohnnyCrash
New Member
- Posts
- 1,917
Clarkson's only ability seems be being rude to people
Yes true - but got to admit he's made good money being rude to people!!
Datatek
Well-Known Member
- Posts
- 43,998
- Location
- Near Poitiers SW France
aerofabrique
Active Member
- Posts
- 581
- Location
- UK
Any other seals that can be changed diy on the pump? Mines leaking like a goodun. Looks to be from the middle rather than the top (ouch on the wallet) but hard to tell in situ. Definately top rather than bottom of the pump.
Spill pipe and other connections seem tight so suspect a seal. However in the bosch seal 'pack' i dont know how many of these are diy and how many need expert hands. I know the shaft seals are a no no.
JohnnyCrash
New Member
- Posts
- 1,917
Keep looking I'll take the phone out to take piccies as I'm working on Sat as my seal pack and manifold gaskets turned up at home yesterday ;-)
- Posts
- 58,170
- Location
- Preston Lancs.
Look on youtube for VE EDC pump videos.
JohnnyCrash
New Member
- Posts
- 1,917
Already have and if everything comes out without breaking I am confident I'll be able to sort it
aerofabrique
Active Member
- Posts
- 581
- Location
- UK
Cheers Johnny, times against me unfortuately as testing on monday however have another 7 days after to sort.
- Posts
- 58,170
- Location
- Preston Lancs.
Already have and if everything comes out without breaking I am confident I'll be able to sort it
The only thing to worry about is the oval bolt head but a twelve point socket tapped on should move that.
JohnnyCrash
New Member
- Posts
- 1,917
The only thing to worry about is the oval bolt head but a twelve point socket tapped on should move that.
Or having the correct tool
- Posts
- 58,170
- Location
- Preston Lancs.
Grit Valve
2000 4.6 Vouge
- Posts
- 12,465
- Location
- Plaistow
Yep the passenger side oval one there is a spring and shim in there so be Carefull, also disconnect battery good chance of shorting the alternator I can give you the part no if needed for gaskek wipe pump with rag and if its leaking your see it dripping, but there is also one on the opposite side that needs pump removal to access it and it can fool you in to believing its the passenger side as it drips in the same path making you think it's passenger side if that makes sence .
JohnnyCrash
New Member
- Posts
- 1,917
Ok
so today I've been out and replaced the seals inside the FIP much easier that I expected - just awkward due to the fact you have to strip so much down to get to it!
anyway - I have just popped inside to warm up and grab a coffee, but before I go out and try to start it, I may as well change the fuel filter while I'm getting dirty.
So question is is the system self bleeding or am I looking at cracking the injectors while I crank it over??
so today I've been out and replaced the seals inside the FIP much easier that I expected - just awkward due to the fact you have to strip so much down to get to it!
anyway - I have just popped inside to warm up and grab a coffee, but before I go out and try to start it, I may as well change the fuel filter while I'm getting dirty.
So question is is the system self bleeding or am I looking at cracking the injectors while I crank it over??
- Posts
- 58,170
- Location
- Preston Lancs.
Open all the injectors crank and close them as they get fuel. Engine may start as you go. So be aware.
JohnnyCrash
New Member
- Posts
- 1,917
Thanks - Coffee in me, and I'm off out now to prime filter and give it a go :clap2:
Will post pictures of job up later
JohnnyCrash
New Member
- Posts
- 1,917
and back inside I come thanks to the rain!!
You should be fine with just filling up the filter with clean diesel. It should start within 30 seconds.
Regarding the FIP seals you just replaced - I take it you don't deem their failure in any way related to the combination of vegetable oil and nitrile rubber you so vehemently denied on the other thread?
Regarding the FIP seals you just replaced - I take it you don't deem their failure in any way related to the combination of vegetable oil and nitrile rubber you so vehemently denied on the other thread?
JohnnyCrash
New Member
- Posts
- 1,917
Nope not at all
nothing was perished as I shall show when I post pictures later - it was leaking from the day I bought it - it's just increased to an unacceptable level over that last few days.
and if it's down to Veg oil - how come Aerofabrique is in the same situation? along with thousands of Americans? quick google search will show loads of people having similar problems
JohnnyCrash
New Member
- Posts
- 1,917

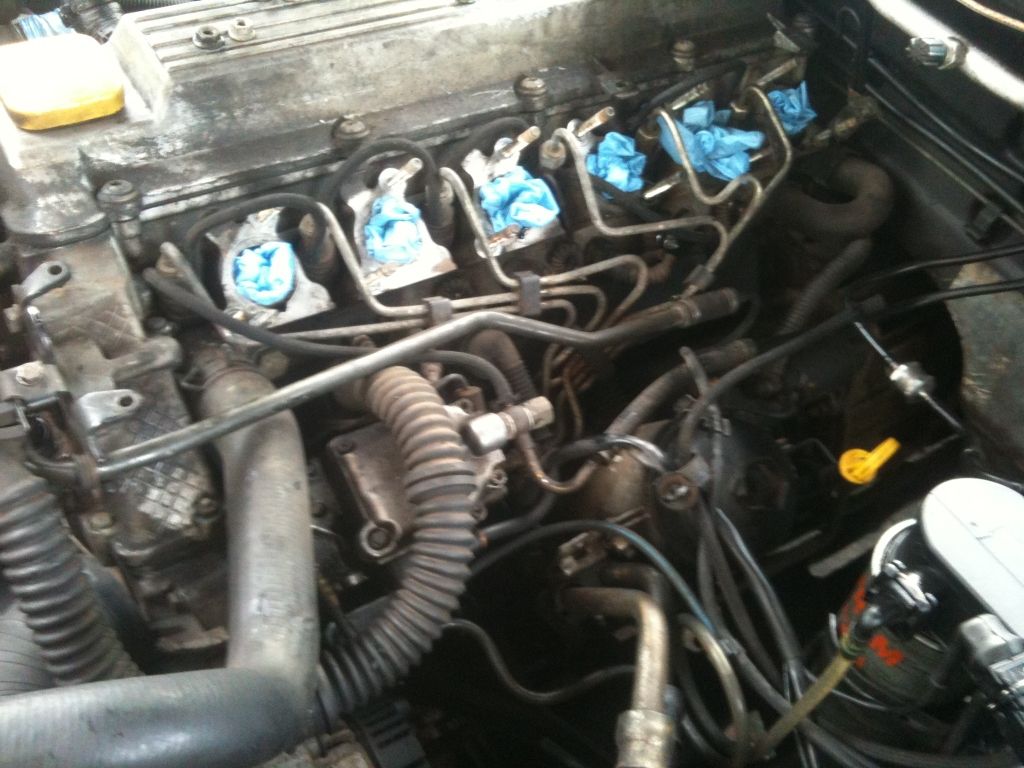

manifold off for access - and inlets blocked with old gloves, last thing you want is to spend an hour hunting a dropped nut out of there!!

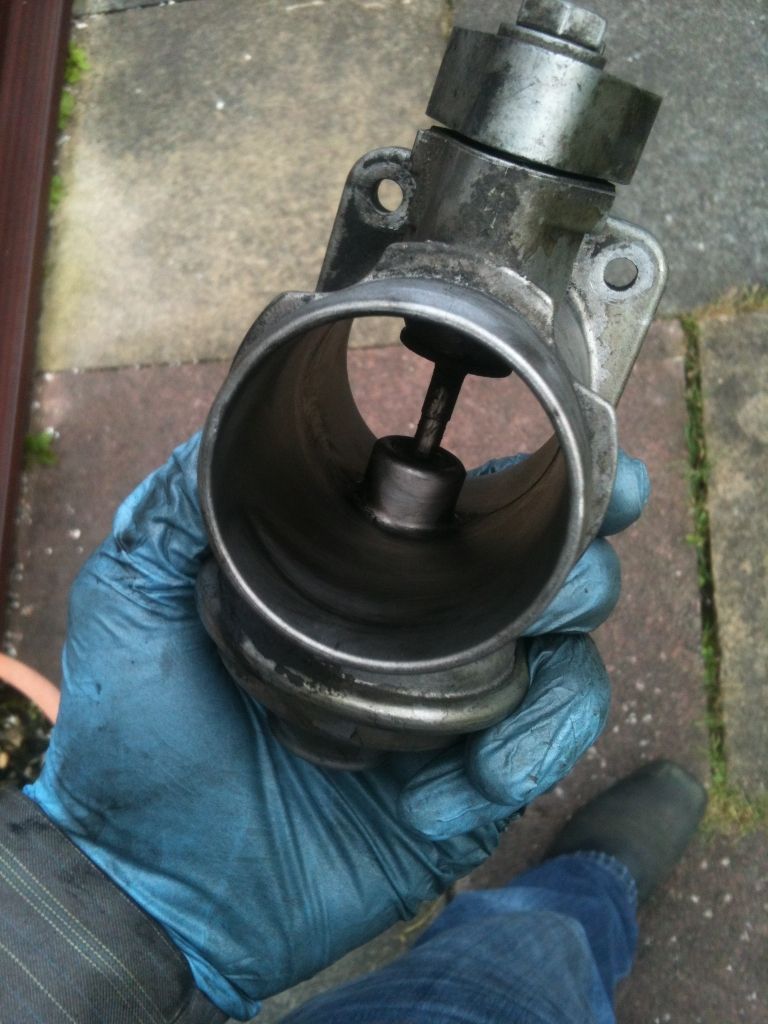

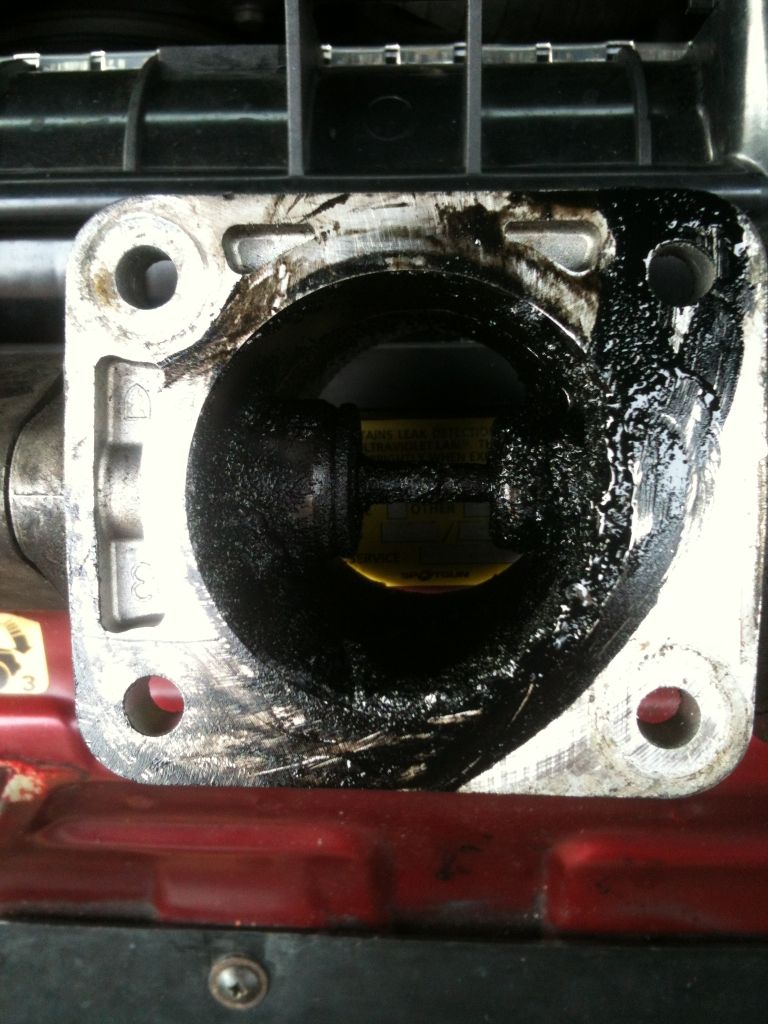

EGR Valve ewww!!
After a good soaking

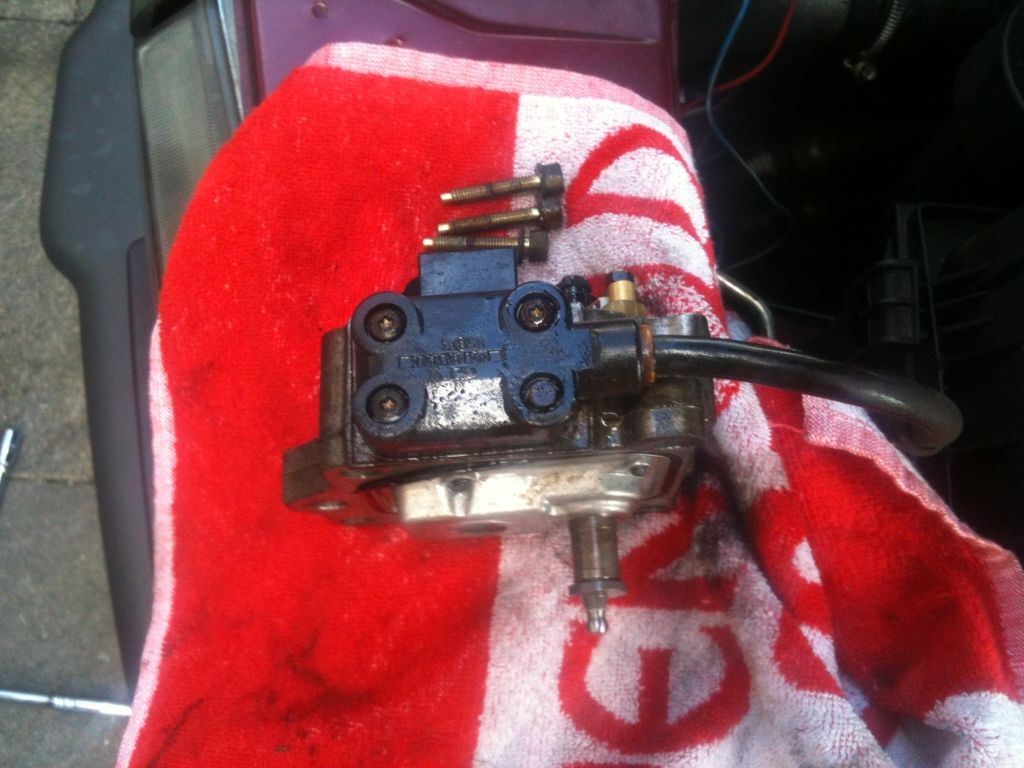

anyway back to job in hand FIP pump

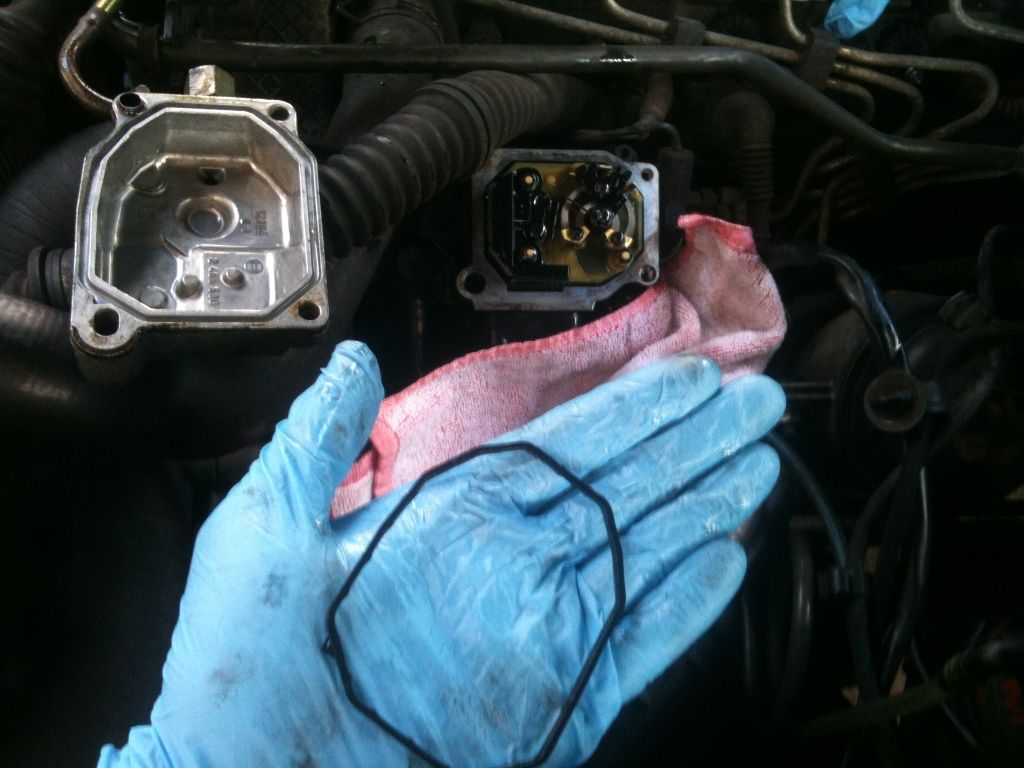

Top seal - nice and easy - just fell out!

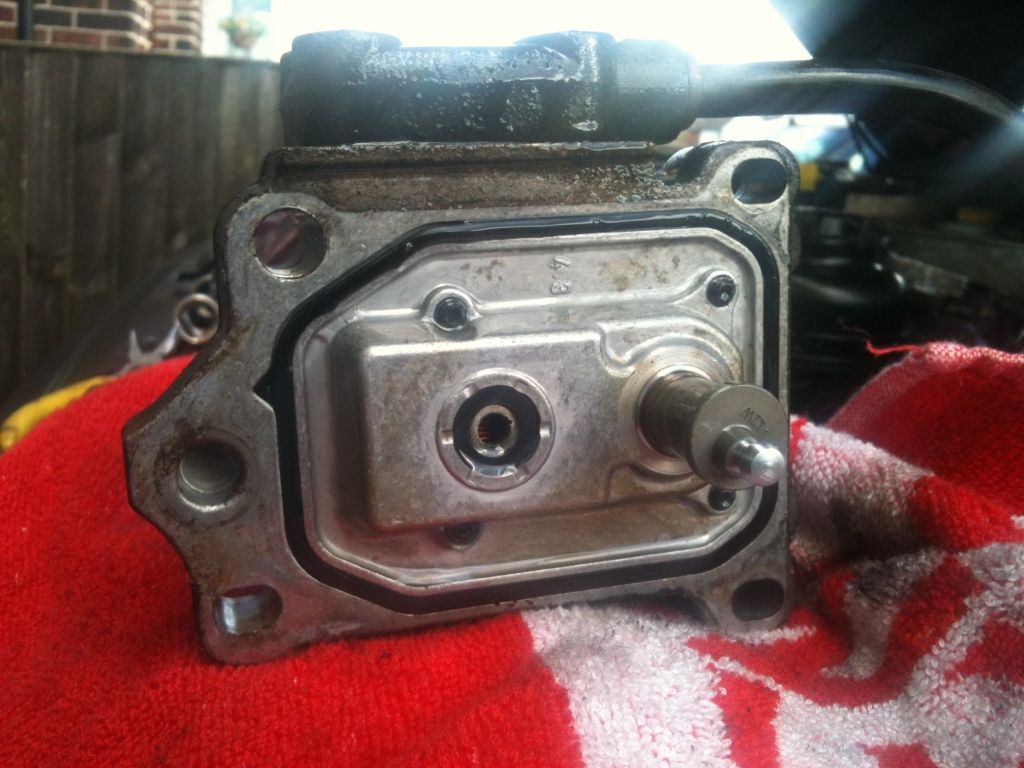

Second layer - I didn't mark off before I removed, but not essential as you'll need to adjust anyway

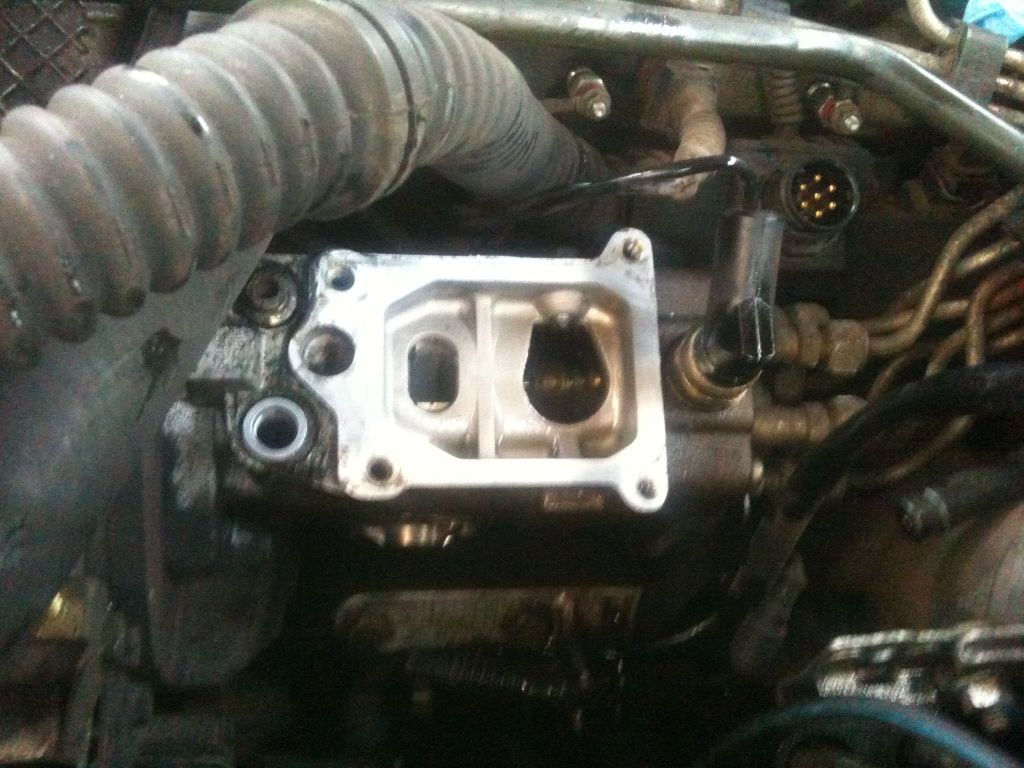

Inside the pump
Can see here where the seal is pushed out, swollen and feels very brittle
Last edited:
JohnnyCrash
New Member
- Posts
- 1,917
When putting all back together ensure the part circled in green
sits inside the cup circled in red
I missed on the first attempt - but practice a few times so you know you are getting it.
then loosely assemble everything and push the middle section as close to back of the engine as poss
then crank engine and slide left until the engine kicks into life and play around with the plate until you have a normal tick over - tighten everything down
sits inside the cup circled in red
I missed on the first attempt - but practice a few times so you know you are getting it.
then loosely assemble everything and push the middle section as close to back of the engine as poss
then crank engine and slide left until the engine kicks into life and play around with the plate until you have a normal tick over - tighten everything down
