Hi.
I'm just going over my fuel pump and giving it a refurb (series 3 1978 petrol).
I thought i'd go a bit mad and treat it to the genuine Land rover parts so bought AEU2760 refurb kit. I've fitted the 2 small valves fitted in the top casting no problems. The main diaphragm looked fine at a glance but when I compared them properly they are different.

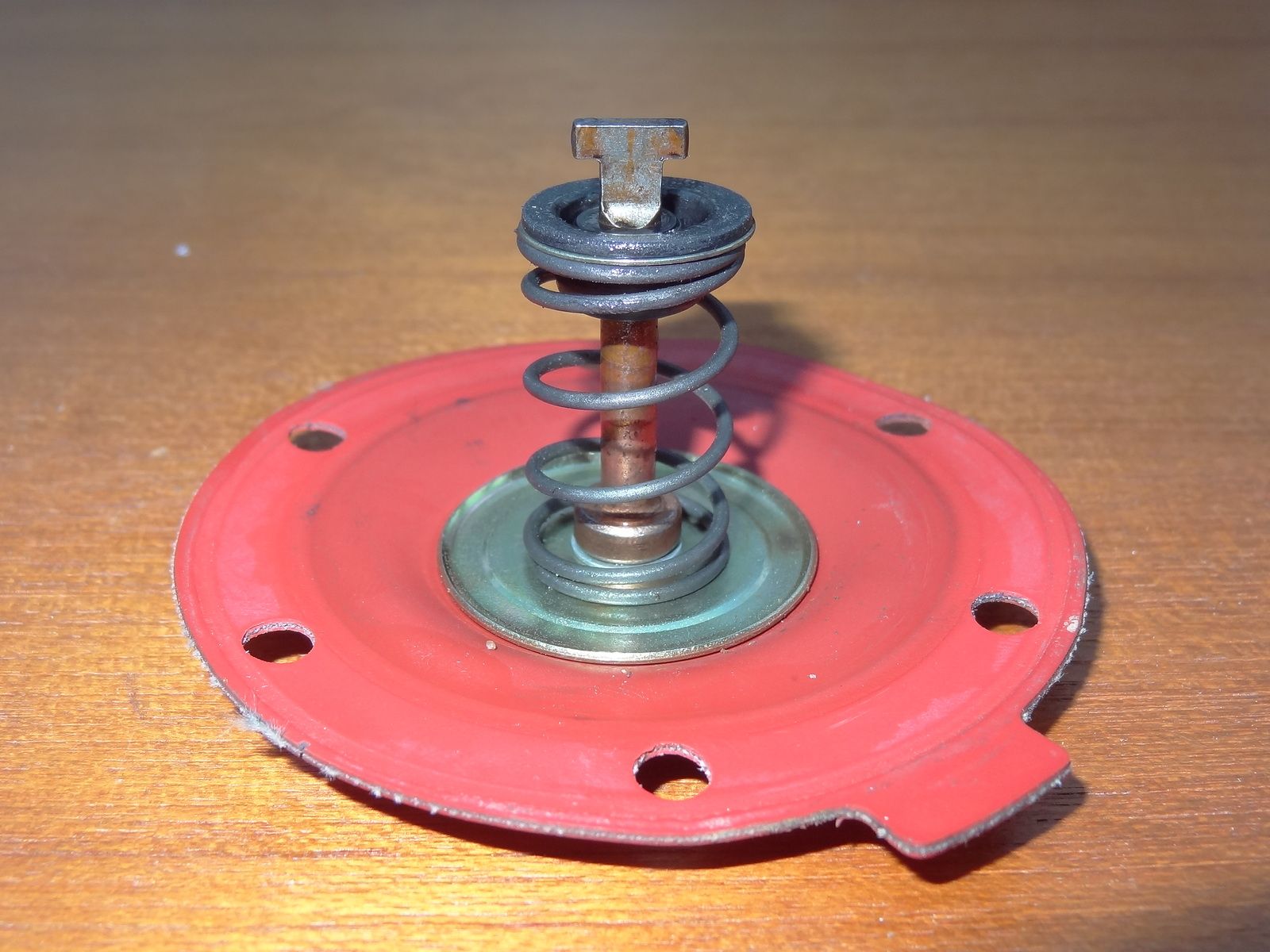

Old one

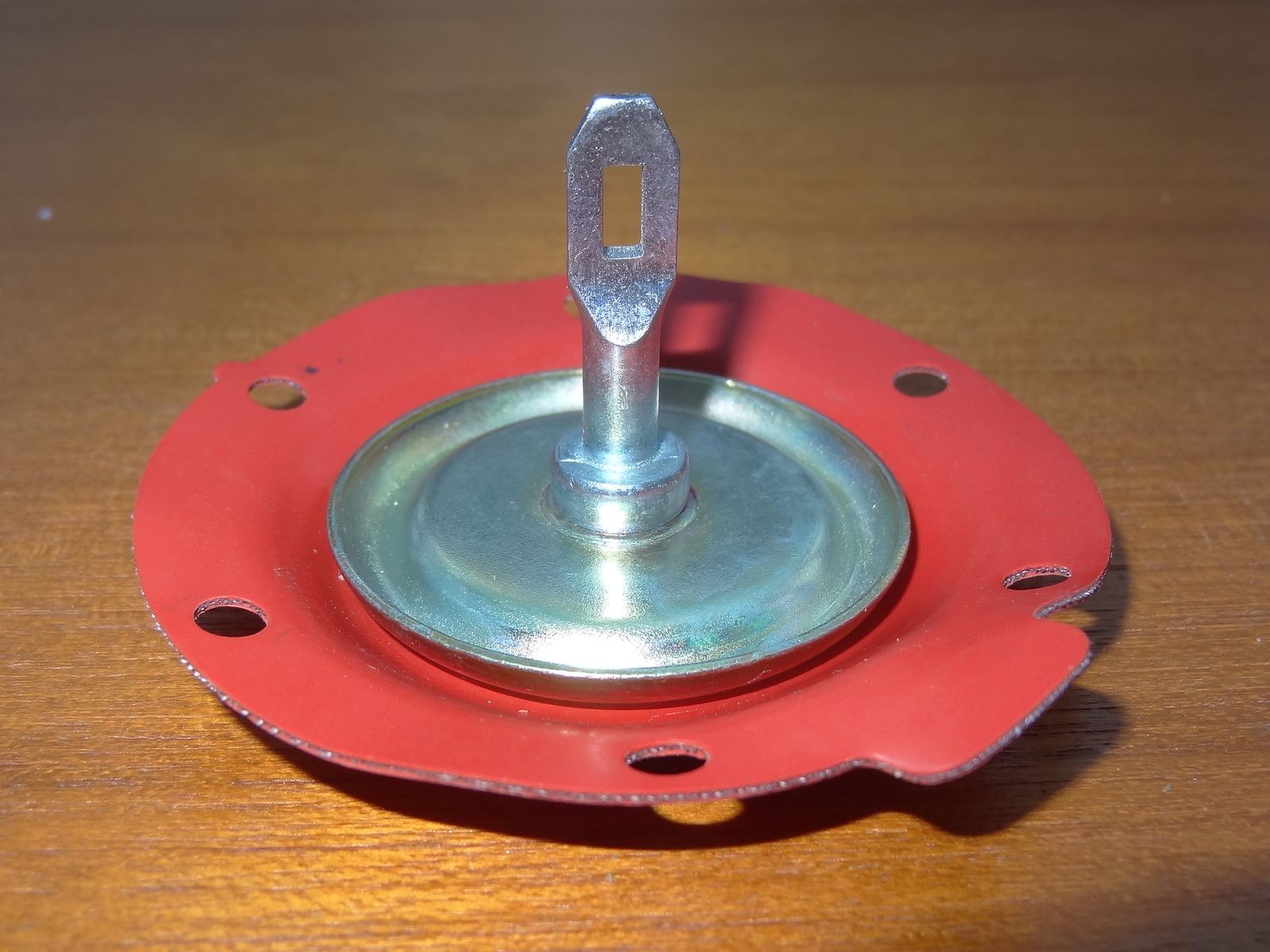

View attachment 198139 New one
View attachment 198141 So I obviously need the kind with the key on the end not the hole. I've been searching and I can find plenty of kits with the key end but none with the spring and oil seal fitted.

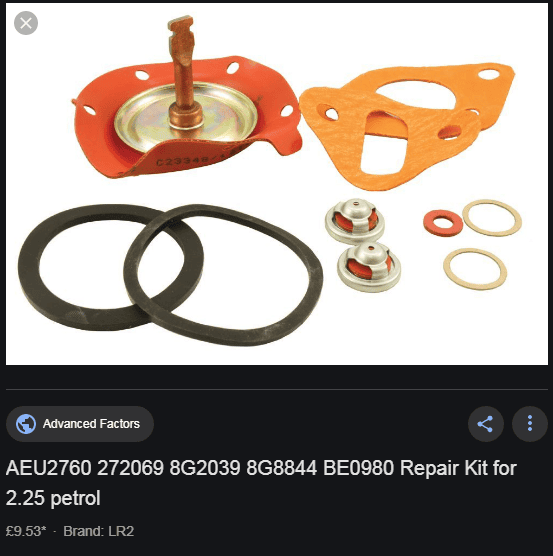

View attachment 198145
Help me out everyone. Where am I going wrong?
Thanks, Steve.
