Fuel Injection Pump leak

Discussion in '200 TDi' started by Thommo1, Jul 25, 2019.

< Previous Thread | Next Thread >
  1. Thommo1

    Thommo1 Well-Known Member

    Joined:
    May 3, 2017
    Posts:
    163
    Likes Received:
    102
    Location:
    Fareham

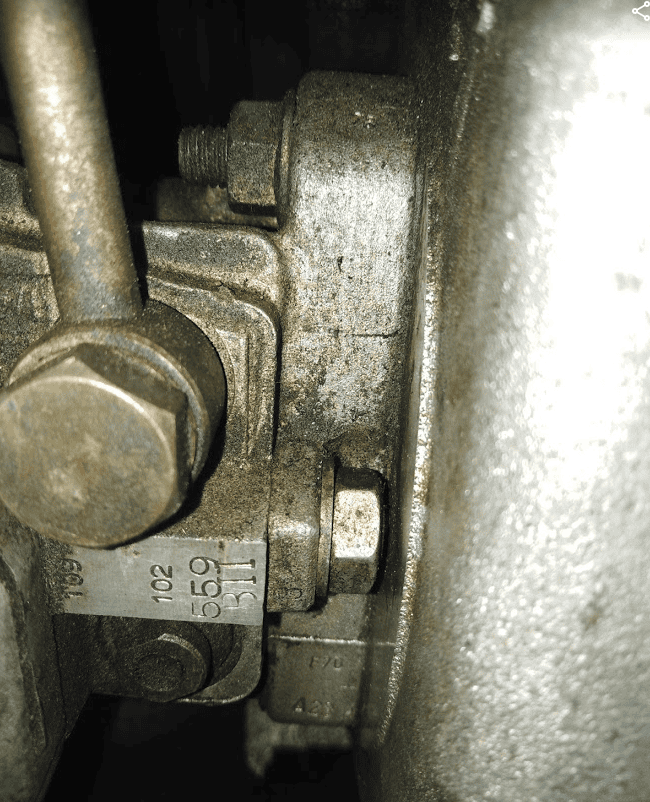

    It appears that I have a leak from my FIP. It looks to me like is is coming from the bolt/screw on the right in the image fairly tight against the timing chest. Does anyone know if there would be diesel behind this (I'm guessing so), and also I think the pump would need to come out to get a new washer on there?


  2. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,949
    Likes Received:
    3,169
    Location:
    Shropshire
    Long shot but have you tried nipping it up a bit?
    Certainly looks like pump removal to get that out although, if not aware, you can get a kit allowing FIP removal without disturbing the timing chest.
    Sure it's not coming from what looks like that Banjo?

  3. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    10,087
    Likes Received:
    3,589
    Location:
    Kent
    5.21mins


    Thommo1 likes this.
  4. Thommo1

    Thommo1 Well-Known Member

    Joined:
    May 3, 2017
    Posts:
    163
    Likes Received:
    102
    Location:
    Fareham
    Perfect - thanks for that. P.I.T.A. though as that's a garage job for me. lol

  5. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,060
    Likes Received:
    128
    Location:
    monkeyhangerland

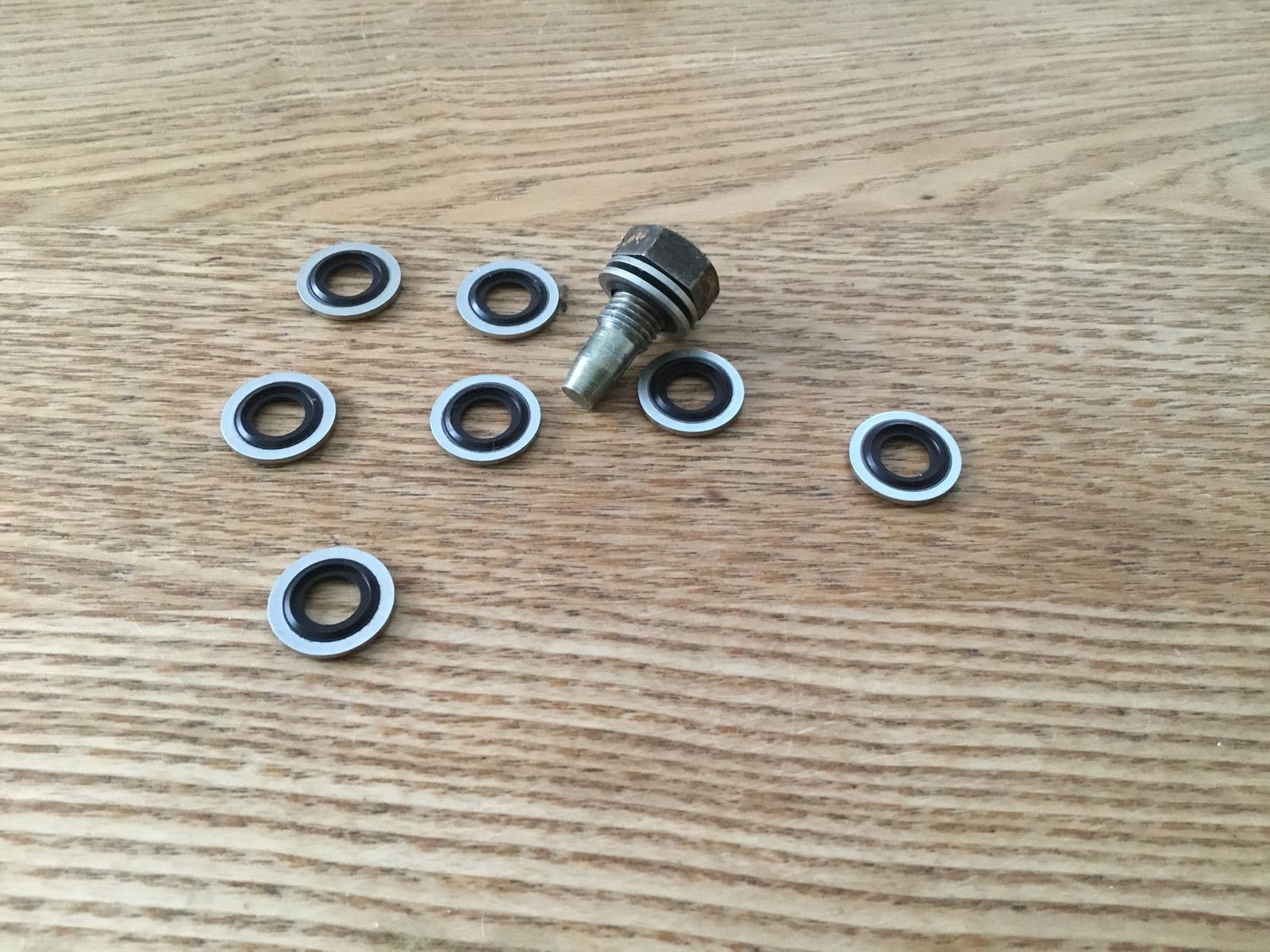

    10CD19F2-EB8B-4771-8902-0AE688911D2D.jpeg You could swap washer for new Dowty washer, just been to buy these from local hydraulic shop

    lynall likes this.
  6. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    10,087
    Likes Received:
    3,589
    Location:
    Kent

    Do as Flossie suggests and nip it up first, got to be worth a go?

  7. adrian hogg

    adrian hogg Active Member

    Joined:
    Jul 20, 2017
    Posts:
    159
    Likes Received:
    96
    Location:
    WEST MIDLANDS
    hi If its from the 13mm nut next to "559" stamped on housing it is a lock nut for governor weight support spindle. the spindle has an o ring inside the housing and is adjustable but DO NOT take it out with pump in situ as the governor will fall to pieces and drop inside pump. Pump should come off engine to do it and take off top housing to be sure all is in place before putting back, you should measure the protrusion of the thread before taking off locknut so you can put it back the same

    Flossie and lynall like this.
  8. Thommo1

    Thommo1 Well-Known Member

    Joined:
    May 3, 2017
    Posts:
    163
    Likes Received:
    102
    Location:
    Fareham
    Thanks for all the input guys. I bit the bullet and took it to a fuel pump specialist locally. £250 later and it's all done.
