Fuel gauge wiring - time bomb?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

steve52

New Member
Posts
167
Hi Group - this question is loosely rover related cos i tow my boat with a 90 and its got a rover V engine! Ive always been a bit unhappy with the fuel gauge sender - its a simple float affair with sliding contacts onto a coil to give a variable resistance. My concern is that this is mounted inside the fuel tank with no form of gaseous isolation. when i measure voltage to earth at the connections, i have 12v which causes me concern! i have played in the dark in trying to create a spark by momentarily grounding these connections to earth but this fortunately has proved unsuccessful!
Power supply to the gauge comes from a small sealed box on the dash gauge - can anyone tell me if this is a standard set up and perfectly safe or should i remove the wires and use a dip stick?

thanks in anticipation

steve

That's how the one on my s3 works - for years the gauge kept going intermittent until I realised the sender terminal was shorting out on the seat box cover plate immediately under my bum. No explosion, though. There's probably more risk attached to owning a boat....

ps the box behind the dash is a voltage regulator - if you are getting 12v continuously at the sender it may be faulty. Does your gauge work properly?

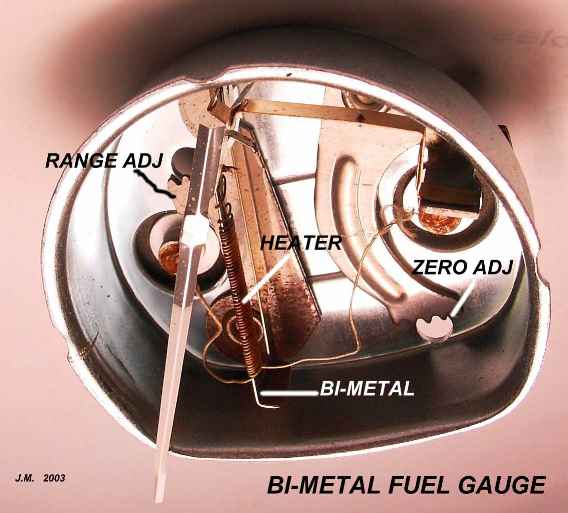

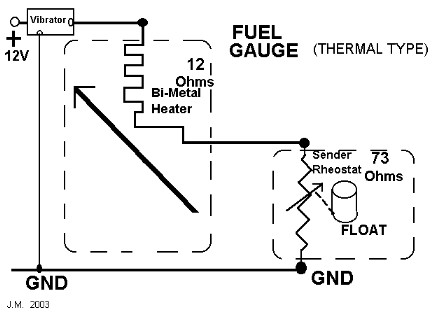

hope these help may not be correct but give you the basic's


Attachments

  • dia.JPG
    25.1 KB · Views: 1,577
  • fuel gauge.JPG
    fuel gauge.JPG
    30.7 KB · Views: 530
  • stab.JPG
    43 KB · Views: 426
thanks Gents - the diag and pics are almost identical to what I have - so presumably this set up in the top of a 20 gallon tank of four star is considered safe?
