Hi All

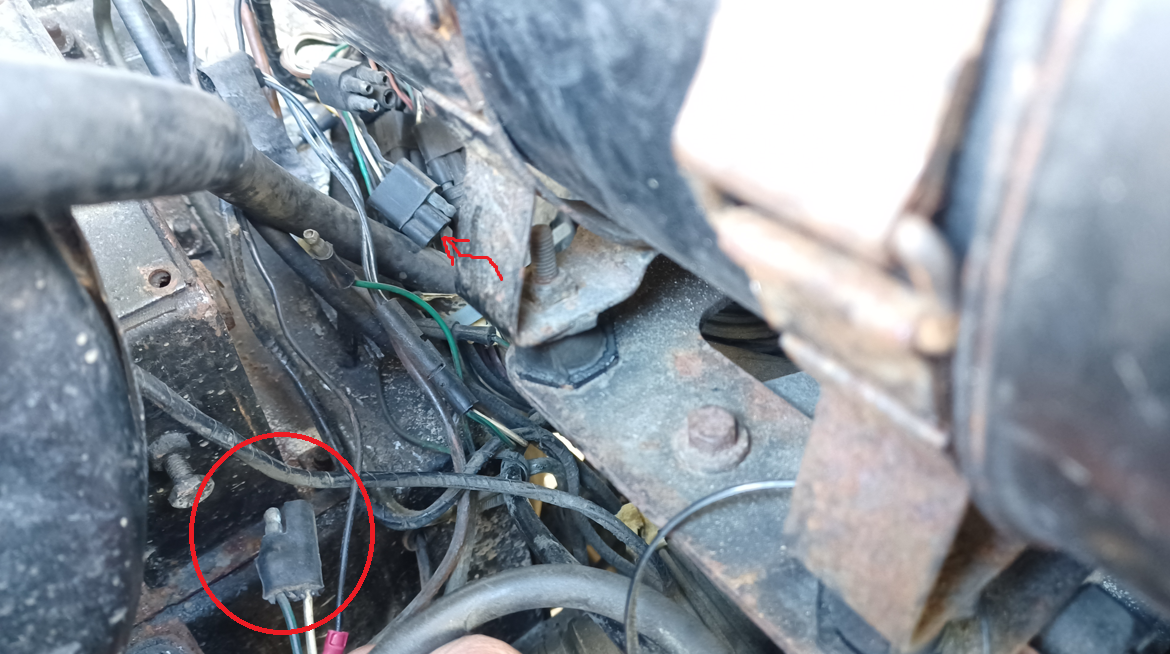

Does anyone have any clues on this? My 300tdi fuel gauge doesnt work. The plug from the sender is not connected. Its the plug circled in red. The earth from it you can just see behind with a red clip i put on to extend it and make a good connection.

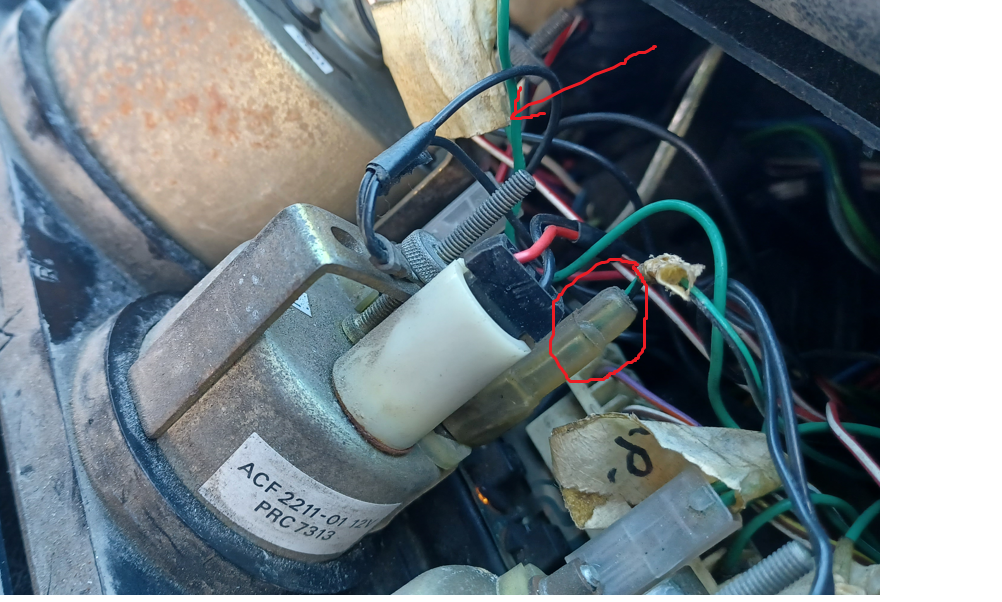

But coming from the back of the instrument. (Second picture). The green wire seems to go to the red arrow below. This doesnt match the plug from the sender unit.
The green and black wire on the back of the instrument (circled) measures 6v with ignition on.
Anyone got any ideas?
Many thanks
James
