Series 2 Front Prop shaft too short

Discussion in 'Series Land Rovers' started by splashback, Nov 27, 2021.

< Previous Thread | Next Thread >
  1. splashback

    splashback New Member

    Joined:
    Nov 26, 2021
    Posts:
    6
    Likes Received:
    2
    Location:
    Ireland
    Hi Everyone, could do with some expertise, bought a 2A unseen a few years ago, mistake I know, and as we are at the final stages of rebuild find that while rear prop shaft is fine my front one is 25mm short, some one suggested its something to do with shackle plate angle.
    Any advice much appreciated [​IMG] [​IMG] [​IMG]


    Attached Files:

  2. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,102
    Likes Received:
    627
    Location:
    Tyneside

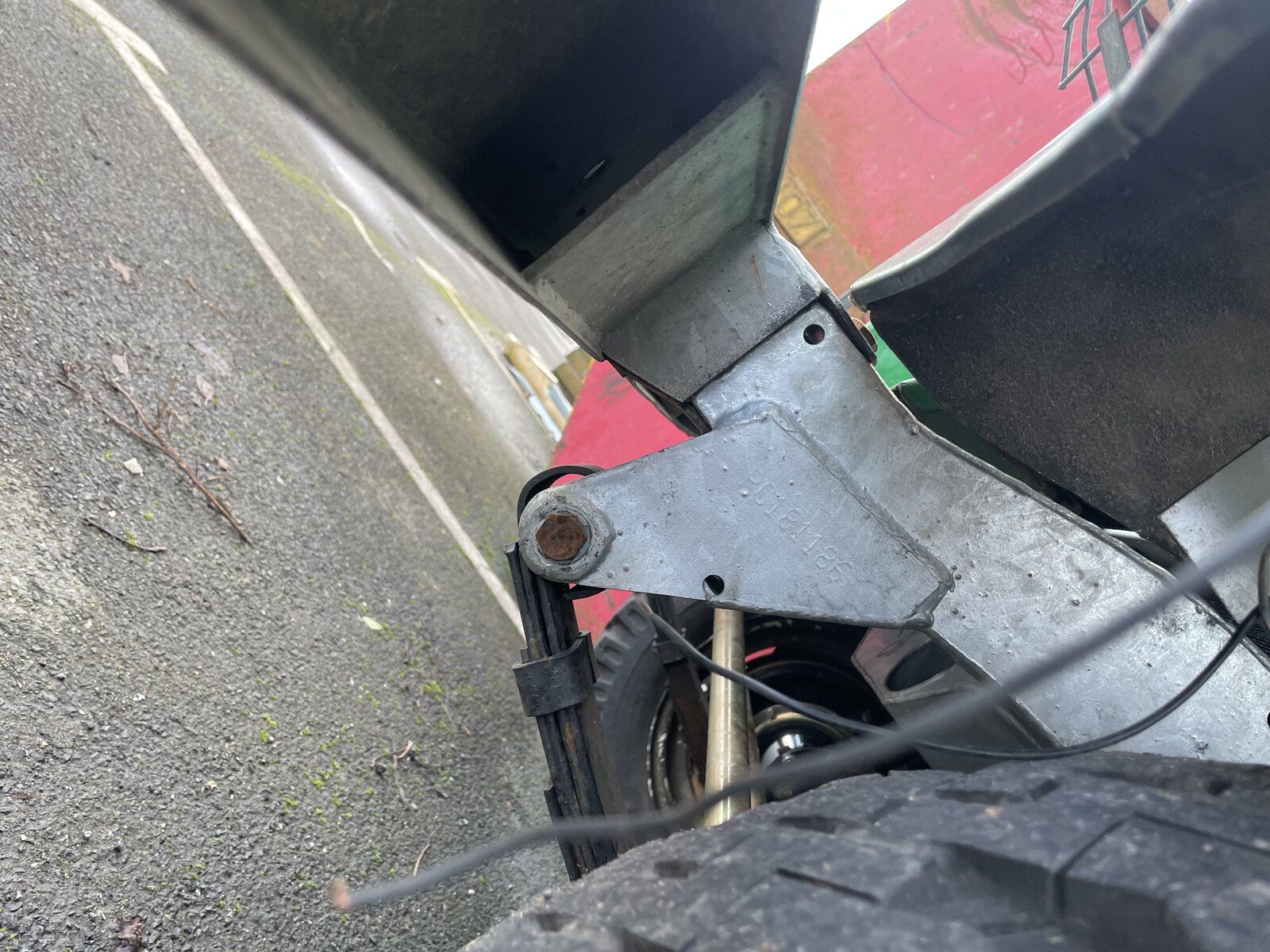

    pic of rear of front springs would help is engine actually in place thinking springs not compressed enough.

  3. splashback

    splashback New Member

    Joined:
    Nov 26, 2021
    Posts:
    6
    Likes Received:
    2
    Location:
    Ireland

  4. splashback

    splashback New Member

    Joined:
    Nov 26, 2021
    Posts:
    6
    Likes Received:
    2
    Location:
    Ireland

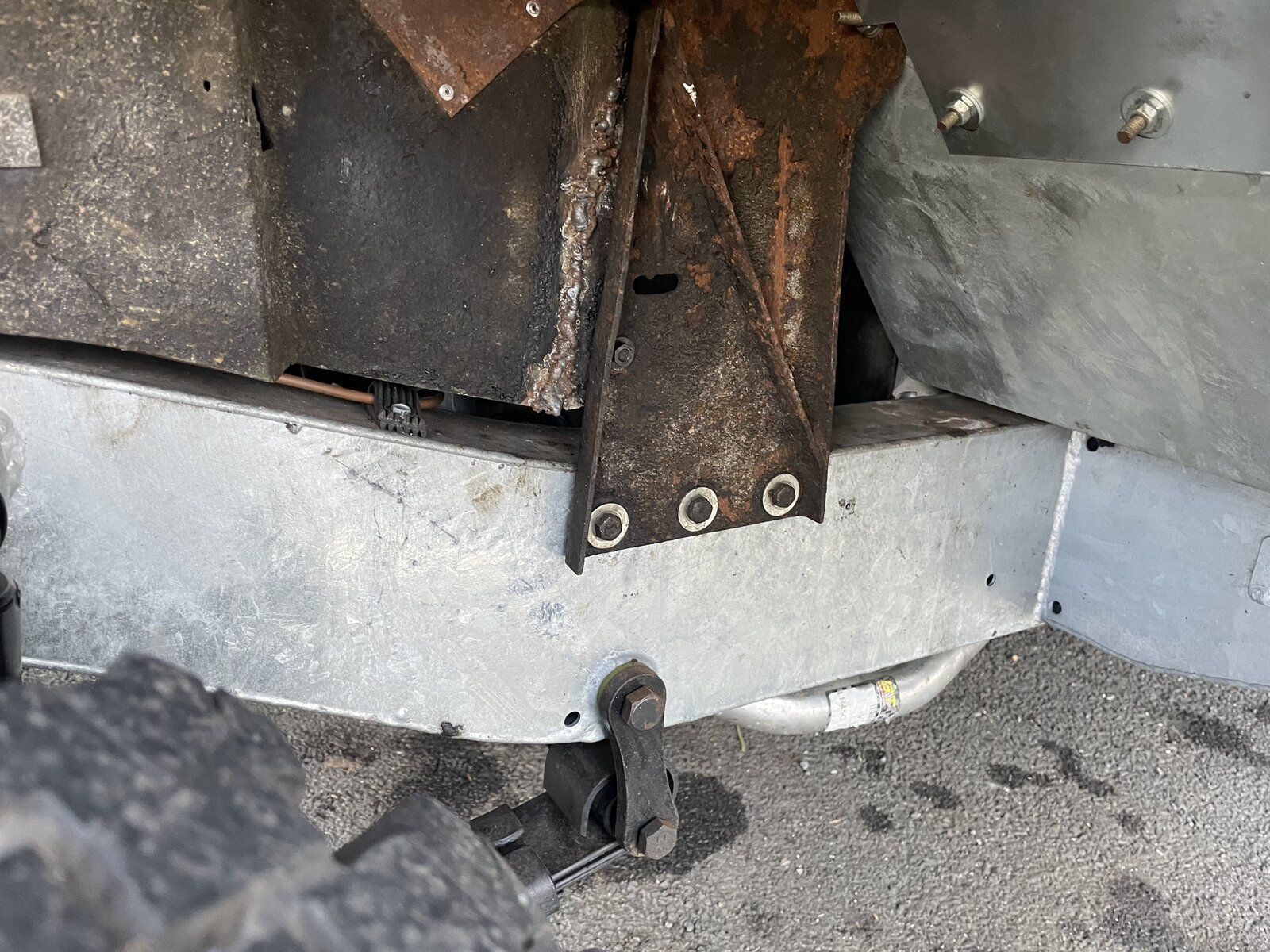

    Here you go E0BB61E2-F718-4BE4-8394-D42F4089451E.jpeg

    lynall likes this.
  5. splashback

    splashback New Member

    Joined:
    Nov 26, 2021
    Posts:
    6
    Likes Received:
    2
    Location:
    Ireland
    Yes engine is in, was difficult with new bulkhead didn’t fit easily

  6. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    18,983
    Likes Received:
    17,778
    Location:
    Kent
    Is that an old fan belt as a pipe p clip?
    I love ideas like that, mate used same belt to repair step plate on his kids wheelchair, have seen others use the flat belts as filter straps.

    Hicap phill likes this.
  7. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    18,983
    Likes Received:
    17,778
    Location:
    Kent
    Ps I cannoot the shackle plates being an issue, yours look fine
    Have a measue between the diff and tfer box flange and see what others say theirs measure at?

  8. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,102
    Likes Received:
    627
    Location:
    Tyneside
    Your spring shackle looks fine loosen the rubber boot on the propshaft and check it is extending fully.
    What engine have you got fitted that caused issue with bulkhead?
    Is the propshaft the original one that was fitted when you bought it or a replacement, if replacement check it is correct part number.

  9. mystery

    mystery Well-Known Member

    Joined:
    Jan 11, 2010
    Posts:
    994
    Likes Received:
    254
    Location:
    torquay Devon

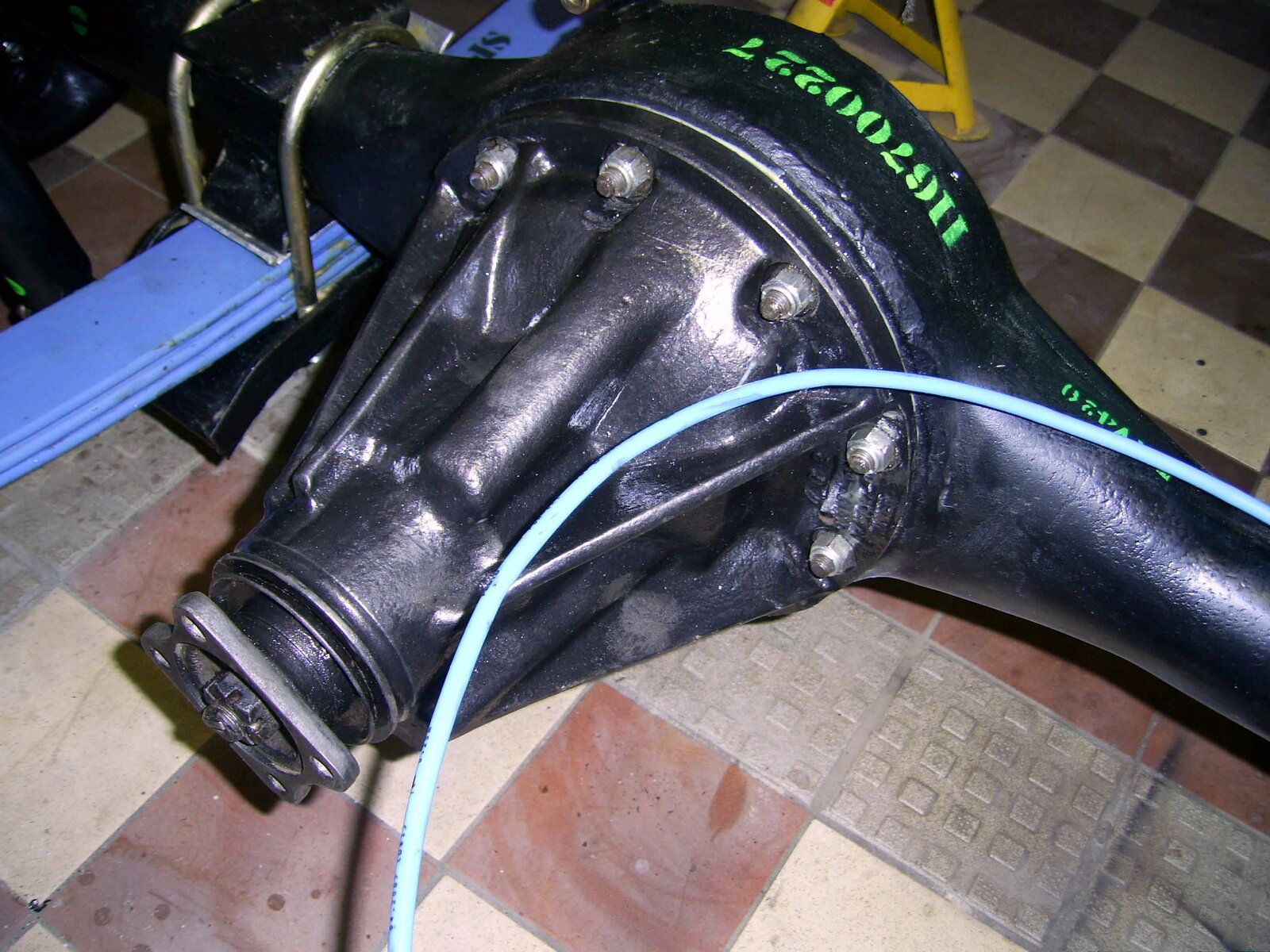

    you have not crossed the front a rear diffs as the front is slightly longer front diff fitted 6513.JPG rear diff fitted 6 5 13.JPG

  10. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,928
    Likes Received:
    1,932
    Location:
    west wales coast
    Diffs are all the same unless the rear is a series 3 one with no filler plug in diff housing, even so difference is small.
