    Hi guys,
    Just had an MOT on my old girl and she has slight play in the front prop (Mr MOT Man) must admit that I did think about a week ago I started to hear a slight knock when taking off quickly from a standing start. Not at home at present so cannot look at Rave so has anyone replaced a front prop recently or is there a bush or doughnut on the front that just may need replacing. Any help appreciated. By the way it lives another year just this 2 rear sway bar links and a small oil leak, although I have no oil on my drive or using any !!!

  2. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    4,013
    Likes Received:
    1,189
    Location:
    Kent
    Its a long time since i had mine off but there is updated spline link that connects to the front diff that was a recall and the end that connects to the transfer box has a rubber connection

    from Rave
    The front propeller shaft is a one piece unit, connected to the transfer box by a flexible rubber coupling and mating
    with the front differential unit via a splined shaft.

    Grrrrrr likes this.
  3. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    14,256
    Likes Received:
    4,057
    Location:
    Buckinghamshire, UK. ('95 DT)
    There's a picture of the difference between the original and replacement the recall was for on here somewhere. Been posted a few times. If you're going the scrappy route make sure it is the right one!

    holidaychicken likes this.
  4. Bemble

    Bemble Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    581
    Likes Received:
    138
    Location:
    Lancashire

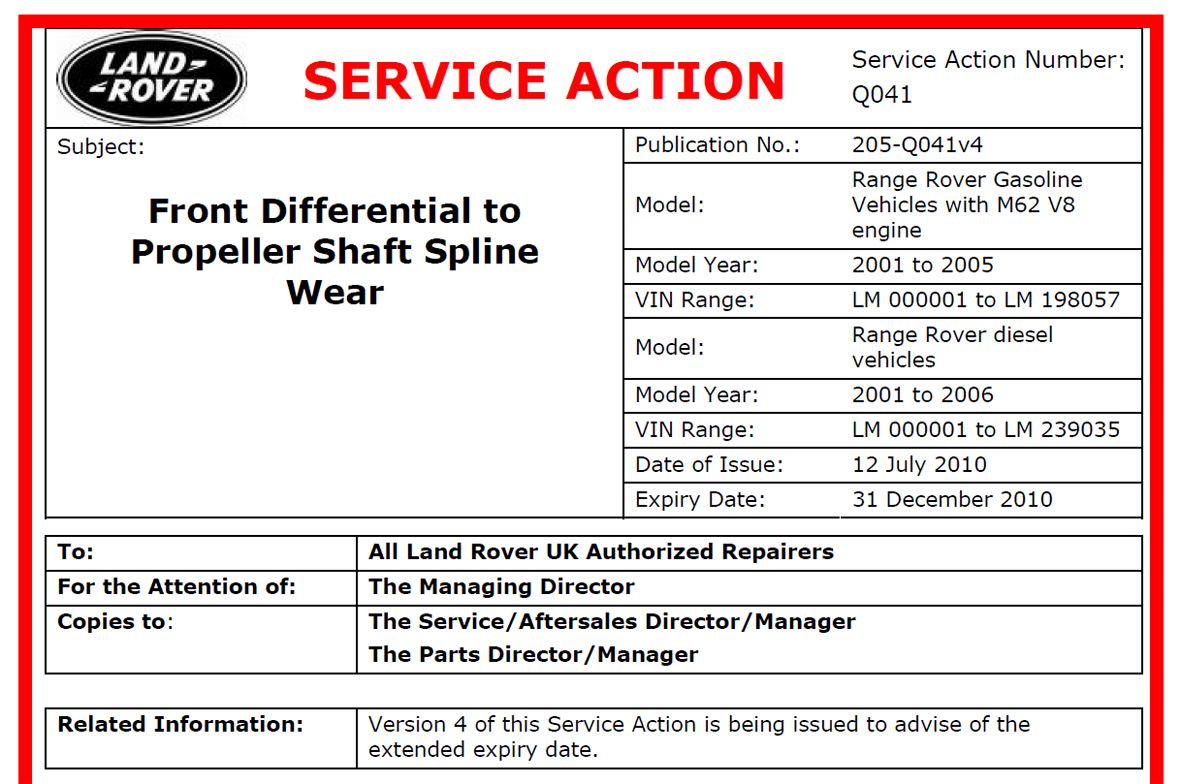

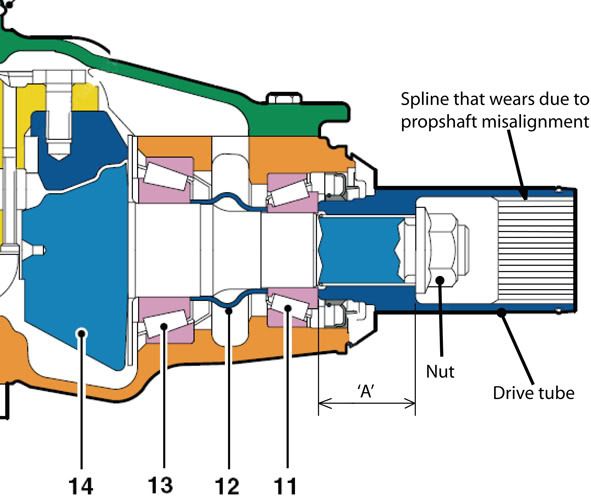

    Yes, definitely worth checking that your car has had the Q041 Service Action update, otherwise it’s not surprising that the spline is wearing. Surely there aren’t any L322s left on the road, though, still running the old shaft design?

    [​IMG]

    [​IMG]

    [​IMG]

    Phil

    Grrrrrr and holidaychicken like this.
  5. Ruby Range

    Ruby Range Well-Known Member

    Joined:
    Aug 31, 2015
    Posts:
    330
    Likes Received:
    131
    Location:
    Sandwich Kent
    No looked this weekend and it has the updated version on so think it will be a replacement also nice to see that one of the bolts was sheared when replaced!!
