Freelander lock barrel

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Don't know. But to get to it you need to take off the inner tail gate plastic panel - 4 screws underneath at the bottom, and pull away at the bottom and angle off at the top - then remove the water cover membrain thing - peal off so you can refit later on - then undo the 3 nuts/bolts that hold on the door handle. The lock barrel is inside this.

held in by gasket and nut


Attachments

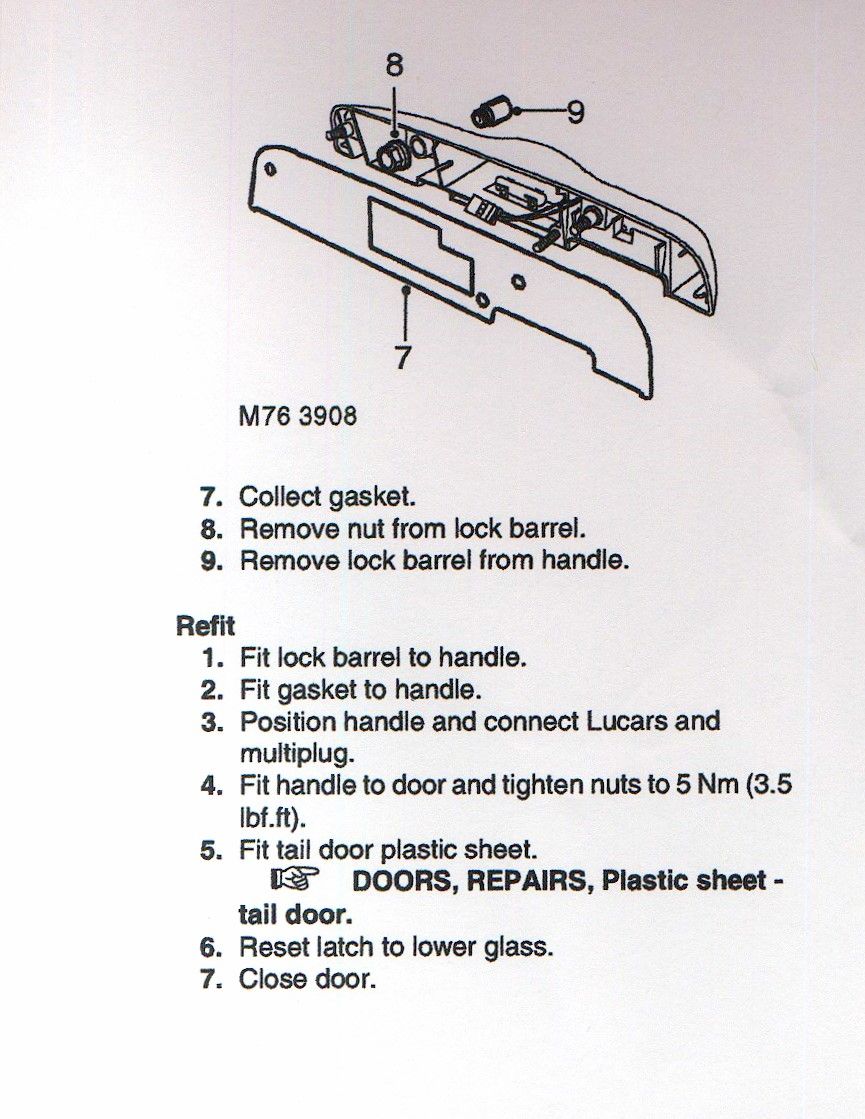

  • rear door1.jpg
    rear door1.jpg
    137 KB · Views: 2,465
