P38A faultmate plug wiring

Discussion in 'Range Rover' started by tomcat59alan, Oct 12, 2019.

< Previous Thread | Next Thread >
  1. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate

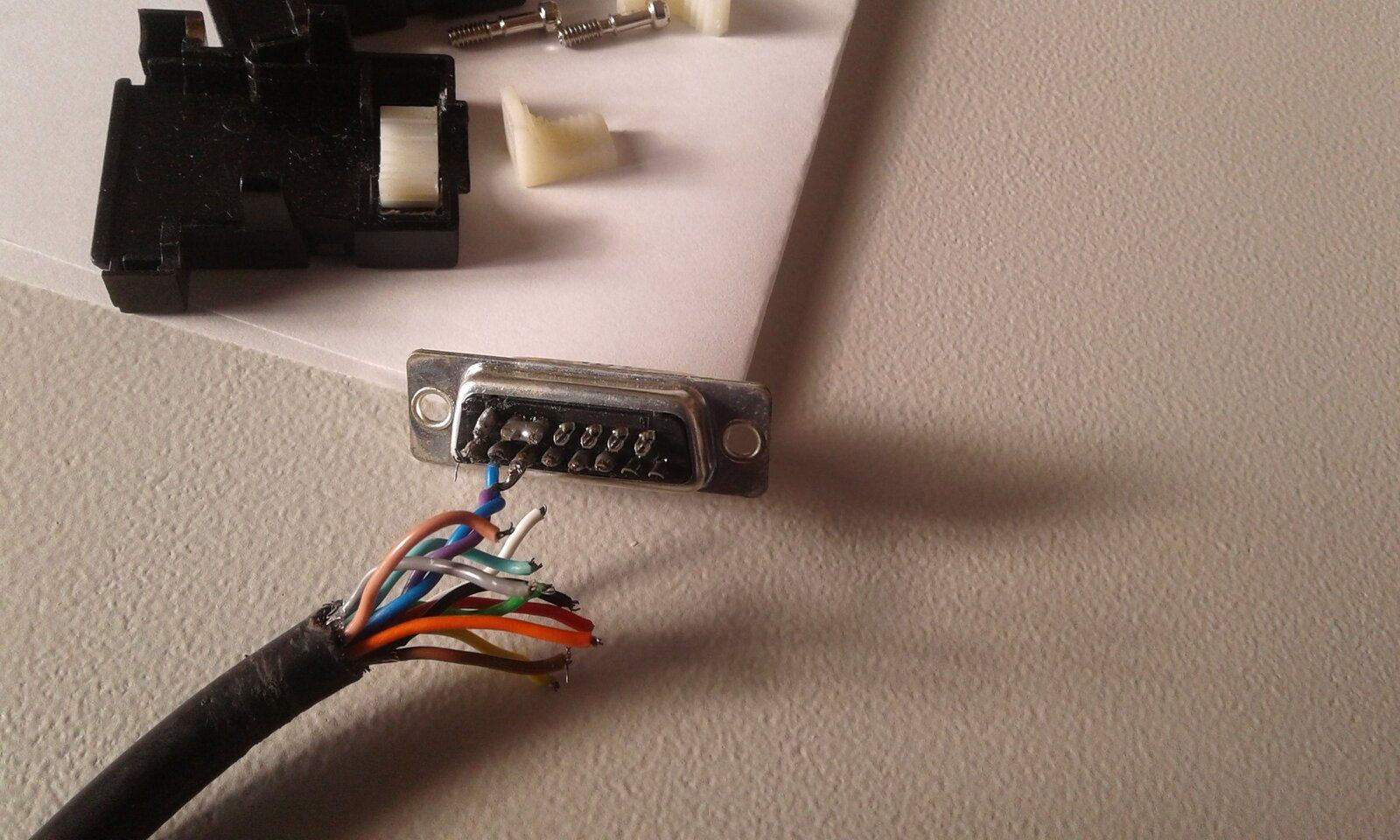

    Morning all Having bought a used Faultmate and having trouble with getting it to work I checked the plugs on the connecting lead and this is what I found so a,what type of plug is it and b. does anyone (@Datatek ) have a wiring diagram? Thanks in advance.


    Attached Files:

    Last edited: Oct 12, 2019
  2. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    55,429
    Likes Received:
    9,719
    Location:
    Preston Lancs.
    Faultmate what? MSV2 or Code reader. They are locked to a VIN number so won't work even if you do get the wiring done.

  3. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate
    Faultmate MSV-2 extreme multi vehicle with upgrades Tony. If I get the lead sorted I'll give you a ring ;)

  4. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    55,429
    Likes Received:
    9,719
    Location:
    Preston Lancs.
    Ok that is a serious bit of kit and will work on anything. If you can get it sorted that is. ;););)

  5. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate
    Here's hoping;):D

  6. DanClarke

    DanClarke Well-Known Member

    Joined:
    Mar 13, 2009
    Posts:
    4,198
    Likes Received:
    3,924
    Location:
    Benfleet, Essex
    Last edited: Oct 12, 2019
  7. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate
    Helped a bit thanks Dan, just need what colour wire goes to what pin the ODB2 plug on the other end is fine.

  8. DanClarke

    DanClarke Well-Known Member

    Joined:
    Mar 13, 2009
    Posts:
    4,198
    Likes Received:
    3,924
    Location:
    Benfleet, Essex
    Even though the full connector has every pin specified very few are required for a working connection. Perhaps a trip to a friendly Indie with a faultmate will get you a chance to buzz-out a cable if you put some donation in their coffee-fund?
    Keith @Datatek may well know.

    Last edited: Oct 12, 2019
  9. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate
    Looks like only 7 pins have had wires soldered to them and another 2 are bridged Dan, with 9 wires to choose from.:confused: my local Indy has Testbook :(

    Last edited: Oct 12, 2019
  10. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    55,429
    Likes Received:
    9,719
    Location:
    Preston Lancs.
    Someone maybe kind enough to check theirs and let you know colour codes to pin outs. Why they have been disconnected in the first place is another question.

  11. DanClarke

    DanClarke Well-Known Member

    Joined:
    Mar 13, 2009
    Posts:
    4,198
    Likes Received:
    3,924
    Location:
    Benfleet, Essex
    Is the "other" end still properly wired up? That should give you all the clues you need shouldn't it?
    Tx on the one becomes Rx at the other end etc.
    A crap problem to have, but it should be resolvable.
    Ahhh... but its the OBD2 connector at the other end.... I guess :oops:

    Last edited: Oct 12, 2019
  12. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate
    Haven't been disconnected Tony,broken cable clamp has allowed the wires to snap.

  13. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    55,429
    Likes Received:
    9,719
    Location:
    Preston Lancs.
    Ok pin out colour codes and fingers crossed then.:)

  14. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate
    Kerect.;)

  15. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    33,127
    Likes Received:
    1,879
    Location:
    Near Poitiers SW France
    Is it the 7 pin connector or the bigger one. If you are stuck, I can open the cable up and give you a wire list.

  16. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    10,828
    Likes Received:
    2,285
    Location:
    wirral and triquivijate

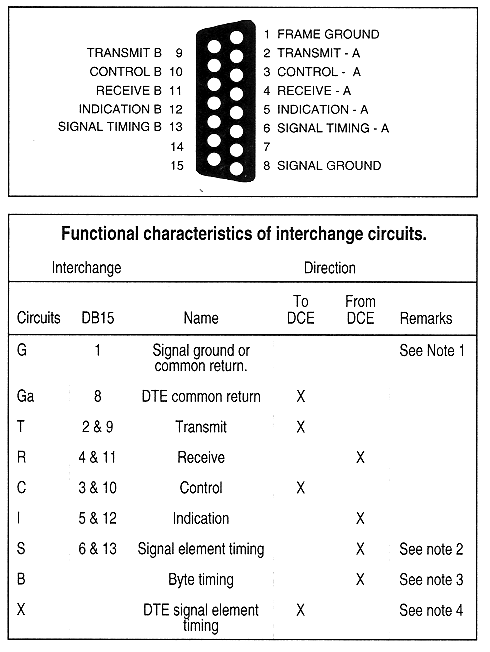

    Hi Kieth its the 15 pin plug to the obd2plug, just been on the blackbox forum and it must be a common problem .Got a wiring diagramwhich shows the pins with coloured boxes by them,then they go on to say that these colours don't correspond to the wire colours luckily they include a pin crossover list:rolleyes: Thanks again and to you @wammers for your help.
