Bit I've been Dreading Electrics.

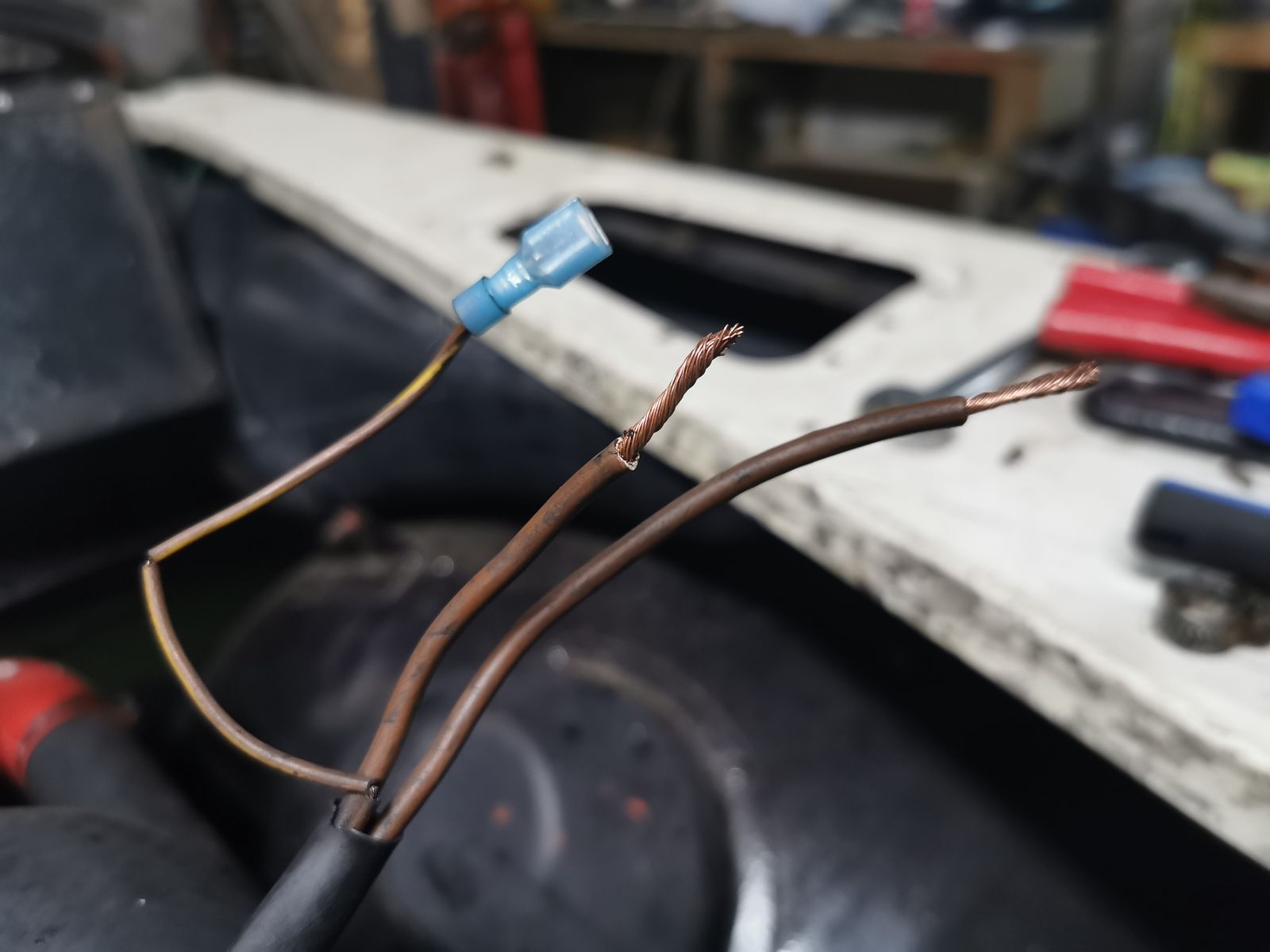

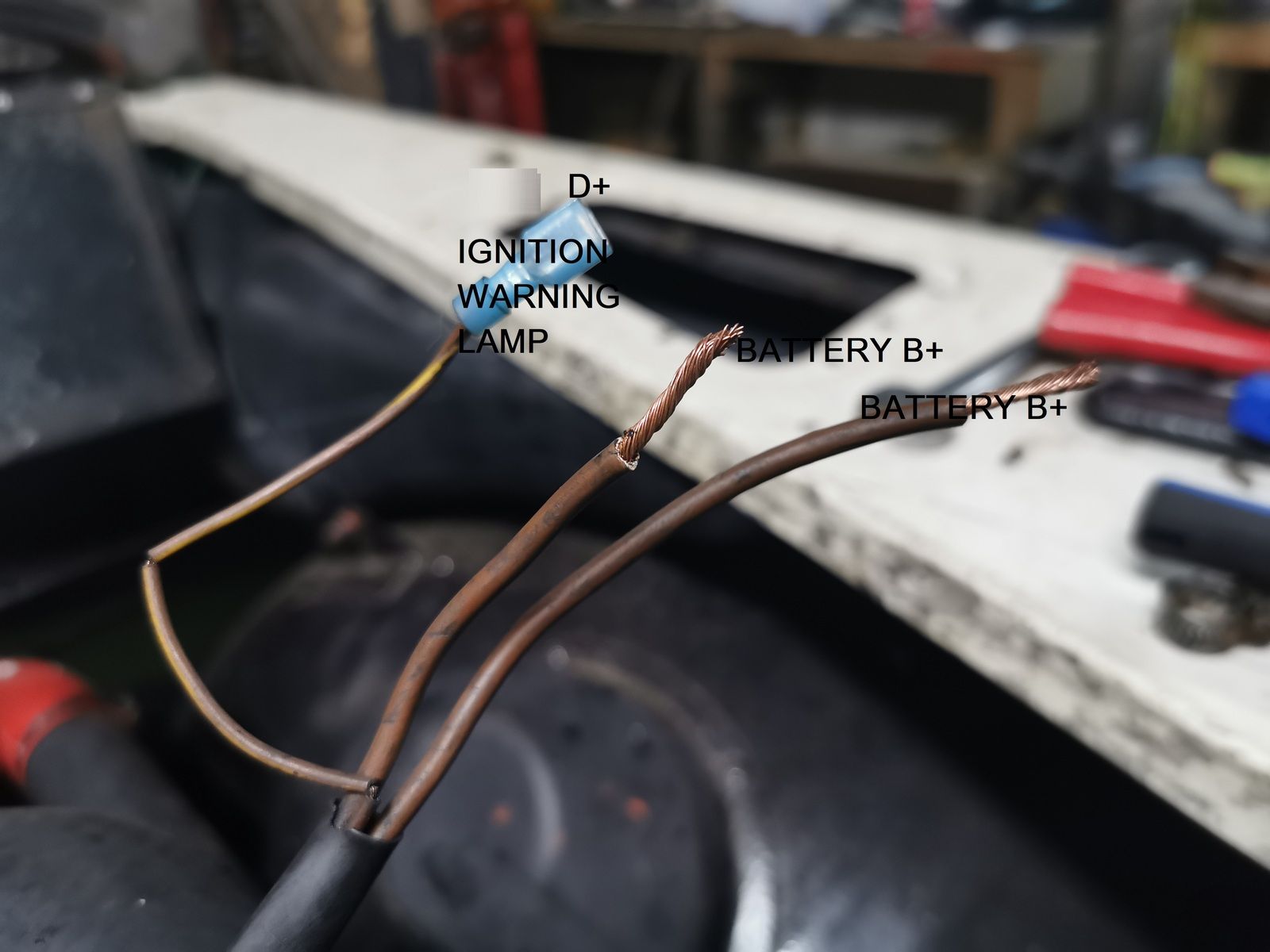

In the middle of wiring Harness, 300Tdi conversion. Plugged in at bulkhead run round and wired to starter , Then to Alternator, Not sure where the 2 browns go to 1 or 2, or both ??

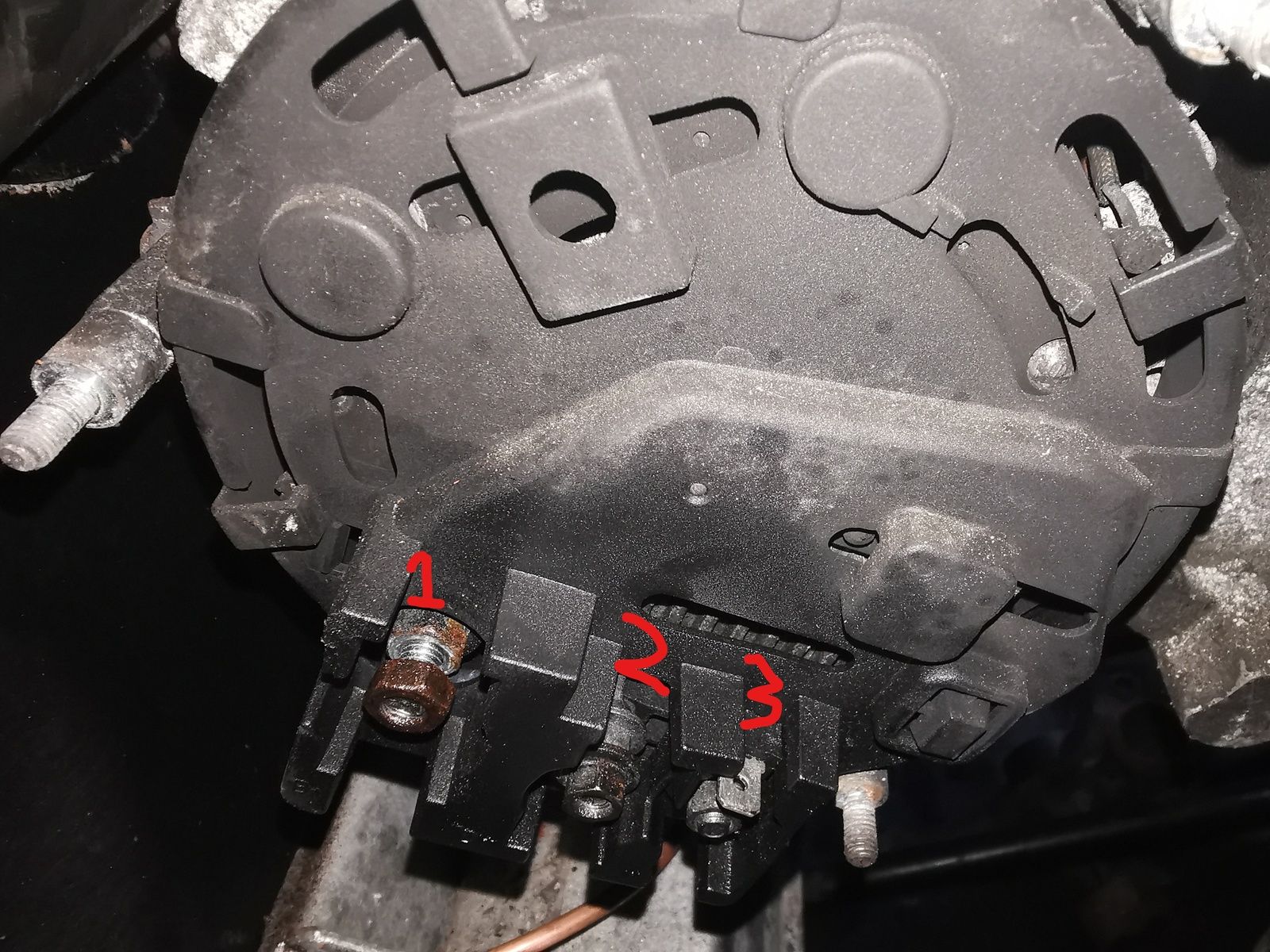

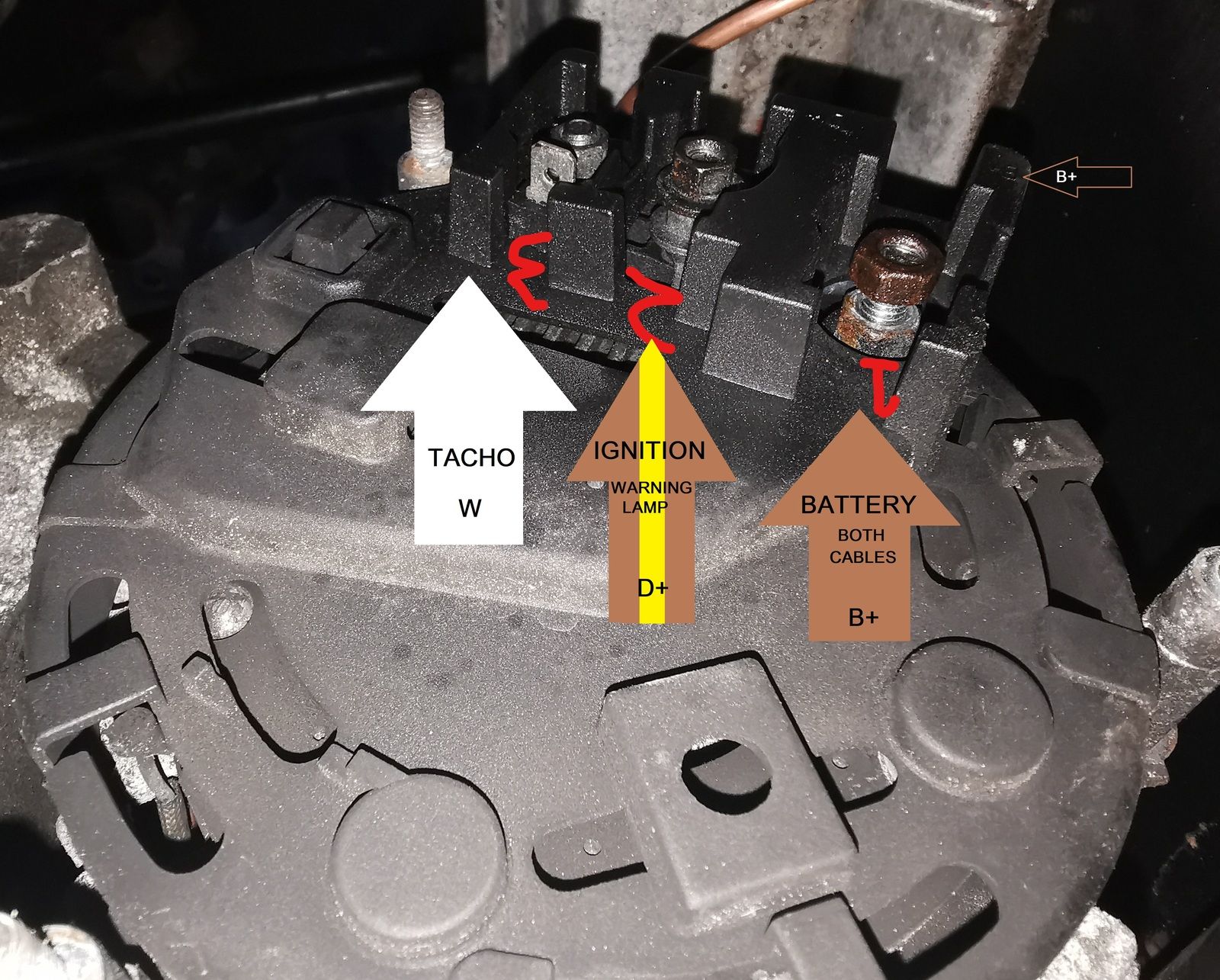

I know the spade goes to 3.

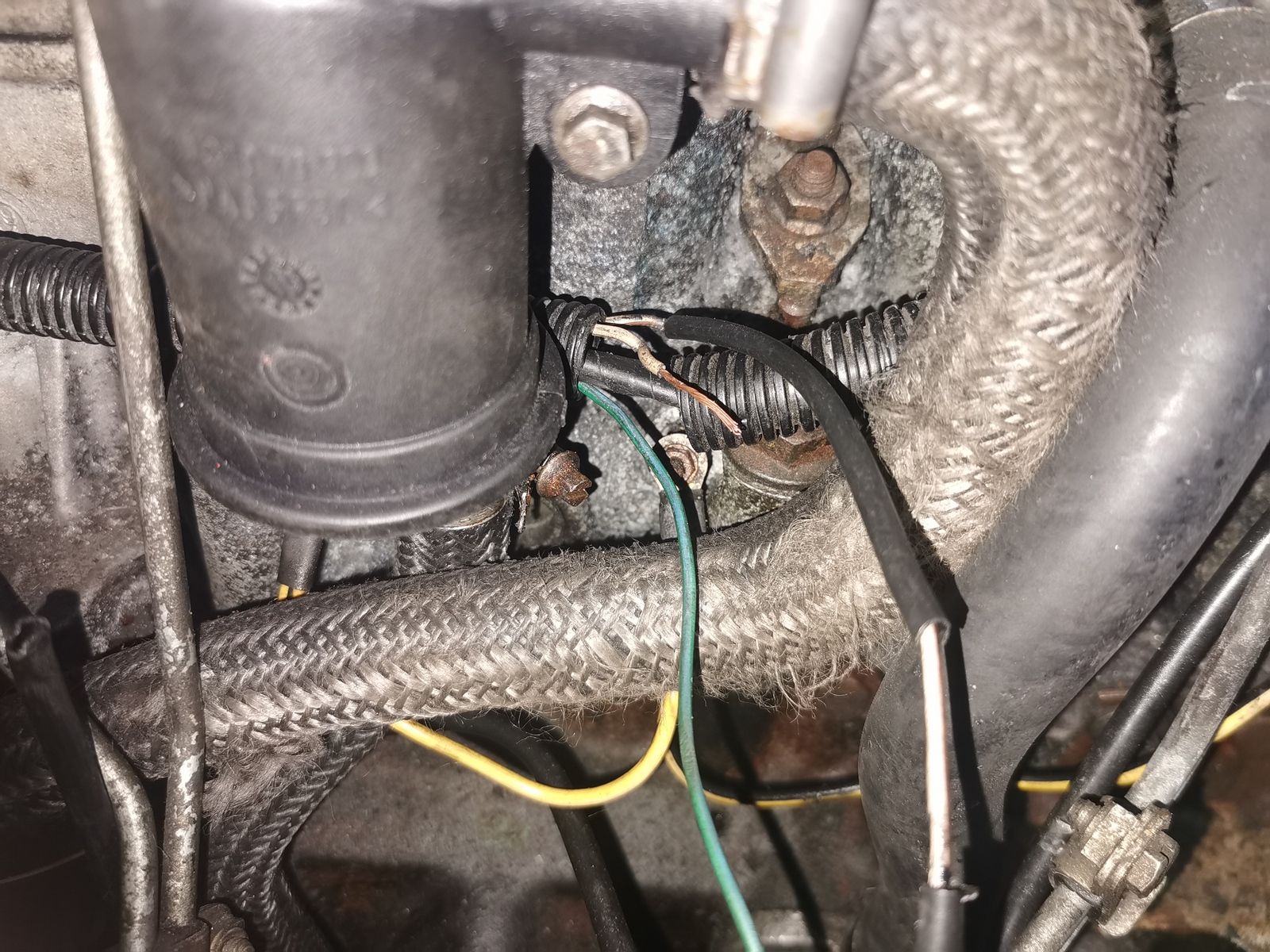

Also in third pic there is another 3 wires . I believe they go to injection pump, sender and oil, but not sure which goes where. Colours have faded but looks like one is Brown/White, one Green this might have had a trace in it but cant tell anymore, the other is White which looks like maybe a Gray trace, or even Black.


Attachments

  • IMG_20200220_165322_LI.jpg
    359.7 KB · Views: 82
  • IMG_20200220_185203.jpg
    108.1 KB · Views: 67
  • IMG_20200219_170853.jpg
    357.7 KB · Views: 62
Fantastic Thanks Mate. I don't think I have the Tacho wire though. Do you know where other 3 go to on side of engine ?

Right that's Harness wired round to Starter motor then Alternator, will wire the others up to sender , oil light and Injection pump tomorrow.
Ive got a new Ignition barrel if I plug that in and turn the Key will it / should it turn over with what I've done so far ??
