Engine bay pics with snorkel and disco 200 engine, anyone?

[JP] · Jan 4, 2010

Hello!!!
First post in the Defender forum!!! Hoo yesss!!!!!

As I've bought a Defender last Sat, now Im looking at goodies for it..
Going to start with the snorkel and extended breathers...

But, my defender has a disco 200 engine inside, and currently the air intake is just a hose connected to a conic air filter, which is laid over the left wheel arch.

So I think the way to go is adding a air filter housing of a disco 200 (cylinder shape) and then from there route to the left side vent for the snorkel..

So would like to know if anyone has a setup like this (def 90 with disco 200 and snorkel) so I can have an idea where I can fit the air filter box?

cheers
JP

666 george · Jan 4, 2010

Mine comes out the side of the wing (standard TD housing with plastic disco elbow) and its pushed into the corner just behind the light

Sean · Jan 4, 2010

just refit the entire TD air intake from the filter holder (in it's original position) right up to the assembly mounted to the wing which the outside vent cover is popped to - all standard parts which can be seen in the parts manual

[JP] · Jan 4, 2010

mmm!! very good Sean, thanks a million for that!

666 george · Jan 4, 2010

Mine is the same but housing lays flat with disco plastic elbow on the end

dazzx10r · Jan 5, 2010

Mine is just piped from the turbo through the nearside wing vent with a K&N filter on top of the snorkel, ant had any probs with it.

bevhelee · Jan 5, 2010

Sean said:
just refit the entire TD air intake from the filter holder (in it's original position) right up to the assembly mounted to the wing which the outside vent cover is popped to - all standard parts which can be seen in the parts manual

thats a disco engine isn't it sean, mine is different, will post piccie tomorrow, too cold to go out there now

buckshot · Jan 5, 2010

Sean said:
just refit the entire TD air intake from the filter holder (in it's original position) right up to the assembly mounted to the wing which the outside vent cover is popped to - all standard parts which can be seen in the parts manual

bloody hell sean i thought mine was a maze of pipes

buckshot · Jan 5, 2010

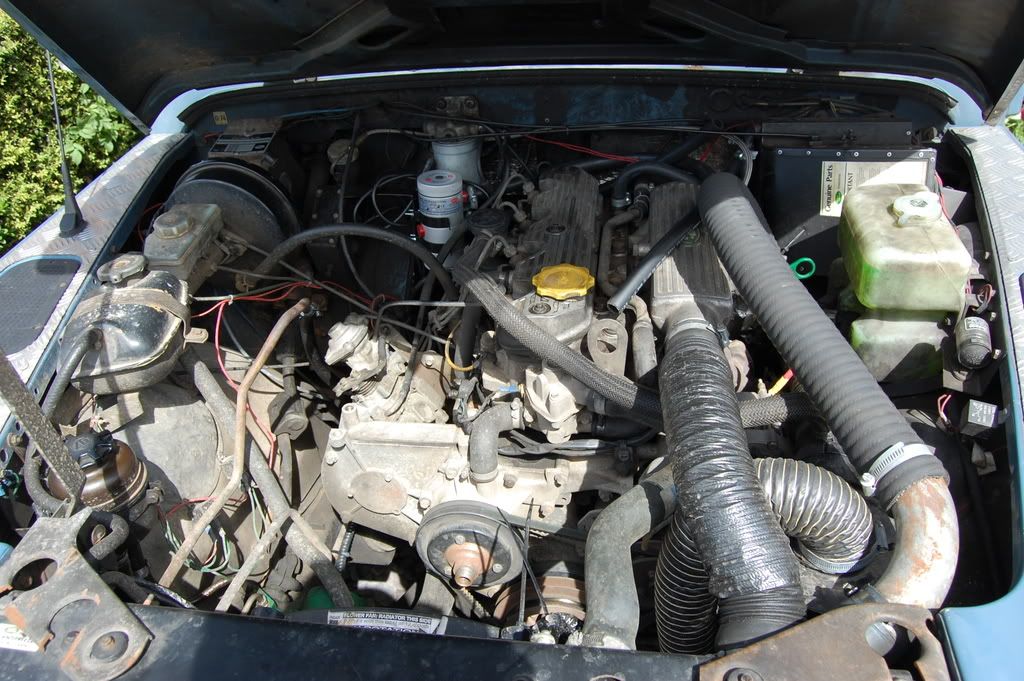

should have a picy of mine somewhere will see if i can dig it out, saying that mine has all changed now as i have mine going under the seat box and up behind the truck cab
