P38A Electrickery,pain in the RRR's

Discussion in 'Range Rover' started by tomcat59alan, Aug 15, 2021.

< Previous Thread | Next Thread >
  1. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    16,734
    Likes Received:
    9,288
    Location:
    wirral and triquivijate
    After completing the welding on one side of the car I reconnected the fully charged battery and saw a small spark when i connected the earth, put a clamp meter on the positive lead to the starter motor and it showed .10 of an amp,the lead to the ECU showed the same,the one to the fuse box showed .50 this remained the same when I removed each fuse and relay.i had latched the driver's door and put a bonnet catch in to trick the car that everything was closed before locking it. I did wait for some time to let it go to sleep. No change in the reading when I pulled the driver's seat fuses. I even removed the positive and negative feeds for the accessory tow socket.any help would be appreciated;):D

  2. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd Full Member

    Joined:
    Jul 8, 2012
    Posts:
    16,018
    Likes Received:
    6,016
    Location:
    Buckinghamshire, UK. ('95 DT)
    I cannot recall how much the BECM drawa. Is it something like 130mA dropping to 35mA after 20 minutes when it goes ro sleep?

    I haven't forgotten your clips. I just need time when it isn't raining to try and get it apart.

    tomcat59alan likes this.
  3. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    15,609
    Likes Received:
    17,487
    Location:
    North Shropshire
    I had something similar a while back. A BIG spark when i reconnected. I thought 'oh bother' and carefully disconnected. Checked and rechecked everything i could and saw nothing obvious so gingerly reconnected again. Nothing, zilch!

    tomcat59alan likes this.
  4. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    16,734
    Likes Received:
    9,288
    Location:
    wirral and triquivijate
    I'll have to reconnect and say oh bother instead of a mouthful of F'and C's with a couple of B's;):oops::D

    Rubberknees and kermit_rr like this.
  5. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    15,609
    Likes Received:
    17,487
    Location:
    North Shropshire
    You called Charlie Brown, Fat!?

  6. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    16,734
    Likes Received:
    9,288
    Location:
    wirral and triquivijate
    Something like that.;):D:oops:

    kermit_rr likes this.
  7. Marshall8hp

    Marshall8hp Well-Known Member

    Joined:
    Dec 29, 2019
    Posts:
    256
    Likes Received:
    213
    Location:
    Sydney
    You expect a spark when you connect up the battery again. It is normal. If you don’t get one, then start to worry.

    There should be no current going to the starter unless you are starting the car. None at all, so there is an issue here.

    The BeCM goes to sleep in exactly 2 minutes after locking the doors, if not, then there is something keeping it awake that you need to find.

    Silly (but pertinent) question. How reliable is your clamp meter? In my experience they are very good at giving spurious results at low current draws. for the current you are talking about, use an ammeter in series with the battery. Most digital ones will do 10A without trouble, and much more reliable than a clamp meter.

    By the way, has your battery gone flat?

    Gord Wedman and kermit_rr like this.
  8. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    16,734
    Likes Received:
    9,288
    Location:
    wirral and triquivijate
    Answer in reverse order.no the battery hasn't gone flat,I don't know how reliable the meter is it's my friends and he bought it a few months ago, I'll try my multi meter in series. Just to add I disconnected the alternator as well in case there is a diode problem. Would I be better taking all fuses and relays out of the fusebox instead of pulling them one at a time? Thanks.

  9. pwood999

    pwood999 Well-Known Member Full Member

    Joined:
    Nov 6, 2006
    Posts:
    1,680
    Likes Received:
    792
    Location:
    Near Heathrow.
    Make sure you zero the clamp meter a couple of times. My amazon £30 one is quite sensitive to the closure of the clamp, and often takes several goes to zero it.

  10. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    16,734
    Likes Received:
    9,288
    Location:
    wirral and triquivijate
    Thanks Pete.

  11. Gord Wedman

    Gord Wedman Well-Known Member

    Joined:
    Feb 11, 2017
    Posts:
    373
    Likes Received:
    243
    Location:
    Chilliwack, British Columbia
    I would not use a clamp meter for detecting low currents unless you have one specifically made for that purpose. It is hard to accurately measure half an amp, or less, with a meter designed to measure hundreds of amps. A clamp meter for low amps will have much smaller jaws capable of taking a maximum wire size around 12mm.

  12. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    16,734
    Likes Received:
    9,288
    Location:
    wirral and triquivijate

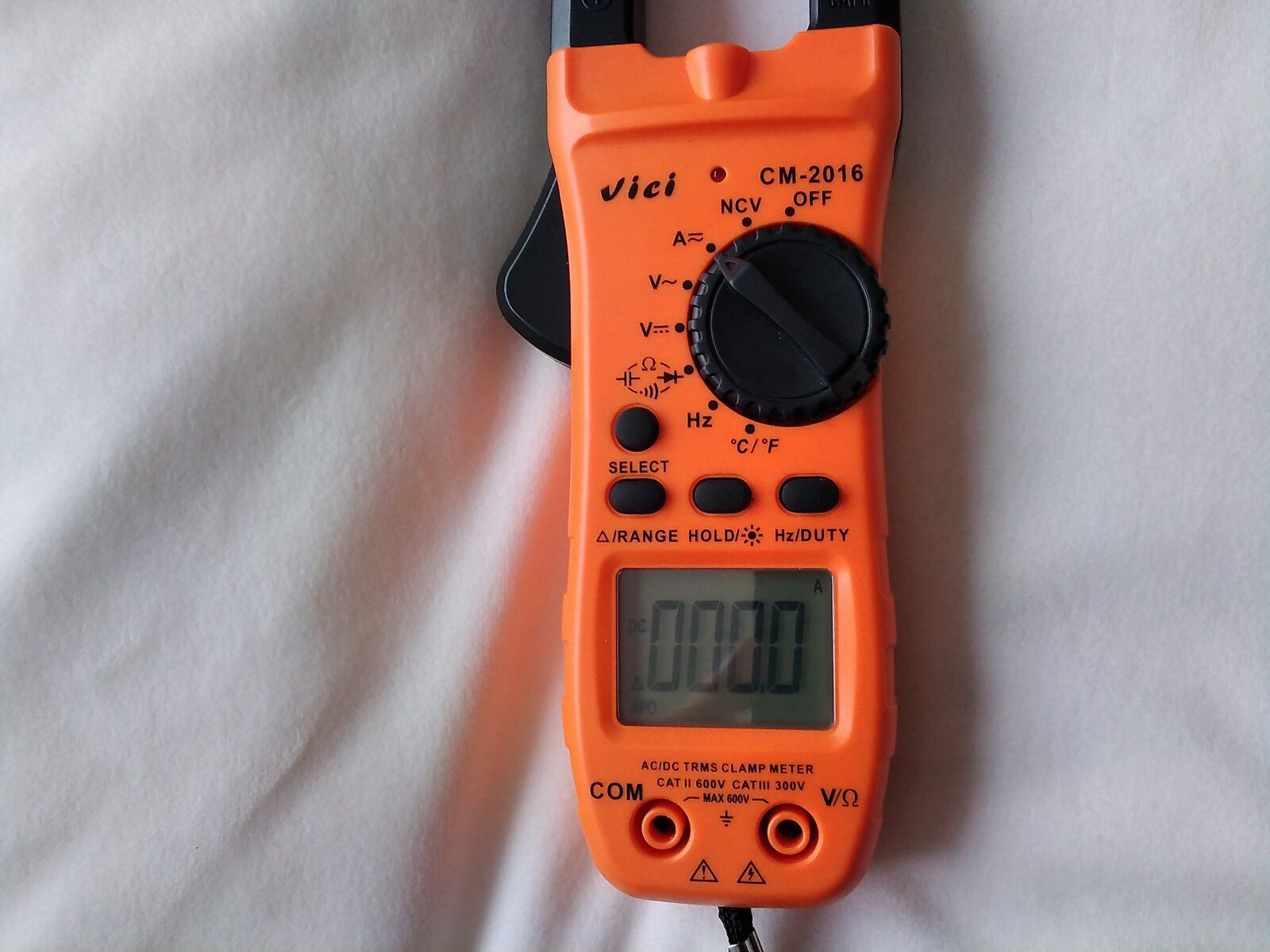

    Your probably right, this is what I have been using


    Attached Files:
