P38A EAS - what else ?

Discussion in 'Range Rover' started by Pression de Gonflage, May 7, 2021.

< Previous Thread | Next Thread >
  1. Pression de Gonflage

    Pression de Gonflage Member

    Joined:
    Jun 5, 2010
    Posts:
    43
    Likes Received:
    43
    Location:
    Midi-Pyrénées region of France
    Thank you RangeRoller. That is certainly something I shall ask "Monsieur Renault" to look for, although I shall probably be under the lift with him. Is the average garage likely to have this sort of pipe and connectors/joint as a stock item ? I think I read of them being 8mm but not sure. Seems that half the cars out there now have pneumatic suspension in one form or another. I believe that Citroen pioneered the idea. Ah, now we know who to blame.

    Rubberknees likes this.
  2. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd Full Member

    Joined:
    Jul 8, 2012
    Posts:
    15,098
    Likes Received:
    4,890
    Location:
    Buckinghamshire, UK. ('95 DT)
    I never had much luck with soapy water. When searching for leaks I run the engine until she's at ride-height and then open a door, switch off, pull the EAS delay relay from under the passenger seat (RHD cars) and then shut-up and see which corner has dropped in the morning.

    The EAS pipes are not that fragile but the brake lines might be. As RR DT has said, exhaust blows have been known to melt pinholes.

    Bags are the usual suspect, especially if over 7 years old. I wouldn't bother with Arnott 2 but their Gen 3 are the dogs danglies if you're feeling flush. Otherwise Dunlop are cheap in the UK and decent enough.

    Rarely, the air reservoir leaks. If you T in a pressure guage on that pipe (no need to cut, just add a T and guage with a bit of line before it goes in the EAS valve block) and check it in the morning the pressure shouldn't have dropped more than maybe 5 psi.

    Valve block has been known to fail, usually down to NRVs or the rubber ends on the solenoids going hard and letting by air. Talk to @kurtjohnson10 on here for spares.

    Air-dryer is also known to leak but sounds like you fixed that.

    There isn't a lot else that can go wrong other than the connectors (usually behind the A-post) or the tracks on the height sensors wearing or the compressor needing a refurbed piston os occasionally a new thermal switch.

  3. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,405
    Likes Received:
    6,544
    Location:
    Trapped inside my head @ LZ asylum
    should be repairable

  4. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    13,900
    Likes Received:
    7,178
    Location:
    heathrow
    The main pipes are 6mm all the fittings are push fit apart from the blue pipe from compressor to valve block
    the 8mm one goes from valve block to tank

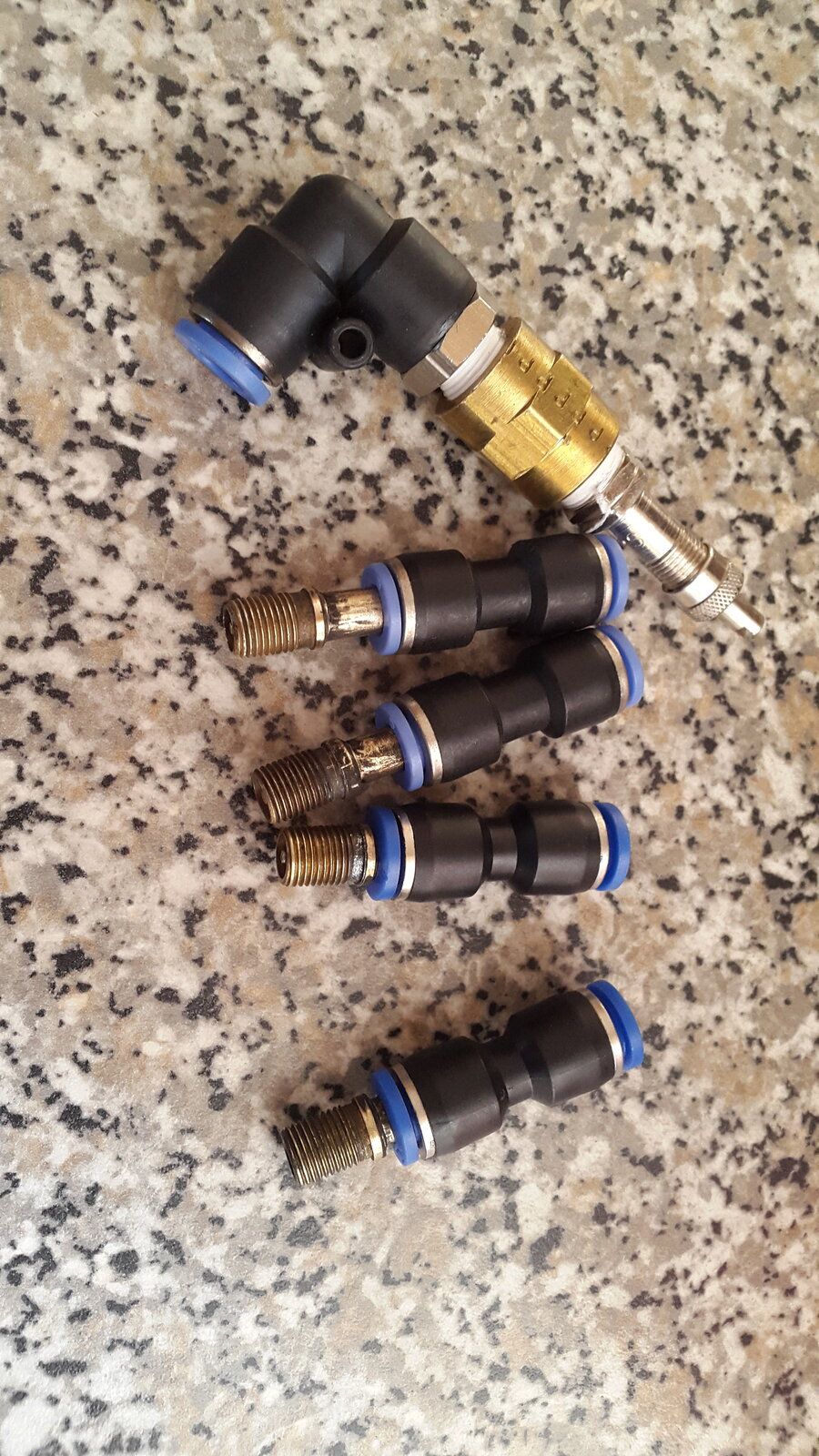

    you can tee in the inflation valves or pull the air bag pipes from the valve block and put them straight on the pipes that way you will know if the leak is pipe or bag
    if you can get the connectors and there is a friendly bike shop near get some punctured inner tubes and rob the valves out clean um up and you have a set of valves
    [​IMG]
    that may well get you mobile again put in about 60psi you can use any pump that fits but maybe not a hand pump unless you need the exercise
    most just keep a set in glove box to use as required rather than have more joints to possibly leak

    Mark Piercy and Grrrrrr like this.
  5. Rubberknees

    Rubberknees Well-Known Member Full Member

    Joined:
    Mar 25, 2019
    Posts:
    1,840
    Likes Received:
    1,960
    Location:
    Rotherham
    Think there are a few videos on you tube showing guys who have fitted valves.
    Are you too far away from @MarkPiercy He lives in SW France

    Mark Piercy likes this.
  6. oakey

    oakey Well-Known Member Full Member

    Joined:
    Dec 26, 2010
    Posts:
    1,677
    Likes Received:
    566
    Location:
    Mull of Kintyre
    I strongly suspect the exhaust.
    The car always rises at the back first and if that is leaking then the fronts wont go up either

    kurtjohnson10 likes this.
  7. kurtjohnson10

    kurtjohnson10 Well-Known Member

    Joined:
    Dec 31, 2012
    Posts:
    15,452
    Likes Received:
    17,654
    Location:
    midlands
    Thats what you always say big boyo_O

  8. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,405
    Likes Received:
    6,544
    Location:
    Trapped inside my head @ LZ asylum
    :D:D:D

    Evening Kurt

    kurtjohnson10 likes this.
  9. kurtjohnson10

    kurtjohnson10 Well-Known Member

    Joined:
    Dec 31, 2012
    Posts:
    15,452
    Likes Received:
    17,654
    Location:
    midlands
    Good evening gents, just thought I would drop in !! :D:D:p:p:p;)

  10. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,405
    Likes Received:
    6,544
    Location:
    Trapped inside my head @ LZ asylum
    On a school night :eek::p:D
    Always handy have an EAS wizard on board ;)

    tomcat59alan and kurtjohnson10 like this.
  11. oakey

    oakey Well-Known Member Full Member

    Joined:
    Dec 26, 2010
    Posts:
    1,677
    Likes Received:
    566
    Location:
    Mull of Kintyre
    Ha ha ha The voice of experience :eek::p

    RangeRoller dt and kurtjohnson10 like this.
  12. kurtjohnson10

    kurtjohnson10 Well-Known Member

    Joined:
    Dec 31, 2012
    Posts:
    15,452
    Likes Received:
    17,654
    Location:
    midlands
    Been called a few things on here but never a wizard, though i have a tendency to make people disappear when i am around :D:D:D:D:D

    tomcat59alan and Rubberknees like this.
  13. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,405
    Likes Received:
    6,544
    Location:
    Trapped inside my head @ LZ asylum
    Not i my fine fellow. But I was never at the meet :p:D:cool:

  14. Mark Piercy

    Mark Piercy Well-Known Member Full Member

    Joined:
    Jul 11, 2016
    Posts:
    8,296
    Likes Received:
    4,406
    Location:
    sud ouest France
    Here's a thoughtfor you @Pression de Gonflage, behind the kick panels in the footwell there are little white connector blocks. This is a important modification for many reasons, the blocks need to be removed and the wires soldered together. They can create havoc with the stereo and the eas to name but two. My son's car would jump up and down and waste air from the réservoir and the stereo would buzz. Recently another.... Leak made the eas system have a ghost fault which never gave a problem or a code and would disappear when the white connector was blown dry with a compressor.
    Food for thought... Once those blocks are done, turn your attention to the Filtre habitacle, or the two of them. The source of the leak.... If your lucky will be from there... If your not lucky... Under the strip above the screen the sealer between the out shell and the roof will have cracked but this does give a wet headlining in most cases..... ;)...

  15. Mark Piercy

    Mark Piercy Well-Known Member Full Member

    Joined:
    Jul 11, 2016
    Posts:
    8,296
    Likes Received:
    4,406
    Location:
    sud ouest France
    Coat..... :p I think your quite funny mate ;) and @Broke Again

    kurtjohnson10 likes this.
  16. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    15,085
    Likes Received:
    6,844
    Location:
    wirral and triquivijate
    Just a note of caution, with a well maintained/repaired EAS system I can't see the point of adding T pieces, gauges etc just extra joints for potential leaks.IMO.;):D

    kurtjohnson10 and Mark Piercy like this.
  17. Mark Piercy

    Mark Piercy Well-Known Member Full Member

    Joined:
    Jul 11, 2016
    Posts:
    8,296
    Likes Received:
    4,406
    Location:
    sud ouest France
    I clonclure... ;)

  18. pwood999

    pwood999 Well-Known Member Full Member

    Joined:
    Nov 6, 2006
    Posts:
    1,520
    Likes Received:
    638
    Location:
    Near Heathrow.
    Also examine the airline ends carefully. Any small scratches can cause the o-rings not to seal properly and leak.

    To access the rear airbag airlines, simply put the car into extended mode, and then grab the soapy water. It's also easier to see wear on the airbag folds this way.
    The soapy mix needs to have a reasonable amount of washing up liquid to bubble properly.

  19. Pression de Gonflage

    Pression de Gonflage Member

    Joined:
    Jun 5, 2010
    Posts:
    43
    Likes Received:
    43
    Location:
    Midi-Pyrénées region of France
    Thank you Gunner.

    I had checked suction at the inlet but I hadn't thought to check t'other end. I was really really hoping that I bought a new but duff compressor. Sadly, no - lots of warm air pushing out. So on to the next stage. I forget what it is but someone on here mention a litlle white thingie on the pump. I have got it off but will have to go back and find out what it should or should not do.

  20. Pression de Gonflage

    Pression de Gonflage Member

    Joined:
    Jun 5, 2010
    Posts:
    43
    Likes Received:
    43
    Location:
    Midi-Pyrénées region of France
    Thank you Pete. I am reassured. I thought I might have overdone la Liquide de Fairy.
