P38A EAS level confusion

Datatek said:

Half way down on the right coming from your end of the world

Click to expand...

I referred to the face view of the republic.

wammers said:

I referred to the face view of the republic.

Click to expand...

Ah so

If you hit a big damp patch you’re there

Datatek said:

Lack of pressure from the compressor, probably worn out feeding leaks in your old airbags. Take a look at Wammers guide in the tech archive and check the compressor output.

Click to expand...

Where will I find the tech archive?
Cheers.

Coley53 said:

Where will I find the tech archive?
Cheers.

Click to expand...

At the top of the range rover section, above the main threads

kermit_rr said:

At the top of the range rover section, above the main threads

Click to expand...

Cheers.

Datatek said:

Lack of pressure from the compressor, probably worn out feeding leaks in your old airbags. Take a look at Wammers guide in the tech archive and check the compressor output.

Click to expand...

Have done, their is what I would describe as gentle suction just discernible however when I turned the engine off their was a I can only describe as ‘gasping noises’ coming from the unit....is this normal?

brianp38dse said:

If you had new bags due to leaks has the pump been refurbed as it will have worn, for the cost of a rebuild kit it gives you a known good pump.
have you tried running the car with the door open for a while then trying height changes.

Click to expand...

Aye, no difference and trying to manually adjust the ride heights has no,effect.

Coley53 said:

Aye, no difference and trying to manually adjust the ride heights has no,effect.

Click to expand...

It sounds like you have a worn pump and possibly a leak in an airline ,
did you undo the blue pipe from pump and put finger over if it did not push your finger off pump seal is worn out.

brianp38dse said:

It sounds like you have a worn pump and possibly a leak in an airline ,
did you undo the blue pipe from pump and put finger over if it did not push your finger off pump seal is worn out.

Click to expand...

That the one underneath the pump or the one behind the unit itself itself?
Any idea what can be causing the panting and clicking noise when I turn the engine off?

Is that not just the car levelling?

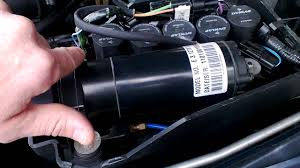

The blue one in this picture under the pump


The click click puff puff when you turn engine of is the self leveling and there should also be a little puft as the pump stops

brianp38dse said:

The blue one in this picture under the pump
View attachment 206130

The click click puff puff when you turn engine of is the self leveling and there should also be a little puft as the pump stops

Click to expand...

From what I can see, it looks like you have to take the pump off to check the output but that will have to wait until tomorrow.
Any ideas on the best place to order a replacement pump? As it look to be the direction I’m heading.

Coley53 said:

From what I can see, it looks like you have to take the pump off to check the output but that will have to wait until tomorrow.
Any ideas on the best place to order a replacement pump? As it look to be the direction I’m heading.

Click to expand...

You can get kits on the bay to rebuild them this seller has good rep check his shop
https://www.ebay.co.uk/itm/RANGE-RO...979084&hash=item4ad7fcb640:g:-h0AAOSw5CRc0tBf


or if you dont fancy rebuilding it yourself @kurtjohnson10 on here can normally supply you with a new one at good price.

brianp38dse said:

You can get kits on the bay to rebuild them this seller has good rep check his shop
https://www.ebay.co.uk/itm/RANGE-RO...979084&hash=item4ad7fcb640:g:-h0AAOSw5CRc0tBf


or if you dont fancy rebuilding it yourself @kurtjohnson10 on here can normally supply you with a new one at good price.

Click to expand...

I can also fully refurb your old one so it is as good as new - Thanks for the recommendation Brian

+1

If it sounds like a truck has someone removed the exhaust filter? Side of box at the back.

brianp38dse said:

You can get kits on the bay to rebuild them this seller has good rep check his shop
https://www.ebay.co.uk/itm/RANGE-RO...979084&hash=item4ad7fcb640:g:-h0AAOSw5CRc0tBf


or if you dont fancy rebuilding it yourself @kurtjohnson10 on here can normally supply you with a new one at good price.

Click to expand...

I’ll do both, arthritis and white finger means I can’t do anything remotely ‘fiddely’ and replacing the various O rings definitely comes into that category
Though I’m surprised I’m having this particular problem, its only got 68K genuine miles on and according to the crack I shouldn’t be getting this problem until 100k+?

kurtjohnson10 said:

I can also fully refurb your old one so it is as good as new - Thanks for the recommendation Brian

Click to expand...

How do we do this

kurtjohnson10 said:

I can also fully refurb your old one so it is as good as new - Thanks for the recommendation Brian

Click to expand...

Good evening Kurt, how do we go about doing this? I’m on an I pad and for some reason the link Brian supplied isn’t working.
.

Grrrrrr said:

If it sounds like a truck has someone removed the exhaust filter? Side of box at the back.

Click to expand...

Come again?
Just to be clear, in the field of electro mechanics, anybody anyone claiming I’m as thick as mince, would be doing a disservice to mince
