P38A EAS level confusion

pwood999 · Mar 8, 2020

Small leak will cause hunting when running. So will Incorrect calibration.

Get eas unlock and check settings. Front LR & rear LR must be within a few bits side to side or it will hunt up down.

My money is on small leak is your issue.

Datatek · Mar 9, 2020

Grrrrrr said:
That sounds like a height sensor. Some early cars do seem to adjust down to the bump-stops, especially if 1 sensor is a bit close to reading outside default range. Later versions of the software seem to limit the travel more or not seen same thing. Maybe after the 97 upgrades? pwood or similar might even be able to unpick the coding.

Unless there is a leak, the EAS should never level down to the bump stops in a short space of time.

Datatek · Mar 9, 2020

pwood999 said:
Small leak will cause hunting when running. So will Incorrect calibration.

Get eas unlock and check settings. Front LR & rear LR must be within a few bits side to side or it will hunt up down.

My money is on small leak is your issue.

+1 ^^^^^^^

kermit_rr · Mar 14, 2020

ready to start investigations!!
before i do start, what triggers a hard fault and can nanocom clear it?
i've also noticed opening a door (any door) doesn't inhibit levelling, yet all doors register open/closed, including the boot when i drove off without shutting it properly - guessing this is dodgy connection in the white connector which i've still not been able to access yet

Datatek · Mar 14, 2020

kermit_rr said:
ready to start investigations!!
before i do start, what triggers a hard fault and can nanocom clear it?
i've also noticed opening a door (any door) doesn't inhibit levelling, yet all doors register open/closed, including the boot when i drove off without shutting it properly - guessing this is dodgy connection in the white connector which i've still not been able to access yet

Nanocom can clear a hard fault, but it will come straight back unless the fault is fixed, Nanocom should also indicate the nature of the fault.

kermit_rr · Mar 14, 2020

Datatek said:
Nanocom can clear a hard fault, but it will come straight back unless the fault is fixed, Nanocom should also indicate the nature of the fault.

Thanks. It's not arrived yet but at least i don't need to worry if i trigger something while working on it, i can get it fixed.

kermit_rr · Mar 14, 2020

Car has been on the drive for 2 days now with a noticeable drop on the rear, with relay removed.
Are the 2 rear bags connected in any way or is it 2 separate leaks? Both bags look like they have dropped the same amount

wammers · Mar 14, 2020

kermit_rr said:
Car has been on the drive for 2 days now with a noticeable drop on the rear, with relay removed.
Are the 2 rear bags connected in any way or is it 2 separate leaks? Both bags look like they have dropped the same amount

Bags are not connected.

Datatek · Mar 14, 2020

kermit_rr said:
Car has been on the drive for 2 days now with a noticeable drop on the rear, with relay removed.
Are the 2 rear bags connected in any way or is it 2 separate leaks? Both bags look like they have dropped the same amount

How old are the bags?

kermit_rr · Mar 14, 2020

Datatek said:
How old are the bags?

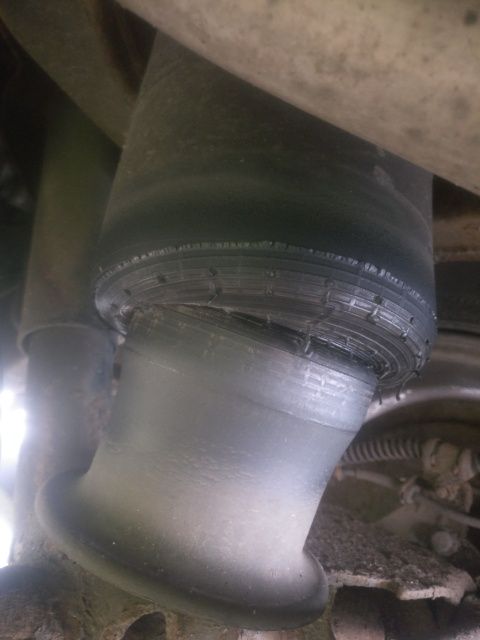

Not exactly sure but all look good, similar to this one

Datatek · Mar 14, 2020

kermit_rr said:
Not exactly sure but all look good, similar to this one
View attachment 202938

I cannot tell from your photo, is there any crazing in the area just above where it folds under? Soapy water is you friend when it comes to detecting leaks. They sometimes leak where the airline goes into the bag.

kermit_rr · Mar 14, 2020

No they look fine, the 'ring' at the top is surplus material from the manufacturing process

Grrrrrr · Mar 14, 2020

If it is going down with the relay removed then there is a leak somewhere.

kermit_rr · Mar 14, 2020

At first glance, the rear lines and connections seem well hidden away and not easy to get to

oakey · Mar 14, 2020

They are still there on second glance too. Thats the bit that melts with the slightest exhaust leak where it goes over the back axle

kermit_rr · Mar 14, 2020

oakey said:
They are still there on second glance too. Thats the bit that melts with the slightest exhaust leak where it goes over the back axle

I shall investigate!!

Grrrrrr · Mar 14, 2020

kermit_rr said:
At first glance, the rear lines and connections seem well hidden away and not easy to get to

If you put it on high then look through above the wheel you can see the airbag connection between the chassis and the body. Might need a torch.

DanClarke · Mar 14, 2020

Grrrrrr said:
If you put it on high then look through above the wheel you can see the airbag connection between the chassis and the body. Might need a torch.

Oxy-Acetylene?

Grrrrrr · Mar 14, 2020

DanClarke said:
Oxy-Acetylene?

Just mind the filler neck!

kermit_rr · Mar 15, 2020

Datatek said:
I cannot tell from your photo, is there any crazing in the area just above where it folds under? Soapy water is you friend when it comes to detecting leaks. They sometimes leak where the airline goes into the bag.

You were right, a small amount of crazing on the wheel side that i couldn't see from underneath. Area no bigger than a thumb nail shows tiny bubbles. I'll bet the other side is the same
