P38A EAS fault

Henry_b · Jun 15, 2024

Old girl has a peculiar issues in that she will lift from access to wade mode quite quickly but lowering her back down takes an absolute age around 2 minutes to get from wade mode to access mode its gone from going "tick tick tick" to making a faint whooshing sound from the valveblock exhaust

It started happening after i plugged in the EAS unlock cable a few weeks ago it had "no idle" but seemed to have done something.

Now with the wires soldered on the A post I have Comms but there are no logged faults, but it is still is acting rather odd.

I was thinking possibly the driver pack has possibly got an issues, or the exhaust solenoid?

any help appreciated..

Haven't fiddled around with EAS for ages, its starting to come back

Mark Piercy · Jun 15, 2024

Is there any chance at all there is a wire soldered to an incorrect wire?

Datatek · Jun 15, 2024

Henry_b said:
Old girl has a peculiar issues in that she will lift from access to wade mode quite quickly but lowering her back down takes an absolute age around 2 minutes to get from wade mode to access mode its gone from going "tick tick tick" to making a faint whooshing sound from the valveblock exhaust

It started happening after i plugged in the EAS unlock cable a few weeks ago it had "no idle" but seemed to have done something.

Now with the wires soldered on the A post I have Comms but there are no logged faults, but it is still is acting rather odd.

I was thinking possibly the driver pack has possibly got an issues, or the exhaust solenoid?

any help appreciated..

Haven't fiddled around with EAS for ages, its starting to come back

Unlikely to be the driver pack IMO. Check if the exhaust silencer for the valve block is not full of white powder. See if it drops more rapidly with the silencer removed.

Mark Piercy · Jun 15, 2024

Datatek said:
Unlikely to be the driver pack IMO. Check if the exhaust silencer for the valve block is not full of white powder. See if it drops more rapidly with the silencer removed.

A good call

Henry_b · Jun 15, 2024

Datatek said:
Unlikely to be the driver pack IMO. Check if the exhaust silencer for the valve block is not full of white powder. See if it drops more rapidly with the silencer removed.

Hiya just checked silencer is free of any debris, the drier is looks ok too all the beads are intact.

The oddity is from wade mode to standard height it takes ages to drop but from wade mode straight to access it drops almost immediately.

Datatek · Jun 15, 2024

Henry_b said:
Hiya just checked silencer is free of any debris, the drier is looks ok too all the beads are intact.

The oddity is from wade mode to standard height it takes ages to drop but from wade mode straight to access it drops almost immediately.

Worth looking at the height sensor readings on wade & standard heights for any anomalies

kermit_rr · Jun 15, 2024

What's it like from access to standard and back again to access?

Henry_b · Jun 15, 2024

kermit_rr said:
What's it like from access to standard and back again to access?

It raises fine, no problem its just the lowering, the above it would go from access to standard fairly quickly but standard to access takes about a minute

Rubberknees · Jun 15, 2024

Henry_b said:
It raises fine, no problem its just the lowering, the above it would go from access to standard fairly quickly but standard to access takes about a minute

Must be a system that was built in Yorkshire. Don't like to part with nowt, not even the air we breath

Mark Piercy · Jun 16, 2024

How about the rears shocks? Sticking internal valve?
Easy part to check

pwood999 · Jun 16, 2024

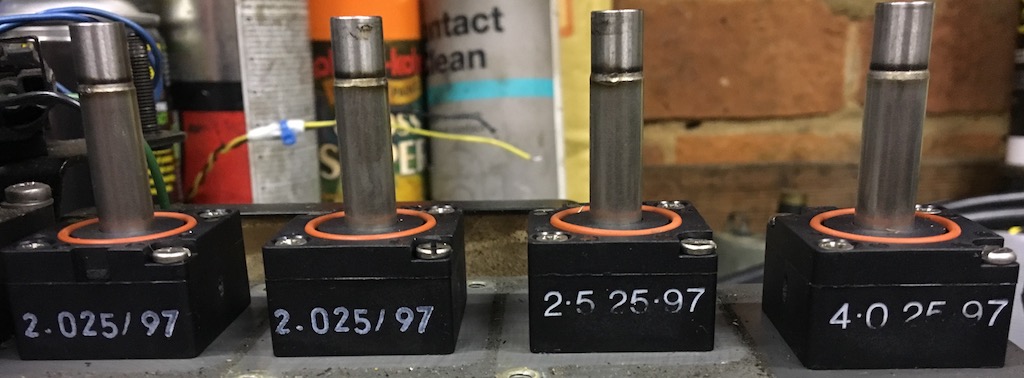

Has the valve block been rebuilt ?? The Inlet & Exhaust valves are different sizes, so swapping them round might result in odd behaviour (assuming the solenoids are in the correct place).

On my valve blocks the Inlet is 2.5, and Exhaust is 4.0.

My theory (unproven) is this is based on the tank having 130-150psi, therefore more pressure to feed air into the bags, whereas when exhausting, it needs a larger valve to allow the air under airbag pressure out quickly ?? As I said, only my theory.

Henry_b · Jun 19, 2024

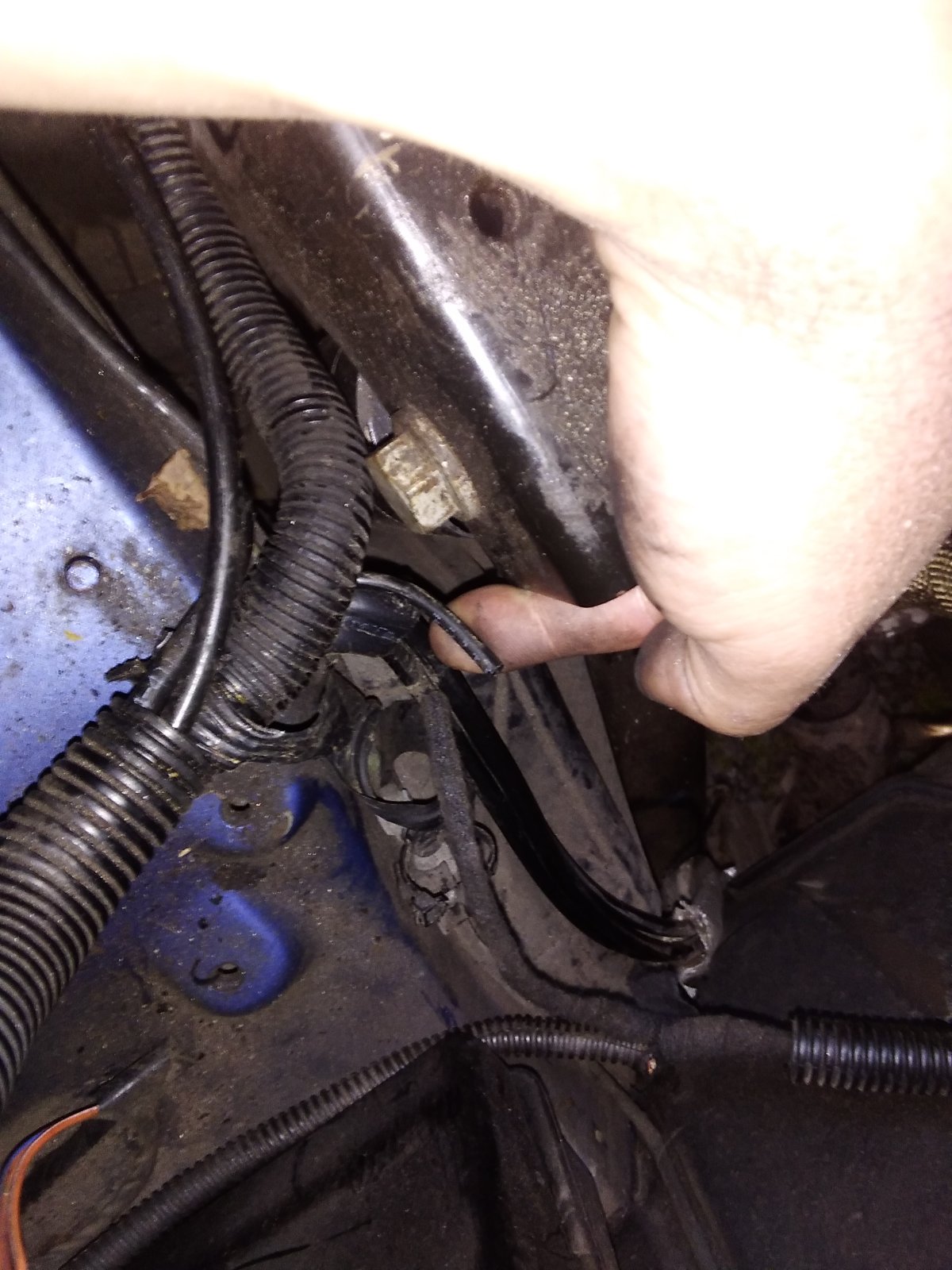

Well i've had a spare 20mins and had another look, it seems she's exhausting not from the usual exhaust on the valveblock but out of this line, which seems to go nowhere?

I think its the thin line that goes in just above the eas exhaust..

Also there is no air coming from the exhaust on the valveblock, which seems odd.

any thoughts?

cornishboater · Jun 20, 2024

Henry_b said:
Well i've had a spare 20mins and had another look, it seems she's exhausting not from the usual exhaust on the valveblock but out of this line, which seems to go nowhere?

I think its the thin line that goes in just above the eas exhaust..

Also there is no air coming from the exhaust on the valveblock, which seems odd.

any thoughts?

View attachment 319670

That open pipe is the diaphragm vent, you may have a damaged diaphragm or it hasn't been installed correctly

Datatek · Jun 20, 2024

cornishboater said:
That open pipe is the diaphragm vent, you may have a damaged diaphragm or it hasn't been installed correctly

I agree with that^^^^^^^

cornishboater · Jun 20, 2024

Datatek said:
I agree with that^^^^^^^

You getting the hot weather shown on the news over here Keith? It looks rather toasty

Datatek · Jun 20, 2024

cornishboater said:
You getting the hot weather shown on the news over here Keith? It looks rather toasty

Not really, violent storms, heavy showers and hail. Humidity is 85%, it's like being back in Africa, the temperature is 21C today, 24C yesterday.

Henry_b · Jun 20, 2024

Cheers Gents.

Henry_b · Jun 22, 2024

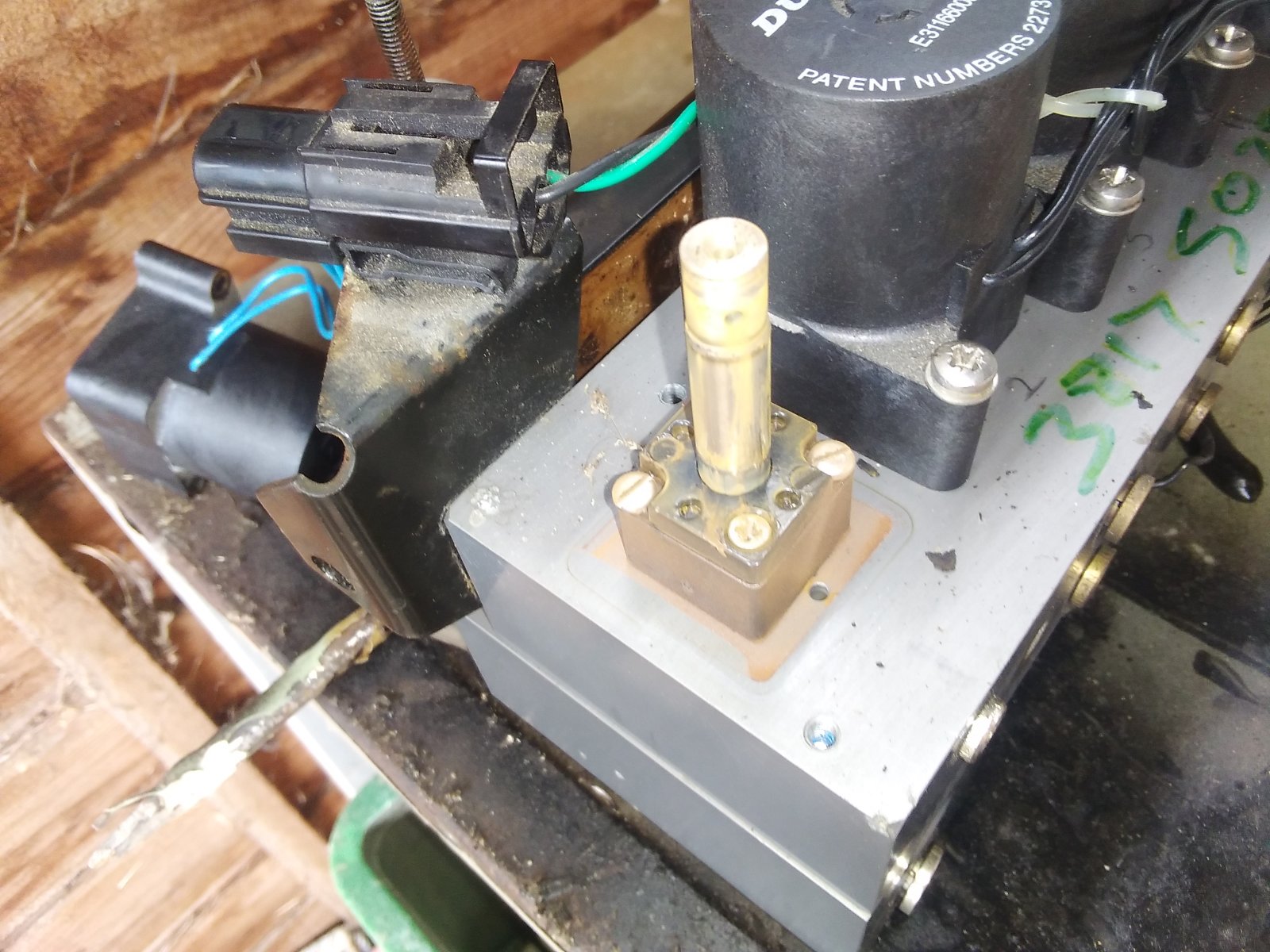

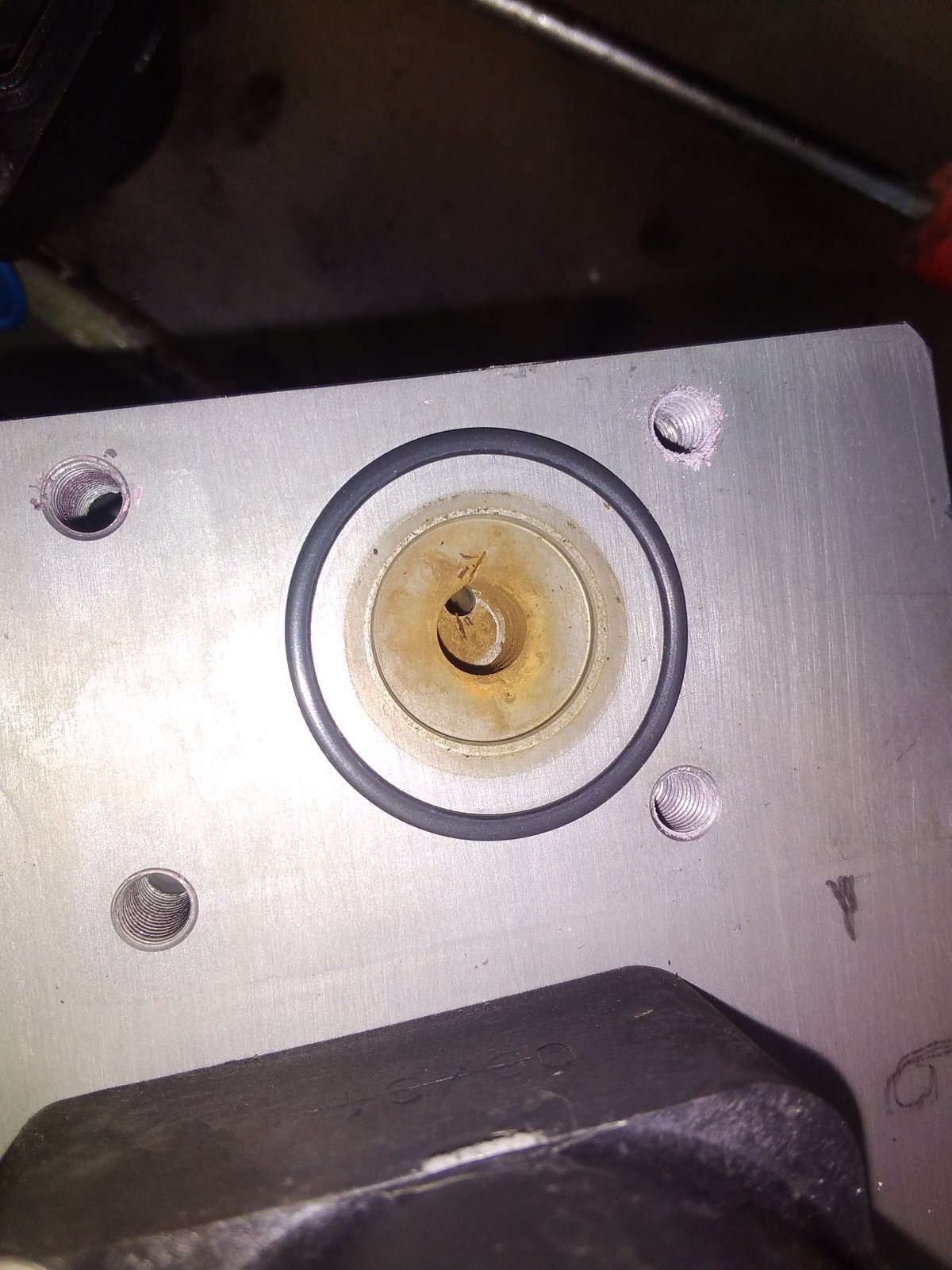

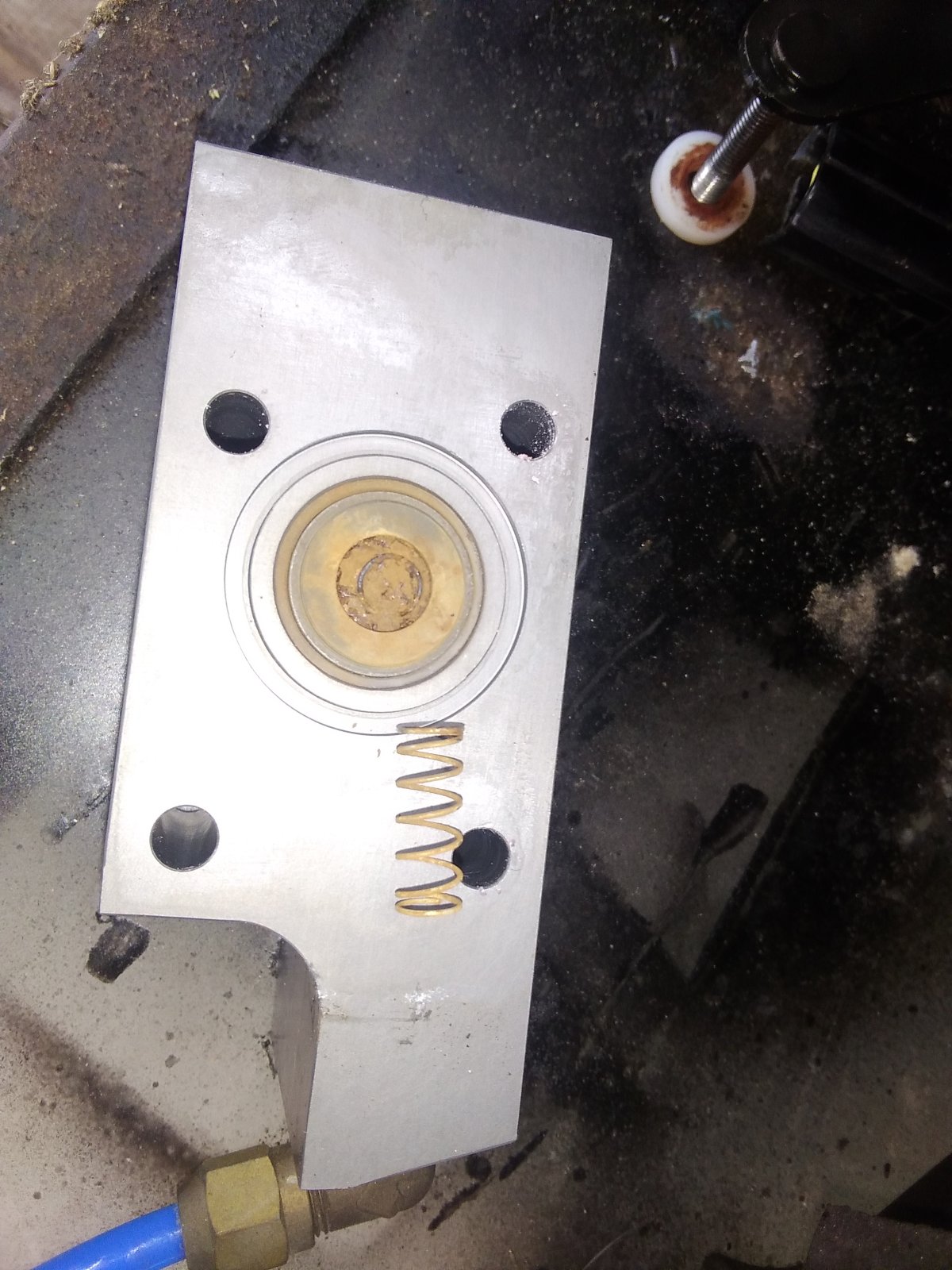

Hmmm..

might be closing in on my issue..

solenoid doesn't look to clever either, any way to test them?

Mark Piercy · Jun 22, 2024

Y

Henry_b said:
Hmmm..

might be closing in on my issue..
View attachment 319883 View attachment 319884

View attachment 319882

You may be onto something there ennners

Datatek · Jun 22, 2024

Henry_b said:
Hmmm..

might be closing in on my issue..

solenoid doesn't look to clever either, any way to test them?
View attachment 319883 View attachment 319884

View attachment 319882

Remnants of powder from the dryer.
