Earth Rookie

kermit_rr · Nov 13, 2023

boguing said:
pretty certain that each earth strap only does one job.

Earthing

kermit_rr · Nov 13, 2023

Anaconda said:
Ours had an earth strap going to the chassis near the starter motor, might have been on the starter mount bolt.
Why is you battery in the back, what Series have you got?

24v maybe? One behind each wheel?

JRo · Nov 13, 2023

It’s a series 2a (1966) previous owner converted to a 300tdi so guessing he moved the battery for lack of space. Strangely didn’t put it under the passenger seat but opted for behind the passenger seat, in the tub.

boguing · Nov 13, 2023

kermit_rr said:
Earthing

You know what I mean!

Anaconda · Nov 13, 2023

JRo said:
It’s a series 2a (1966) previous owner converted to a 300tdi so guessing he moved the battery for lack of space. Strangely didn’t put it under the passenger seat but opted for behind the passenger seat, in the tub.

I see, bit pointless me talking about a 2a starter motor then.
In that case your live and earth cables could be anywhere and everywhere.
You need good earth on gearbox, engine, chassis, battery and body, preferably.

JRo · Nov 22, 2023

Think I got to the bottom of this one chaps. In the end it was a combination of a bad connection and the Earth from the isolator switch not having the minerals. Cleaned and replaced and now ‘Trig’ fires up in the mornings. Thanks for the all the help/advice. I’m now an Earth Rookie+

JRo · Nov 22, 2023

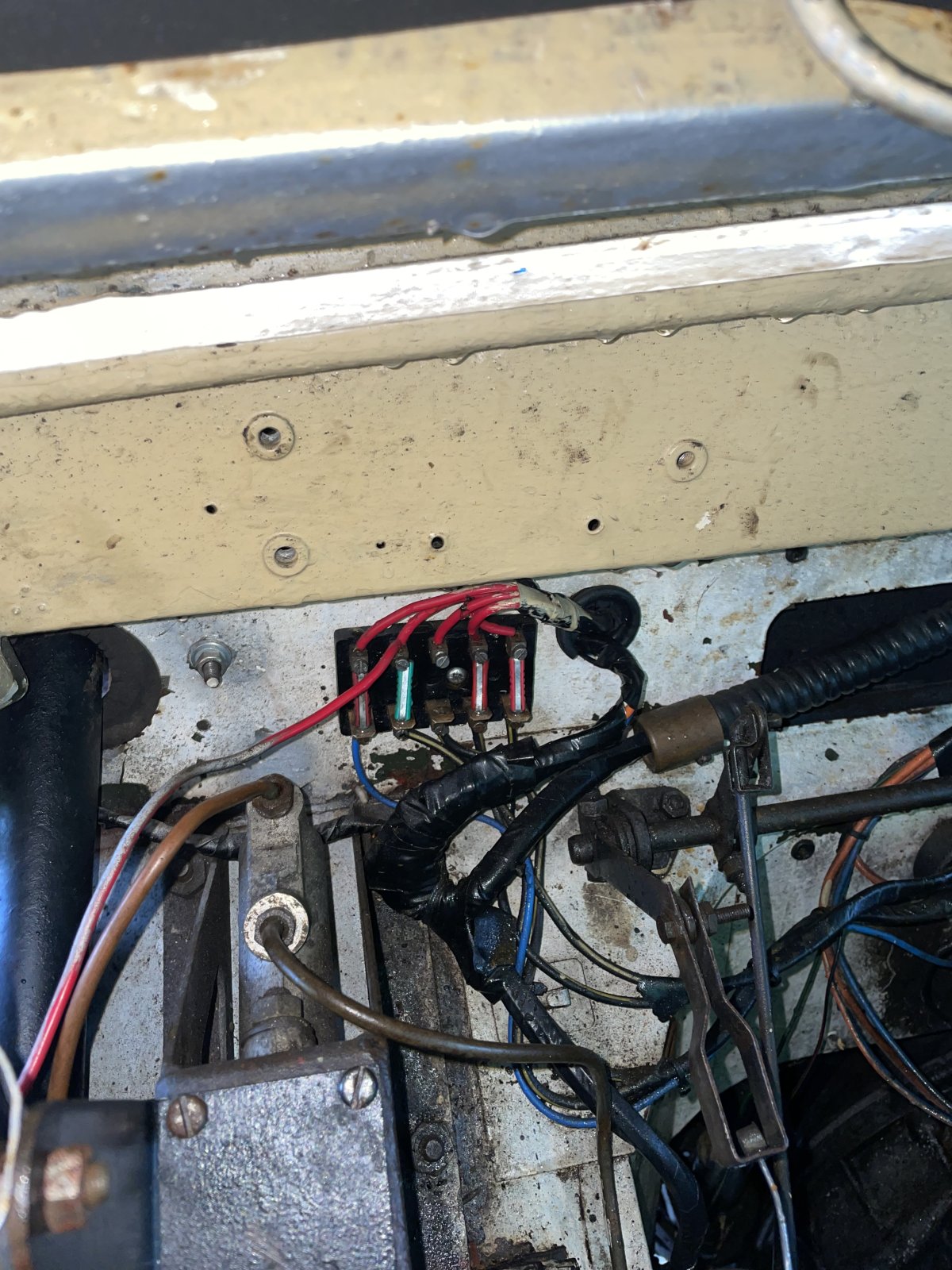

Next - fuses. Apparently I’ve got five of them in a quickly placed, very lidless box in the engine compartment. 4x16a, 1x35. One of the 16’s is on its way out (headlights). I’ve read that all series fuses were originally 35a!? Any reason why the previous owner would have gone for lower, besides the obvious cowardice?

kermit_rr · Nov 22, 2023

maybe thats all they had
my series 2 has only 2 fuses, maybe the more modern 4 fuse version has the same load across 4 for separation purposes, so a smaller fuse can be used

JRo · Nov 22, 2023

Interesting

kermit_rr said:
maybe thats all they had
my series 2 has only 2 fuses, maybe the more modern 4 fuse version has the same load across 4 for separation purposes, so a smaller fuse can be used

interesting. Looks to me like different feeds but I’ll investigate. Picture attached. It’s obviously been running with them (barely) but I’m wondering if my headlight issues may stem from a struggling fuse.

kermit_rr · Nov 22, 2023

A fuse will either work, or blow. It could have a bad connection though

Anaconda · Nov 22, 2023

Glad it's sorted.
Would like to see some more general photos if you have any.

JRo · Nov 23, 2023

JRo · Nov 23, 2023

JRo said:

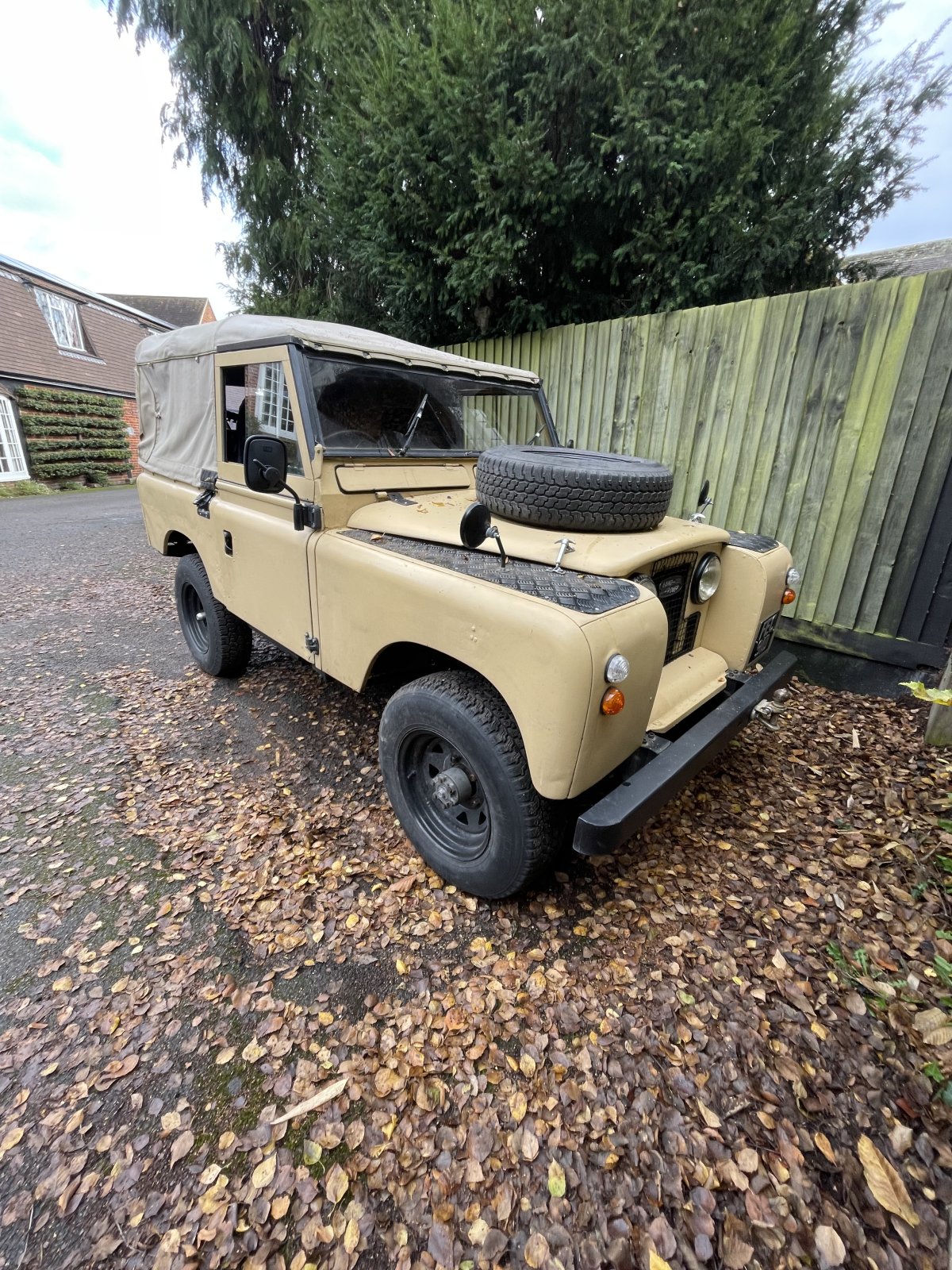

View attachment 303261

Both one of the best and worst decisions I’ve made.

kermit_rr · Nov 23, 2023

Unusual orientation of the lamps in the wing, usually see them going across

Anaconda · Nov 23, 2023

kermit_rr said:
Unusual orientation of the lamps in the wing, usually see them going across

Did military ones have them like that?
The indicators were optional extras for a while so I guess someone could have fitted them in an unconventional place.
One piece windscreen?

Anaconda · Nov 23, 2023

JRo said:
Both one of the best and worst decisions I’ve made.

How long have you had it?

JRo · Nov 23, 2023

JRo said:
View attachment 303261

Both one of the best and worst decisions I’ve

Anaconda said:
Did military ones have them like that?
The indicators were optional extras for a while so I guess someone could have fitted them in an unconventional place.
One piece windscreen

Anaconda said:

Did military ones have them like that?
The indicators were optional extras for a while so I guess someone could have fitted them in an unconventional place.
One piece windscreen?

Click to expand...

Makes sense, it’s ex MoD (until 82 I believe). Yes the one piece has drawn a few comments now. Doesn’t matter because the windscreen wipers leave a nice barrier in the middle anyway.

JRo · Nov 23, 2023

Anaconda said:
How long have you had it?

3 months now. 3 long beautiful months.

Anaconda · Nov 23, 2023

JRo said:
3 months now. 3 long beautiful months.

Give another 5 years and you should be sorted!
You will find its almost continuous maintenance, you need an agreement with it that it will let you drive it every now and again.
Seriously though they do need work but once you have cleared up what the previous owners have left you then you should be OK.

JRo · Nov 23, 2023

Ha! Thanks! I’m using it as a daily so our agreement is ‘just be drivable and I will keep putting the pedal lock on at night’. Really enjoying learning. I could barely change a tire, now I’ve bought overalls and they’re dirty.
