Dumb iron end plate hole

Frosted · Jul 18, 2015

Hello

I am rebuilding my dumb irons and want to ask if I need the hole in the end plate?

I guess its for somewhere to access chassis for waxoyl et al.

But it looks like a reason why they corrode so much as moisture can enter there.

Also I have removed all the rust and etched primed what do you recommend putting over it next for the inside of the chassis, red oxide primer?

Will it need a top coat then or can I just waxoyl over the primer?

Al2O3 · Jul 18, 2015

The hole is the jacking point for the standard LR jack. You should have rubber stoppers to go in the end.

Frosted · Jul 18, 2015

Yes, but above that is the box section where the bumper mounts to.
This also has a hole in it on the end plate, on mine this was all rotten on both sides I m thinking of not drilling the hole on the plate and filing the box with waxoyl before welding up.

Al2O3 · Jul 18, 2015

See what you mean. Not sure it serves any particular function. My new galv chassis just has two thin slits down the front of that section, not a round hole. Ventilation possibly?

trax · Jul 18, 2015

not exactly sure what you mean. but you need to fit the captive nut bracket in there for the bumper

Frosted · Jul 18, 2015

Is it possible to insert a picture here from my camera phone?

Or do I have to give a URL?

Shifty1962 · Jul 18, 2015

The round hole is for the jack.
I plated over the front jacking hole as I never use them.

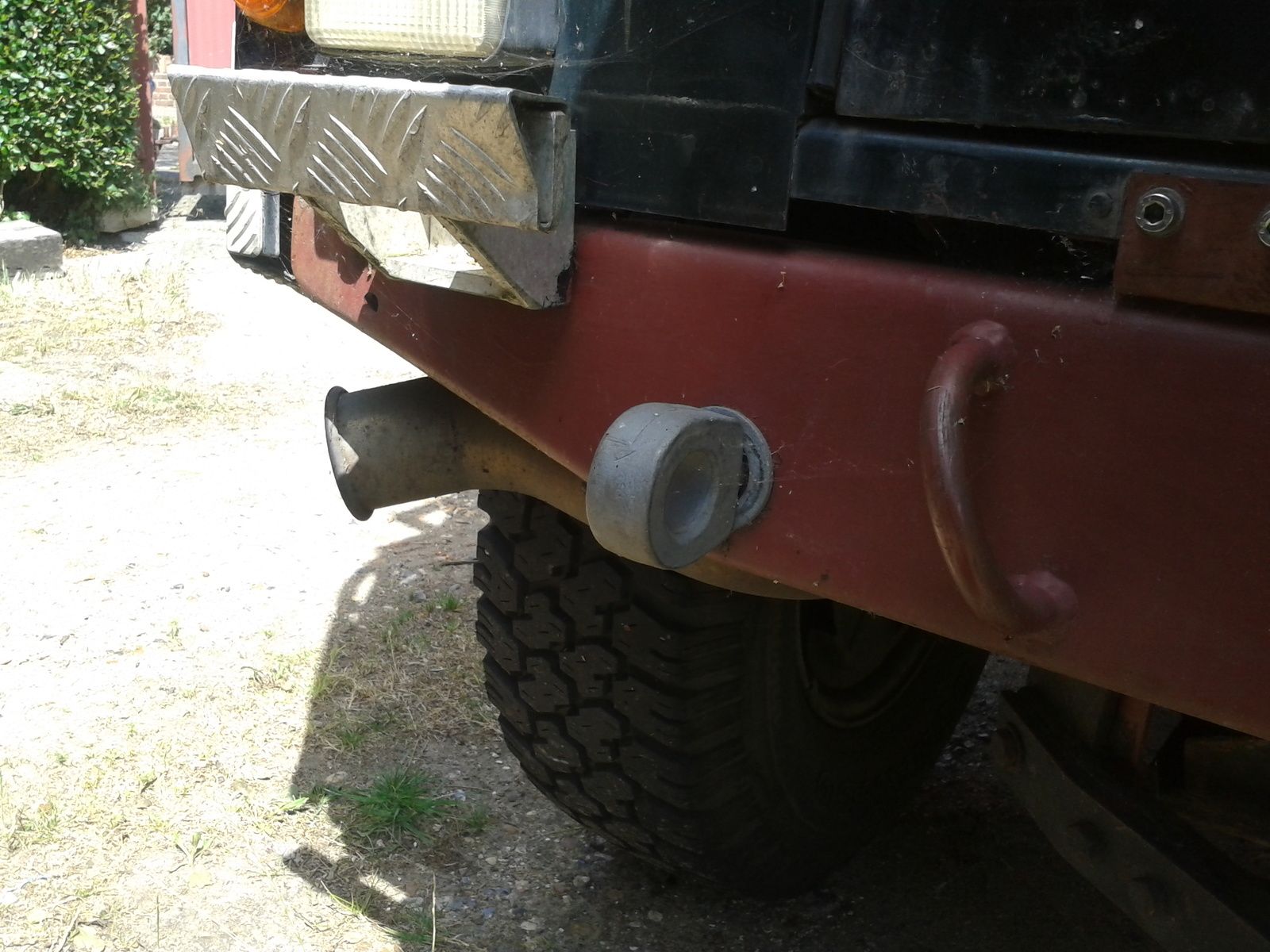

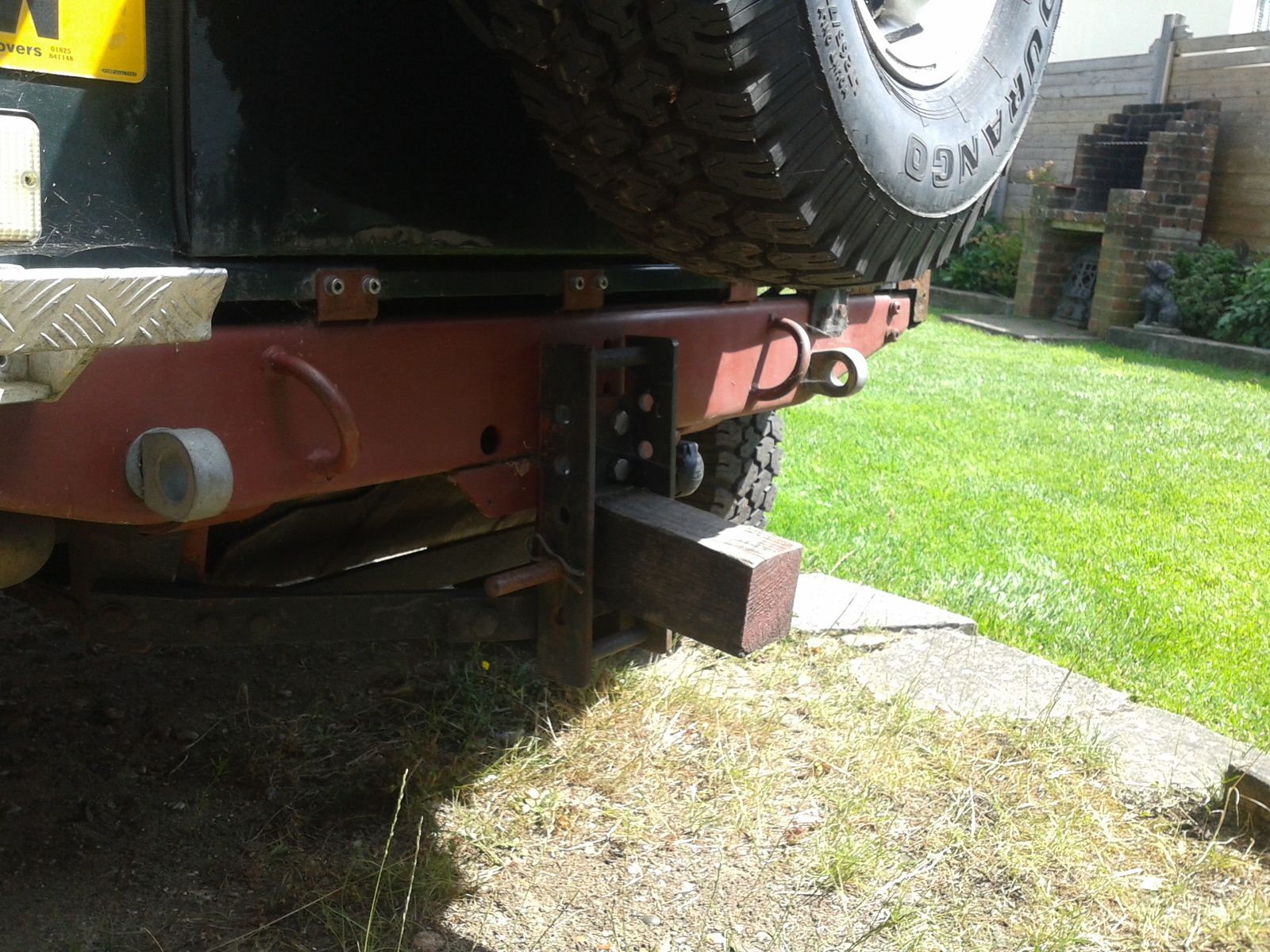

I have galvanised farm gate hinge bolts through the rear cross member jacking holes as additional recovery points.
If you weld the bumper nuts in place you could also plate the access slot but if the nuts rust then it means opening up the slot to gain access.

Shifty1962 · Jul 18, 2015

Shifty1962 said:
The round hole is for the jack.
I plated over the front jacking hole as I never use them.
I have galvanised farm gate hinge bolts through the rear cross member jacking holes as additional recovery points.
If you weld the bumper nuts in place you could also plate the access slot but if the nuts rust then it means opening up the slot to gain access.

.

Frosted · Jul 18, 2015

You see the hole in box section above jack hole, under the red weld magnet.
