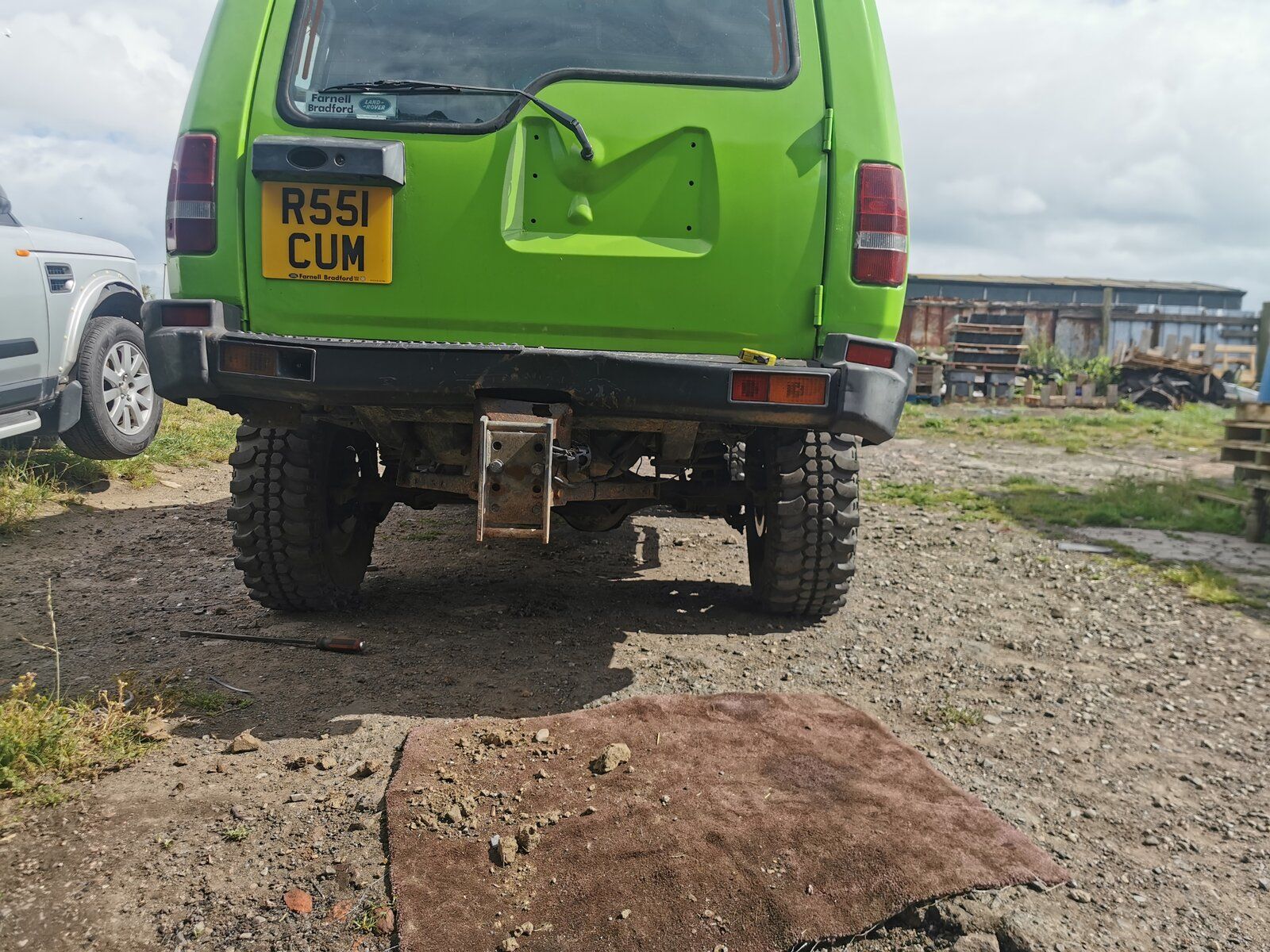

Disco 1 Dropped on one Side
- Thread starter border
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Hicap phill
Well-Known Member
- Posts
- 16,338
- Location
- Wiltshire
Broken spring?

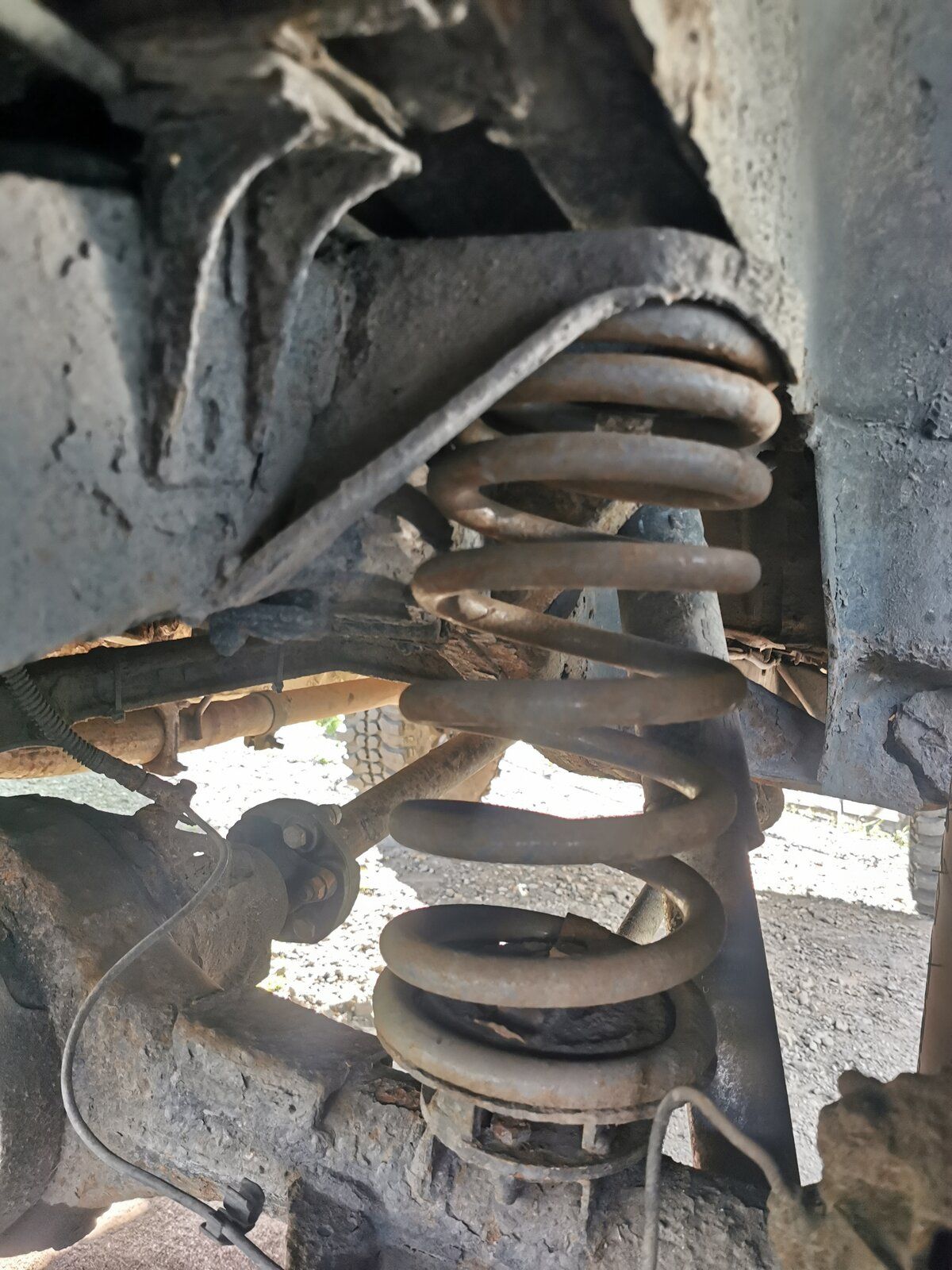

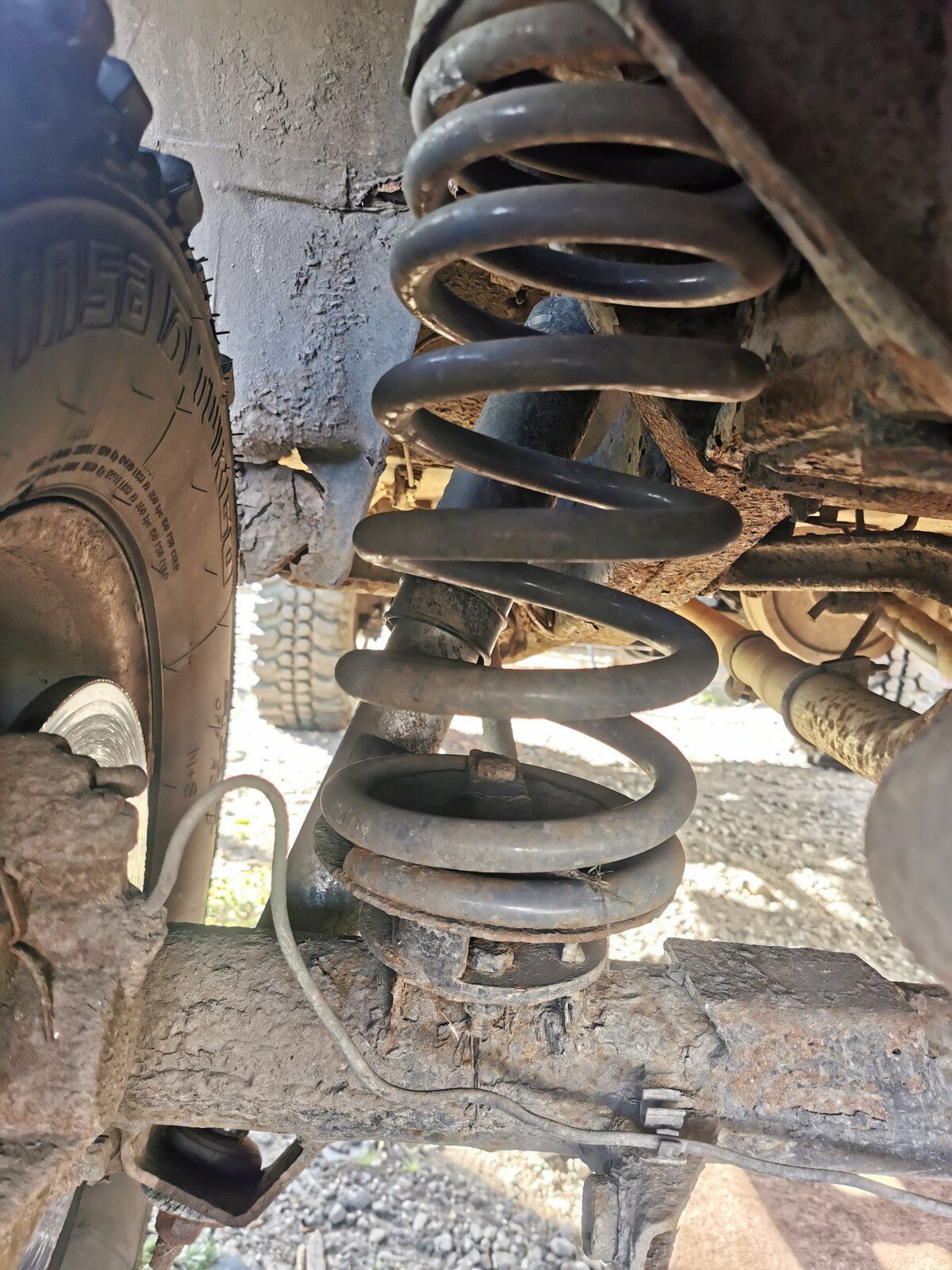

Non seated spring
Non seated spring
Henry_b
Think outside, no box required.
- Posts
- 15,509
- Location
- somewhere else
Nice plate.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Seems like its seated right, will have a closer look tonight.
Wanna Buy itNice plate.
Henry_b
Think outside, no box required.
- Posts
- 15,509
- Location
- somewhere else
Seems like its seated right, will have a closer look tonight.
Wanna Buy it
As above, broken spring, or possibly top or bottom mounting failed, I.E. rotted away - if it isn't obvious from looking under the arch, then I suggest the bottom mounting, on the axle tube has, er, "left the building" so to speak.....
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Hicap phill
Well-Known Member
- Posts
- 16,338
- Location
- Wiltshire
Jack each side up to drop the spring out. & check them.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Will try and give that a go tomorrow Mate, Are they easy to get out, ? might give the nuts a good soaking in WD first
Hicap phill
Well-Known Member
- Posts
- 16,338
- Location
- Wiltshire
Have you got a hi lift jack?
Or block under the tow ball to lift the body away from the top of the spring(just to make sure the top coil is not broke)
Or block under the tow ball to lift the body away from the top of the spring(just to make sure the top coil is not broke)
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Will try under the tow ball. Thanks
- Posts
- 45,094
- Location
- East Dorset
Did I notice a bump stop was not there?
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Yes both are missing, that cant be the problem can it ?
- Posts
- 45,094
- Location
- East Dorset
Carn't 'elp! Springs would compress too far, possibly, and smackin' the bits an pieces against the chassis won't do nowt any good.Yes both are missing, that cant be the problem can it ?
+1^^^^^
Just take em off and compare 'em. they isn't expensive!
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

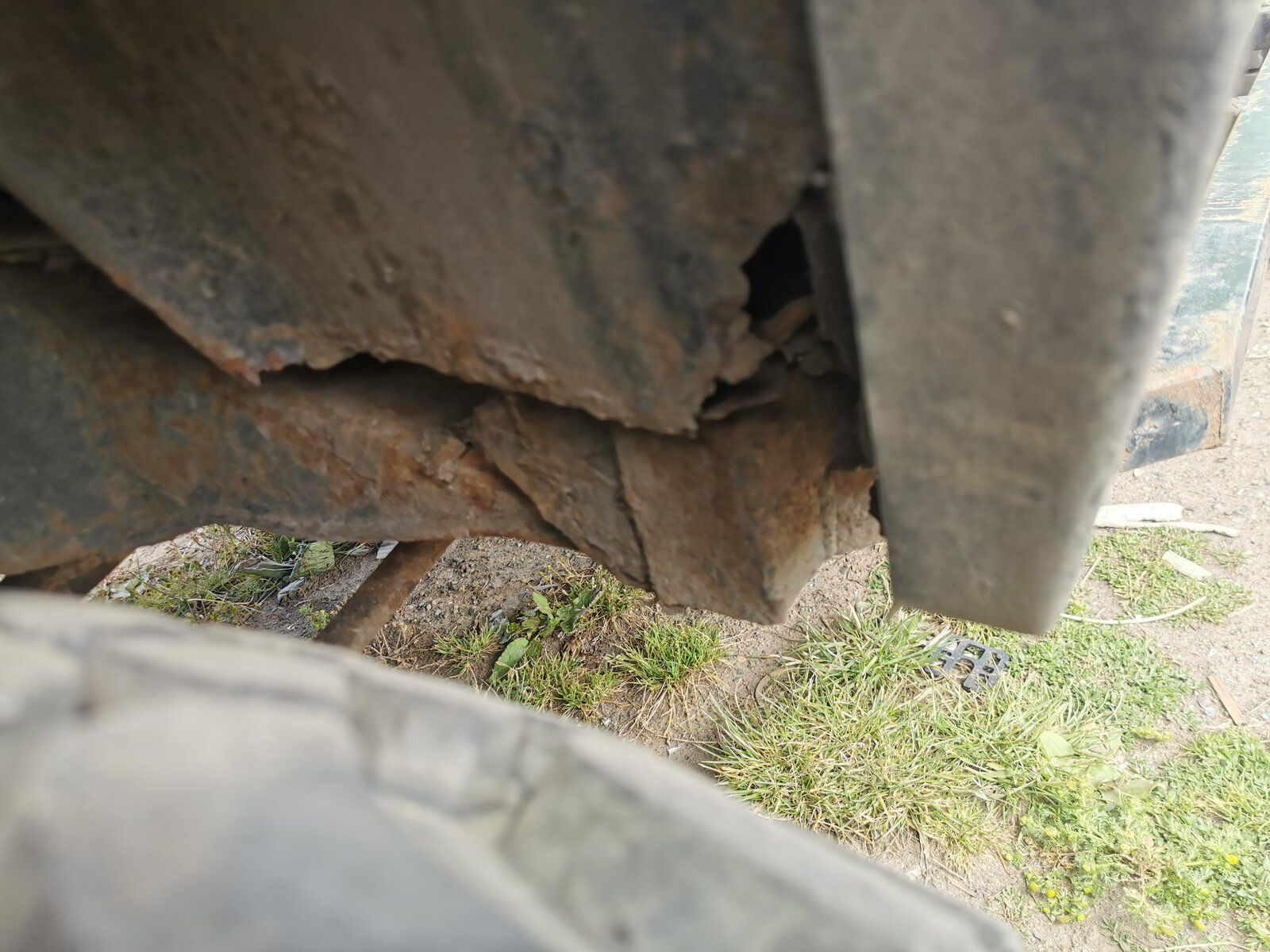

Had another good look and its worse then I thought, didn't really think it would be springs as they are only a year old.
Think its the body mount rusting away don't think this is an easy fix, so better get cracking and get my Defender Rebuild through MOT and on the road then decide what to do with this.
Think its the body mount rusting away
don't think this is an easy fix, so better get cracking and get my Defender Rebuild through MOT and on the road then decide what to do with this.Attachments
- Posts
- 45,094
- Location
- East Dorset
Yep, looks like the old rustmonkey has been in there and fecking it around! Hey ho!Had another good look and its worse then I thought, didn't really think it would be springs as they are only a year old.
Think its the body mount rusting away
Best of luck!
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Thanks Mate, I Had 2 choices once my Defender is on the road, 1 sell the disco or 2 Start a Rebuild on it, think the choice is made now number 2, Unless I can see what I can get for it as it is, it has a lot of good parts on it, full suspension shocks and springs only a year old, diff guards, heavy duty steering bars winch bumper, rock sliders ect, ect . Might be worth a few quid to the right person. its a 2 door too.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
I know was Thinking that myself. Might put it up for sale first, if I get decent offers for it will let it go. if not then I suppose its somthing to keep me busy in the next couple of years, it's only took me 2 and half to do the DefenderChoose 2 and you probably need to buy a welder and practice
