Does anyone have a photo of the inside windscreen attachment?

sirwin · Jun 29, 2020

Bit of a strange request. I've had to do quite a bit of work to the bulkhead welding in new corner pieces and pillars. I'm trying to find a reference pic for the inside gap where the windscreen connects on each side of the bulkhead on a 1986 110 or similar. I'm going to have to fabricate a piece of metal for that section and a photo would help.

I'm looking for the inside where this bracket bolts on (see attach) if anyone wouldn't mind taking a photo of their LR for me.

sirwin · Jun 29, 2020

mick 1986 · Jun 29, 2020

sirwin said:
.

I don’t have a photo of mine, but each side is 2 pieces of steel, one has 3 holes in it, the other has 2 holes. The bits are welded together (mine were anyway), and the 2 holes in goes at the bottom.

mick 1986 · Jun 29, 2020

sirwin said:
.

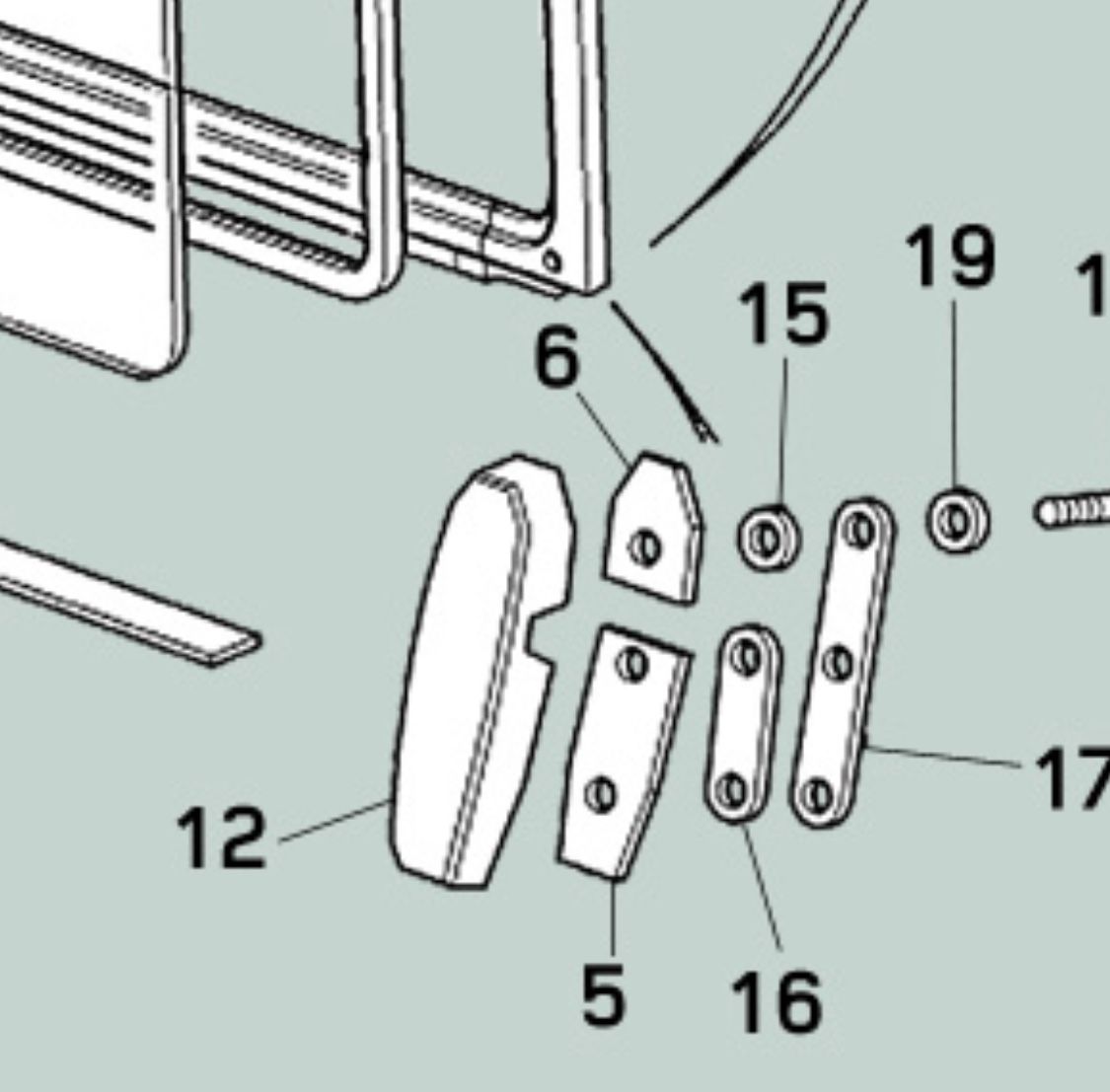

Found this. Looks like mine has been modified as they shouldn’t be welded together, and the top has another spacer.

sirwin · Jun 29, 2020

mick 1986 said:
Found this. Looks like mine has been modified as they shouldn’t be welded together, and the top has another spacer.

View attachment 213587

Cool. Cheers for that. I'm trying to find a photo of the metal ideally. Not so much the bracket itself.
