smurphy

Active Member
I've fitted the cruse control on my disco1 out of another one, I've swapped all the bits over. The only thing I can't find is where to put the relay. In rave it says its the drivers side, but all the relay points are taken up and the wire colours are right. The relay must be missing as there is no click when I switch it on. So can anybody tell me which relay it is please. If possible pictures would be great to , thanks in advance regards Steve

I've fitted the cruse control on my disco1 out of another one, I've swapped all the bits over. The only thing I can't find is where to put the relay. In rave it says its the drivers side, but all the relay points are taken up and the wire colours are right. The relay must be missing as there is no click when I switch it on. So can anybody tell me which relay it is please. If possible pictures would be great to , thanks in advance regards Steve

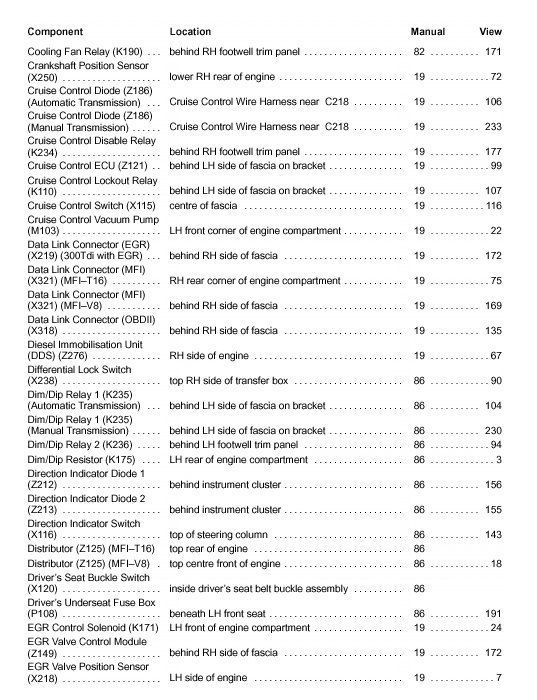

It could be one of two places, see the attached RAVE page.

Peter


Attachments

  • Disco1Cruiserelay.jpg
    95.8 KB · Views: 109
