DIY storage drawer for 110

Discussion in 'Defender 90 / 110 / 130' started by flounderbout, Sep 1, 2019.

< Previous Thread | Next Thread >
  1. flounderbout

    flounderbout Member

    Joined:
    May 14, 2019
    Posts:
    17
    Likes Received:
    19
    Location:
    Hampshire
    So I was keen on the idea of a rear storage area for my 110. Right up until I saw the price! Gulp.
    Figured I would knock one up instead.
    It's probably been done a million times before, but figured I would post some pics in case it gave anyone else considering similar some ideas...
    Basically 18mm and 12mm ply, some cheepo carpet, a bit of everyone's favourite chequer plate, a paddle lockable door handle, and some seriously sturdy drawer runners...
    Wanted it to be lockable, and due to large hound being at a higher level added a dog cage. Also had to add some further handles post installation because paddle handle isn't great for pulling drawer open if it is crammed with stuff.
    Not the world's most professional job, but does the trick and beats stuff rolling round the back waiting to be nicked...


    Attached Files:

    BuzzLand, TheQ, Hicap phill and 4 others like this.
  2. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    3,024
    Likes Received:
    1,610
    Location:
    Henley on Thames, Oxfordshire
    Nice job there pal. Where d’ya get the heavy duty drawer runners and other bits?

  3. frog hopper

    frog hopper Well-Known Member

    Joined:
    Oct 10, 2009
    Posts:
    2,306
    Likes Received:
    1,549
    Location:
    france
    I like what you've done there.
    In fact that is on my to do list, but mine will be half the depth full opening being just within the body, I shall also split it to have 2 drawers.
    I am using the same runners as you, got mine a year ago from screwfix I think, could have been B & Q.
    Good runners, I have a pull out unit in our kitchen that I made using 3 pair, supports a fair old weight, and been opened god knows how many times since I made it 8 or 9 years ago.

  4. Si Click

    Si Click Well-Known Member

    Joined:
    Aug 21, 2018
    Posts:
    871
    Likes Received:
    396
    Location:
    Bucks
    Nice one. I want to do something very similar on my D2, but doubt I will be able to make something as professional looking as that. I would also be grateful for the details on your draw sliders. Could you also use them as sliders for a fridge?

  5. wireman

    wireman Well-Known Member

    Joined:
    Nov 22, 2008
    Posts:
    469
    Likes Received:
    145
    Location:
    Warrington
    Nice job, you could make kits and sell them to those less woodworking talents. Or sell the plans(dimensions/specs etc) so people can buy exactly what they need.

  6. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,053
    Likes Received:
    2,079
    Location:
    South London/North Kent
    Eurofit Direct have a HUGE range of runners.

    Really nice work though!!

  7. Sirronluap

    Sirronluap Member

    Joined:
    Mar 7, 2012
    Posts:
    73
    Likes Received:
    20
    Location:
    Mid Wales!
    Nice strong job! A very Land Rover look too... :)

  8. flounderbout

    flounderbout Member

    Joined:
    May 14, 2019
    Posts:
    17
    Likes Received:
    19
    Location:
    Hampshire
    Cheers all. As Bankz suggests, the runners are from Eurofit. https://www.eurofitdirect.co.uk/col...bearing-230kg-drawer-slide-76-x-965mm-ext-100
    Easily strong enough to mount a fridge or most things overlandy I reckon - the limiting factor load wise is definitely the drawer not the runners.
    I didn't draw up plans as such - just made it up as I went. One tip though - an 18mm ply sheet cut the width of the rear space and the length of the space behind the seats cannot be fitted in no matter how you wangle it (first pic)! If you are going to bridge that space you need to cut a narrower piece and add infills (second pic).
    The box section you need so that the drawer clears the rear door when open rather neatly fits the jack if you have an original farm style one (accessed from middle seat footwell in mine, though you could leave the back open for easier access).


    Attached Files:

  9. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    2,523
    Likes Received:
    1,181
    Location:
    North Shropshire
    Read the title and was expecting a drawer that you could fit a 110 in..

    BuzzLand and Shimsteriom like this.
  10. Lief Zpring

    Lief Zpring Member

    Joined:
    Jul 8, 2018
    Posts:
    43
    Likes Received:
    25
    Location:
    Northumberland
    Good effort. I had something similar (but not as good) in a previous 110. I will definitely use your design for my current vehicle. Thanks for the photos.

  11. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    5,237
    Likes Received:
    4,204
    Location:
    Thatcham
    Tidy job, I like it but it's a bit of a step for your hound to jump onto and from.

    Col

  12. flounderbout

    flounderbout Member

    Joined:
    May 14, 2019
    Posts:
    17
    Likes Received:
    19
    Location:
    Hampshire
    You are right - the thing you can see on the far right of this pic is an extendable ramp which can sit on the step by the drawer and means that he can potter up...
    [​IMG]

  13. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    5,237
    Likes Received:
    4,204
    Location:
    Thatcham
    :):):):)
    Thanks, I'm a lot happier knowing that.:)

    Col

    derwendolly likes this.
  14. mikerajjers

    mikerajjers Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    1,095
    Likes Received:
    358
    Location:
    Bedford UK or Trnava SK

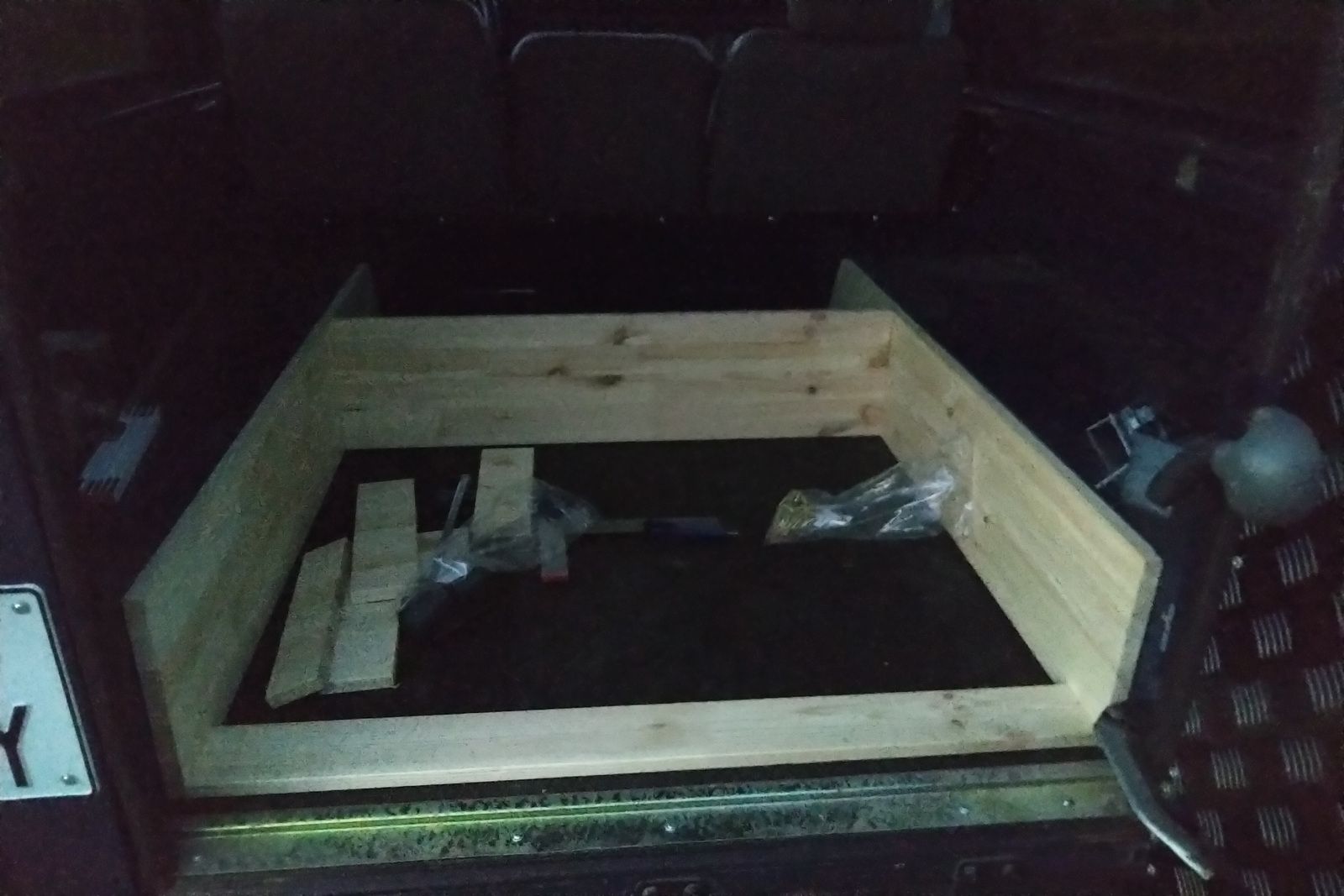

    @flounderbout you have inspired be to build my own storage. Here it is as a work in progress... IMG_20190905_1946065.jpg

    flounderbout likes this.
  15. flounderbout

    flounderbout Member

    Joined:
    May 14, 2019
    Posts:
    17
    Likes Received:
    19
    Location:
    Hampshire
    Nice one! Are you going for a drawer at the back and then a storage bin behind it, or will that just be a space you can access from the middle seats?
    I'm sure you have it in mind but don't forget the right hand side has to be offset so that the drawer will clear the rear door hinge when it opens...

    Hicap phill likes this.
  16. mikerajjers

    mikerajjers Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    1,095
    Likes Received:
    358
    Location:
    Bedford UK or Trnava SK
    I will be making a draw when the rails arrive. The right hand side needs an offset like i saw in your pics. The left could probably do with another 5mm offset or so but i will see. There will be a storage bin behind the draw that will open from the top but i'm undecided whether to have it on hinges or not

  17. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    14,076
    Likes Received:
    14,354
    Location:
    Manchester
    I went for the two drawer option as I wasn’t convinced ply wouldn’t deflect after time and jam the drawer.
    It also means the top can be split down the centre for easier ingress. Oh and one drawer is shorter than the other in mine so I could fit a secondary battery behind it.
    These things come in very handy and I’m happy I fitted it.

  18. flounderbout

    flounderbout Member

    Joined:
    May 14, 2019
    Posts:
    17
    Likes Received:
    19
    Location:
    Hampshire
    I had the same concern, although the base is 12mm ply and is rebated in to all four walls of the drawer, and there is no noticeable movement at all even when heavily loaded. I bought some aluminium angle to reinforce the drawer base if it moved too much - if over time it starts to sag I can retrofit the angle.
    Two drawers is a big benefit in terms of organising storage - my drawer is very big so unless it is fully loaded things can slide around. At some point I will probably add a divider and some foam cutouts to take valuable stuff that I don't want to roll about. In the end though I wanted to avoid the extra weight and complication of two drawers.
    I would very much like to fit a spare battery though. I am hoping to do that in the space under the middle seats, but will have to have a look and a think about the space available.

  19. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,754
    Likes Received:
    1,101
    Location:
    Aberdeenshire
    That looks good mate. Get it up on the exped forums storage section show them how it’s done!
