Discovery 200tdi transplanted into a 1984 90 - wiring help needed!

HaslemereLandy · Aug 4, 2021

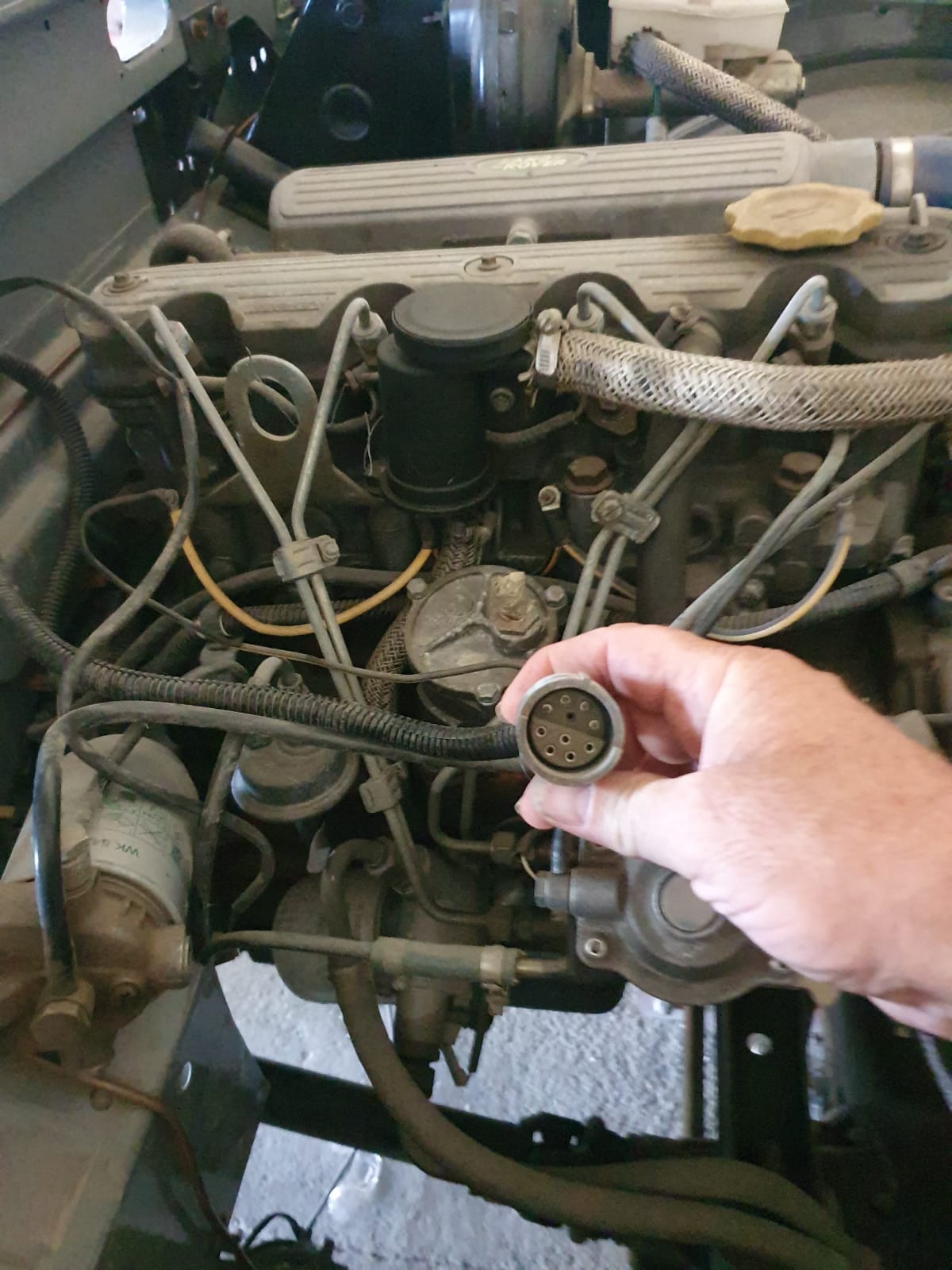

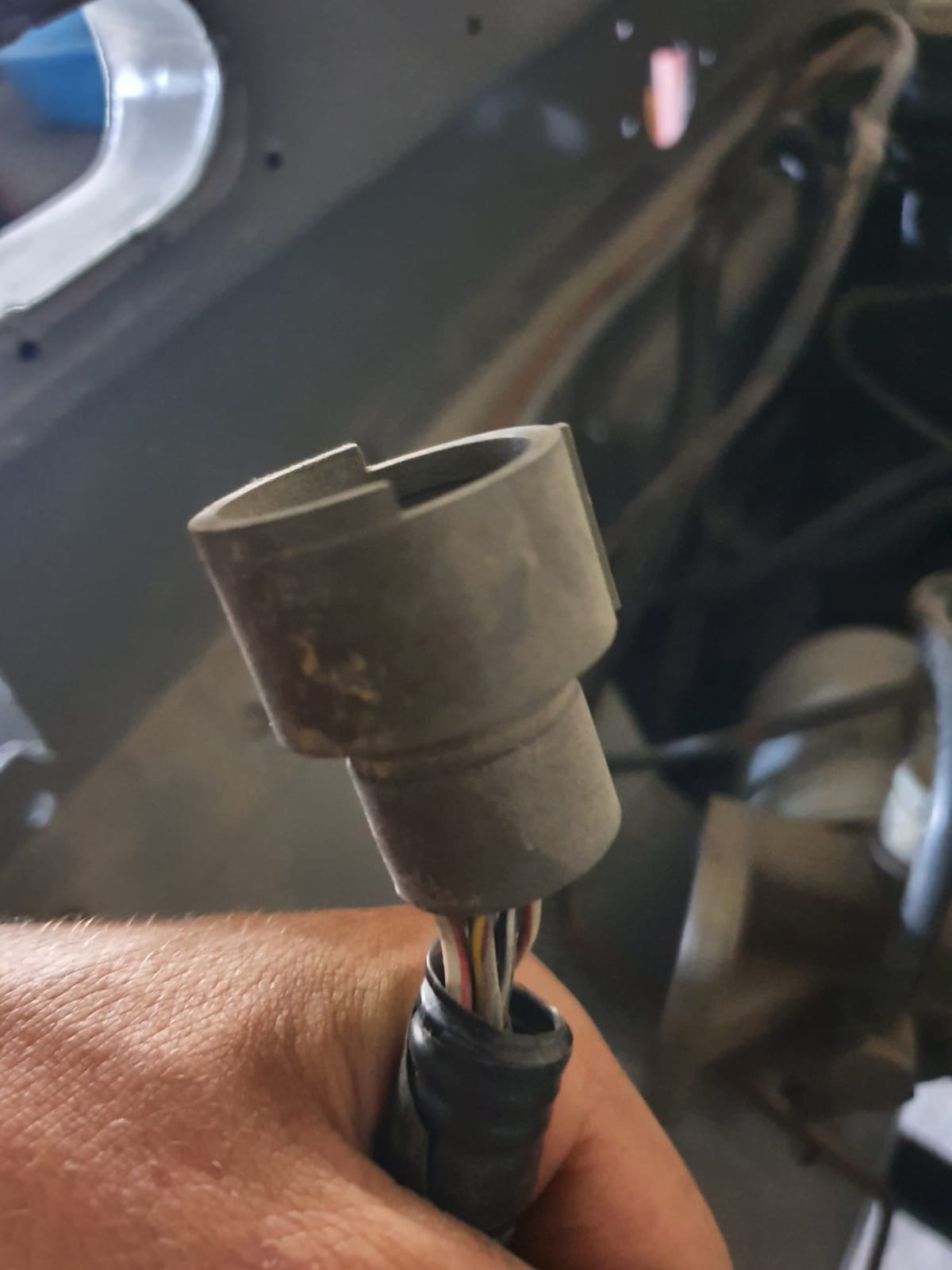

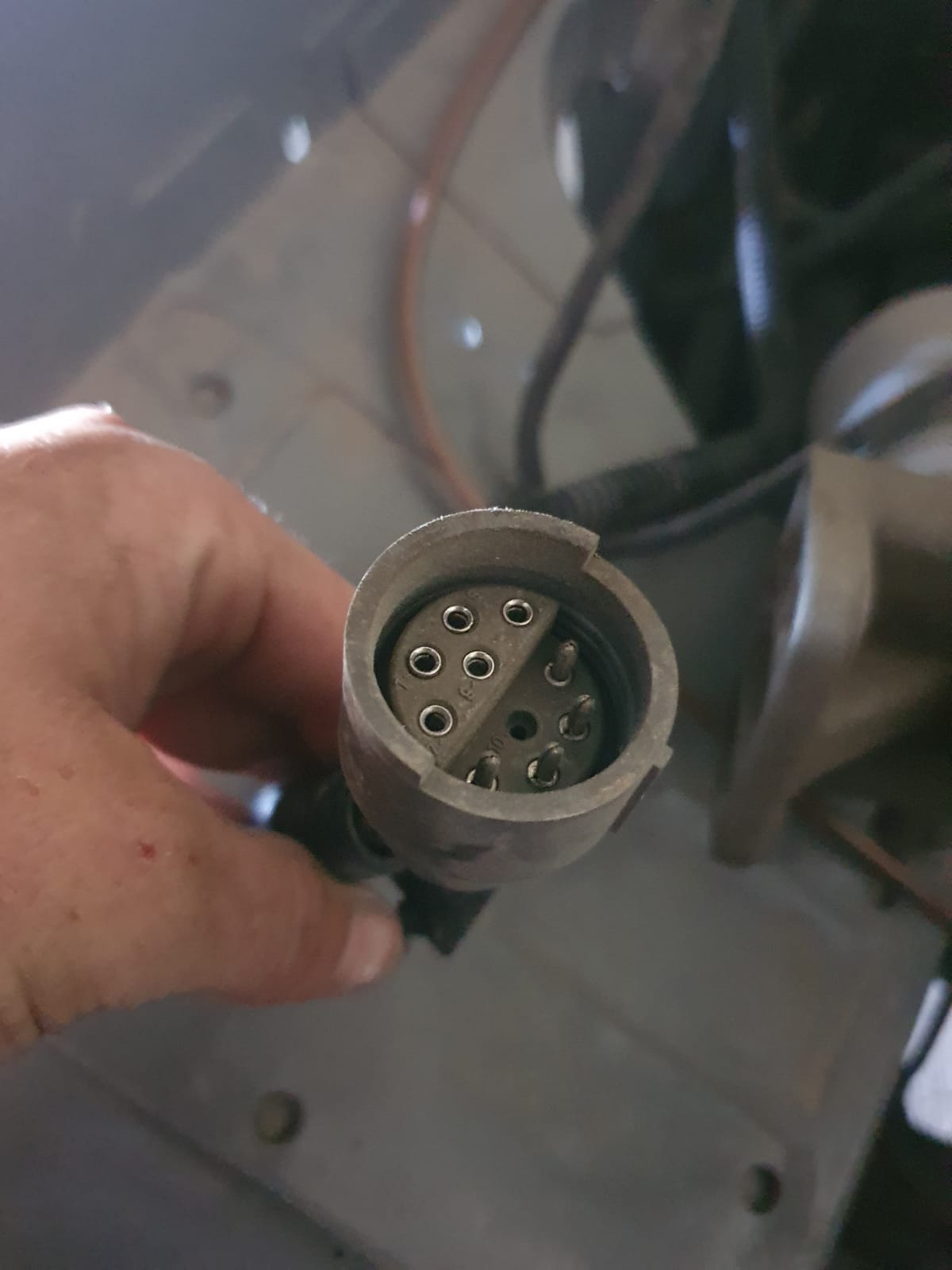

I've recently put a 200tdi from a Disco into my 1984 90. I've been speaking to autosparks to try and find the right wiring harness/loom to connect from the engine into my dash but I'm really struggling to find anything that uses this connector.

Any ideas?

Cheers!

the_wolf · Aug 4, 2021

What's it connected to? It most likely wouldn't have any function in a defender, the loom is pretty simple and you don't need many wires

miktdish · Aug 5, 2021

Like @the_wolf said ... what does it connect to on the engine ?

Hicap phill · Aug 5, 2021

That looks like a disco plug.
Is that on the engine ?

have you still got a loom off the previous engine in the 90?

HaslemereLandy · Aug 5, 2021

Hicap phill said:
That looks like a disco plug.
Is that on the engine ?

have you still got a loom off the previous engine in the 90?

That makes sense. No, the old TD loom was shot.

Hicap phill · Aug 5, 2021

HaslemereLandy said:
That makes sense. No, the old TD loom was shot.

Take the plug off the old TD loom and solder it to the disco loom.
There are only
Water temp
Alternator
Exciter cable
Starter solinoid cable
HP fuel power
