Does anyone know if these are Disco 2 rear spring size? To fit springs ID120mm, OD155mm. Cheers Thanks
Discovery 2 rear spring internal and external dimensions
- Thread starter Wolfskin
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 23,062
- Location
- In the next Glen
Hi Pal its the done thing on Lz to introduce yourself on here as it upsets some folks !!
https://www.landyzone.co.uk/forum/introduce-yourself.20/
Edit...……I remembered that the spring conversion comes with 2 spring seats wider
than the seats for the air bags, I had mine off so my initial measurements were wrong
ooopps
Cheers Kev
Last edited:
Interceptorxj
Well-Known Member
- Posts
- 1,724
- Location
- Bolton, Greater Manchester.
Interceptorxj
Well-Known Member
- Posts
- 1,724
- Location
- Bolton, Greater Manchester.

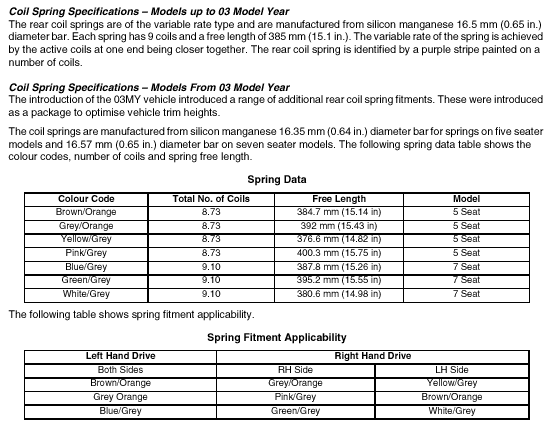

D2 rear spring spec.
Wolfskin
New Member
- Posts
- 4
- Location
- Christchurch New Zealand
Thanks guys. Hi I'm Such from Christchurch NZ. I found a 5 seater with springs from new. My last ones were rubber and I did like them when they had air in them.
So those sizes internal and external diameter size spring were advertised for a Discovery here in New Zealand. The spring spec sheet doesn't mention that. Could that size be D1? Seems strange.
Thanks.
So those sizes internal and external diameter size spring were advertised for a Discovery here in New Zealand. The spring spec sheet doesn't mention that. Could that size be D1? Seems strange.
Thanks.
Pawl
Well-Known Member
- Posts
- 569
- Location
- West Midlands, UK
D1, RR Classic & Defender rear uses the same internal spring diameter as D2. Only exception is Defender 130 which uses larger diamter.
Internal diameter is approx 120mm apart from the Defender 130, which is approx 145mm.
Internal diameter is approx 120mm apart from the Defender 130, which is approx 145mm.
Last edited:
Wolfskin
New Member
- Posts
- 4
- Location
- Christchurch New Zealand
Brilliant thanks for that Pawl I knew someone would have that little gem of information tucked away.
Not exactly correct as the 110 uses the larger diameter rear springs as well
Pawl
Well-Known Member
- Posts
- 569
- Location
- West Midlands, UK
I'll happily bow to greater experience.
While looking for alternative springs for the back of our D2, I'd gathered lots of info from that great source of truth, the internet - lol.
It appeared to suggest that only the 130 was unique.
I can personally confirm that the others (D1, RR Classic & Defender 90) are the same fitting / internal diameter - as I've used examples of all on the rear of the D2. I ended up settling with Defender 90 Medium Duty.
I have heavy duty D2 rear springs +2” on the front of my 90 to give it the lift I required
