Diff fluid help

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
All ye need is a 1/2" rat****. If ye look under yer diff ye'll find a bung, stick yer rat**** in it and undo to let the oil out then replace it.
Ye'll notice on the front of yer diff another bung, use a rat**** with an extension bar on it to remove, fill yer diff up until it starts to dribble out and replace bung;)

ALWAYS make sure you can get the filler open before you empty it or you will end up with no oil in your diff and no way of getting it in.

Such methods to get a very seized plug include using a big ratchet or breaker bar and give it a little shove in the tightening direction with a jack under the handle of the ratchet/breaker bar. This cracks up all the rust and crud then it should undo quite easily.

hello again

just why were on the topic of my diffs and oil. i was out there thismorning with the wire brush scrubbing under the lanny, while i was under there i decided to take some pictures becasue i think i found a few more leaks.

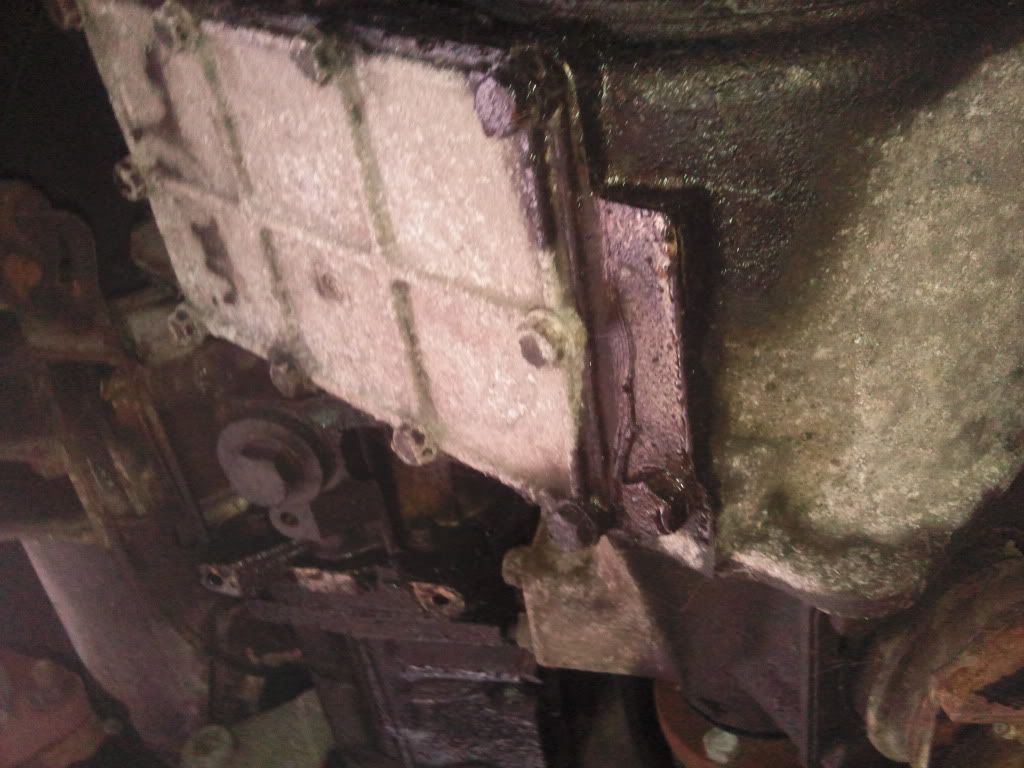

Rear Diff

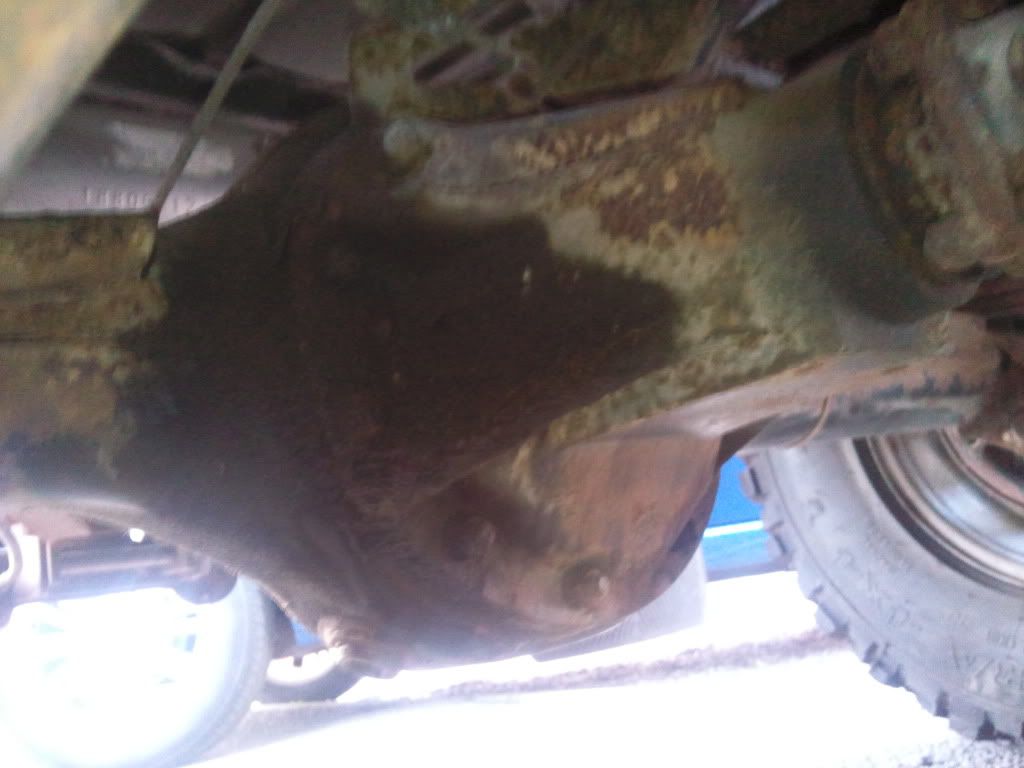

Front diff

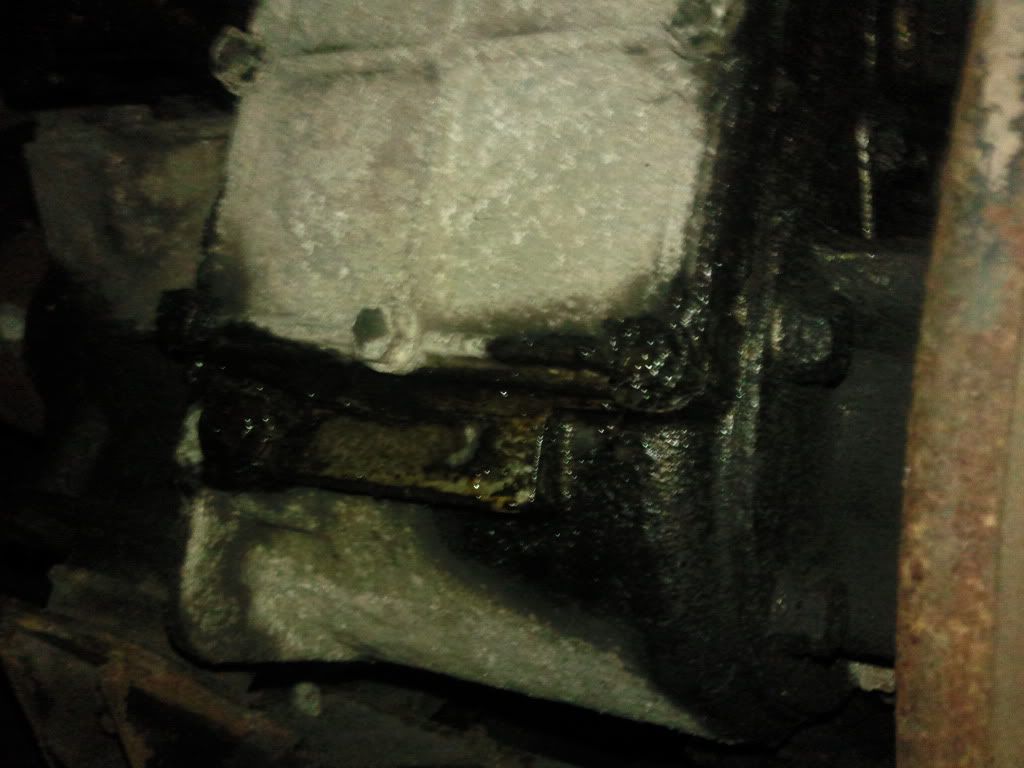

Front diff also

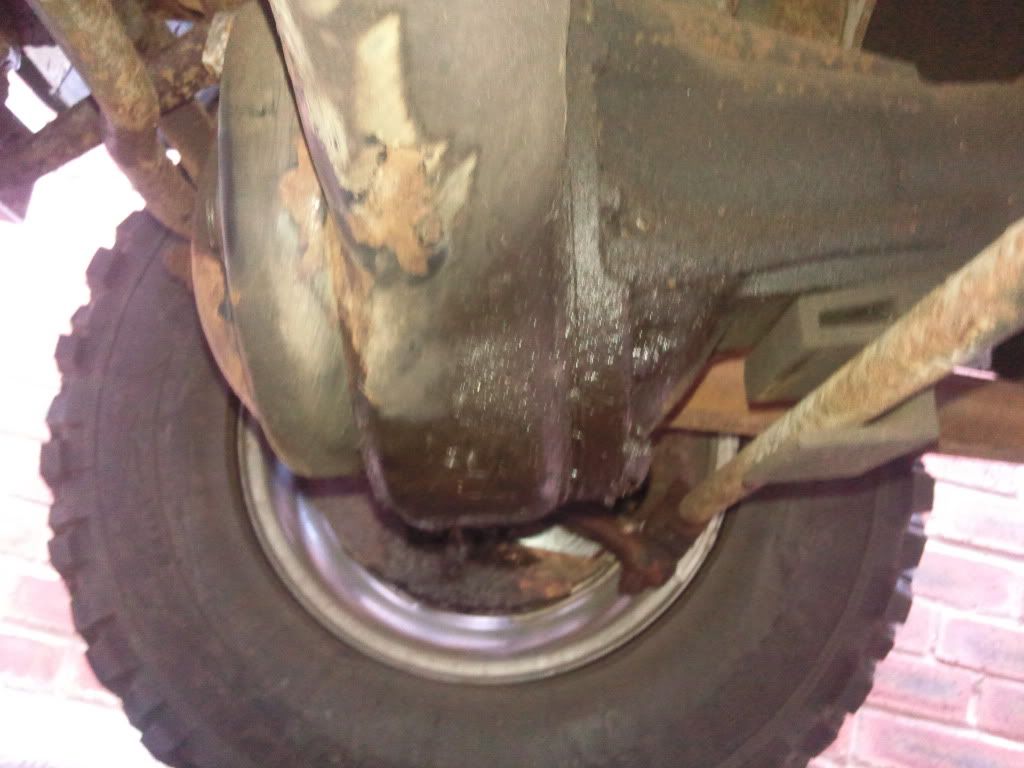

Not sure what this part was, im still learning ha ha


do you think i will just need to replace the gaskets?

thanks again

Ben

Yer last photie is of the transfer box. The bolt near the bottom right is yer drain plug. A bit like this..



It's a bit hard to tell from yer photies but it looks like yer rear output seal is knackered. Is there a bit of oil behind the handbrake drum?

Ah reckon yer best bet is to clean the area as best ye can and keep an eye on where the oil comin' from fur sure. It might be comin' from the rear output seal but it might be comin' from the front one or just the seal on yer drain plug.
Might be an idea to check yer oil levels in yer tranny and gearbox;)

Ah reckon yer best bet is to clean the area as best ye can and keep an eye on where the oil comin' from fur sure. It might be comin' from the rear output seal but it might be comin' from the front one or just the seal on yer drain plug.
Might be an idea to check yer oil levels in yer tranny and gearbox;)

cheers buster :) ill just change all the oils anywayse. is the gear box an transfair box oil the same as the dif oil?
