Series 3 Diagnosing cause of steering problem

Discussion in 'Series Land Rovers' started by 85Santana3, Jun 30, 2020 at 7:31 AM.

< Previous Thread | Next Thread >
  1. 85Santana3

    85Santana3 Active Member

    Joined:
    Jan 11, 2014
    Posts:
    214
    Likes Received:
    27
    Location:
    Canada
    Hello everybody
    Here are the symptoms:
    1. When I drive in straight line when I hit a bump or hole it is harder than before to keep the truck in straight line
    2. When I have to steer left or right car has a tendency to go a lot more in that direction than I intended and it is had to keep conrol
    3. As speed increases the problem becomes more

    I have read through every post on this site about steering but I could not find a solution hence the question.
    One mechanic said that it is steering box I do not trust him beasue he did not bother to drive and test it, Also he was afraid of taking the steering box out he said it is too complicated!
    Nothing has been done to steering or joints over 4 years so things mght be worn out question is which one and how to fix it.
    Thanks in advance

    Last edited: Jun 30, 2020 at 8:40 PM
  2. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    706
    Likes Received:
    195
    Location:
    East Anglia
    Could it be your steering damper?

    Also check the preload on the swivel top pin, might be time to take a shim out or something.

    85Santana3 likes this.
  3. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,502
    Likes Received:
    674
    Location:
    norfolk
    Have you got a steering damper?
    The first thing I'd check is the track rod ends, there's 6 of them so a little play in one can lead to big free play.
    You can also check the steering box by moving the steering wheel side to side and watch the rod that's attached to the steering box, you should see it move pretty much as you move the steering wheel if not its easy to adjust by the bolt and lock nut on the side of it.

    85Santana3 likes this.
  4. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,467
    Likes Received:
    994
    Location:
    west wales coast
    Not usual for series to have a steering damper.
    As above check everything.
    Check steering box is firmly in place.
    Any adjustment to box must be done with wheels straight ahead and it must not be overtightened.
    Check the swivel pin preload.
    Steering wobble after hitting a bump can be a sign of a failing axle damper/shock.
    Many good "how two" videos on the you tube.

    85Santana3 likes this.
  5. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    5,797
    Likes Received:
    4,990
    Location:
    Thatcham
    Might be worth just greasing all the ball joints and seeing if that has any affect, not much work and virtually cost free.

    Col

    85Santana3 likes this.
  6. Wildefalcon

    Wildefalcon Active Member

    Joined:
    May 28, 2015
    Posts:
    141
    Likes Received:
    45
    Are the steering bars straight and undamaged? Visual check time.

    85Santana3 likes this.
  7. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,577
    Likes Received:
    411
    Location:
    Tyneside
    Has the steering relay got oil in it.
    Get someone to rock the steering wheel whilst you look underneath at all the link points and arms on steering relay to see if they are slack also arms going from trackrods to hub as they can also become loose at the four stud fixing points.

    85Santana3 likes this.
  8. 85Santana3

    85Santana3 Active Member

    Joined:
    Jan 11, 2014
    Posts:
    214
    Likes Received:
    27
    Location:
    Canada
    I did the greasing and oil thing and it imporved the situation somewhat but not entirely. Next I will try your other suggestions, thanks for replies guys.
    I wish somebody would come up with a step by step diagnosis procedure for every problem for different models. Do this first if failed do that etc. etc. (This would be very helpful. I do not have the mechnical knowledge but if others would be willing to participate I would develop the database and do the programming.)
    I found a thread on this site about adjusting the steering box. Tomorrow I will try that as well. Thanks again.

  9. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    7,606
    Likes Received:
    10,330
    Location:
    Wiltshire
    It’s you swivel pins.;)
    Need to remove a shim or 2 to nip them up.

    85Santana3 likes this.
  10. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,740
    Likes Received:
    392
    Location:
    monkeyhangerland
    I would jack up,the front end and check for wheel bearing play , One of Mine were loose the other week and had similar symptoms , then with a lever move ball joint fixings while holding with other hand

    85Santana3 likes this.
  11. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    2,532
    Likes Received:
    858
    Location:
    Slough and Bath
    Its important to check for too much play but also too stiff. I had a car steering get stiff and became very hard to stay in a straight line.

    85Santana3 likes this.
  12. divie

    divie Well-Known Member

    Joined:
    Jul 21, 2011
    Posts:
    1,070
    Likes Received:
    43
    Simple check list.
    Is steering box secure ? They do come loose.
    Oil in relay.
    General play in rod ends. (the one from steering box to relay tends to get overlooked cos it's not easy to change.
    Remove a steering arm and put a spring balance on to check swivel pre-load. With the seal in place you should see around a 14 pound pull before the arm moves. If free wheeling hubs fitted are they locked up once a week to throw oil up to the top railco bush?

    I ran series for 40 years and your sort of problems are usually down to swivels, if new ones needed and you have not done them before allow a day each side to fit and adjust. I modified the top king pins on mine to make them greaseable. A bit of grease a couple of times a year soon mixes in with the EP90 oil. (I assume you have checked the oil level in the swivel?)

    85Santana3 and tottot like this.
  13. Wildefalcon

    Wildefalcon Active Member

    Joined:
    May 28, 2015
    Posts:
    141
    Likes Received:
    45
    How do we start?

  14. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,502
    Likes Received:
    674
    Location:
    norfolk
    1-put kettle on.

    Hicap phill likes this.
  15. Wildefalcon

    Wildefalcon Active Member

    Joined:
    May 28, 2015
    Posts:
    141
    Likes Received:
    45
    Check. Brew in hand.

    Rodeo Joe likes this.
  16. 85Santana3

    85Santana3 Active Member

    Joined:
    Jan 11, 2014
    Posts:
    214
    Likes Received:
    27
    Location:
    Canada
    OK guys this will be a group effort if it ever get started.
    Objective is to develop a series of step by step guide to diagnos poblems in LR trucks.
    one way to do it would be
    1. Each person who is interested to participate picks a specific problem and writes a step by step guide as how to test to find out what the problem is.
    These steps must be planned like programing algorithm. One step has several outcomes under each condition next step would be specified learly and so on and so forth. so following it even an idiot can 100% clearly fiure out what is wrong.
    2. this guideline will be available to everybody else (whether participating or not) and they can make suggestions or corrections
    3. when the procedure is finalized I will put those steps in a relational database or made a neat html or pdf page for it in a searchable directory which will be availabele to everybody. Alternatively each topic can simply be a thread in this forum.
    4. This is all on voluntary basis and nobody owns the work it will be a available to everybody
    5. Anybody can start or stop contributing so there is no obligation to keep working on it.

    this will help people to find the casue of problem in their LRs. which I think is becoming more difficult to fix as with time good experienced mechanics become harder to find.

    Maybe I am dreaming but I am convinced this would be very useful whether we can do it or not.

    Looking forward to your comments

    Last edited: Jul 1, 2020 at 6:29 PM
  17. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,740
    Likes Received:
    392
    Location:
    monkeyhangerland
  18. Fatrover

    Fatrover Active Member

    Joined:
    Feb 7, 2007
    Posts:
    698
    Likes Received:
    37
    Location:
    Ardrishaig, Argyll, Scotland
    Definitely. Would like to contribute. Am just coming to the end of windscreen motor replacement which has required dash out, rewiring, new switches etc....ive had series for years have kept a note of issues and solutions

    85Santana3 and Hicap phill like this.
  19. 85Santana3

    85Santana3 Active Member

    Joined:
    Jan 11, 2014
    Posts:
    214
    Likes Received:
    27
    Location:
    Canada
    Steve there are two issues with that 2A manual. Firstly I dobt if we can just take literature from an existing copmany and make something with it without regards for their copyright. Secondly typing all that is a lot of work. Any text need to be in text frmat so can be copied and pasted into various cells in database.
    Fatrover glad to hear from you. Hope we can get this going.

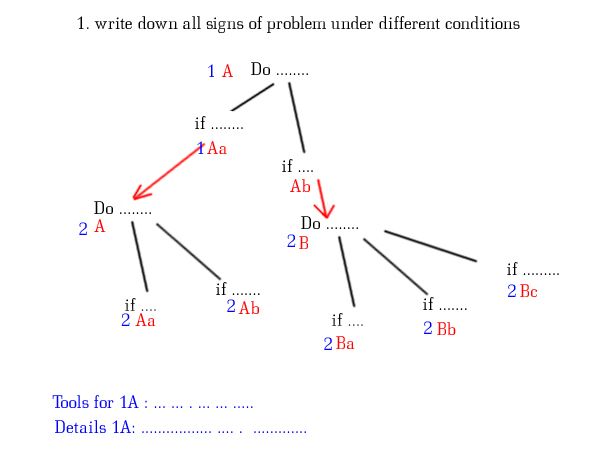

    I made a diagram just as a guideline for one step. Here it is attached.
    It shows one step and how it will lead to the next step. Of course if anybody has a better idea it is most welcome.
    May be I should make a thread and follow this project there with you guys.


    Attached Files:
