Defender seat headrest removal

Discussion in 'Defender 90 / 110 / 130' started by jumblerat, Aug 11, 2009.

< Previous Thread | Next Thread >
  1. jumblerat

    jumblerat New Member

    Joined:
    Jul 5, 2008
    Posts:
    8
    Likes Received:
    0
    Location:
    notts
    Hi just put my new seats in but they came with no headrests. Does anybody have any idea how you get them out as i can reuse the original ones. I have tried the obvious pulling and feeling for a release button.
    Any advise would be appreciated.

  2. mudpluggermax

    mudpluggermax New Member

    Joined:
    Jan 19, 2009
    Posts:
    28
    Likes Received:
    0
    Location:
    devon
    your not pulling them hard enuff!!! when i changed my seats the original headrests had to come off my old ones and one of them had to come out with some persuation from a hammer, at least i dont think there is a screw if there was, there isnt any more. !!!

    good luck cheers

  3. Patman1200

    Patman1200 Active Member

    Joined:
    Apr 7, 2005
    Posts:
    908
    Likes Received:
    2
    Location:
    RAE Sleepy Valley
    There is nothign holding them in except time and corrosion. Shove a peice of wood under the headrest then belt it with a hammer.... a lot!

  4. jumblerat

    jumblerat New Member

    Joined:
    Jul 5, 2008
    Posts:
    8
    Likes Received:
    0
    Location:
    notts
    Thanks i'll get the 14lb lump hammer out then

  5. shadowster

    shadowster Well-Known Member

    Joined:
    Aug 6, 2007
    Posts:
    1,372
    Likes Received:
    7
    Location:
    55'38.4n.4'49.1w
    you might need to push forward or pull back as well as hitting with a hammer

  6. Coolcamper55

    Coolcamper55 New Member

    Joined:
    Jul 23, 2009
    Posts:
    11
    Likes Received:
    0
    Location:
    West of Scotland
    I did the bit with a screwdriver under the base of the headrest and melted it a couple of times with a hammer, the squirted some wd40 down it and whacked a few more time eh voila, PDB

    CC55

  7. SPUTNIXB51

    SPUTNIXB51 New Member

    Joined:
    Aug 29, 2011
    Posts:
    1
    Likes Received:
    0

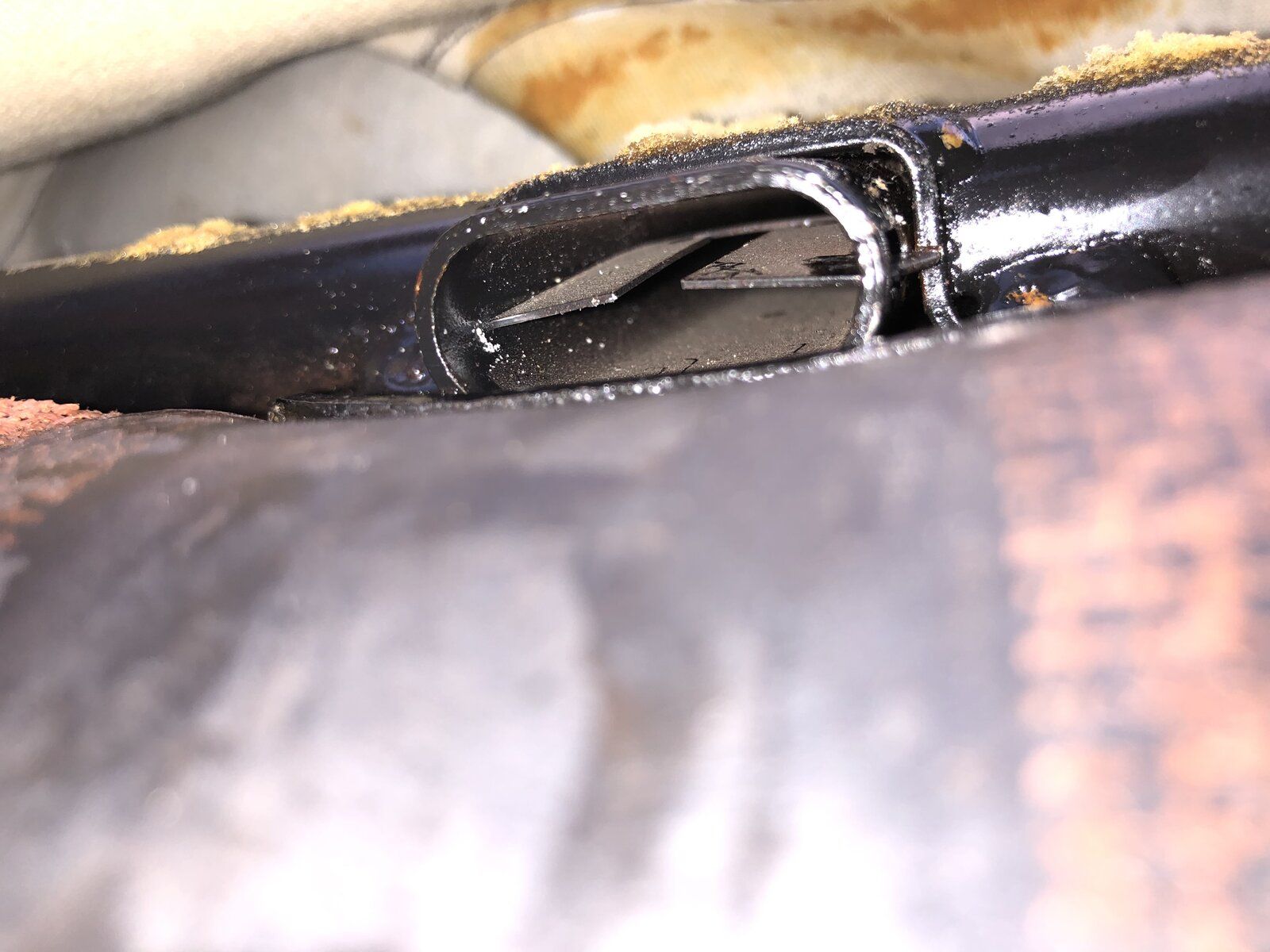

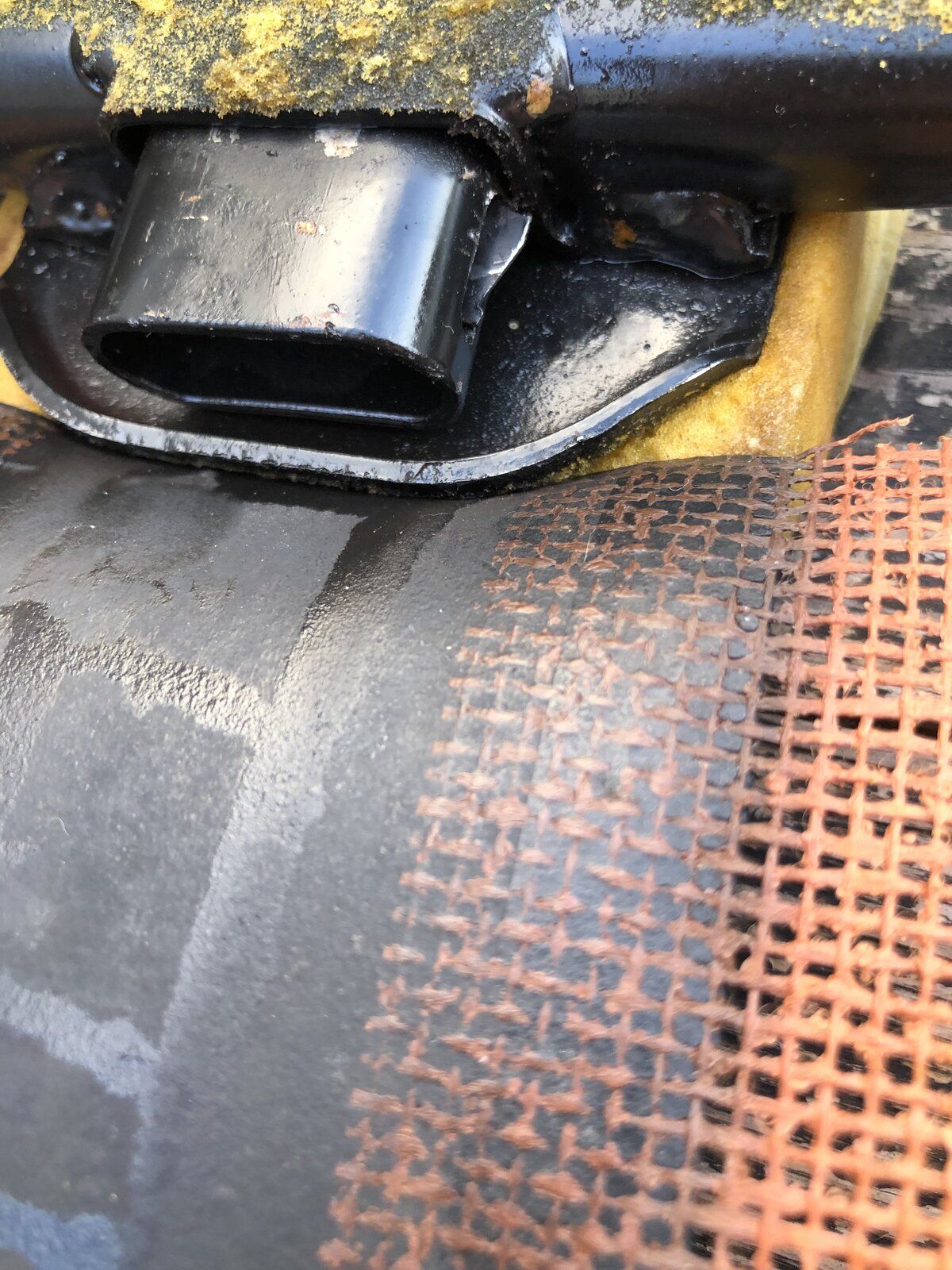

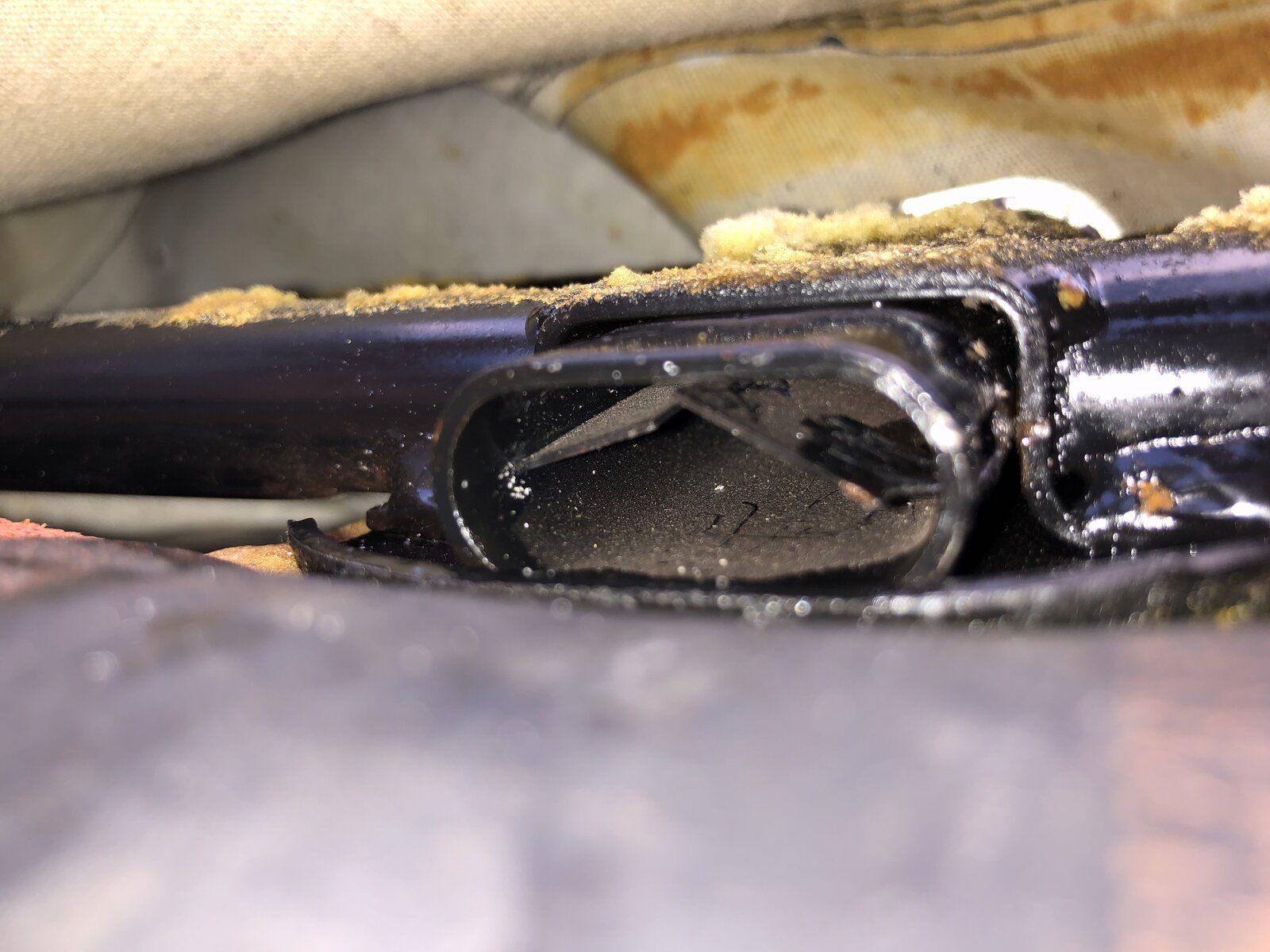

    just an update to this post if you undo the seat back cover at lower edge you can then put a torch under the cover and see the retaining spring clip inside the headrest tube,using long nosed pliers grip the left side of spring clip and pull it to the right and towards you at the same time the clip then comes out allowing you to pull headrest out without using force(other than when rusted in)the spring clip can then be re-located before pushing headrest into new seat so that it is retained correctly.(hope this isn't to pompus)

  8. aaronmorris

    aaronmorris Head's a shed

    Joined:
    Aug 22, 2010
    Posts:
    6,369
    Likes Received:
    304
    Location:
    Doncaster
    think he might have sorted this by now, bearing in mind it was 2 years ago :rolleyes:

  9. GuamBomb

    GuamBomb Member

    Joined:
    Jun 20, 2014
    Posts:
    46
    Likes Received:
    2
    Location:
    Rota Spain
    Realize this post is almost 6 years old, but just wanted to add that SPUTNIX is spot on with how to remove the head rest. I searched everywhere and pretty much everything I came across suggested beating the hell out of the headrest till it came off. That method does not work so well.

    I finally came across this posting and was able to get the headrest off by removing the outer cover of the seat enough to where I could get at the metal clip inside the head rest post, push the clip aside with a screwdriver, and then pull the head rest off with ease.

  10. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    2,815
    Likes Received:
    592
    Location:
    High Peak
    So on my TD5 the headrests are adjustable just by pulling them up or pushing down.

    On the missus's 300tdi they seem to be fixed about an inch above the top of the seat, and won't move. Is this right, not adjustable on the 300tdi?

  11. GuamBomb

    GuamBomb Member

    Joined:
    Jun 20, 2014
    Posts:
    46
    Likes Received:
    2
    Location:
    Rota Spain
    The single post head rests don't really move much. Mine only moved about 3/4" at best.

  12. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    2,815
    Likes Received:
    592
    Location:
    High Peak
    The TD5 ones are single post and they move up and down about four inches.

  13. Brown

    Brown Well-Known Member

    Joined:
    Jul 11, 2012
    Posts:
    6,011
    Likes Received:
    2,582
    Location:
    East Midlands
    Well, they're supposed to adjust, legally. You're supposed to be able to get them so the central mass of the cushion is level with the central mass of the person's head sitting in the seat - about eye level. So they can prevent neck injuries in the event of an accident. So maybe they're just seized because they haven't been moved in a long while.

  14. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    2,815
    Likes Received:
    592
    Location:
    High Peak
    Yeah probably, l'll have to take off the seat back material and have a look.
