Def 90 300TDi Seat base to runner cross heads ??

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
marksman

marksman

Well-Known Member
Full Member
Posts
1,302
Location
Co Durham

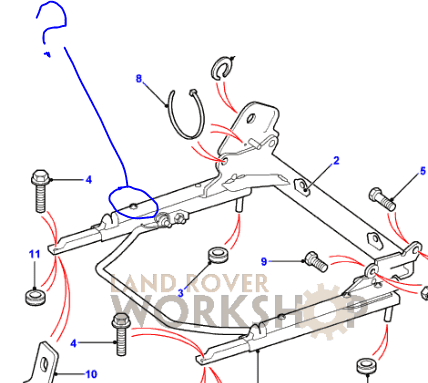

Does anyone know the part number for the countersunk domed head bolts that fix the seat base frame to the runners (circled blue in the diagram) there are 3 per side I have 2 missing and 1 stripped

Any assistance welcomed as ever


I don't think they are separate parts but just part of the sub-frame assembly which is a single part on its own!

Someone else may disagree!

Got mine out but 1 damaged and 2 weren't fitted previously ??
Don't suppose anyone has a scrap seat frame they can be removed from ?

If they are metric you should be able to get ones from a fastener place. Unless they have a special head...

Don't think the dome part would be critical or the crosshead.
Depends on the angle between the old and a new off the shelf one I suppose.
Countersunk stainless hex drive would look good if the angle is close.
