D4 Cam Belt Replacement

Discussion in 'Land Rover Discovery' started by micknkazzyfonce, Jul 29, 2021.

< Previous Thread | Next Thread >
  1. micknkazzyfonce

    micknkazzyfonce Member

    Joined:
    Oct 28, 2012
    Posts:
    50
    Likes Received:
    15
    Location:
    Cleethorpess
    Hi All
    Been watching a D4 3.0 sdv6 cam belt replacement during which they occasionally refer to "The Manual" on a laptop.
    The manual looks very good, great diagrams and comprehensive text.
    Is it possible as a simple owner to obtain such a digital document ?
    Any help or advice greatly appreciated.
    Regards Mick

  2. NPG

    NPG Well-Known Member

    Joined:
    Mar 29, 2019
    Posts:
    320
    Likes Received:
    151
    Location:
    Ireland
  3. micknkazzyfonce

    micknkazzyfonce Member

    Joined:
    Oct 28, 2012
    Posts:
    50
    Likes Received:
    15
    Location:
    Cleethorpess
    NPG. Apologies for the late reply, link worked well, all installed. I had no idea it is so comprehensive. I have written many work related procedures in a past life, but have to say this one is quite tricky, it seems to jump about a bit. Have managed to pin down the relevant sections now, so a few reads & re-reads should clarify things.
    Many thanks for your help, tying the various steps to the film of the task will help me decide whether to start it or not.
    Regards. Mick

  4. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    18,288
    Likes Received:
    16,234
    Location:
    Kent
    Not done aD4 belt, but did my D3, and have to say easy job, not saying thta as I am paid to pretend to be a mechanic, but it really is quite simple once all the crap is out of the way.
    Rear belt is timed on the D4.

  5. micknkazzyfonce

    micknkazzyfonce Member

    Joined:
    Oct 28, 2012
    Posts:
    50
    Likes Received:
    15
    Location:
    Cleethorpess
    Lynall. Did you remove the starter motor and lock the flywheel ?, I did read that it was not always deemed necessary & probably ignored.......
    Regards. Mick

  6. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    18,288
    Likes Received:
    16,234
    Location:
    Kent
    Nope just marked flywheel, but did pin camshafts.
    This was 6 years ago now, and they need doing again I have bought the timing kit so may try using them out of curio.

  7. micknkazzyfonce

    micknkazzyfonce Member

    Joined:
    Oct 28, 2012
    Posts:
    50
    Likes Received:
    15
    Location:
    Cleethorpess
    Interesting; It was on Powerful UK video that they were deciding to or not to, but did it for the benefit of filming it.
    Given the probable cost (had D3 belt changed around 5yrs ago) buying a belt, tensioner, and the tools, timing kit + fan spanners would be around £150 so a big saving
    and incentive.

    lynall likes this.
  8. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    18,288
    Likes Received:
    16,234
    Location:
    Kent

    Parts prices have defo gone up I rckon you can add at leats another 100/150 to that parts bill, dont forget you also want the two idler pulleys for the cambelt as well, good practics to change water pump as well, plus fan belt and tensioners/idlers if they need doing.
    Basically if it moves/rotates double check it whilst you are in there.

    Iirc both belts at a garage are somewhere near .6 to 1k, which in my mind is madness.

  9. micknkazzyfonce

    micknkazzyfonce Member

    Joined:
    Oct 28, 2012
    Posts:
    50
    Likes Received:
    15
    Location:
    Cleethorpess
    Thanks for the info, had been thinking that as I don't have the luxury of leaving it half done waiting for any parts. When you say "both belts" do you mean front & rear timing belts or front timing belt & auxiliary belt.
    I'll have to do more work on the shopping list then, but sure even doubling it will be ok.
    One question, how do you get the fan cover (removable section) off ? been doing some pre-cleaning and familiarisation, but cannot release the clip from either side, hoping they aren't a once only fastening.
    Thanks once more for your wise words.

    lynall likes this.
  10. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    18,288
    Likes Received:
    16,234
    Location:
    Kent
    No idea on cowling as not done a D4, youtube would be my first port of call, but you can guarantee if it is difficult they will gloss over that part of the job!

  11. micknkazzyfonce

    micknkazzyfonce Member

    Joined:
    Oct 28, 2012
    Posts:
    50
    Likes Received:
    15
    Location:
    Cleethorpess
    Yep, it appears the previous owner of the one in the video gave up and snapped them off , drilled holes and ty-wrapped it.
    They have to undo so undo they will. On with the shopping list.
    Thanks again for your help, this site is a goldmine of help to the "it can't be that hard people"
    Regards. Mick

    lynall likes this.
  12. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    18,288
    Likes Received:
    16,234
    Location:
    Kent

    This is without a shadow of a doubt the best land rover forum out there.
    But it can be thin on info for the newer models, D3 are now getting into the enthustiasts price brackets, D4 are still outside it at the minute, but it wont be long.

    The Disco3 forum covers 3/4 and 5 models, the guy who owns the forum/s seems pretty switched on, and some of the members are very very clever sods, some are of course stuck up their own arse dingbats, you know the sort how dare the oiks buy the same car I have!
    Ps added last bit as I guarantee it will appear on the other forum:D

    Andy Warren likes this.
  13. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    26,491
    Likes Received:
    10,404
    Location:
    Swanley , Kent
    hi mate

    mine are due again in another 2 x years but alas got to get a garage to do mine and expect a 1k bill, just can’t do them myself with the way my back is , even though I’ve only covered a few 1,000 mile I’ll still get them all done, including another oil pump cover and another water pump, plus the rear belt , would rather spend a grand than 4-5k for a new engine

    @micknkazzyfonce , hi

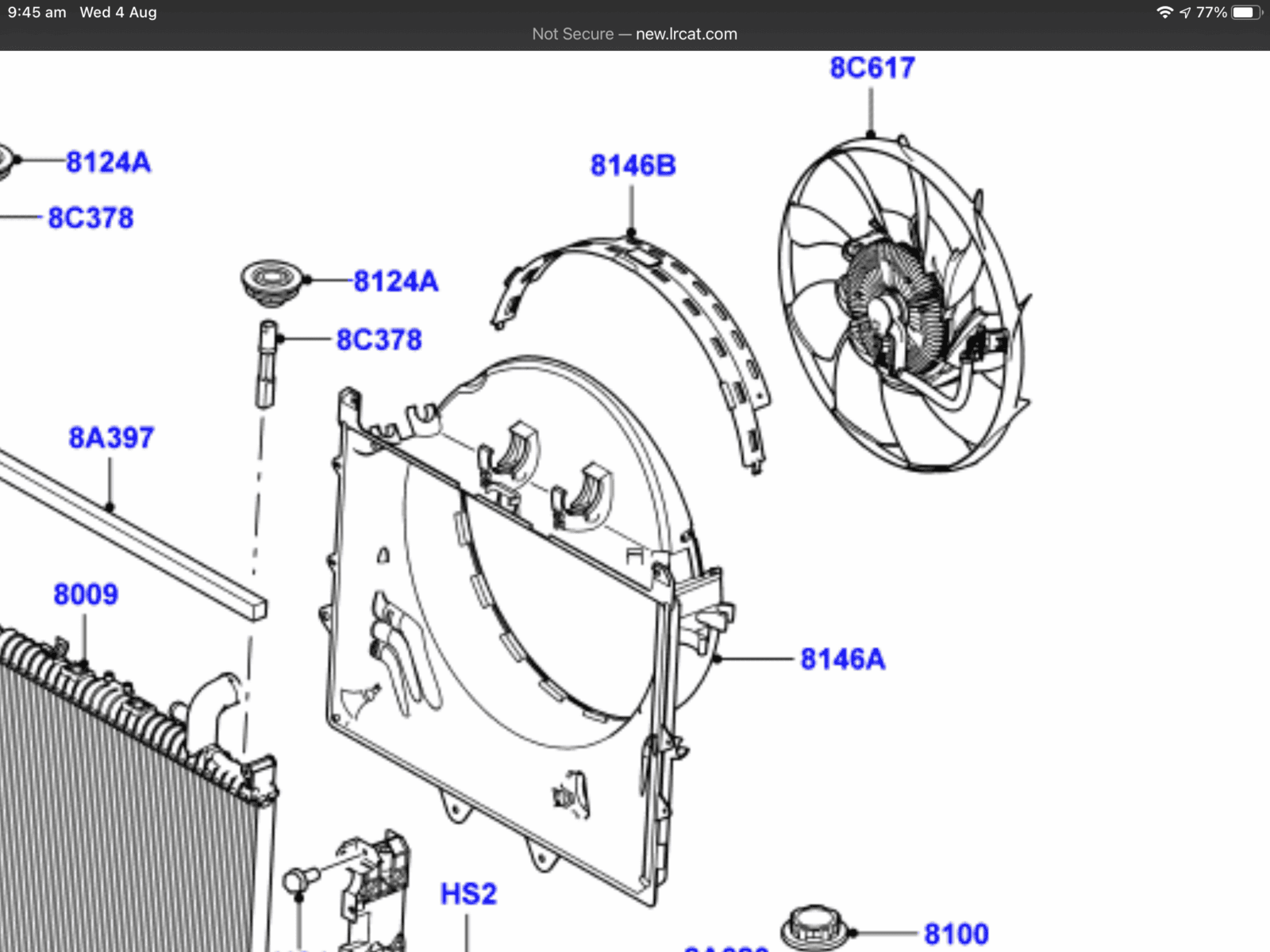

    ref the cowl, put some pics below, see the D3 and D4 are different

    hope that helps a little

    Last edited: Aug 4, 2021
  14. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    26,491
    Likes Received:
    10,404
    Location:
    Swanley , Kent
    .. double post

  15. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    26,491
    Likes Received:
    10,404
    Location:
    Swanley , Kent
  16. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    18,288
    Likes Received:
    16,234
    Location:
    Kent
    In your case as you know the history of the car/parts, I would just do the cam belt, oil pump waste of money same as water pump and tensioners/idlers etc.

    gstuart likes this.
  17. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,083
    Likes Received:
    1,447
    Location:
    south east london
    Gary mate when it needs doing il have my mate John do it for you, it won't cost a grand

    gstuart likes this.
  18. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    26,491
    Likes Received:
    10,404
    Location:
    Swanley , Kent
    hi buddy

    that would be an enormous help, bless u as always my friend

    hope ur keeping well my friend and many thks as always

    ps, will drop u a pm

  19. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    26,491
    Likes Received:
    10,404
    Location:
    Swanley , Kent
    that’s true , just thought for that little bit extra would give me peace of mind so then I know I’ve done everything possible to keep it 100% maintained , but see where ur coming from

  20. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,083
    Likes Received:
    1,447
    Location:
    south east london
    John's confirmed if it has had the uprated fomoco oil pump then it will only need belts and tensioners

    gstuart likes this.
